AM730 asymmetric rim profile carbon 650b carbon rims mtb

Buy & Configure

Global warehouse ship to most countries while the North America warehouse only ship to the United States and Canada

GLOBAL OPTIONS
NORTH AMERICA OPTIONS
  • 1

    RIM

  • 2

    ACCESSORIES

  • 3

    OVERVIEW

RIM

Hole Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples only. If you have a custom drilling requirements please e-mail us and we'll send you a purchasing link.

16H

18H

20H

24H

28H

32H

36H

Finish This is a required option.

Our Recon Pro and Falcon Pro rims feature BlackTek and come out of molds as a finished product, with a scratch resistant and near flawless finish, eliminating the need for sanding or painting.

paintless

Weave This is a required option.

UD

Rim Warranty This is a required option.

For Recon Pro Series ( MTB rim), Falcon Pro (road rim) and Drift Pro (fatbike rim), 5-year warranty is set as standard, and optional Lifetime Premium Warranty are kindly offered to purchase with minimum charge respectively.

5 Years

Lifetime USD +50/rim

Decal This is a required option.

The stock graphic is a glossy black waterslide for a subtle look. Avery vinyl logo-kits are available in 11 colours. The vinyl is replaceable and easy to install.

No

Black

Blue

Green

Magenta

Orange

Red

White

Yellow

Silver

Gold

Turquoise

Purple

Valve Stem This is a required option.

We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

One 10 yard roll of tape will be included. It is typically covers 2 rims with two laps each or 4 rims with one lap each.The high tensile tubeless tape features a natural rubber adhesive that does not leave a residue on the rims. On mountain bike rims, one layer of 18mm width tape is strong enough to seal the access holes which makes for the lightest tubeless setup.
Instructions of tubeless rim tape

None

Add Tubeless Tape USD +6 each

asymmetric-650b-paintless-rim

In Stock, typically ships within 2 business days

In Stock, typically ships within 2 business days

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Recon Pro orders start shipping in October.

- + PCS

Hole Count This is a required option.

ROAD Product
Road rim brake: Stocked in 20h and 24h
Road disc: Stocked in 24h and 28h

MTB Product
MTB rims: Stocked in 32h. Only XC Flyweight rims are stocked in 28h as well as 32h
Please note that our valves are drilled for presta and spoke holes are made for external nipples only. If you have a custom drilling requirements please contact us.

32H

Finish This is a required option.

Our Recon Pro and Falcon Pro rims feature BlackTek and come out of molds as a finished product, with a scratch resistant and near flawless finish, eliminating the need for sanding or painting.

paintless

Weave This is a required option.

UD

Rim Warranty This is a required option.

For Recon Pro Series ( MTB rim), Falcon Pro (road rim) and Drift Pro (fatbike rim), 5-year warranty is set as standard, and optional Lifetime Premium Warranty are kindly offered to purchase with minimum charge respectively.

5 Years

Lifetime USD +50/rim

Decal This is a required option.

The stock graphic is a glossy black waterslide for a subtle look. Avery vinyl logo-kits are available in 11 colours. The vinyl is replaceable and easy to install.

Black (Stock)

Blue

Green

Magenta

Orange

Red

Yellow

White

Silver

Gold

Turquoise

Purple

Valve Stem This is a required option.

We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

We use a tubeless tape with high tensile strength and only one lap is required so it is very light. It uses a natural rubber adhesive that does not leave any residue on the rims.

If you would like to purchase an additional roll of tape (not installed), then you can find that in the accessories section here- Buying Tubeless Rim Tape

None

Apply Tubeless Tape USD +8 each

asymmetric-650b-paintless-rim

In Stock, typically ships within 2 business days

In Stock, typically ships within 2 business days

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Recon Pro orders start shipping in October.

- + PCS

Weight: 425.00g+/-15

Final total: USD 279+

Weight: 425.00g+/-15

Final total: USD 299+

PREVIOUS NEXT You missed some options. You missed some options.

Added to cart! View cart or continue shopping.

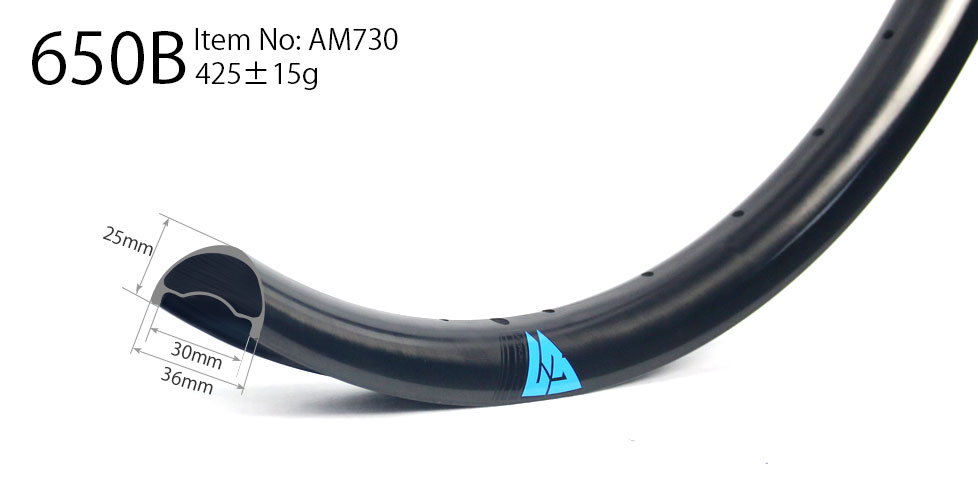

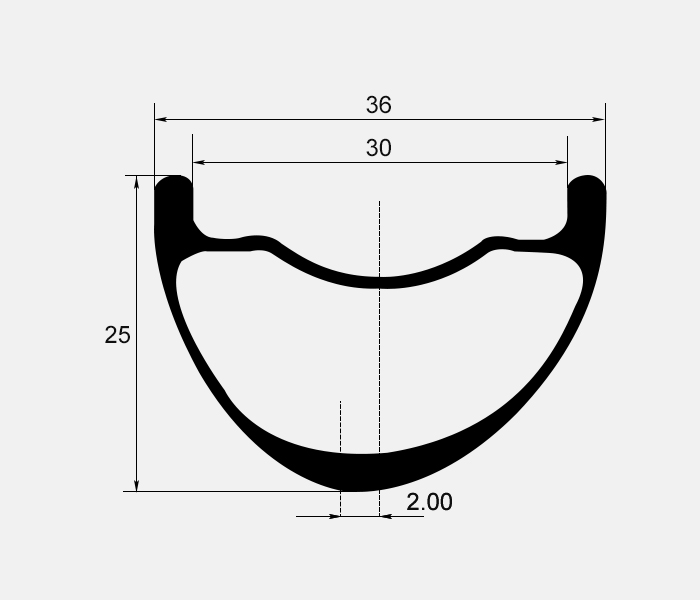

RIM SPECS

  • Size 650B
  • Use All Mountain
  • Type Hookless
  • Tubeless Ready
  • Inner/Outer Width 30mm/36mm
  • Depth 25mm
  • ERD 551mm (not including nipple head dimension)
  • Weight 425+/-15g
  • Offset 2mm (asymmetric)
  • Weight Limit 135kg
  • Spoke Hole Angle ±6°
  • Spoke Tension 145kgf
  • Tyre Pressure 20-40psi recommended
  • Tire 2.2" ~ 2.7" recommended

Teleport to the wheelset building page.

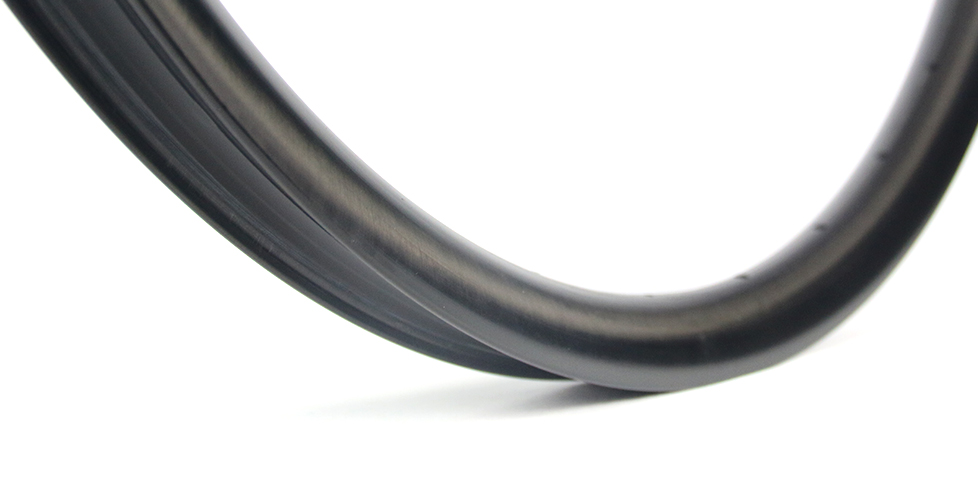

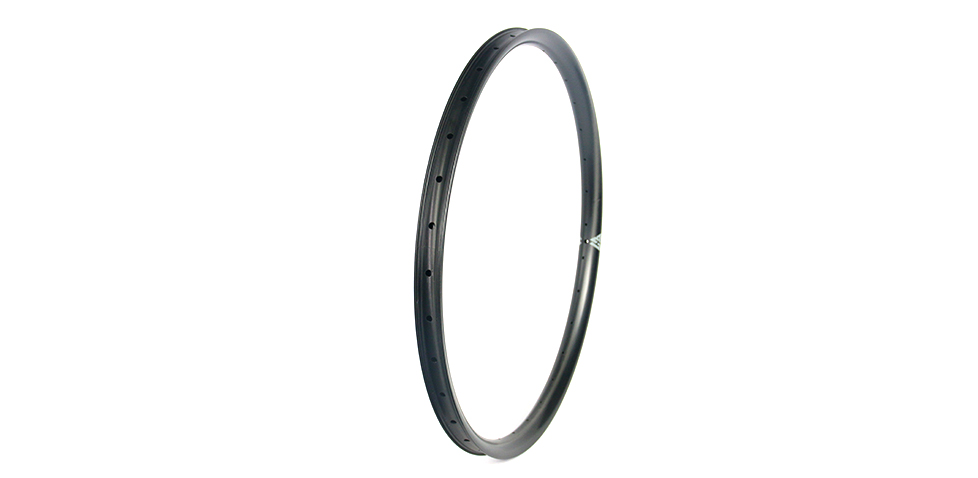

Our new wide format All Mountain rim is a show stopper with its new scratch resistant BlackTek finish. Run all your favourite high volume tires and enjoy the benefits of our modern asymmetric profile.

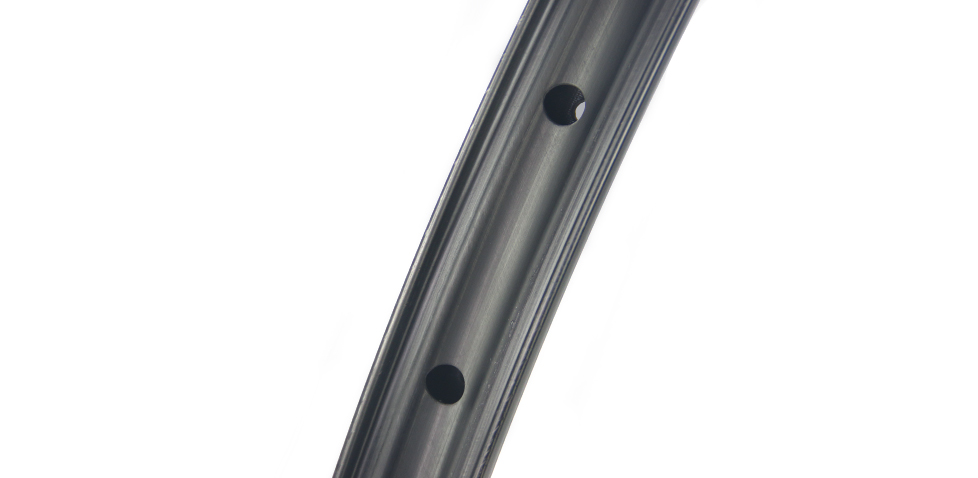

The 30mm internal width has become one of the most popular widths in recent years, and for good reason! With the advancement of lightweight wide carbon rims, you get the traction and high volume benefits of a wide rim without all of the added weight. The AM730’s will give you a more reliable tubeless fit, increased stiffness, and significantly lower weight over a stock wheelset. Breath new life into your bike!


ExoTek: ExoTek-applied rims are designed to come out of the molds as a finished product which requires the most high quality manufacturing processes. The new resin system has superior consistency and forms the smoothest and most durable finish we’ve ever created. From a lengthened fatigue life to more robust interlaminar bonds, ExoTek raises the bar in performance and aesthetic.


EcoTek : Built from the highest grade of steel, we’ve engineered a completely new series of molds and developed a process that delivers a near flawless product. More time is taken through the layup and assembly process so that no post-production finishing is required. This new process is more environmentally friendly because it requires less heating cycles, no sanding, and no painting.

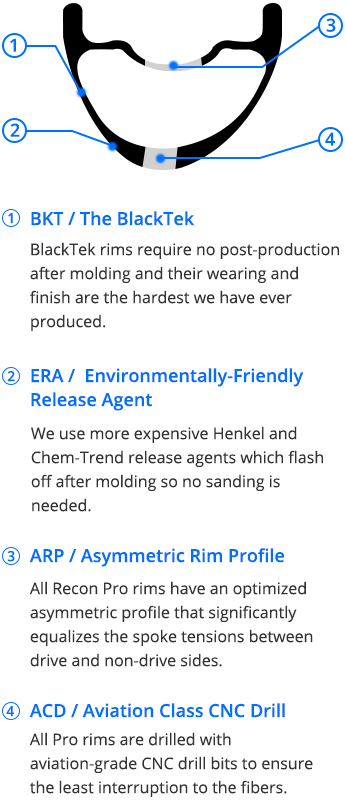

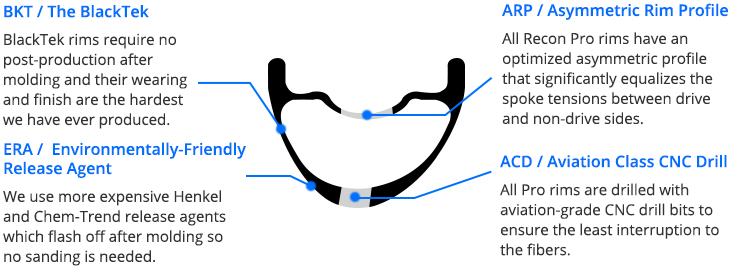

BlackTek : Rims featuring BlackTek come out of the molds as a finished product. Traditionally, rims are wet-sanded to remove imperfections like excess resin and then sprayed with a clearcoat. BlackTek rims come with a factory finish and the outer carbon layer is never disturbed after the curing cycle is completed. This is the most hard wearing and scratch resistant finish we have ever produced.


Asymmetric : Over the years, we’ve optimized an asymmetric profile that maintains the outright impact performance of a symmetric design but enjoys the benefits of offset spoke holes. This design significantly equalizes spoke tension between drive and non-drive spokes which results in a stronger wheel build that stays true longer.


Tubeless : All of our rims are tubeless compatible with bead seat retention. In most cases a floor pump is all that is needed to seal our rims. The bead shape is tailored to each rim width to achieve the best fit. Our hookless and clincher profiles have a smooth radius to reduce the chance of a pinch flat.


For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Know more about the warranty policy >>

GALLERY

Adventure collection from all over the world.

LEARN MORE

COMMENTS

M

Michael 2019/01/23

I'd like to add your RM650BC05 or AM730 asymmetric rims to a pair of industry nine 24-spoke trail wheels. I'm not sure if you are familiar with industry nine but they do not use traditional spoke nipples. They use a one piece aluminum spoke that drops in through the rim and threads directly into the hub flange. They claim they require a ERD of at least 556. Please advise.


LightBicycle 2019/01/23

Hi Michael, We got your message! Are you Industry Nine straight pull hubs? If yes, we are not familar with it, I9 straight pull hubs are only used for their own wheels. We only build wheels with I9 J-bend hubs here. You can check our ERD measure on below link. It is Rim Outer diameter-2*rim depth+2* spoke hole wall thickness. https://www.lightbicycle.com/support/technology Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

K

Kevin 2018/11/27

Hi Light Bicycle, Can you please send me the file for AM730 so I can look at how my hubs will lace up to these rims... thanks Kevin


LightBicycle 2018/11/27

Hi Kevin, We sent AM730 650B rim profile to your email address. If you need to caculate the spoke length, we can help you and let us know below information. 1. your lacing pattern 2. hub dimension as attached picture. 3. What spokes and nipples will you use? 4. internal nipple hole or external nipples? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Z

Zack 2018/11/15

Hi, Is this new rim strong like rm650bc13 38mm?? Im 90kg and love to ride rocks,roots and steep terrain, and do not want to use cushcore. Is this suitable? Thanks in advance


LightBicycle 2018/11/16

Hi Zack, The 650B rim you are looking at is our newly launched paintless (scratch proof) rim AM730, which is a stronger rim than RM650BC13. Are you familar with our new technology? I sent file through email to you. Please check. Thanks, Lightbicycle
