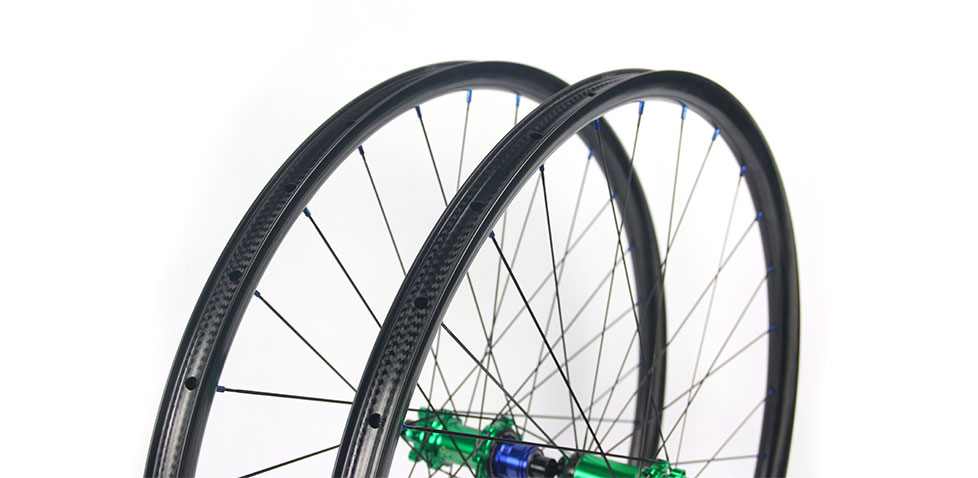

Hand-built EN932 asymmetric rim profile carbon fiber mtb 29er wheels

    •

Buy & Configure

Global warehouse ship to most countries while the North America warehouse only ship to the United States and Canada

GLOBAL OPTIONS
NORTH AMERICA OPTIONS
  • 1

    HUB

  • 2

    SPOKES/NIPPLES

  • 3

    RIM

  • 4

    ACCESSORIES

  • 5

    OVERVIEW

HUB

Hub Brand This is a required option.

Model Weight POE Cost Reliability Quality Unique Feature Color Options Warehouse Location Website
Hope 487g 44 Low Good Good Easy service Six China/N.A. HOPE
DT 180 290g EXP 36 High Best Best Super Light, EXP 36 One China/N.A. DT SWISS
DT 350 477g 18/36/54 Low Better Good Reliability, value One China/N.A. DT SWISS
DT 240S 395g 18/36/54 Medium Best Best Quiet and reliable
(18t option)		 One China/N.A. DT SWISS
DT 240S EXP 335g EXP 36 Medium Best Best Quiet and reliable
(EXP 36)		 One China/N.A. DT SWISS
Chris King ISO 508g 72 High Best Best Rebuildable Bearings
(18t option)		 Nine China CHRIS KING
Tune King/Kong 334g 24 High Better Best Light Nine China TUNE
Tune Princess/Prince 298g 24 High Good Best Super Light Nine China TUNE
Onyx Classic 623g Infinite High Better Better Silent, sprag clutch Twenty Three+
(Custom Available)		 North America ONYX
Onyx Vesper 586g Infinite High Better Better Silent, sprag clutch Six colors and
more to follow		 North America ONYX
Industry Nine 1/1 410g 90 Low Good Good Loud, engagement Black Only China/N.A. INDUSTRY NINE
Industry Nine Hydra 402g 690 Medium Better Best Loud, engagement Eleven China/N.A. INDUSTRY NINE

* POE = Points of Engagement

* DT hubs come standard with an 18t star ratchet but are upgradeable to 36 or 54t.

* Average weight will vary slightly depending on axle and freehub combination.

DT SWISS 180

DT SWISS 240S EXP

DT SWISS 240S

DT SWISS 350

Hope Pro 4

Chris King ISO AB / ISO B

Tune King / Kong

Tune Princess Skyline / Prince

Industry Nine Hydra

Industry Nine 1/1

Front Axle This is a required option.

Front-hub-axle

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, no Quick Release skewers are offered with hubs.

15 / 100mm

15 / 110mm BOOST

15 / 110mm RS-1

20 / 110mm

Lefty 1.0

QR / 100mm

Rear Axle This is a required option.

Rear-hub-axle

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, no Quick Release skewers are offered with hubs.

12 / 142mm

12 / 148mm BOOST

12 / 150mm

QR / 135mm

Freehub Body This is a required option.

Sram 9/10 speed and Shimano MTB 9/10/11 speed cassettes use the same Shimano Freehub.

The new Shimano XTR M9100 cassette uses the splined freehub.

Only the Sram 11/12 speed cassettes use the Sram XD freehub driver. SRAM has XX1, XX1 Eagle, X01, X01 Eagle, X1, GX, GX Eagle which all use the Sram XD freehub body.

If you are unsure, please contact us and we'll reach out to confirm your order.

Shimano MTB 10/11S

Sram XD

Shimano MTB 10/11S Alloy

Sram XD Alloy

Shimano Micro Spline

Shimano Micro Spline Alloy

Spoke Head This is a required option.

J-bend version: use J-bend hubs and spokes
Straight pull version: use straight pull hubs and spokes

straight pull

J-bend

Brake System This is a required option.

6-Bolt is the more common traditional option.
Centerlock uses a unique interface and it is also convertable to 6-bolt. If you need the conversion kit, please contact us.

6-bolt

Center lock

Hub Color This is a required option.

Black

Blue

Froggy Green

Gold

Matte Mango

Matte Slate

Orange

Red

Silver

Turquoise

Front Holes Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default. If you have a custom drilling requirements please e-mail us and we'll send you a purchasing link.

28H

32H

Rear Holes Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default. If you have a custom drilling requirements please e-mail us and we'll send you a purchasing link.

28H

32H

Ratchet This is a required option.

DT Swiss hubs use star ratchets and are available in 3 different models with varying points of engagement.

18T - Deepest teeth, slowest engagement, least amount of maintenance, suitable for powerful riders.

36T - Happy medium, doubles the engagement points.

54T - Super fast engagement, but shallow teeth require more careful re-greasing and the thru-axle should be checked every ride.

EXP 36 - With only a singlel spring, making the hubs faster and lighter, more complete engagement of the 36 ratchet teeth for more precise contact, and therefore a longer lifespan.

18T

24T

36T

44T

54T

690T

72T

90T

EXP 36

Spoke This is a required option.

Brand Model Type Thread Diameter (mm) Weight(g) Gauge Riding Style Available(Warehouse Location)
Sapim Race Double Butted 2.0 - 1.8 - 2.0 5.7g (260mm) 14G Heavy Duty North America, China
Sapim D-Light Double Butted 2.0 - 1.65 - 2.0 4.8g (260mm) 14G Versatile North America, China
Sapim CX-Ray Aero 2.0 - 0.9/2.3 - 2.0 4.4g (260mm) N/A Light Aero North America, China
DT SWISS Competition Race Double Butted 2.0 - 1.6 - 2.0 4.8g (260mm) 14G Versatile China
Pillar PSR X-TRA 1420 Aero 2.0 - 0.95/2.2 - 2.0 4.4g (260mm) N/A Inexpensive Aero China

Sapim D-Light – The best all-around and most popular spoke for carbon wheels. Lightweight but incredibly strong.
Sapim Race – Our strongest and stiffest spoke. These spokes are suitable for heavy or extremely aggressive riders who need a stiffer wheel.
Sapim CX-Ray – The lightest spoke in our lineup is still quite strong due to the elasticity and amazing fatigue life.

DT Competition Race - All Mountain and XC spoke used by the Chinese location as a substitue for the D-Light (depending on availability)

Pillar PSR X-TRA 1420 - An inexpensive bladed spoke, great for road and cyclocross riding.

Sapim CX Ray

Sapim D-Light

Nipple This is a required option.

Nipple Brand Model Material Color Length Available
(Warehouse Location)
Sapim Double Square Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 16mm Norh America
Sapim Polyax/ Polyax Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 14mm China
Sapim Polyax Secure Lock Brass Black 16mm China
DT Swiss DT SQUORX (PRO HEAD PRO LOCK) Alloy Black, Red 15mm China
DT Swiss Standard PRO LOCK Brass Black 14mm China

Aluminium Black

Aluminium Red

Brass Black

Finish This is a required option.

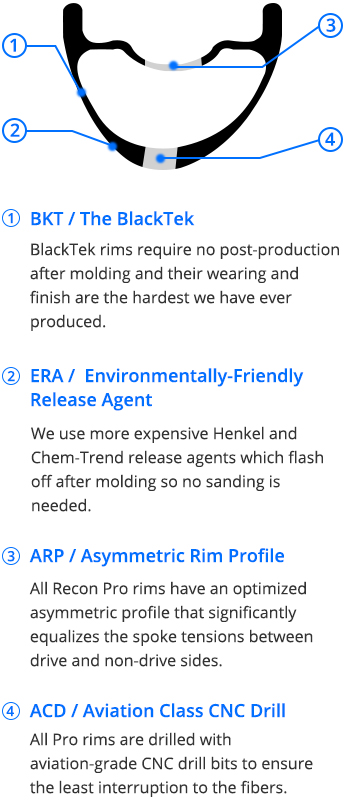

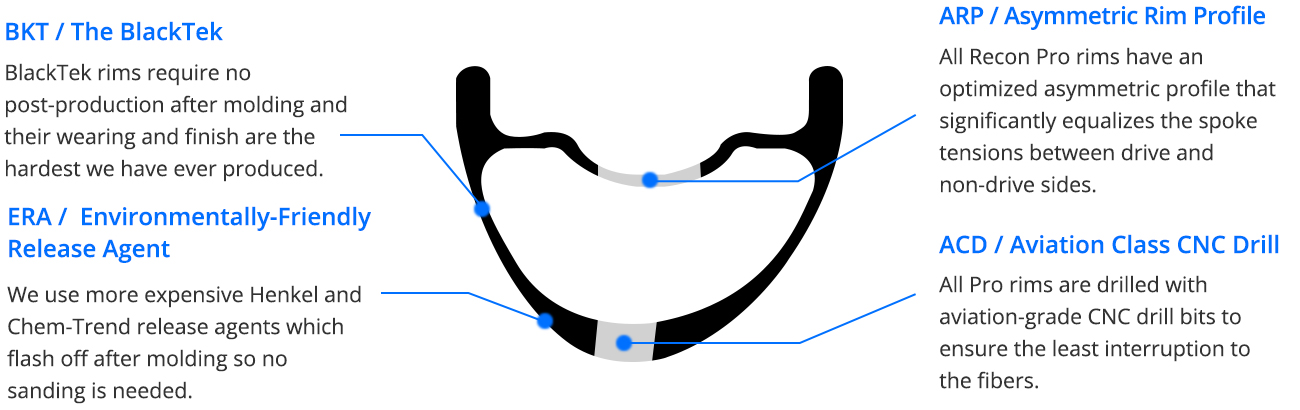

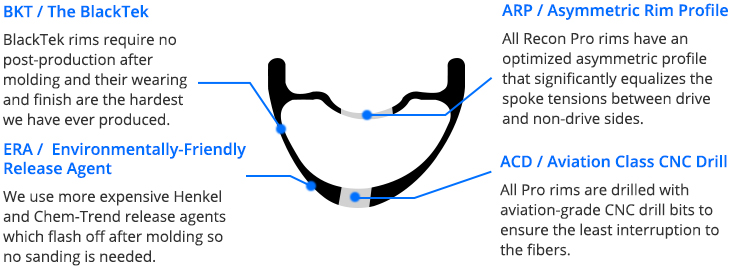

Our Recon Pro and Falcon Pro rims feature BlackTek and come out of molds as a finished product, with a scratch resistant and near flawless finish, eliminating the need for sanding or painting.

paintless

Weave This is a required option.

UD

Rim Warranty This is a required option.

For Recon Pro Series ( MTB rim), Falcon Pro (road rim) and Drift Pro (fatbike rim), 5-year warranty is set as standard, and optional Lifetime Premium Warranty are kindly offered to purchase with minimum charge respectively.

5 Years

Lifetime USD +50/rim

Decal This is a required option.

The stock graphic is a glossy black waterslide for a subtle look. Avery vinyl logo-kits are available in 11 colours. The vinyl is replaceable and easy to install.

No

Black

Blue

Green

Magenta

Orange

Red

White

Yellow

Silver

Gold

Turquoise

Purple

Valve Stem This is a required option.

We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

One 10 yard roll of tape will be included. It is typically covers 2 rims with two laps each or 4 rims with one lap each.The high tensile tubeless tape features a natural rubber adhesive that does not leave a residue on the rims. On mountain bike rims, one layer of 18mm width tape is strong enough to seal the access holes which makes for the lightest tubeless setup.
Instructions of tubeless rim tape

None

Add Tubeless Tape USD +6 each

29er-bike-wheels-mtb

Recon Pro orders start shipping in October.

- + Pair

Hub Brand This is a required option.

Model Weight POE Cost Reliability Quality Unique Feature Color Options Warehouse Location Website
Hope 487g 44 Low Good Good Easy service Six China/N.A. HOPE
DT 180 290g EXP 36 High Best Best Super Light, EXP 36 One China/N.A. DT SWISS
DT 350 477g 18/36/54 Low Better Good Reliability, value One China/N.A. DT SWISS
DT 240S 395g 18/36/54 Medium Best Best Quiet and reliable
(18t option)		 One China/N.A. DT SWISS
DT 240S EXP 335g EXP 36 Medium Best Best Quiet and reliable
(EXP 36)		 One China/N.A. DT SWISS
Chris King ISO 508g 72 High Best Best Rebuildable Bearings
(18t option)		 Nine China CHRIS KING
Tune King/Kong 334g 24 High Better Best Light Nine China TUNE
Tune Princess/Prince 298g 24 High Good Best Super Light Nine China TUNE
Onyx Classic 623g Infinite High Better Better Silent, sprag clutch Twenty Three+
(Custom Available)		 North America ONYX
Onyx Vesper 586g Infinite High Better Better Silent, sprag clutch Six colors and
more to follow		 North America ONYX
Industry Nine 1/1 410g 90 Low Good Good Loud, engagement Black Only China/N.A. INDUSTRY NINE
Industry Nine Hydra 402g 690 Medium Better Best Loud, engagement Eleven China/N.A. INDUSTRY NINE

* POE = Points of Engagement

* DT hubs come standard with an 18t star ratchet but are upgradeable to 36 or 54t.

* Average weight will vary slightly depending on axle and freehub combination.

DT SWISS 350

Hope Pro 4

Industry Nine Hydra

Industry Nine 1/1

Onyx Classic

Onyx Vesper

Front Axle This is a required option.

Front-hub-axle

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, no Quick Release skewers are offered with hubs.

15 / 100mm

15 / 100mm Torque

15 / 110mm BOOST

15 / 110mm RS-1

15 / 110mm Torque

20 / 110mm

20 / 110mm BOOST DH

20 / 110mm Old DH

Lefty 1.0

Lefty 2.0 Supermax

QR / 100mm

Rear Axle This is a required option.

Rear-hub-axle

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, no Quick Release skewers are offered with hubs.

12 / 142mm

12 / 148mm BOOST

12 / 150mm

12 / 157mm

12 / 157mm Super BOOST

QR / 135mm

Single Speed

Freehub Body This is a required option.

Sram 9/10 speed and Shimano MTB 9/10/11 speed cassettes use the same Shimano Freehub.

The new Shimano XTR M9100 cassette uses the splined freehub.

Only the Sram 11/12 speed cassettes use the Sram XD freehub driver. SRAM has XX1, XX1 Eagle, X01, X01 Eagle, X1, GX, GX Eagle which all use the Sram XD freehub body.

If you are unsure, please contact us and we'll reach out to confirm your order.

Shimano MTB 10/11S Alloy

Shimano MTB 10/11S Steel

Sram XD Alloy

Sram XD Steel

Shimano Micro Spline Alloy

Spoke Head This is a required option.

J-bend version: use J-bend hubs and spokes
Straight pull version: use straight pull hubs and spokes

J-bend

Brake System This is a required option.

6-Bolt is the more common traditional option.
Centerlock uses a unique interface and it is also convertable to 6-bolt. If you need the conversion kit, please contact us.

6-bolt

Center lock

Hub Color This is a required option.

3-color-options-of-Onyx-racing-hubs

If you don't see the color option you're looking for, please choose another option listed online and proceed to checkout, and leave us a note with your preference in the checkout notes or by emailing sales@lightbicycle.com once ordered.


Powdercoat Options: Black Chrome, Blue Baby, Blue Candy, Gold, Green Antifreeze, Green Fluorescent, Green Kawasaki, Black Aura, Orange Fluorescent, Pink Fluorescent, Purple Candy, Red Candy, White Frost, Yellow Cardinal, Yellow Fluorescent.

Anodized-Black

Anodized-Black Matte

Anodized-Blue

Anodized-Green

Anodized-Orange

Anodized-Purple

Anodized-Red

Anodized-Silver

Black

Blue

Gold

Green

Lime

Orange

Pink

Purple

Red

Silver

Turquoise

Front Holes Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default. If you have a custom drilling requirements please e-mail us and we'll send you a purchasing link.

32H

Rear Holes Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default. If you have a custom drilling requirements please e-mail us and we'll send you a purchasing link.

32H

Ratchet This is a required option.

DT Swiss hubs use star ratchets and are available in 3 different models with varying points of engagement.

18T - Deepest teeth, slowest engagement, least amount of maintenance, suitable for powerful riders.

36T - Happy medium, doubles the engagement points.

54T - Super fast engagement, but shallow teeth require more careful re-greasing and the thru-axle should be checked every ride.

EXP 36 - With only a singlel spring, making the hubs faster and lighter, more complete engagement of the 36 ratchet teeth for more precise contact, and therefore a longer lifespan.

18T

36T

44T

54T

690T

90T

Sprag Clutch

Spoke This is a required option.

Brand Model Type Thread Diameter (mm) Weight(g) Gauge Riding Style Available(Warehouse Location)
Sapim Race Double Butted 2.0 - 1.8 - 2.0 5.7g (260mm) 14G Heavy Duty North America, China
Sapim D-Light Double Butted 2.0 - 1.65 - 2.0 4.8g (260mm) 14G Versatile North America, China
Sapim CX-Ray Aero 2.0 - 0.9/2.3 - 2.0 4.4g (260mm) N/A Light Aero North America, China
DT SWISS Competition Race Double Butted 2.0 - 1.6 - 2.0 4.8g (260mm) 14G Versatile China
Pillar PSR X-TRA 1420 Aero 2.0 - 0.95/2.2 - 2.0 4.4g (260mm) N/A Inexpensive Aero China

Sapim D-Light – The best all-around and most popular spoke for carbon wheels. Lightweight but incredibly strong.
Sapim Race – Our strongest and stiffest spoke. These spokes are suitable for heavy or extremely aggressive riders who need a stiffer wheel.
Sapim CX-Ray – The lightest spoke in our lineup is still quite strong due to the elasticity and amazing fatigue life.

DT Competition Race - All Mountain and XC spoke used by the Chinese location as a substitue for the D-Light (depending on availability)

Pillar PSR X-TRA 1420 - An inexpensive bladed spoke, great for road and cyclocross riding.

Sapim CX Ray

Sapim D-Light

Sapim Race

Nipple This is a required option.

Nipple Brand Model Material Color Length Available
(Warehouse Location)
Sapim Double Square Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 16mm Norh America
Sapim Polyax/ Polyax Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 14mm China
Sapim Polyax Secure Lock Brass Black 16mm China
DT Swiss DT SQUORX (PRO HEAD PRO LOCK) Alloy Black, Red 15mm China
DT Swiss Standard PRO LOCK Brass Black 14mm China

Why no brass option? The North America warehouse uses Sapim double square secure lock alloy nipples. The oversized head offers 100% thread engagement and a significant increase in strength. The corrosion-resistant anodized treatment makes the need for heavy brass nipples irrelevant. If you want black brass nipples regardless, you can let us know in the notes section at checkout

Aluminium Black

Aluminium Red

Aluminium Blue

Aluminium Gold

Aluminium Green

Aluminium Lime

Aluminium Orange

Aluminium Purple

Finish This is a required option.

Our Recon Pro and Falcon Pro rims feature BlackTek and come out of molds as a finished product, with a scratch resistant and near flawless finish, eliminating the need for sanding or painting.

paintless

Weave This is a required option.

UD

Rim Warranty This is a required option.

For Recon Pro Series ( MTB rim), Falcon Pro (road rim) and Drift Pro (fatbike rim), 5-year warranty is set as standard, and optional Lifetime Premium Warranty are kindly offered to purchase with minimum charge respectively.

5 Years

Lifetime USD +50/rim

Decal This is a required option.

The stock graphic is a glossy black waterslide for a subtle look. Avery vinyl logo-kits are available in 11 colours. The vinyl is replaceable and easy to install.

Black (Stock)

Blue

Green

Magenta

Orange

Red

Yellow

White

Silver

Gold

Turquoise

Purple

Valve Stem This is a required option.

We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

We use a tubeless tape with high tensile strength and only one lap is required so it is very light. It uses a natural rubber adhesive that does not leave any residue on the rims.

If you would like to purchase an additional roll of tape (not installed), then you can find that in the accessories section here- Buying Tubeless Rim Tape

None

Apply Tubeless Tape USD +8 each

29er-bike-wheels-mtb

Recon Pro orders start shipping in October.

- + Pair

Weight: 1565.00g+/-25

Final total: USD 929+

Weight: 1000.00g+/-25

Final total: USD 668+

PREVIOUS NEXT You missed some options. You missed some options.

Added to cart! View cart or continue shopping.

RIM SPECS

  • Size 29er
  • Use Enduro/DH
  • Type Hookless
  • Tubeless Ready
  • Inner/Outer Width 32mm/38mm
  • Depth 25mm
  • ERD 588mm (not including nipple head dimension)
  • Weight 500+/-15g
  • Offset 2mm (asymmetric)
  • Spoke Hole Angle ±7°
  • Weight Limit 145kg
  • Spoke Tension ≤145kgf recommended
  • Tyre Pressure 20-40psi recommended
  • Tire 2.3" ~ 3.1" recommended

Teleport to the rim page.

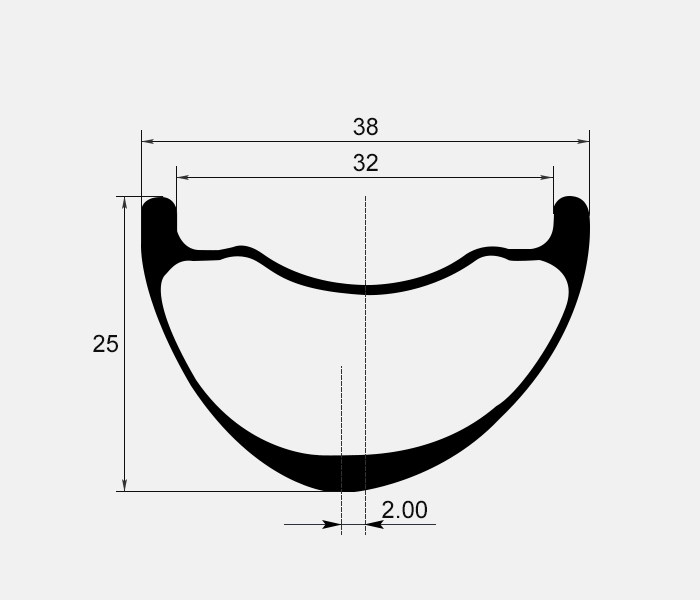

MTB carbon rim profile

The new Enduro workhorse in our lineup is ready for today's hard charging riders and racers. A heavily reinforced layup and new manufacturing technique will bring newfound confidence to your ride.


Targeted towards the high demands of top level enduro racing, the EN932 features a 32mm internal width, making it suited to the new breed of wide trail tires in the 2.3-2.8'' range. This wheelset is stiff and precise for exceptional tracking through rough terrain, featuring a heavy duty layup with thickened sidewalls for increased protection against rock strikes and impact resilience. These wheels are suitable for heavier riders, and feel at home on longer travel bikes.


E-bike Approved! This wheel is designed to be compatible with mid-drive e-bikes.

ExoTek: ExoTek-applied rims are designed to come out of the molds as a finished product which requires the most high quality manufacturing processes. The new resin system has superior consistency and forms the smoothest and most durable finish we’ve ever created. From a lengthened fatigue life to more robust interlaminar bonds, ExoTek raises the bar in performance and aesthetic.


EcoTek : Built from the highest grade of steel, we’ve engineered a completely new series of molds and developed a process that delivers a near flawless product. More time is taken through the layup and assembly process so that no post-production finishing is required. This new process is more environmentally friendly because it requires less heating cycles, no sanding, and no painting.


BlackTek : Rims featuring BlackTek come out of the molds as a finished product. Traditionally, rims are wet-sanded to remove imperfections like excess resin and then sprayed with a clearcoat. BlackTek rims come with a factory finish and the outer carbon layer is never disturbed after the curing cycle is completed. This is the most hard wearing and scratch resistant finish we have ever produced.


Asymmetric : Over the years, we’ve optimized an asymmetric profile that maintains the outright impact performance of a symmetric design but enjoys the benefits of offset spoke holes. This design significantly equalizes spoke tension between drive and non-drive spokes which results in a stronger wheel build that stays true longer.


Tubeless : All of our rims are tubeless compatible with bead seat retention. In most cases a floor pump is all that is needed to seal our rims. The bead shape is tailored to each rim width to achieve the best fit. Our hookless and clincher profiles have a smooth radius to reduce the chance of a pinch flat.


For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Know more about the warranty policy >>

GALLERY

Adventure collection from all over the world.

LEARN MORE

COMMENTS

E

Eric 2020/01/06

Hi, Who were the OME brands you used to manufacture for? I currently run this wheelset on my scott gambler and would like to replace Syncros Revelsoke DH 1.5 / 110x20 Boost front / 157x12 rear / 29" / 32H / Tubeless Ready Rims I'm an aggressive DH rider, 90kg, ride 2.5" tires do you have a hub option? I use sram free hub https://www.scott-sports.com/au/en/product/scott-gambler-900-tuned-bike

LightBicycle 2020/01/06

Hi Eric, Thanks for your reaching out! We manufacture for quite a few brands. Most of them are in USA and Europe. But we can not tell you their company names. We signed confidentiality agreement with each company. We can build 29er wheelset with front 20*110mm boost DH/rear 12*157mm super boost. We have Onyx and I9 and Hope hubs. Which do you prefer? Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

P

Peter 2019/09/09

Hi I'm looking Wheel set to replace my Syncros Silverton 2.5, 25mm tubeless ready, 28 hole Syncros Silverton 2.5, 6 bolt, XD driver, 15x110mm (front), 12x148mm Boost (rear), DT RWS lever Syncros Silverton 2.5 Maxxis Rekon Race 29 x 2.35", TR, EXO, 120 tpi, Kevlar Bead, Syncros Eco Sealant (front and rear) will this be the right Wheel set ?

LightBicycle 2019/09/09

Hi Peter, Could you be more specific about your riding style so I can know which rim would be the best-fit for you? What kind of riding you usually do? The rim EN932(RECON PRO, 38mm wide) will compatible with your tires just fine. In fact, this is the strongest 29er enduro bike wheelset we have online currently if you consider yourself as an aggressive rider or riding on tough terrain often, it would be a good choice for you. Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

G

Gr8N8 2019/05/31

Hello, I submitted 3X for a quote for a front wheel and never got any response hence I'm communicating here.

LightBicycle 2019/06/01

Hi Sir, Sorry, i just found your inquiries in spam list. We just replied all your three 29er wheelset quotation through email. Have you got it? Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

D

David 2019/04/08

Dears I am a bikes and part distributor in Ecuador, i would like to know the terms and conditions to work whit your brand. Thanks and good day.

LightBicycle 2019/04/19

Hi David, In order to get to know you better, could you tell us a little about your background? Also, it would be helpful if you could answer the following. We realize some of this may be confidential and in development, so just answer what you can share with us thus far. 1. Where (geographically) is the target market for this rim? 2. How do you plan to sell the product? Direct sales, distributors, bike shops etc? 3. Packaging requirements? 4. Graphics requirements? 5. Do you have rim finish in mind? Thanks, lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

LEAVE COMMENTS

We are here for you if you need any assistance.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.
