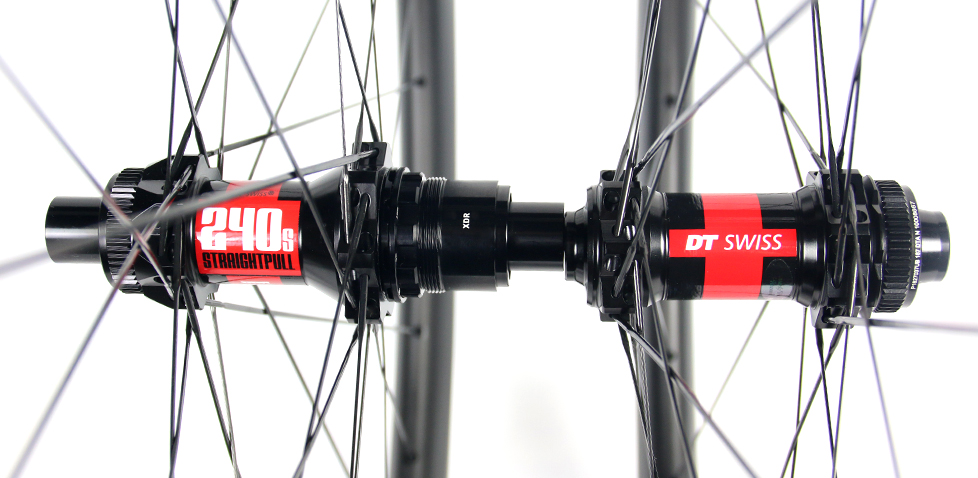

Carbon wheels laced with DT Swiss 240s hubs

Build Your Falcon WHEELSET R35 DISC Road/CX

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

Global Shop

NA Shop

EU Shop

AU Shop

Ships worldwide. See what's on sale>>

Drain Hole This is a required option.

With Drain Holes

Center Channel Hole This is a required option.

No Access Holes

Version This is a required option.

Front Flyweight / Rear Standard

Weave This is a required option.

Braided UD

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h

Paintless, UD, blank (no decal), 28h, with access holes

Standard, paintless, hook, blank (no decal), 24h, with drain holes, without access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12/100mm (F) & 12/142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

DT Swiss 350 straightpull centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18t ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

2 valves & 1 spare 18t ratchet

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD +

Lead time: typically ships in 2 days

ADD TO CART You missed some options.

We do not stock this item at the European warehouse. See what we stock currently.

You can order this product from our Global or North American warehouse.

Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.

Center Channel Hole This is a required option.

No Access Holes

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h, with drain holes

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD + (discount price)

Lead time: typically ships in 3 business days

ADD TO CART You missed some options.

We do not stock this item at the Australian shop. See what's available.

You can order this product from our Global / NA shops.

Please fill out this form if you are looking for a custom wheelset.

We'll get back to you soon to study the customization requests via email.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the North American warehouse. Check this link to see what items we stock, or send us an email to discuss.

Our Global warehouse can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelset. We will get back to you via email to discuss in 24hrs.

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

Quick Buy (In Stock)

Full Custom (Made to Order)

DEFAULT SETTINGS

Rims

Hook, matte, UD, with drain holes

Hook, matte, UD, with access holes, with drain holes

Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes

Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes

Paintless, UD, 5-year warranty, no drain holes

Grooved graphene surface, hook, matte, UD, with access holes, with drain holes

Grooved graphene surface, hook, matte, UD, no access holes, with drain holes

Matte UD, 32H, Centered (Staggered)

Hubs

Hope Pro 4 Fatsno J-bend 6-bolt

15/150mm (F) & 12/197mm (R) Sram XD

Straightpull centerlock black 24H

12/100mm & 12/142mm

Shimano Road 11S

DT Swiss straightpull / Bitex j-bend, centerlock, 28H

J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H

15/110mm boost & 12/148mm boost Sram XD

DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear

100mm QR & 130mm QR Shimano Road 11S

Spokes

Sapim CX Ray black

Sapim D-Light

Accessories

No decals/valves/tape

No decals/valves/tape/pads

No decals/valves

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Hub Brand This is a required option.

Model	Weight	POE	Cost	Reliability	Quality	Unique Feature	Color Options	Warehouse Location	Website
Novatec	287g	27	Low	Good	Good	Inexpensive	Three	China	NOVATEC
Bitex	258g	24	Low	Good	Good	Light	Two	China	BITEX
DT 350	374g	18/36/54	Low	Better	Good	Quiet and reliable (18t option)	One	China	DT SWISS
DT 240S	317g	18/36/54	Medium	Best	Best	Quiet and reliable (18t option)	One	China/N.A.	DT SWISS
DT 240 EXP	299g	EXP 36	Medium	Best	Best	Quiet and reliable (EXP 36 )	One	China/N.A.	DT SWISS
DT 180	290g	EXP 36	High	Best	Best	Super Light, EXP 36	One	China/N.A.	DT SWISS
Chris King	326g	45	High	Best	Best	Rebuildable bearings	Nine	China	CHRIS KING
Industry Nine	327g	60	Medium	Better	Best	Loud, engagement	Eleven	China/N.A.	INDUSTRY NINE
Onyx	434g	Infinite	High	Better	Best	Silent, sprag clutch	Eighteen+ (Custom Available)	North America	ONYX
Carbon-Ti	270g	56	High	Better	Best	Extreme Light	Nine	China	Caron-Ti
ARC	332g	48	Low	Better	Good	Economic and reliable	One	China	ARC
Chosen	260g	24	Low	Better	Good	Economic and reliable	One	China	Chosen

Besides hubs listed to choose online directly, you could also have more others built to the wheels on your custom order by contacting us.
See more about Light Bicycle's FULL HUB OPTIONS

* POE = Points of Engagement

* DT hubs come standard with an 18t star ratchet but are upgradeable to 36 or 54t.

* Average weight will vary slightly depending on axle and freehub combination.

DT SWISS 180

DT SWISS 240 EXP

DT SWISS 350

Industry Nine 1/1

Chris King R45D

Novatec D411SB / D412SB

Industry Nine Torch

Carbon-Ti X-Hub

ARC MT-032

Bitex BX312F / BX312R

Front Axle This is a required option.

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, skewers are only offered with QR hubs.

12 / 100mm

15 / 100mm

QR / 100mm

Rear Axle This is a required option.

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, skewers are only offered with QR hubs.

12 / 142mm

QR / 135mm

Freehub Body This is a required option.

1. Shimano Road 11S works with 8/9/10-speed mountain cassette with a spacer(s).
2. Shimano MTB 10/11S works with 8/9-speed directly or 10-speed with a spacer or 11-speed road cassette if one of the inner cogs removed.
3. Campagnolo (Campy) 11S works with 9/10/11/12-speed Campy cassette with no spacers required.
4. Sram XDR could run XDR (road) cassette inherently and is compatible to run mountain bike XD cassette with a 1.85mm spacer.
5. Shimano Micro Spline (MS) works with 12-speed MS cassette only.

Shimano Road 11S

Shimano Road 11S Alloy

Sram XDR Alloy

Sram XDR

Spoke Head This is a required option.

J-bend version: use J-bend hubs and spokes
Straight pull version: use straight pull hubs and spokes

straight pull

J-bend

Brake System This is a required option.

6-Bolt is the more common traditional option.
Centerlock uses a unique interface and it is also convertable to 6-bolt. If you need the conversion kit, please contact us. Our hubs are provided without rotor lockrings by default.

6-bolt

Center lock

Hub Color This is a required option.

Black

Oil Slick

Orange

Red

Turquoise

Front Holes Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc) at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

24H

Rear Holes Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

24H

28H

Ratchet This is a required option.

DT Swiss hubs use star ratchets and are available in 3 different models with varying points of engagement.

18T - Deepest teeth, slowest engagement, least amount of maintenance, suitable for powerful riders.

36T - Happy medium, doubles the engagement points.

54T - Super fast engagement, but shallow teeth require more careful re-greasing and the thru-axle should be checked every ride.

EXP 36 - With only a single spring, making the hubs faster and lighter, more complete engagement of the 36 ratchet teeth for more precise contact, and therefore a longer lifespan.

EXP 54 - Upgraded from EXP 36 to gain incredibly faster engagement.

18T

24T

27T

36T

45T

48T

54T

56T

60T

90T

EXP 36

EXP 54

Recon Pro orders start shipping in October.

- + Pair

Piece Weight: 1351.00g+/-3%

Subtotal: USD 505+

PREVIOUS NEXT

WHEELSET SPECS

RIMS

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

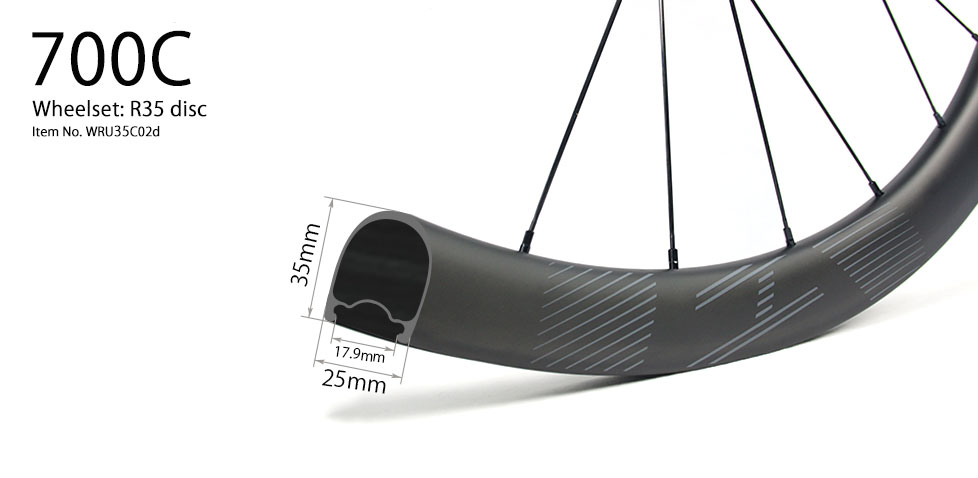

Rim Model R35 disc
Size 700C
Series FALCON
Use Road/CX
Type Clincher
Tubeless Ready

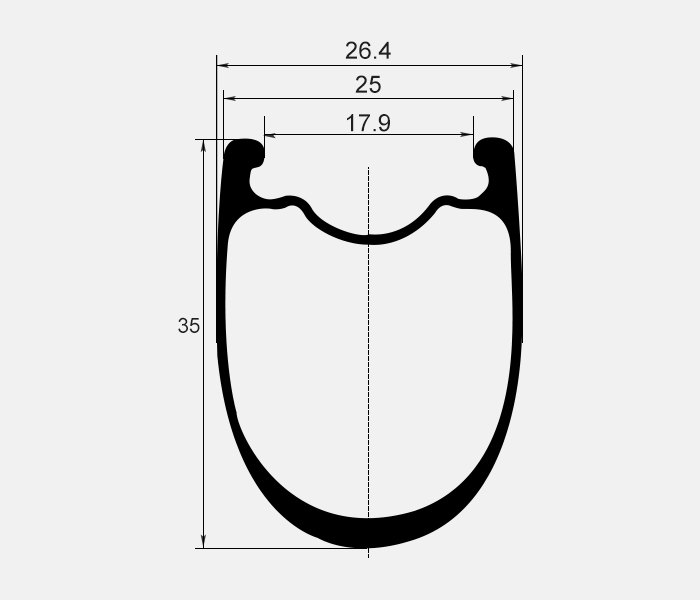

Inner/Outer Width 17.9mm/25mm
Depth 35mm
ERD 570mm (not including nipple head dimension)
Weight 405+/-15g
Offset 0mm (symmetric)
Weight Limit (on flat ground) 125kg
Spoke Tension 115 ~130kgf front, 120~130kgf rear
Spoke Hole Angle ±5°
Tire Pressure (with 25C) 120psi max
Tire 21C-38C recommended

Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Rim Model: R35 disc
Size: 700C
Series: FALCON
Use: Road/CX
Type: Clincher
Tubeless: Ready
Inner/Outer Width: 17.9mm/25mm
Depth: 35mm
ERD: 570mm (not including nipple head dimension)
Weight: 405+/-15g
Offset: 0mm (symmetric)
Weight Limit (on flat ground): 125kg
Spoke Tension: 115 ~130kgf front, 120~130kgf rear
Spoke Hole Angle: ±5°
Tire Pressure (with 25C): 120psi max
Tire: 21C-38C recommended

Hubs

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

Model: DT SWISS 180, DT SWISS 240 EXP, DT SWISS 350, Industry Nine 1/1, Chris King R45D, Novatec D411SB / D412SB, Industry Nine Torch, Carbon-Ti X-Hub, ARC MT-032, Bitex BX312F / BX312R
Front Axle Size: 12 / 100mm, 15 / 100mm, QR / 100mm
Rear Axle Size: 12 / 142mm, QR / 135mm
Driver Body: Shimano Road 11S, Shimano Road 11S Alloy, Sram XDR Alloy, Sram XDR
Hole: 24H, 28H

Other Parts

Leave a note at checkout or contact us if you want spare spokes or nipples.

Spokes:
Nipples:

Please carefully inspect your package when unboxing it and contact us immediately if it is damaged or if anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste using digital docs.

Download user guides >>

Overview

Whether you’re chasing KOMs, racing criteriums, or preparing for your first Gran Fondo, the R35 disc’s are ready to take you to the next level. The deep profile is easy to handle in crosswinds, and comfortable to ride on rougher roads or rolling terrain.

Coming in at only 405g per rim, the R35 disc is designed to help you soar up the climbs while still given you that aerodynamic edge when the road becomes flat. The 17.9mm internal width works with anything from a 23mm to 33mm road or Cyclocross tire.
Specs
Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Rim Model: R35 disc

Size: 700C

Series: FALCON

Use: Road/CX

Type: Clincher

Tubeless: Ready

Inner/Outer Width: 17.9mm/25mm

Depth: 35mm

ERD: 570mm (not including nipple head dimension)

Weight: 405+/-15g

Offset: 0mm (symmetric)

Weight Limit (on flat ground): 125kg

Spoke Tension: 115 ~130kgf front, 120~130kgf rear

Spoke Hole Angle: ±5°

Tire Pressure (with 25C): 120psi max

Tire: 21C-38C recommended

Read more for actual road tire width

Hubs

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

Model: DT SWISS 180, DT SWISS 240 EXP, DT SWISS 350, Industry Nine 1/1, Chris King R45D, Novatec D411SB / D412SB, Industry Nine Torch, Carbon-Ti X-Hub, ARC MT-032, Bitex BX312F / BX312R

Front Axle Size: 12 / 100mm, 15 / 100mm, QR / 100mm

Rear Axle Size: 12 / 142mm, QR / 135mm

Driver Body: Shimano Road 11S, Shimano Road 11S Alloy, Sram XDR Alloy, Sram XDR

Hole: 24H, 28H

Other Parts

Leave a note at checkout or contact us if you want spare spokes or nipples.

Spokes:

Nipples:
Tech

Learn More >>
Warranty

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>
In The Box

Please carefully inspect your package when unboxing and get in touch with us immediately if the package is damaged or anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste with the use of digital manuals.

Download user guides >>

Gallery

BADRUL : Wheelset LIGHT BICYCLE (LB) is the best. The difference during the climb is so solid. I love it♥️™️

2018-giant-tcr-frame-with-R35-carbon-wheels-tubeless

Paul : 2018 Giant TCR sitting on R35 rims with DT Swiss 240 hubs.

Japan

r35-disc-carbon-wheels-with-vittoria-zaffiro-pro-slick-tires

Lindsay : wheels arrived in good condition earlier this week. First ride this morning - very happy with them. Thanks again for your help throughout the process.

Australia

light-bicycle-r35-road-carbon-wheelset-with-gp5000-tires-on-specialized-s-works-tarmac-disc

Lance : Awesome 35mm wheels. Thanks guys.

United States

Emiliano : RRU35CO2 U-shape 35mm on my Rose Xeon CDX, dtswiss 240s and pillar aero spokes. Great wheels, ride fantastic. Thank you Kartrin for all the emails and patience!

Nick : 2015 Scott Solace 15 with DT-Swiss 240 hubs and carbon U-shaped Rims (35mm front and 45mm rear). Beautifully made and constructed from quality components at a very reasonable price. Light-Bicycle was very patient in getting the graphics right for me. Thanks Light-Bicycle

Australia

View More Reviews >>

COMMENTS

Thomas 2020/04/15

Hello Would it be also possible to get a wheelset with hiden/internal nipple? Thanks and regards Thomas

LightBicycle 2020/04/15

Hi Thomas, Yes, we can build bike wheelset with internal nipples for you. Could you tell me the exact configurations that you are interested in purchasing for this 25mm wide 700C road wheels disc? I will create the order for you accordingly. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

lionel 2020/04/13

Hello, can you mount tubeless ready tires or only allow tubular tires?

LightBicycle 2020/04/13

Hi Sir, The R35 is the tubeless-ready rim that allows you running both tubeless and tube tires. On the other hand, the R35T (25mm wide, 35mm deep) is a tubular rim that only allows you to run tubular tires. What type of tires are you planning? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Mathijs 2020/01/11

Hi, I am searching for a set of climbing wheels and the R35 look perfect for the job. I would like to use 25mm tubeless tires. Will these fit as in: what is the width of the tire with the 17.9mm internal width? Will it be parallel or smaller then the rim? Or is the 28mm rim a better choise aero wise?

LightBicycle 2020/01/13

Hi Sir, If you are chasing the aerodynamic performance, the 105% theory is many riders' belief, which the rim width should be 105% of the tire. You will achieve better aero performance using a narrower tire than the rim width. So a 25mm tire would be the perfect match with a 26.25mm wide rim. Our R35 (25mm wide, 35mm deep) rim's widest area on the sidewall is 26.38mm, so it's very close to the ideal width. You can go for this 700C non disc rim R35. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Mohammed 2019/11/12

Hello , Please I want to ask about the price of carbon rim for road bike 35mm . Best regards,

LightBicycle 2019/11/13

Hi Mohammed, Do you mean the R35 (25mm wide, 35mm deep) 700C with brake rim? If so, the price for the standard brake track (High TG) is USD154 each rim. We also have an upgrade version brake surface (the grooved graphene version), which will cost USD30 extra per rim. So the cost would be USD184 each. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Chris 2019/10/02

Which tubeless wheelset (rim) do you recommend for gravel and cyclocross riding/racing? I'm looking for lightest weight wheelset that can still provide the durability needed for gravel and CX. Aerodynamics are less important. Tire width will be between 28c and 40c. Also - do you make a hookless rims for tubeless tires or are all of your clincher rims hooked designs? Chris

LightBicycle 2019/10/03

Hi Chris, Thanks for your inquiry! We recommend our RG922 wheelset(22mm inner width/29mm outer, hook) for you. Please check below link. When you choose different hubs and spokes, the wheelset weight and price will show at the bottom. https://www.lightbicycle.com/29er-disc-bike-wheels-29mm-wide-28mm-deep-clincher-for-cyclocross-road-and-gravel-bikes.html How much tire pressure do you use? If it is higher than 40PSI, we do not recommend hookless. For hookless, you have to ride less than 40PSI. We also have wheelset with 28mm wide/36mm deep or 46mm deep. Please let us know your thoughts, also the hubs specs and spokes. Then we can quote accordingly and get gravel wheelset weight accordingly for your reference. Thanks, Lightbicycle

LightBicycle 2019/10/03

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Patrick 2019/08/18

Hello The wheels R35 Disc are build or no ? Thanks

LightBicycle 2019/08/20

Hi Patrick, Yes, all the wheelset that we sell online are built by hand and ship out to you as a complete wheelset by default. Please let us know if you have any other questions on these road disc wheelset 700C. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

See all 6 customer reviews>>

Get in touch

Feel free to leave a comment if you have any questions or suggestions on our products or other issues.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

We use cookies for a better experience. Learn more.

Customize

Your Cookie Preferences

We use cookies to improve your experience on this website. You may choose which types of cookies to allow and change your preferences at any time. Disabling cookies may impact your experience on this website. You can learn more by viewing our Cookie Policy.

Essential Cookies

Cookies required to enable basic website functionality.
Performance Cookies

Cookies used to understand how the website is being used.
Preference Cookies

Cookies that are used to enhance the functionality of the website.
Advertising Cookies

Cookies used to deliver advertising that is more relevant to your interests.

Aceept All Cookies

Save Preferences

Reject All Cookies

Save Preferences

Reject All Cookies

Accept All Cookies

Build Your Falcon WHEELSET R35 DISC Road/CX

Overview

Specs

Tech

Warranty

In The Box

Rims

Hubs

Other Parts

Overview

Specs

Rims

Hubs

Other Parts

Tech

Warranty

In The Box

Gallery
