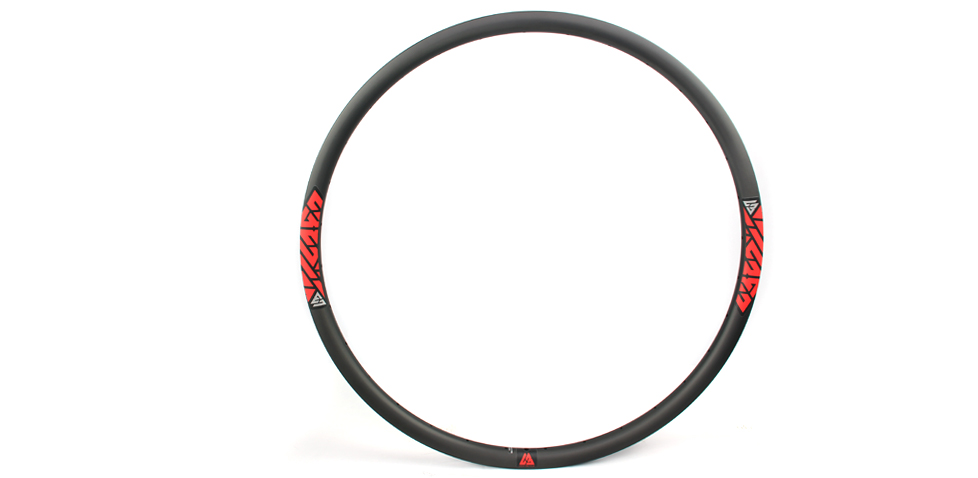

U shape 29er rim 30mm wide hookless MTB bike carbon rims tubeless compatible

BUYING OPTIONS

Global warehouse ship to most countries while the North American warehouse only ship to the United States and Canada

GLOBAL
NORTH AMERICAN
  • 1

    RIM

  • 2

    ACCESSORIES

  • 3

    OVERVIEW

RIM

Hole This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples only. If you have a custom drilling requirements please e-mail us and we'll send you a purchasing link.

16H

18H

20H

24H

28H

32H

36H

Finish This is a required option.

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

glossy

matte

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer.
3k/12k/UD are the 3 choices for cosmetic appearance.The rim strength & weight is virtually identical.
UD Matte is the most popular and has a subtle look.
3k weave has a more traditional carbon fiber look.
More info about Weave >>

12K

3K

UD

Decal This is a required option.


The new graphics are included and available in 7 colors. The decals are now easily replaceable so you can keep your rims looking fresh.

Stealth

Blue

Green

Magenta

Orange

Red

Yellow

Valve Stem This is a required option.

We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valve with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The vavle core is removeable so you can add sealant withoutn removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

One 10 yard roll of tape will be included. It is typically covers 2 rims with two laps each or 4 rims with one lap each.The high tensile tubeless tape features a natural rubber adhesive that does not leave a residue on the rims. On mountain bike rims, one layer of 18mm width tape is strong enough to seal the access holes which makes for the lightest tubeless setup.
Instructions of tubeless rim tape

None

Add Tubeless Tape USD +6 each

carbon 29er bike rims

In Stock, typically ships within 2 business days

In Stock, typically ships within 2 business days

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Recon Pro orders start shipping in October.

- + PCS

Hole This is a required option.

ROAD Product
Road rim brake: Stocked in 20h and 24h
Road disc: Stocked in 24h and 28h

MTB Product
MTB rims: Stocked in 32h. Only XC Flyweight rims are stocked in 28h as well as 32h
Please note that our valves are drilled for presta and spoke holes are made for external nipples only. If you have a custom drilling requirements please contact us.

32H

Finish This is a required option.

matte

Weave This is a required option.

UD

Decal This is a required option.


The new graphics are included and available in 7 colors. The decals are now easily replaceable so you can keep your rims looking fresh.

Stealth

Blue

Green

Magenta

Orange

Red

Yellow

Valve Stem This is a required option.

We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valve with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The vavle core is removeable so you can add sealant withoutn removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

We use a tubeless tape with high tensile strength and only one lap is required so it is very light. It uses a natural rubber adhesive that does not leave any residue on the rims.

None

Add Tubeless Tape USD +8 each

carbon 29er bike rims

In Stock, typically ships within 2 business days

In Stock, typically ships within 2 business days

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Recon Pro orders start shipping in October.

- + PCS

Weight: 395.00g+/-15

Final total: USD 153.00+

Weight: 395.00g+/-15

Final total: USD 173.00+

PREVIOUS NEXT You missed some options. You missed some options.

Added to cart! View cart or continue shopping.

RIM SPECS

  • Size 29er
  • Use Cross Country/ All Mountain
  • Type Hookless
  • Tubeless Ready

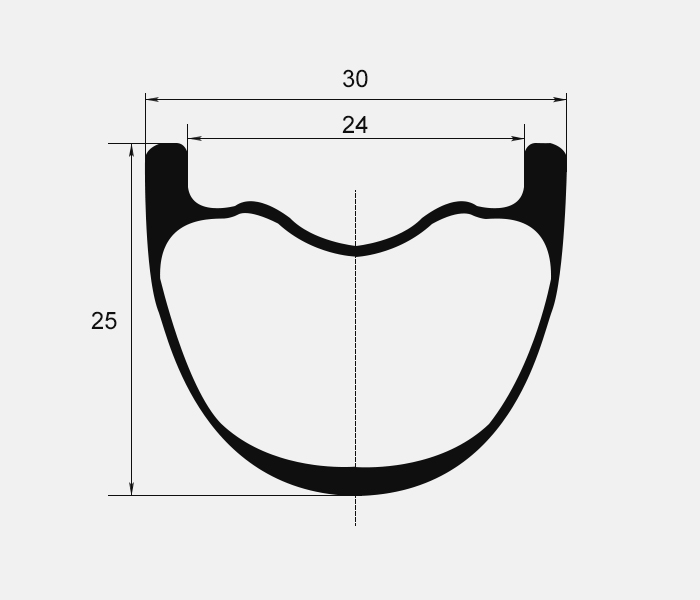

  • Inner/Outer Width 24mm/30mm
  • Depth 25mm
  • ERD 589mm (not including nipple head dimension)
  • Weight 395+/-15g
  • Offset 0mm (symmetric)
  • Weight Limit 120kg
  • Spoke Hole Angle ±5°
  • Spoke Tension ≤145kgf recommended
  • Tyre Pressure ≤35psi recommended
  • Tire 2.0" ~ 2.4" recommended

Teleport to the wheelset building page.

The XC924 (RM29C19) rims blur the lines between XC race and All Mountain. The 24mm internal width can handle narrower 2.1” tires, but can also mount up to 2.4” with confidence when the trail conditions turn nasty. Whether attacking the climbs on technical XC courses on the weekend, or shredding the descents on your local trails mid-week, this rim is equally at home.


This high-value modern U-shaped profile has become one of our most popular rims for trail riders. Oversized hookless lips, bead seat bumps and a sensible sub-400 gram layup design keep things competitively light and reliable.

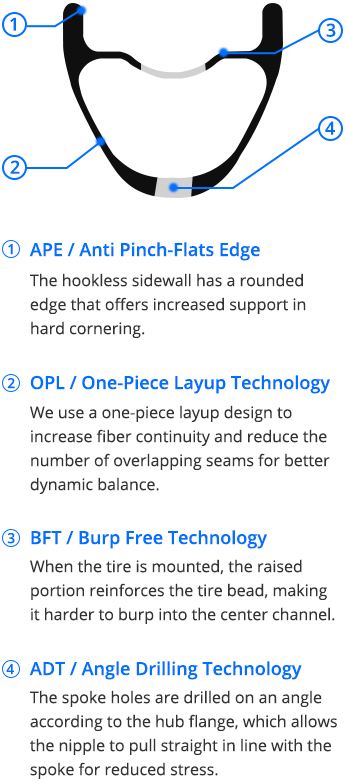

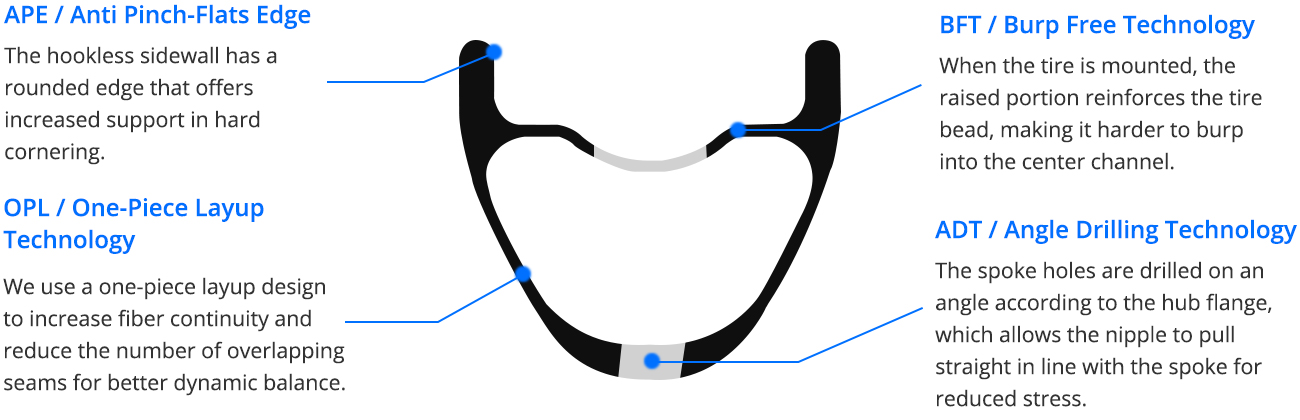

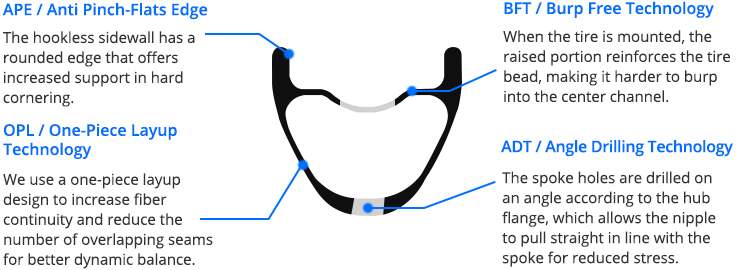

Hookless: Carbon fiber flows continuously over the bead area to provide the best impact resistance and a significant strength increase compared to a clincher rim.


Manufacturing process: Our air bladders are made from a special material which produces smoother walls, result in a lighter rim, and are completely removed without harsh chemicals. They are removed through the valve hole with a unique process so that the rim does not have to be patched like traditional manufacturers use. This significantly improves the strength of the rims. Read More about our process


T700: Constructed with premium Toray T700 carbon fiber. The best strength to weight ratio with no expense spared.


Precise layup: Each rim carries its own layup schedule documents which are followed meticulously by the layup workers. Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim.

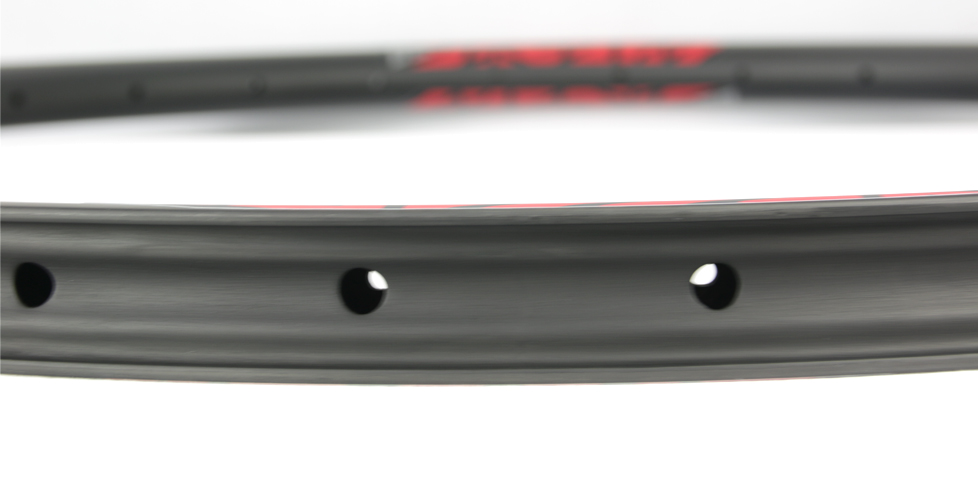

Angled Holes: Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress. This results in fewer broken spokes and nipples.


U-Shape: U-shape profile spreads the force of impacts and creates a more robust product.


Bead lock: The small ridges on either side of the drop channel help secure tubeless tires in place. The bead lock makes it easier to seal up tubeless tires with a floor pump, and they are incredibly hard to burp.


Tubeless: While the rims are optimized for a tubeless setup with the addition of tubeless tape, they also work with tubes.


For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Know more about the warranty policy >>

Gallery

JT : Niner yellow blaze air9 RDO
United States
1
Miruna : RM29C19 with custom light bike painted decals.
Australia
1
Tim-David : Hello, Which pantone color are these decals? Regards Tim
USA
2
Anton : Canyon Lux CF and RM29C02 rims at Beskidy MTB Trophy
Russia
1
Trevor : Hey, that is my Pivot Mach 429SL Carbon upgraded with LB 29er 30mm U shape rims. The rims are really nice!
USA
1
Warwick : Santa Cruz Tallboy 2 CC
Australia
3

COMMENTS

A

Alastair 2018/11/17

Hello there. I just wanted to know what the difference is between the XC924 and the XC925 rim. I am planning on building my own Wheelset. I see one is 24mm and one is 25 as the obvious differences and the 925 is assymetric. What is the difference between a symmetrical and assymetric rim? And will there be a noticeable QUANTIFIABLE difference in ride between a 24mm and 25mm rim? I currently ride 24mm wide on my American Classic MTB RACE 29. But with American classic closing parts availability is a concern and leaves me with no way of upgrading my current wheels to chimano XTR microspline. I am 65KG. Cross country racer in South Africa. So I often ride sections of the Epic route. I do feel I am quite an aggressive rider and don't mind pointing my Hardtail down sections that would make AM riders a bit squeamish. I plan on mating these wheels to a Trek Procaliber. If I use DT swiss's spoke calculator using the ERD you specify 28H XC924's should come out at around 1437g using 240S CL boost hubs with DY aerolite SPOKES. A tiny bit heavier if I use XTR M9110 hubs. XC925's in 28H but not flyweight (scared of breaking something if I go TOO light) come in at the same configuration as the above at around 1367g according to the DT calculations. Putting aero comps in the rear wheel puts it to 1407g. Now what would the difference be between the 924 and 925? Also should I build the rear as a 32H for a bit of extra durability or keep 28H but use stronger spokes for the rear like DT Aero Comp? I am trying to keep costs down though. Using the parts I've chosen the 924s woukd come in at around 11500 ZAR (820 USD) The 925s would be around 14000ZAR or bang on 1K USD +-. 925USD if I put aero comps on the rear wheel. So is there a significant difference between the 924 and 925? Also do you ship to South Africa?


LightBicycle 2018/11/20

Hi Alastair, XC925 29er rims belongs to our Recon Pro rims which use a completely new mold design and new manufacturing process that allows the rims to come out of the mold as a finished product (no sanding & painting needed). The rims come out from mold perfectly directly, without any defect to affect strength. The layers of carbon are not disturbed post-production which results in a stronger rim with a more scratch resistant finish. We use a new resin system with a lengthened fatigue life and superior consistency. The new recon pro rims are more durable and made in new dust-free production line. All of these improvements coupled with an updated asymmetric profile shape has allowed us to extend our standard warranty on these rims to 3 years with an upgrade option to 5 full years! Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

A

Avner 2018/09/11

Hi Can you make the hole for schrader valve?


LightBicycle 2018/09/12

Hi Avner, The rims are manufactured with presta valve hole by default, the valve hole size is 8mm upper/ 6.5mm lower. If you like schrader valve hole size, you can leave an message on the order. Then we can manufacture the valve hole size to be 8.5mm for both upper & lower. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

P

Paul 2018/07/27

Hello! I'm building a set of wheels for a 29er hardtail. Front will have a 28H predictive hub for an RS1 fork. The rear will have a 32H Hope Pro Evo 2 hub. I'm 80kg and ride non-technical XC. I'm thinking the RM29C19 would be best? Thanks, Paul.


LightBicycle 2018/07/27

Hi Paul, We sent this 29er wheelset quotation to your email. Have you got it? May i know your weight and tire width? Then we can check whether this wheelset is the best for you. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

J

John 2018/02/07

Can you make these rim deeper around 40mm or more? Looking for a 29er or 700c rim that is about 24-25mm wide internal and 30-32mm external wide that is deep so I can use on my gravel bike. Thank you!


LightBicycle 2018/02/07

Hi John, Sorry to tell you that we don't have 29er or 700C rim with 40mm deep or deeper rims. But, we do have RG922 that specially designed for gravel. It's with asymmetric design. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

V

Vern 2017/12/14

I am right at the weight limit of 120 kg. Can your rims be made for larger riders?


LightBicycle 2017/12/15

Hi Vern, We can add some carbon fiber to enhance the RM29C19 rim’s strength, with a heavier weight about 50g. We also have some wider rim like 34mm/35mm/38mm width for large riders. May I know what your riding terrain is normally? Do you ride aggressively? What the tire width you use? Then we will do some recommendations accordingly. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

E

Eddie 2017/04/14

Can these rims be laced to industry nine staight pull spoke hubs? They have proprietary spokes that need a slightly larger hole drilled through the rim bed. What is the diameter of the hole drilled through the rim where the rim tape is applied?


LightBicycle 2017/04/14

Hello Eddie, Thanks for your support. Yes, our rims work with I9 hubs and spokes. Will you build the wheels by yourself or take it to your local bike shop for wheels building? Currently, The spoke hole on the rim bed is 8mm. Does that work for you? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

M

mac 2017/03/26

Can we still get the old graphics on the rim?


LightBicycle 2017/03/27

Hello Mac, Thanks for your inquiry. Please find attached picture of our old graphics. Is that what you like? If so, it is available to do it on rims. Which color do you prefer? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

F

Flo 2017/01/20

Hello, I'm a 65kg XC Racer. Which Rims would you recommend for me? Is it possiple to get a lighter example/version? I would use them in 29" and with Boost Hubs, do asymetrical Rims make sense with boost hubs? Thanks, Florian


LightBicycle 2017/01/21

Hello Florian, Thanks for your inquiry. According to your info, we’d like to recommend our 28mm wide 29er asymmetric light rims. It is designed for XC racing and strong enough for your riding. Also, the rim will work with the boost hubs. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

C

Chuck 2017/01/14

Have a Giant mtn bike ,would love to up grade those rims.So if i buy these Rm29c19 will fit ?Do i just respoke these wheels with my hubs and spokes?


LightBicycle 2017/01/16

Hello Chuck, Thanks for your inquiry. For spokes, may I know your rim ERD? Then we will check if you can reuse your spokes. Normally, you need to get some new spokes, because the rim ERD is different, so the spoke length will be different. Our RM29C19 rim ERD is 589mm (not including nipple head dimension). Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

T

Tomek 2016/11/21

Hi, is the price quoted for RM29C19 $173 per one wheel or the set of two? Also, what would be estimated time from placing an order to delivery of just the rims versus fully built wheels? Thanks TS


LightBicycle 2016/11/22

Hello Tomek, Thanks for your inquiry. The RM29C19 rim is $170/pcs. The price is for single rim only. The delivery cost is $50 for two rims to USA by EMS. All pricing in USD. We have several UD matte 32H rims ready for ship and will ship within 2 business days. EMS delivery takes another 4-7 days to arrive. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.
