XC 650B mountain bike hookless 27mm wide cross country rim tubeless compatible

BUYING OPTIONS

Global warehouse ship to most countries while the North America warehouse only ship to the United States and Canada

GLOBAL
  • 1

    RIM

  • 2

    ACCESSORIES

  • 3

    OVERVIEW

RIM

Version This is a required option.

Version RM650BC09 Standard RM650BC09 Flyweight
Weight 320+/-15g 270+/-15g
Material Toray T700 Toray T800 and T700
Layup Standard Layup New layup for weight saving
Warranty 3 years warranty
3 years crash replacement with 10% discount
3 years warranty
3 years crash replacement with 10% discount
Max Weight 100kg 90kg

Standard

Flyweight USD +15

Hole Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples only. If you have a custom drilling requirements please e-mail us and we'll send you a purchasing link.

16H

18H

20H

24H

28H

32H

36H

Finish This is a required option.

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

glossy

matte

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer.
3k/12k/UD are the 3 choices for cosmetic appearance.The rim strength & weight is virtually identical.
UD Matte is the most popular and has a subtle look.
3k weave has a more traditional carbon fiber look.
More info about Weave >>

12K

3K

UD

Decal This is a required option.


The new graphics are included and available in 7 colors. The decals are now easily replaceable so you can keep your rims looking fresh.

Stealth

Blue

Green

Magenta

Orange

Red

Yellow

Valve Stem This is a required option.

We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valve with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The vavle core is removeable so you can add sealant withoutn removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

One 10 yard roll of tape will be included. It is typically covers 2 rims with two laps each or 4 rims with one lap each.The high tensile tubeless tape features a natural rubber adhesive that does not leave a residue on the rims. On mountain bike rims, one layer of 18mm width tape is strong enough to seal the access holes which makes for the lightest tubeless setup.
Instructions of tubeless rim tape

None

Add Tubeless Tape USD +6 each

650B mountain bike

In Stock, typically ships within 2 business days

In Stock, typically ships within 2 business days

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Recon Pro orders start shipping in October.

- + PCS

Weight: 320.00g+/-15

Final total: USD 143.00+

PREVIOUS NEXT You missed some options. You missed some options.

Added to cart! View cart or continue shopping.

RIM SPECS

  • Size 650B
  • Use Cross Country
  • Type Hookless
  • Tubeless Ready

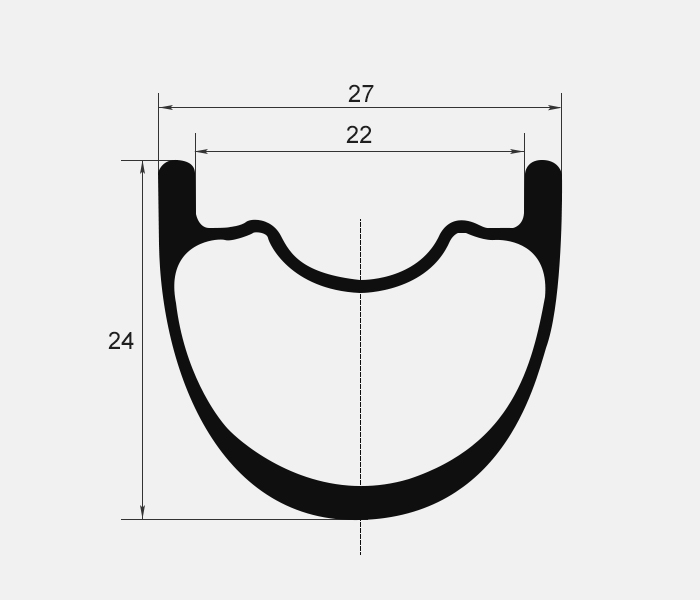

  • Inner/Outer Width 22mm/27mm
  • Depth 24mm
  • ERD 552mm (not including nipple head dimension)
  • Weight Flyweight 270+/-15g, Standard 320+/-15g
  • Offset 0mm (symmetric)
  • Weight Limit Flyweight 90kg, Standard 100kg
  • Spoke Hole Angle ±5°
  • Spoke Tension ≤145kgf recommended
  • Tyre Pressure ≤80psi recommended
  • Tire 1.9" ~ 2.3" recommended

Teleport to the wheelset building page.

The Flyweight is a new series of rims from Light Bicycle. Targeted specifically towards racers who seek every possible edge on the race course. Our goal was to produce the lightest possible rim without sacrificing performance.


Drawing on our engineers’ years of experience and countless revisions in each step of the manufacturing process, we are able to produce a strong and stiff XC rim while dramatically reducing the weight.


Construction: We used a special uni-directional pre-preg with a very low fiber areal weight. This is an exclusive process to our Flyweight rims. To further reduce the weight we used a blend of Toray T700 and T800 specific layups. We opted for a new subtle ultralight waterslide graphic in glossy black with a matte finish overtop in the spirit of keeping these as true cross country race oriented rims.

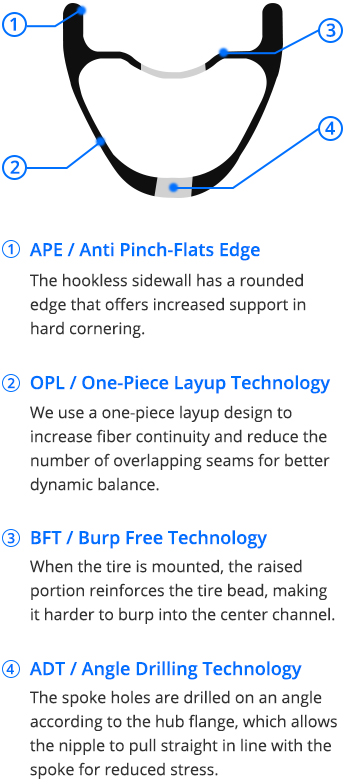

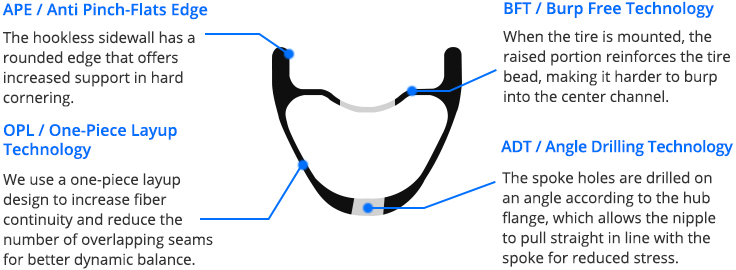

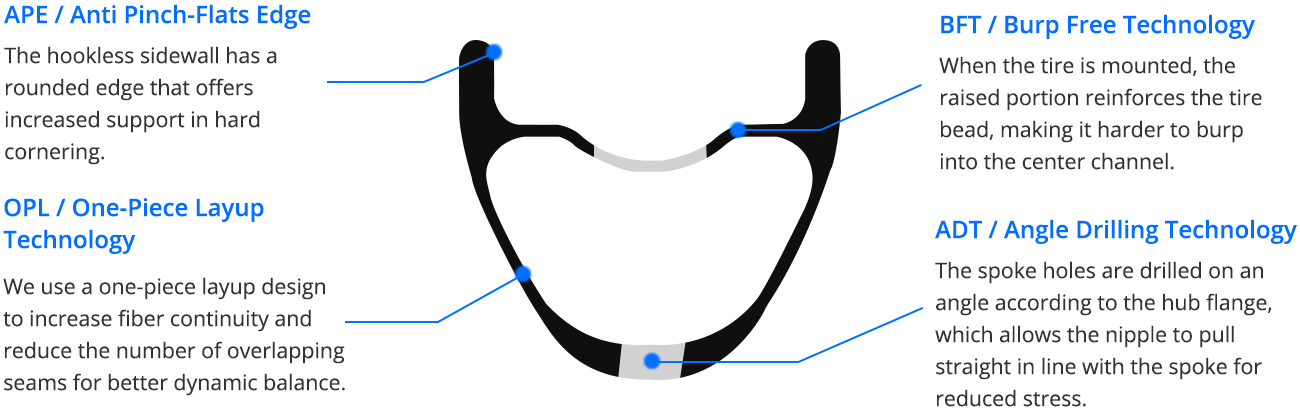

Hookless: Carbon fiber flows continuously over the bead area to provide the best impact resistance and a significant strength increase compared to a clincher rim.


Manufacturing process: Our air bladders are made from a special material which produces smoother walls, result in a lighter rim, and are completely removed without harsh chemicals. They are removed through the valve hole with a unique process so that the rim does not have to be patched like traditional manufacturers use. This significantly improves the strength of the rims. Read More about our process


Angled Holes: Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress. This results in fewer broken spokes and nipples.


U-Shape: U-shape profile spreads the force of impacts and creates a more robust product.


Bead lock: The small ridges on either side of the drop channel help secure tubeless tires in place. The bead lock makes it easier to seal up tubeless tires with a floor pump, and they are incredibly hard to burp.


Tubeless: While the rims are optimized for a tubeless setup with the addition of tubeless tape, they also work with tubes.


Material: Standard: Constructed with premium Toray T700 carbon fiber. The good strength to weight ratio with no expense spared.
Flyweight: Hybrid construction of Toray T800 and T700 was used to reduce wall thickness in key areas while enhancing the overall rim stiffness. These rims are available with the UD material only due to the strict standards required to produce the Flyweight model. We used a lower FAW (fiber areal weight) and a thinner prepreg to achieve a more adjustable layup schedule design which reduces the stress between the layers of carbon fiber.


Precise layup: Standard: Each rim carries its own layup schedule documents which are followed meticulously by the layup workers. Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim.
Flyweight: New layup design at the nipple bed to reduce the amount of material required and reinforce the key area around the spoke holes.


Lightweight: Standard: It is the light one around our current 650B rims, the good choice for lightweight 650B wheels & bike.
Flyweight: It is a new series of rims from Light Bicycle. Targeted specifically towards racers who seek every possible edge on the race course. 270 grams only!


For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Know more about the warranty policy >>

Gallery

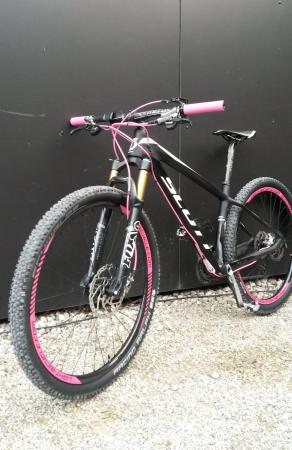

Mark Owen : As promised a photo of my new bike with your beautiful wheels on!Even my wife is impressed and that normally takes a Gucci badge!M. Owen
UK
1
Pavel : It's almost black :)
Russia
1
Michel Hunziker : With 60mm tubular rims in 3K glossy & 32H,red Novatec D711/D712 hubs for Shimano 8/9/10, and black spokes and red nipples. Everythings is perfect ! My doughter already made a podium with.. (secund place). New wheels for her mtb,WM650BC09, with hookless 27mm wide 650B rims in 3k glossy & 32H, black Hope hubs, black spokes & nipples.Nice isnt it ?
Switzerland
1
Nick Riewe : Hi Nancy, This week I finished building my bike. Here are a couple pics as you requested. I am very happy with your rims....they roll very light and fast. My local wheel builder was very impressed with your rims and mentioned that he has built many wheel sets with Light Bike rims, and in all cases people are very happy with the rims. Great work to you guys!! My bike came in at 18.8 lbs...decent weight for a 19" 650b bicycle. I am waiting for Rock Shox to make the SID WC XX 120mm fork in 650b size so we can loose even more weight. Yes, Ive ridden them a few times. The rims roll very well. Super light and fast. I am running tubeless. I seated the tires using inner tubes for one ride, then pulled the tubes and filled with Stan's no-tube sealant. There are no leaks at the rims and the tires are staying seated on the bead. We normally ride rough and fast terrain with lots of tree roots.
Canada
1

COMMENTS

A

Alessandro 2018/11/17

Hi, I'm thinking about building a pair of wheels with these rims in the next few months. They will be mounted on my, let's call it, dirty rando. It's my only road bike (be it tarmac or gravel roads), it's got a light steel frame and fork with disc brakes and I use it for daily training and commuting as for long or multiple day rides, on every kind of road, always carrying a front bag and rack (typically with a load not exceeding a pair of kilograms) and rolling on 42mm or bigger tires. Oh, and I weight about 55kg. This new wheelset will be used mainly on paved roads, but may hit some easy dirt ones every once in a while. The hubs I will be using for this wheelset are made in 24 or 28h only. So, the rear wheel will be 28 spokes, but I'm unsure about the front one: I usually prefer high spoke counts, but I also prefer to have more spokes on the rear than on the front, as I think that the same spoke count front and rear either means that the front is overbuilt or the rear is underbuilt, so having a little less spokes on the front makes for a more balanced wheelset. If it was possible, I would build them 32/28h, as these wheels will roll for many miles a year (hopefully for many years too) and despite my light weight and the prevalent paved use, they will likely take quite a beating. So, do you think that 24 spokes would be enough for this rim on the front wheel, considering my light weight but also the heavy use and the front load? Will they be enough to build a strong and stiff but still comfortable front wheel, that will be unlikely to have problems during a long night ride in the middle of nothing, or should I play it safe and go for a 28 spokes build on the front too? Thanks for your attention and sorry for the long question, and my terrible english (hope it was not so bad to be hard to understand...!)


LightBicycle 2018/11/20

Hi Alessandro, Glad you can describe your question in details. It really helps! I would recommend our RG722 (29mm wide, 36mm deep) gravel rims for you. You 42mm tires would work well on the rims. The deeper profile makes the wheelset stiffer. The rim was designed for gravel riding, so it would be strong enough for most road ridings. Since you are a light rider and don't really do much aggressive riding like jumps. I think 24H on the front would be strong enough. But you can also go with 28H to ensure the durability. You can get a 5% discount now for the Black Friday discount. You might notice that those two rims are with different rim profile. RG722 is with hooked design, while RM650BC09 is with the hookless design. The rim you were looking at is our MTB rim RM650BC09, it's with hookless design, which requires running under 80psi. It won't be a good choice if you are riding higher pressure during road rides. Thanks, Lightbicycle


A

Alessandro 2018/11/25

Thanx for your kind and detailed answer. It's quite obvious now for me that 24 spokes up front will be enough on this wheelset, so I'm going for it. Thanks also for the suggestion about other rim options that might be good for me. However, I think I'll stick with the RM650BC09, as given the wide tires I use and my light weight, a pressure under 45psi is more than enough even for the smoothest tarmac. I would prefer an hooked profile to be honest, as I've had some tire pinching problems on my mtb on rocky descents with hookless rims mated with light supple tires (and rigid front and rear ends), but on tarmac or gravel roads there won't be many occasions to bottom-out the fat tires I use, so maybe I will be able to enjoy the pros of hookless rim design without its cons, finally. So it looks like there's no reason to take that 60 grams penalty. So once again thank you very much, sadly I won't be able to enjoy your black Friday discounts, but at least I know which rims I will be using and how to lace them.


LightBicycle 2018/11/26

Thank you for your reply. If it is just for gravel riding, you will not need to add rim weight. Do you like RM650BC09 flyweight version in 24H? Do you need us to work on invoice for you or you place the order through our website directly? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

B

Bill 2018/09/13

Hi- Do either RM650BC09 Standard or RM650BC09 Flyweight support rim brakes? THanks-


LightBicycle 2018/09/14

Hi Bill, Are you looking for MTB rims or road rims? The model RM650BC09 is for MTB use only. If you are looking for rim brake rims ( with brake track). You can check out our road rims instead. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

S

Scott 2018/09/05

Hi there, Are you able to supply and build mtb wheels with extralite branded hubs? Kind regards - scott


LightBicycle 2018/09/06

Hi Scott, Yes, we have built 650B wheelset with extralite hubs before. What configuration do you have in mind? Do you like fron 15*100mm/rear 12*142mm? Then we can qutoe accordingly for you. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

J

John 2018/01/31

Can these rims be drilled 2mm asymmetrically?


LightBicycle 2018/01/31

Hi John, We can make 2mm offset drilling for RM650BC09. Are you refer to standard version or flyweight version of it? Offset drilling requires adding some material on the drilling hole edge so it can be strong enough to handle angled force. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

J

James 2017/11/02

What width tubeless rim tape do these need?


LightBicycle 2017/11/02

Hi James, Thanks for your inquiry! The rim tape width for RM650BC09 rim is 18mm. Pls find our quotation as below. RM650BC09: standard, 27mm wide, UD matte 32H, USD163 each Rim tape: 18mm, USD6 one roll Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

J

J 2017/03/19

Would these work for a cannondale slate gravel bike with lefty fork? If so, can you give me a price for a build with appropriate hubs?? :)


LightBicycle 2017/03/20

Hello Janice, Thanks for your inquiry. Yes, our 27mm wide 650B XC wheels will work with Cannondale lefty fork. Is your rear hub with standard 12*142mm thru axle? Then we can quote accordingly for you. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

A

Alex 2017/02/28

Hi there Could you provide a price to build these with DT Swiss 350 Straight-Pull centre-lock disc hubs 15x100 & 12x142 - preferably 28 spokes. Shimano hub, alloy nipples. Regards, Alex


LightBicycle 2017/02/28

Hello Alex, Thanks for your inquiry. The 28mm wide 46mm hookless wheelset built with DT 350 disc hubs and Pillar x-tra 1420 aero spokes is $745/pair. Or we have better spokes Sapim cx-ray, and the price is $44 added. The hookless version is designed with low pressure impact resistance in mind. If you are planning to run a tire pressure above 80psi, the hooked version would be a better choice. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

A

Adam 2016/11/03

Hi, I noticed a question on another of your rims, and I have the same question regarding these rims: Is it possible to make them without nipple holes in u-channel, so true UST?


Light-Bicycle 2016/11/04

Hello Adam, Thanks for your inquiry. The 27mm wide 650B rim cannot be drill in UST version. Because the rim is not deep enough for nipples to go through inside while building wheelset. But our rim is tubeless compatible. You can use a rim tape, sealant and tubeless tire. Then it will ride tubeless perfectly. If you still like full UST rim, then go with our RM650BC05. Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

E

ernesto 2016/10/14

Would like to know if you can build these RM650BC09 rims in 24Holes with the following Bitex Hubs: BX306FG in 12mm, and BX306R in 12x142m; all with Sapim CX-RAY black spokes and aluminum Polyax nipples.


Light-Bicycle 2016/10/17

Hello Ernesto, Thanks for your inquiry. The 27mm wide 650B mtb wheelset with following specs is $696/pair. -Rims: RM650BC09, 24H/24H, 320 /-15g. -Hubs: Bitex, front BX306FG 12mm/ rear BX306R 12*142mm. With freehub Shimano or Campy? -Spokes: Black, Sapim cx-ray -Nipples: Black, alloy Polyax Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

S

Steve 2016/10/12

Your specs say the max tire pressure is 70 psi but you list 40psi as the recommended max cycling tire pressure. What's the difference? I don't understand. Will I be able to mount a 650b Schwalbe G-one 40mm tire to this rim? Thanks!


Light-Bicycle 2016/10/13

Hello Steve, Thanks for your inquiry. The recommended max tire pressure is 40psi. It means that it will be better to run the tire around or under 40psi. Some customers prefer high tire pressure like over 40psi, so that is a max tire pressure limit 70psi. It means that you cannot run the max tire pressure over 70psi. Otherwise, the type will be damaged or blow off easily. The recommended tire width for RM650BC09 is 1.9’’-2.3’’. It will be great if you go with wider tires. Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.
