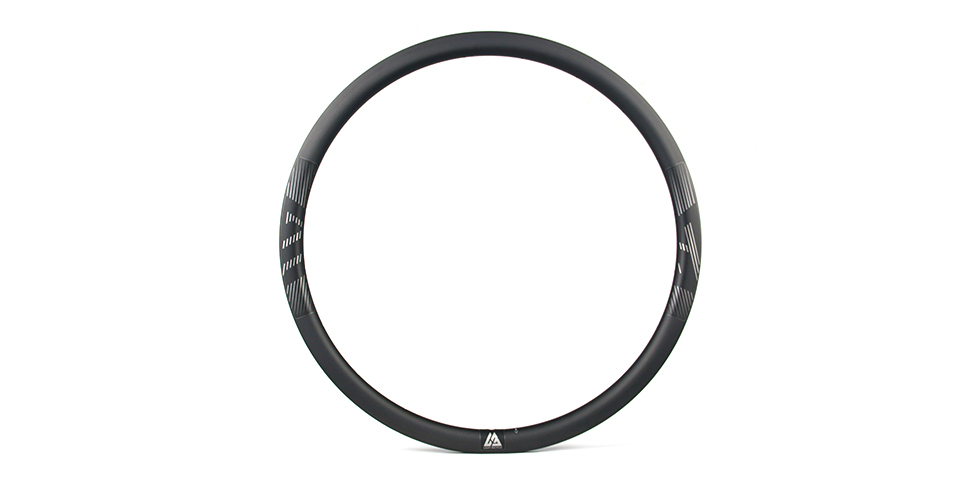

FALCON rim R35 disc Road/CX

carbon 700C 25mm wide road disc rim clincher 35mm deep New Gen Aero shape tubeless compatible

Buy & Configure

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

RIM SPECS

  • Rim Model R35 disc
  • Size 700C
  • Series FALCON
  • Use Road/CX
  • Type Clincher
  • Tubeless Ready

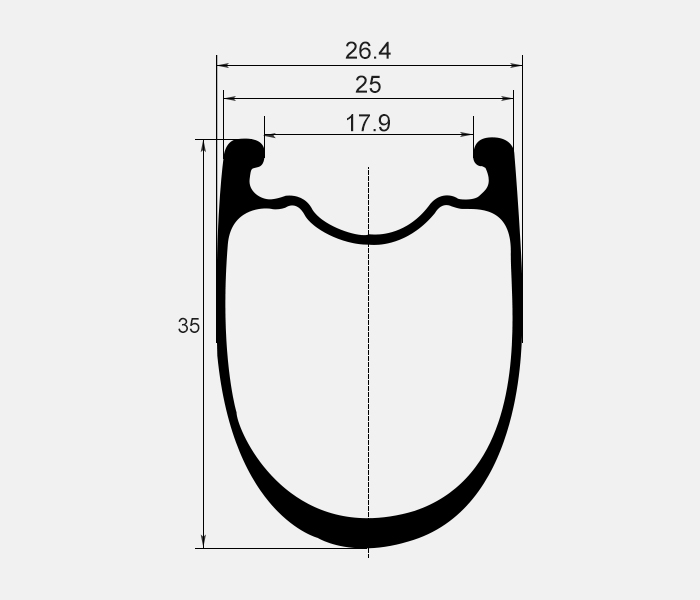

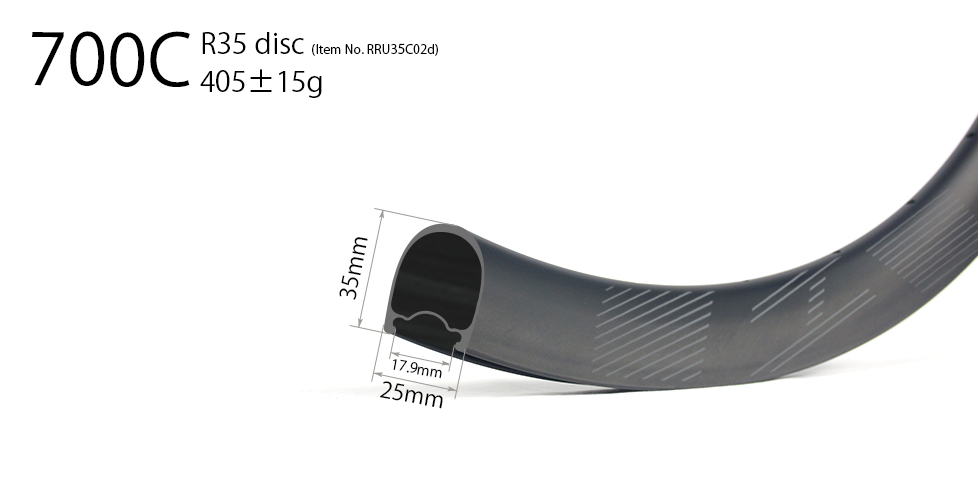

  • Inner/Outer Width 17.9mm/25mm
  • Depth 35mm
  • ERD 570mm (not including nipple head dimension)
  • Weight 405+/-15g
  • Offset 0mm (symmetric)
  • Weight Limit (on flat ground) 125kg
  • Spoke Hole Angle ±5°
  • Spoke Tension 115 ~130kgf front, 120~130kgf rear
  • Tire Pressure (with 25C) 120psi max
  • Tire 21C-38C recommended

Read more for TL tire pressure charts

Read more for actual road tire width

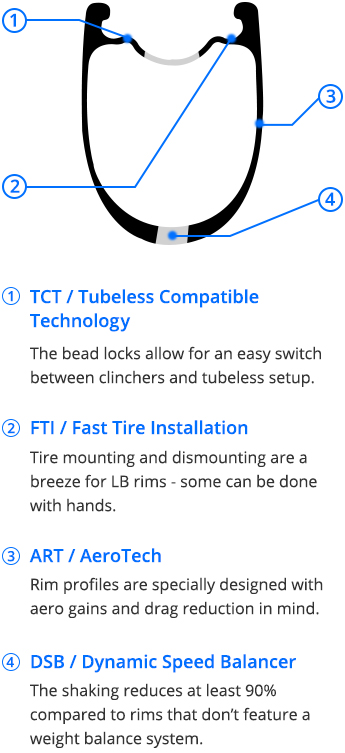

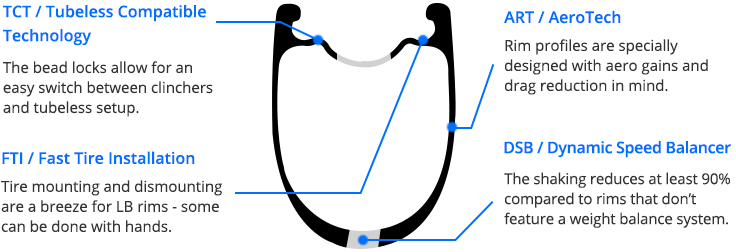

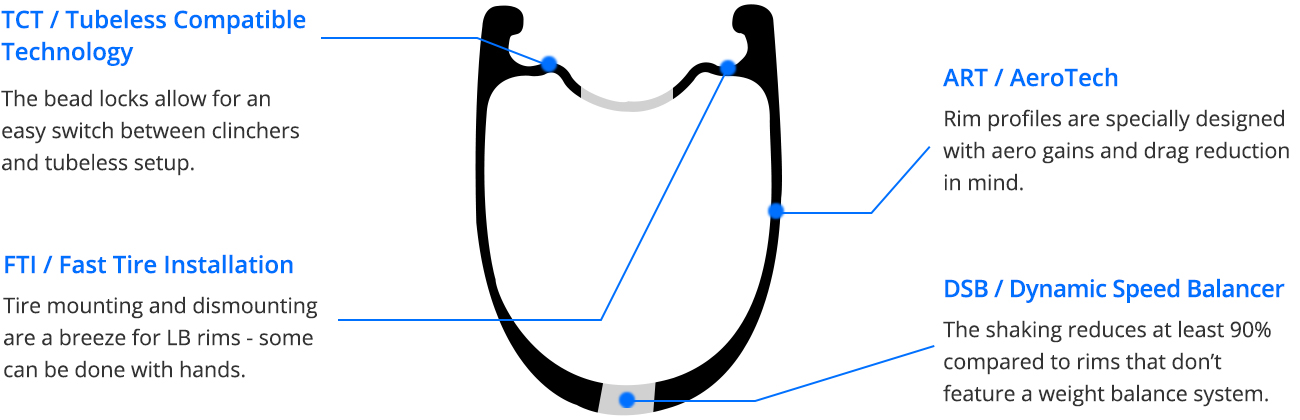

TECH

Whether you’re chasing KOMs, racing criteriums, or preparing for your first Gran Fondo, the R35 disc’s are ready to take you to the next level. The deep profile is easy to handle in crosswinds, and comfortable to ride on rougher roads or rolling terrain.

Coming in at only 405g per rim, the R35 disc is designed to help you soar up the climbs while still given you that aerodynamic edge when the road becomes flat. The 17.9mm internal width works with anything from a 23mm to 33mm road or Cyclocross tire.


Learn More >>

WARRANTY

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>


WHAT IS IN THE BOX


Gallery

Light Bicycle: Rims: R35 700c Falcon series 24/24H matte UD without spoke access hole Hubs: Novatec D411SB & D412SB CL SP 12/100mm 12/142mm Spokes: Pillar Aero X-TRA 1420 Nipples: Sapim Aluminium Black Weight: 1380.56 grams
1
Paul: 2018 Giant TCR sitting on R35 rims with DT Swiss 240 hubs.
Japan
2
Light Bicycle: R35 Disc 35mm Rim R55 Disc 55mm Rim Hubs: Chris King R45D Matte Turquoise Spokes: Sapim CX Ray Black J-bend NIPPLE Sapim Aluminium Blue Polyax Secure Lock External
1
Lindsay: wheels arrived in good condition earlier this week. First ride this morning - very happy with them. Thanks again for your help throughout the process.
Australia
2
Lance: Awesome 35mm wheels. Thanks guys.
United States
1
Emiliano: RRU35CO2 U-shape 35mm on my Rose Xeon CDX, dtswiss 240s and pillar aero spokes. Great wheels, ride fantastic. Thank you Kartrin for all the emails and patience!
UK
1

COMMENTS

G

Gary 2019/12/23

I'm looking for a 25mm wide / 25 mm deep carbon rim that is hookless. Do you offer this for a cyclocross wheel?


LightBicycle 2019/12/24

Hi Gary, Sorry to tell you that we don't have the hookless version for the R25 (25mm wide, 25mm deep). What would be the tire width that you plan to use? We do have a wider road bike 700C rim (The AR36, 28mm wide, 36mm deep) with hookless rim profile, will you be interested? It is one of the best sellers in the past year. It was designed for CX/Gravel riding. The rim is USD154 each. You can learn more at https://www.lightbicycle.com/Road-bicycle-disc-rims-28mm-wide-36mm-deep-aero-clincher.html Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Y

yuri 2019/09/02

Do you hub 30~35mm depth and 25~28mm width ,tubeless ready , offset rim?


LightBicycle 2019/09/04

Hi Yuri, 1. Yes, we do have road rims with asymmetrical profile, aka. offset rim., but only gravel bike rim. Is it RG922 gravel rim okay for you? https://www.lightbicycle.com/29er-disc-bike-rims-29mm-wide-28mm-deep-clincher-for-cyclocross-and-gravel-bikes.html For road racing wheels, we do not recommend asymmetrical, it will affect aerodynamics. 2. All Light Bicycle rims are tubeless-ready. Thanks, Lightbicycle
