Build Your Helios RIM Helios-XC928
All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.
Global Shop
US Shop
CA Shop
EU Shop
Ships worldwide. See what's on sale>>
DEFAULT SETTINGS
Piece Weight: g+/-
Subtotal: USD +
Lead time:
ADD TO CART
You
missed some options.
Added to cart! View cart
Center Channel Hole This is a required option.
No Access Holes
DEFAULT SETTINGS
RIMS
Matte, UD, hook, blank (no decal), 24h, with drain holes
Paintless, UD, blank (no decal), 28h, with access holes
HUBS
DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t
12*100mm (F) & 12*142mm (R)
DT Swiss 350 Straightpull Centerlock Sram XD 18t
15/110mm (F) & 12/148mm (R) boost
SPOKES & NIPPLES
Sapim CX Sprint-rear drive side / CX Ray-other sides
Sapim aluminum black external
Sapim CX Ray & Sapim aluminum black external
ACCESSORIES
2 valves & 1 spare 18T ratchet
2 valves & 2 adapters (centerlock to 6-bolt)
Note: the wheelset price includes the warehouse transfer cost ($80).
Piece Weight: g+/-
Subtotal: USD + (discount price)
Lead time: typically ships in 3 business days
ADD TO CART
You
missed some options.
Added to cart! View cart
This item has gone out of stock currently.
More products are in transit and we will update the availability soon.
Leave a comment or email us (sales@lightbicycle.com) if you want to get notified when available.
You can also order this product from other shops.
We do not stock this item at the Australian shop. See what's available.
You can order this product from our Global / NA shops.
Please fill out this form if you are looking for a custom wheelset.
We'll get back to you soon to study the customization requests via email.
Our apologies, we do not offer this item at the Global warehouse.
Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.
Our apologies, we do not stock this item at the US Shop. Check this link to see what items we stock, or send us an email to discuss.
Our Global Shop can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelsets. We will get back to you via email to discuss in 24hrs.
Our apologies, we do not stock this item at the CA Shop. Check this link to see what items we stock, or send us an email to discuss.
Our Global Shop can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelsets. We will get back to you via email to discuss in 24hrs.
The wheelsets are still in transit to this shop. We’ll update this page when they’re available. Learn more about our European shop.
You can order this product from our Global or North American shops.
Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.
DEFAULT SETTINGS
Piece Weight: g+/-
Subtotal: USD +
Lead time:
ADD TO CART
You
missed some options.
You
missed some options.
Added to cart! View cart
- 1
RIM
- 2
ACCESSORIES/OTHERS
- 3
OVERVIEW
RIM
Shopping Style
|
Options
Features |
Quick Buy | Full Custom |
|---|---|---|
| Inventory | Parts in stock (Assembled upon order) |
Manufactured upon order |
| Customization | Least customizable | 100% Customizable |
| Lead Time | ≤ 3 days | 4 weeks typically |
| Availability | Limited models | All models |
| Shipping | Worldwide | Worldwide |
Quick Buy (In Stock)
Full Custom (Made to Order)
DEFAULT SETTINGS
Rims
Hook, matte, UD, with drain holes
Hook, matte, UD, with access holes, with drain holes
Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes
Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes
Paintless, UD, 5-year warranty, no drain holes
Grooved graphene surface, hook, matte, UD, with access holes, with drain holes
Grooved graphene surface, hook, matte, UD, no access holes, with drain holes
Matte UD, 32H, Centered (Staggered)
Hubs
Hope Pro 4 Fatsno J-bend 6-bolt
15/150mm (F) & 12/197mm (R) Sram XD
Straightpull centerlock black 24H
12/100mm & 12/142mm
Shimano Road 11S
DT Swiss straightpull / Bitex j-bend, centerlock, 28H
J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H
15/110mm boost & 12/148mm boost Sram XD
DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear
100mm QR & 130mm QR Shimano Road 11S
Spokes
Sapim CX Ray black
Sapim D-Light
Accessories
No decals/valves/tape
No decals/valves/tape/pads
No decals/valves
Piece Weight: g+/-
Subtotal: USD +
Lead time:
ADD TO CART
You
missed some options.
You
missed some options.
Added to cart! View cart
Hole Count This is a required option.
Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.
Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc), most of which are at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.
28H
Center Channel Hole This is a required option.
With Access Holes
Finish This is a required option.
Paintless: The "Finish" relates to how the rim is coated or painted such as matte or glossy for the most common applications. Our Recon Pro and Falcon Pro rims feature BlackTek and come out of molds as a completed product, with a scratch resistant and near flawless finish, eliminating the need for coating or painting. We name this kind of superior finish the paintless.
Crystal Painting: A fantastic painting effect designed by Light Bicycle.
Full Custom: This option offers custom finish such as Satin/Raw etc at no extra charge but subject to rim models with 3~5 days LONGER on manufacture. And custom color painting is also available with added 15g/rim and extra $20USD/rim as a start. If you select this option and LEAVE YOUR REQUIREMENT IN QUOTES IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed to finalize the details.
Paintless
Glossy Crystal Painting (silver) USD +20
Full Custom
Weave This is a required option.
The layup schedule is predetermined for each model, but you can choose the outer layer for cosmetic appearence.
The rim strength & weight is virtually identical.
Matte UD is the most popular and has a subtle look.
The futuristic Hexa-Comb and Braided UD are smooth and looks great on deep rims.
More info about Weave >>
Full Custom: This option (if provided here to choose) offers custom weaves such as 3k twill vertical/ horizontal/ Braided UD etc with extra charge of $15USD/rim as a start but subject to rim models with 3~5 days LONGER on manufacture. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.
UD
Drain Hole This is a required option.
The two small drain holes located 90° to the valve hole effectively help evacuate both the water trapped inside the rim and the air leaking into the rim chamber caused by nonperfect tubeless tape sealing handwork that may risk rim explosure in an aggressive tire inflating.
It is the small reinforced layer prelaminated on the area where the drain hole is drilled later that makes the rim strength fairly ensured without any compromise of weight added.
Riders who ride in wet areas are suggested to order rims with drain holes.
More info about holes >>
No Drain Holes
With Drain Holes
Nipple Hole This is a required option.
External Hole
Rim Warranty This is a required option.
For Recon Pro Series ( MTB rim), Falcon Pro (road rim) and Drift Pro (fatbike rim), 5-year warranty is set as standard, and optional Lifetime Premium Warranty are kindly offered to purchase with minimum charge respectively.
5 Years
Lifetime USD +100/rim
Decal This is a required option.
1. Grey Laser Engraving (Recon Pro) - Our laser engraving technology is eco-friendly and adds a snappy, polished aesthetic to your new rims.
Please note: Contrary to rims with any coated/painted finishes (matte, glossy and satin) as well as Crystal Painting, laser engraving could work with paintless rims only.
2. Full Custom - Add some additional personalization and go full custom with your rim graphics! Laser engraving is available in one colour (light grey) and starts at $5 USD per rim. If you select this option, LEAVE YOUR REQUEST IN QUOTES IN THE NOTES AT CHECKOUT. For example: "I need my personalized logo printed" or "Just text 'ABC racing' ". We will reach out to you once the order is placed to finalize the details of custom graphics.
Grey Laser Engraving (Recon Pro)
Blank (No decal)
Full Custom (Laser only) USD +5
Valve Stem This is a required option.
We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions
None
Add Valve Stem USD +7 each
Tubeless Tape This is a required option.
Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.
Information of tubeless rim tape
Apply Tubeless Tape: In Light Bicycle, a proprietary taping aid works with our wheel builders to guarantee that a solid taping craft at industrial-level is well implemented in order for you to ride carefree tubeless at any conditions.
You do NOT have to use any tubeless tape to run tubeless if you have chosen "No Access Holes" on the rim center channel.
None
Add Tubeless Tape USD +6 each
Recon Pro orders start shipping in October.
-
+
PCS
Hole Count This is a required option.
ROAD Product
Road rim brake: Stocked in 20h and 24h
Road disc: Stocked in 24h and 28h
MTB Product
MTB rims: Stocked in 32h. Only XC Flyweight rims are stocked in 28h as well as 32h
Please note that our valves are drilled for presta and spoke holes are made for external nipples by default. If you have a custom drilling requirements please contact us.
28H
Finish This is a required option.
The "Finish" relates to how the rim is coated or painted such as matte or glossy for the most common applications. Our Recon Pro and Falcon Pro rims feature BlackTek and come out of molds as a completed product, with a scratch resistant and near flawless finish, eliminating the need for coating or painting. We name this kind of superior finish the paintless.
Paintless
Center Channel Hole This is a required option.
With Access Holes
Weave This is a required option.
UD
Drain Hole This is a required option.
No Drain Holes
Nipple Hole This is a required option.
External Hole
Rim Warranty This is a required option.
For Recon Pro Series ( MTB rim), Falcon Pro (road rim) and Drift Pro (fatbike rim), 5-year warranty is set as standard, and optional Lifetime Premium Warranty are kindly offered to purchase with minimum charge respectively.
5 Years
Lifetime USD +100/rim
Valve Stem This is a required option.
We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions
None
Add Valve Stem USD +7 each
Tubeless Tape This is a required option.
Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.
Apply Tubeless Tape: The tubeless tape with high tensile strength is tightly installed on the wheel(s) at industrial-level for you to ride carefree tubeless at any conditions.
None
Add Tubeless Tape USD +8 each
Decal This is a required option.
1. Grey Laser Engraving (Recon Pro) - Our laser engraving technology is eco-friendly and adds a snappy, polished aesthetic to your new rims.
Please note: Contrary to rims with any coated/painted finishes (matte, glossy and satin) as well as Crystal Painting, laser engraving could work with paintless rims only.
2. Full Custom - Add some additional personalization and go full custom with your rim graphics! Laser engraving is available in one colour (light grey) and starts at $5 USD per rim. If you select this option, LEAVE YOUR REQUEST IN QUOTES IN THE NOTES AT CHECKOUT. For example: "I need my personalized logo printed" or "Just text 'ABC racing' ". We will reach out to you once the order is placed to finalize the details of custom graphics.
Grey Laser Engraving (Recon Pro)
Recon Pro orders start shipping in October.
-
+
PCS
Hole Count This is a required option.
ROAD Product
Road rim brake: Stocked in 20h and 24h
Road disc: Stocked in 24h and 28h
MTB Product
MTB rims: Stocked in 32h. Only XC Flyweight rims are stocked in 28h as well as 32h
Please note that our valves are drilled for presta and spoke holes are made for external nipples by default. If you have a custom drilling requirements please contact us.
28H
Finish This is a required option.
The "Finish" relates to how the rim is coated or painted such as matte or glossy for the most common applications. Our Recon Pro and Falcon Pro rims feature BlackTek and come out of molds as a completed product, with a scratch resistant and near flawless finish, eliminating the need for coating or painting. We name this kind of superior finish the paintless.
Paintless
Center Channel Hole This is a required option.
With Access Holes
Weave This is a required option.
UD
Drain Hole This is a required option.
No Drain Holes
Nipple Hole This is a required option.
External Hole
Rim Warranty This is a required option.
For Recon Pro Series ( MTB rim), Falcon Pro (road rim) and Drift Pro (fatbike rim), 5-year warranty is set as standard, and optional Lifetime Premium Warranty are kindly offered to purchase with minimum charge respectively.
5 Years
Lifetime USD +100/rim
Valve Stem This is a required option.
We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions
None
Add Valve Stem USD +7 each
Tubeless Tape This is a required option.
Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.
Information of tubeless rim tape
Apply Tubeless Tape: In Light Bicycle, a proprietary taping aid works with our wheel builders to guarantee that a solid taping craft at industrial-level is well implemented in order for you to ride carefree tubeless at any conditions.
You do NOT have to use any tubeless tape to run tubeless if you have chosen "No Access Holes" on the rim center channel.
None
Add Tubeless Tape USD +8 each
Decal This is a required option.
1. Grey Laser Engraving (Recon Pro) - Our laser engraving technology is eco-friendly and adds a snappy, polished aesthetic to your new rims.
Please note: Contrary to rims with any coated/painted finishes (matte, glossy and satin) as well as Crystal Painting, laser engraving could work with paintless rims only.
2. Full Custom - Add some additional personalization and go full custom with your rim graphics! Laser engraving is available in one colour (light grey) and starts at $5 USD per rim. If you select this option, LEAVE YOUR REQUEST IN QUOTES IN THE NOTES AT CHECKOUT. For example: "I need my personalized logo printed" or "Just text 'ABC racing' ". We will reach out to you once the order is placed to finalize the details of custom graphics.
Grey Laser Engraving (Recon Pro)
Recon Pro orders start shipping in October.
-
+
PCS
Piece Weight: 238.00g+/-15
Subtotal: USD 349+
Piece Weight: 238.00g+/-15
Subtotal: USD 399+
Piece Weight: 238.00g+/-15
Subtotal: USD 399+
PREVIOUS
NEXT
You
missed some options.
You
missed some options.
Added to cart!
View cart or continue
shopping.

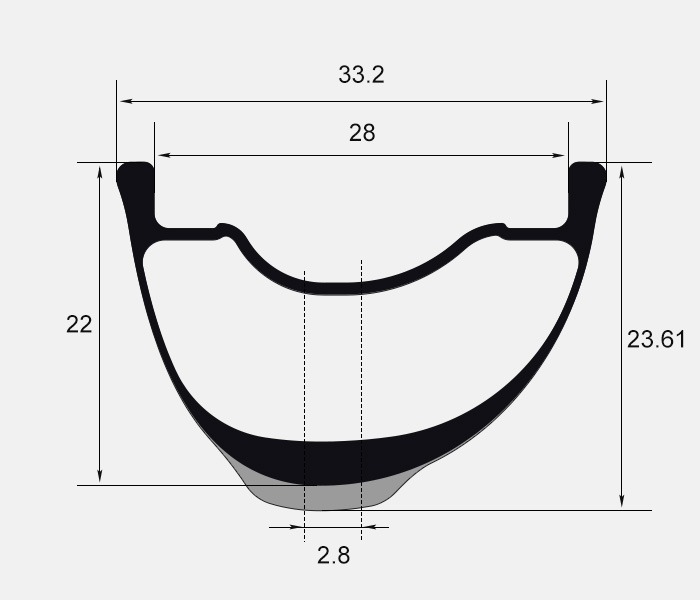

RIM SPECS
- Model Helios-XC928
- Series Helios
- Material Toray T700 & T800 Premium Carbon Fiber
- Size 29"/29er (ETRTO 622mm)
- Intended Use Cross Country, XCO, XCM
- Bead Type Hookless
- Tubeless Capable Yes
- Inner/Outer Width 28mm/33.2mm
- Depth 22mm
- Rim Weight 238+/-15g
- ERD 590mm (not including nipple head dimension)
- Profile Asymmetric (2.8mm)
- Max Cyclist Weight (on flat ground) 95kg/209lbs
- Spoke Hole Angle ±7°
- Spoke Tension 120~130kgf front disc side and rear drive side
- Max Tire Pressure 35psi/ 2.77bar
- Recommended Tire Width 2.35''~2.4''

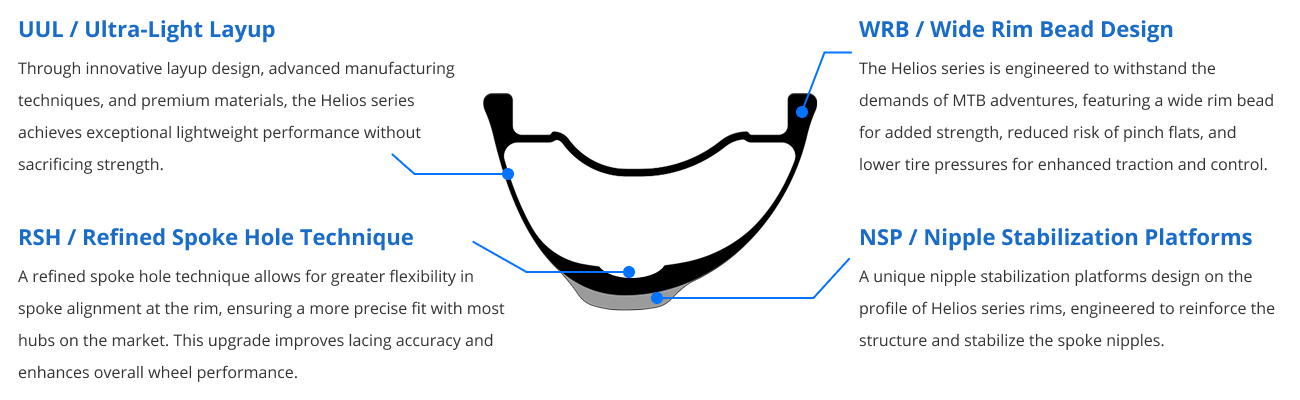

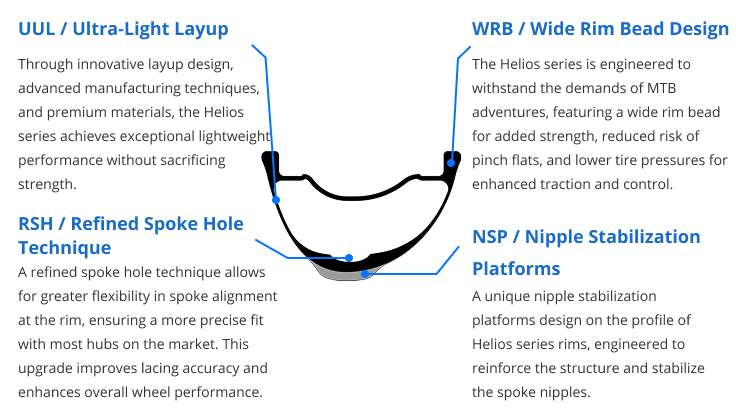

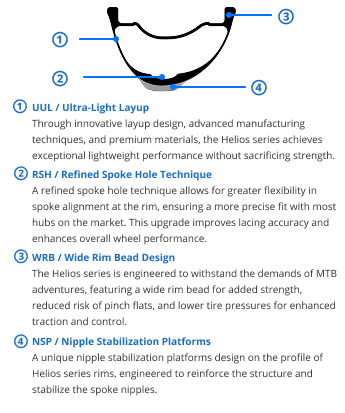

TECH
At Light Bicycle, our story begins with carbon mountain bike rims—and it never ends. Our first carbon MTB rim was born in 2011. Over the years, our MTB wheels have won the unanimous favor of riders. With the innovation and changes in the mountain bike wheels market, we are excited to introduce the all-new Helios Mountain Rim Series.
As one of the XC models of Helios Series, Helios XC928 is a superlight XC race machine, featuring a 28mm wide internal rim profile optimized for use with 2.35"-2.4" tires, 22mm/24mm depth, and an asymmetric design. If you’re looking to save weight from any XC or down-country bike, Helios XC928 would be your first choice.
With an ultra-lightweight of 238g, the Helios XC928 keeps rotational weight to an absolute minimum, which translates to lightning-fast acceleration. Built with premium materials, advanced layer-up system, and strict testing standard (100J), the Helios XC928 is light enough to get you up, strong enough to never let you down. Whether it’s an after-work loop local short course or an epic 12-hour endurance event, this rim’s for you.
The tire pressure for this rim is recommended at 35 psi. The rider's weight limit is 209lbs. The positive stiffness test on the rim has reached 100J.
WARRANTY
For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.
For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.
Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.
WHAT IS IN THE BOX
At Light Bicycle, our story begins with carbon mountain bike rims—and it never ends. Our first carbon MTB rim was born in 2011. Over the years, our MTB wheels have won the unanimous favor of riders. With the innovation and changes in the mountain bike wheels market, we are excited to introduce the all-new Helios Mountain Rim Series.
As one of the XC models of Helios Series, Helios XC928 is a superlight XC race machine, featuring a 28mm wide internal rim profile optimized for use with 2.35"-2.4" tires, 22mm/24mm depth, and an asymmetric design. If you’re looking to save weight from any XC or down-country bike, Helios XC928 would be your first choice.
With an ultra-lightweight of 238g, the Helios XC928 keeps rotational weight to an absolute minimum, which translates to lightning-fast acceleration. Built with premium materials, advanced layer-up system, and strict testing standard (100J), the Helios XC928 is light enough to get you up, strong enough to never let you down. Whether it’s an after-work loop local short course or an epic 12-hour endurance event, this rim’s for you.
The tire pressure for this rim is recommended at 35 psi. The rider's weight limit is 209lbs. The positive stiffness test on the rim has reached 100J.
Rims
Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.
- Model: Helios-XC928
- Series: Helios
- Material: Toray T700 & T800 Premium Carbon Fiber
- Size: 29"/29er (ETRTO 622mm)
- Intended Use: Cross Country, XCO, XCM
- Bead Type: Hookless
- Tubeless Capable: Yes
- Inner/Outer Width: 28mm/33.2mm
- Depth: 22mm
- Rim Weight: 238+/-15g
- ERD: 590mm (not including nipple head dimension)
- Profile: Asymmetric (2.8mm)
- Max Cyclist Weight (on flat ground): 95kg/209lbs
- Spoke Hole Angle: ±7°
- Spoke Tension: 120~130kgf front disc side and rear drive side
- Max Tire Pressure: 35psi/ 2.77bar
- Recommended Tire Width: 2.35''~2.4''
Full Custom
Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.
- Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter
- Finish: Matte, Glossy, Satin, Colored Paint
- Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
- Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
- Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+
For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.
For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.
Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.
Please carefully inspect your package when unboxing it and contact us immediately if it is damaged or if anything is missing.
Together we can make this planet better. Join our sustainability program to reduce paper waste using digital docs.
-
Overview
At Light Bicycle, our story begins with carbon mountain bike rims—and it never ends. Our first carbon MTB rim was born in 2011. Over the years, our MTB wheels have won the unanimous favor of riders. With the innovation and changes in the mountain bike wheels market, we are excited to introduce the all-new Helios Mountain Rim Series.

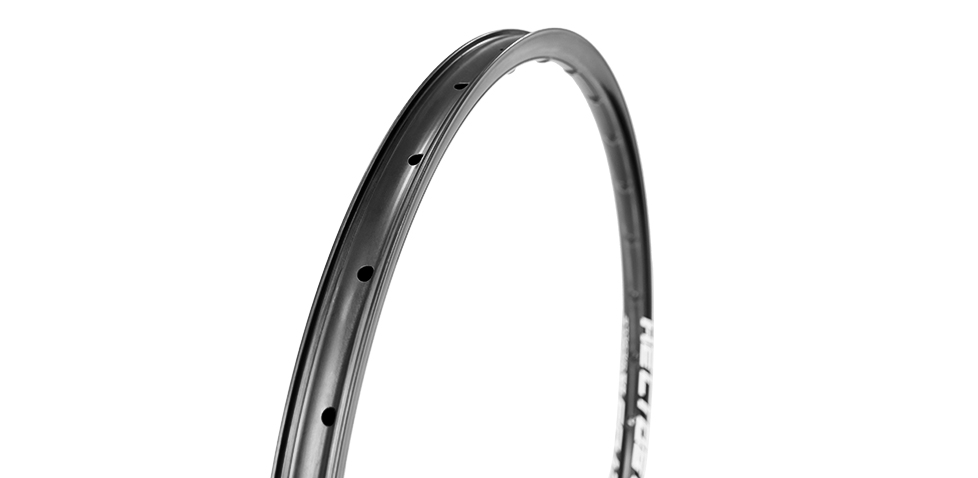

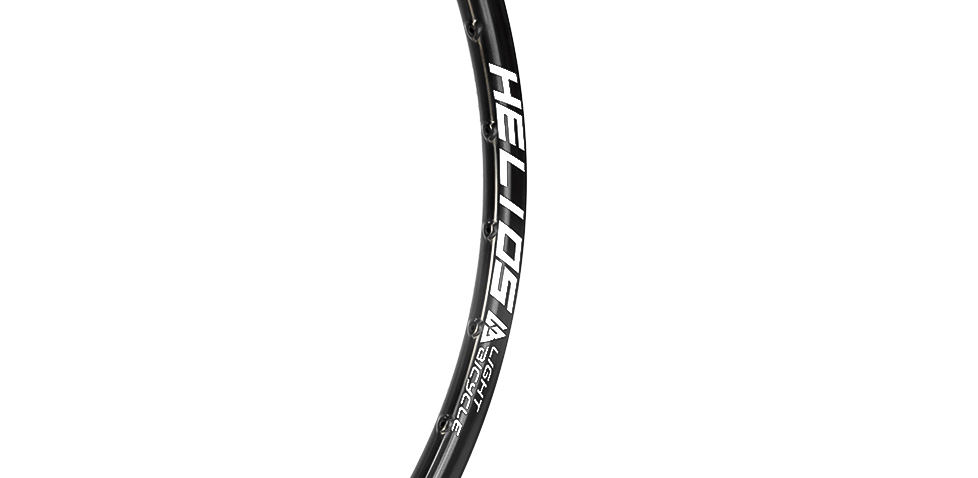

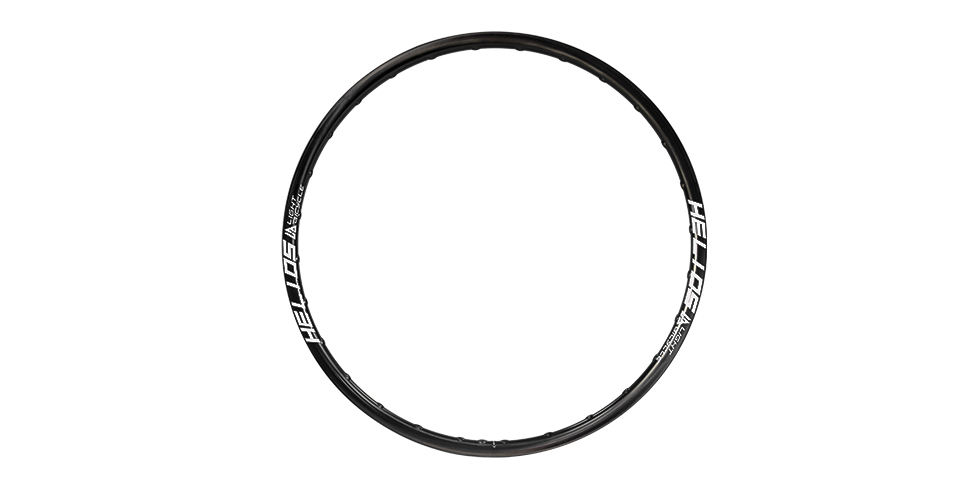

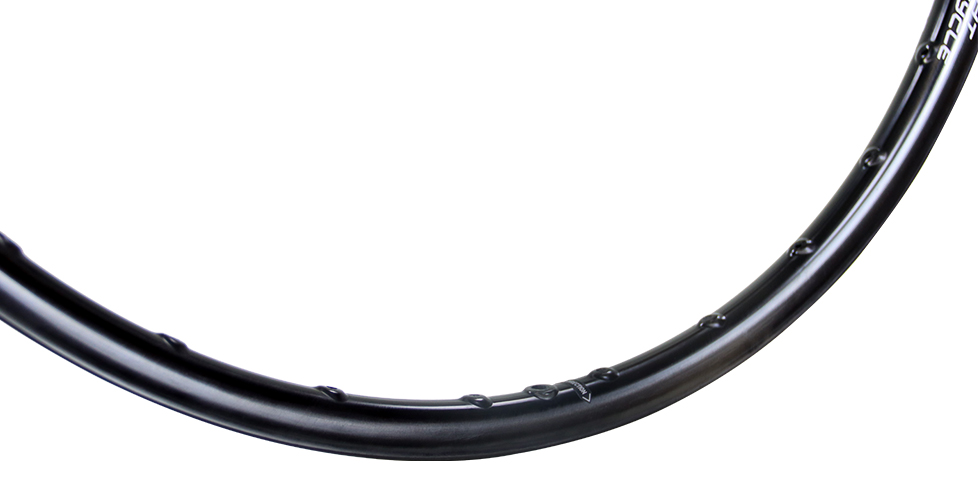

As one of the XC models of Helios Series, Helios XC928 is a superlight XC race machine, featuring a 28mm wide internal rim profile optimized for use with 2.35"-2.4" tires, 22mm/24mm depth, and an asymmetric design. If you’re looking to save weight from any XC or down-country bike, Helios XC928 would be your first choice.
With an ultra-lightweight of 238g, the Helios XC928 keeps rotational weight to an absolute minimum, which translates to lightning-fast acceleration. Built with premium materials, advanced layer-up system, and strict testing standard (100J), the Helios XC928 is light enough to get you up, strong enough to never let you down. Whether it’s an after-work loop local short course or an epic 12-hour endurance event, this rim’s for you.
The tire pressure for this rim is recommended at 35 psi. The rider's weight limit is 209lbs. The positive stiffness test on the rim has reached 100J.
-
Specs
Rims
- Model: Helios-XC928
- Series: Helios
- Material: Toray T700 & T800 Premium Carbon Fiber
- Size: 29"/29er (ETRTO 622mm)
- Intended Use: Cross Country, XCO, XCM
- Bead Type: Hookless
- Tubeless Capable: Yes
- Inner/Outer Width: 28mm/33.2mm
- Depth: 22mm
- Rim Weight: 238+/-15g
- ERD: 590mm (not including nipple head dimension)
- Profile: Asymmetric (2.8mm)
- Max Cyclist Weight (on flat ground): 95kg/209lbs
- Spoke Hole Angle: ±7°
- Spoke Tension: 120~130kgf front disc side and rear drive side
- Max Tire Pressure: 35psi/ 2.77bar
- Recommended Tire Width: 2.35''~2.4''
Full Custom
Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.
- Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter
- Finish: Matte, Glossy, Satin, Colored Paint
- Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
- Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
- Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+
-
Tech
-
Warranty
For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.
For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.
Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.
-
In The Box
Please carefully inspect your package when unboxing and get in touch with us immediately if the package is damaged or anything is missing.
Together we can make this planet better. Join our sustainability program to reduce paper waste with the use of digital manuals.
Gallery
Be the first to review this product and help riders of your style choose the most suited.
If you've got a longer story to tell and a few pictures won't cut it, check out our storytelling feature and consider sharing your story!
Get in touch
Feel free to leave a comment if you have any questions or suggestions on our products or other issues.
Please leave your name here.
E-mail is required for further contact.
Please enter a message.
