Build Your Falcon Pro RIM WG44 disc

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

Buy wheelset

Global Shop

US Shop

CA Shop

EU Shop

Ships worldwide. See what's on sale>>

Center Channel Hole This is a required option.

No Access Holes

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h, with drain holes

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD + (discount price)

Lead time: typically ships in 3 business days

ADD TO CART You missed some options.

We do not stock this item at the Australian shop. See what's available.

You can order this product from our Global / NA shops.

Please fill out this form if you are looking for a custom wheelset.

We'll get back to you soon to study the customization requests via email.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the US Shop. Check this link to see what items we stock, or send us an email to discuss.

Our Global Shop can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelsets. We will get back to you via email to discuss in 24hrs.

Our apologies, we do not stock this item at the CA Shop. Check this link to see what items we stock, or send us an email to discuss.

The wheelsets are still in transit to this shop. We’ll update this page when they’re available. Learn more about our European shop.

You can order this product from our Global or North American shops.

Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.

DEFAULT SETTINGS

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

Quick Buy (In Stock)

Full Custom (Made to Order)

DEFAULT SETTINGS

Rims

Hook, matte, UD, with drain holes

Hook, matte, UD, with access holes, with drain holes

Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes

Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes

Paintless, UD, 5-year warranty, no drain holes

Grooved graphene surface, hook, matte, UD, with access holes, with drain holes

Grooved graphene surface, hook, matte, UD, no access holes, with drain holes

Matte UD, 32H, Centered (Staggered)

Hubs

Hope Pro 4 Fatsno J-bend 6-bolt

15/150mm (F) & 12/197mm (R) Sram XD

Straightpull centerlock black 24H

12/100mm & 12/142mm

Shimano Road 11S

DT Swiss straightpull / Bitex j-bend, centerlock, 28H

J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H

15/110mm boost & 12/148mm boost Sram XD

DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear

100mm QR & 130mm QR Shimano Road 11S

Spokes

Sapim CX Ray black

Sapim D-Light

Accessories

No decals/valves/tape

No decals/valves/tape/pads

No decals/valves

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Brake System This is a required option.

Disc

Version This is a required option.

Version	Weight	Material	Layup	Max Load
Standard	Standard	Toray T700	Standard Layup	135 kgs
Flyweight	40g - 70g lighter	Toray T800 and T700	New layup for weight saving	90 kgs

Front Flyweight / Rear Standard with specific layup is also a good option that proves the harmony of weight and strength.

Standard

Flyweight USD +12

Bead type This is a required option.

Hybrid Hook

Hole Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc), most of which are at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

24H

28H

32H

Full Custom

Finish This is a required option.

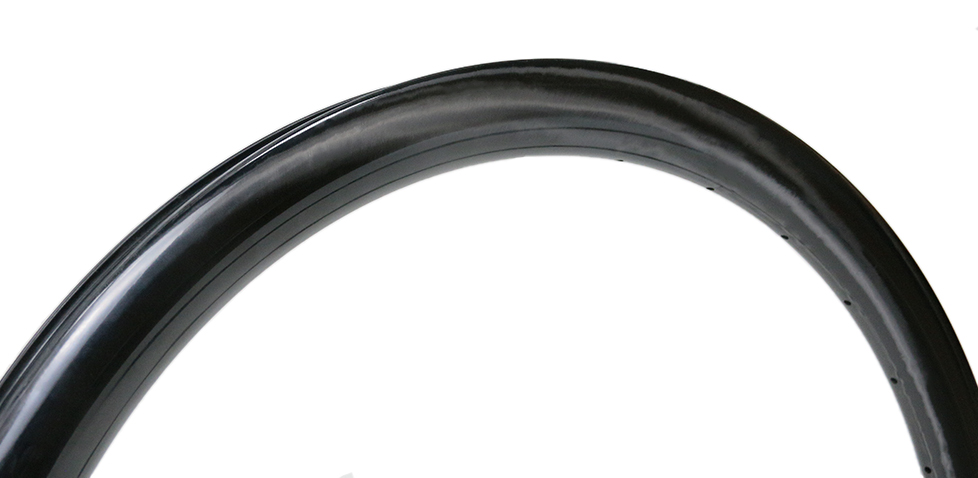

Paintless: The "Finish" relates to how the rim is coated or painted such as matte or glossy for the most common applications. Our Recon Pro and Falcon Pro rims feature BlackTek and come out of molds as a completed product, with a scratch resistant and near flawless finish, eliminating the need for coating or painting. We name this kind of superior finish the paintless.

Crystal Painting: A fantastic painting effect designed by Light Bicycle.

Full Custom: This option offers custom finish such as Satin/Raw etc at no extra charge but subject to rim models with 3~5 days LONGER on manufacture. And custom color painting is also available with added 15g/rim and extra $20USD/rim as a start. If you select this option and LEAVE YOUR REQUIREMENT IN QUOTES IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed to finalize the details.

Paintless

Full Custom

Weave This is a required option.

Rim Warranty This is a required option.

For Recon Pro Series ( MTB rim), Falcon Pro (road rim) and Drift Pro (fatbike rim), 5-year warranty is set as standard, and optional Lifetime Premium Warranty are kindly offered to purchase with minimum charge respectively.

5 Years

Lifetime USD +100/rim

Center Channel Hole This is a required option.

With Access Holes: This is the traditional method. Spoke access holes are drilled in the center channel to allow the nipples to easily be fed through the rim. Tubeless tape is required to seal the rim.

No Access Holes: No spoke access holes are drilled in the center channel. Feeding the nipples through the rim is more challenging, but it allows for a tubeless setup without the need for tape. This kind of system is known as "road tubeless" and was made popular by Mavic. Some companies still refer to it as "UST style", however, UST is actually a specific interface between the tire and rim which was developed by a partnership between Mavic, Michelin, and Hutchinson.

Currently, rims with 'No Access Holes' do not work with our carbon spokes.

With Access Holes

No Access Holes

Drain Hole This is a required option.

The two small drain holes located 90° to the valve hole effectively help evacuate both the water trapped inside the rim and the air leaking into the rim chamber caused by nonperfect tubeless tape sealing handwork that may risk rim explosure in an aggressive tire inflating.

It is the small reinforced layer prelaminated on the area where the drain hole is drilled later that makes the rim strength fairly ensured without any compromise of weight added.

Riders who ride in wet areas are suggested to order rims with drain holes.
More info about holes >>

With Drain Holes

No Drain Holes

Decal << Read It First This is a required option.

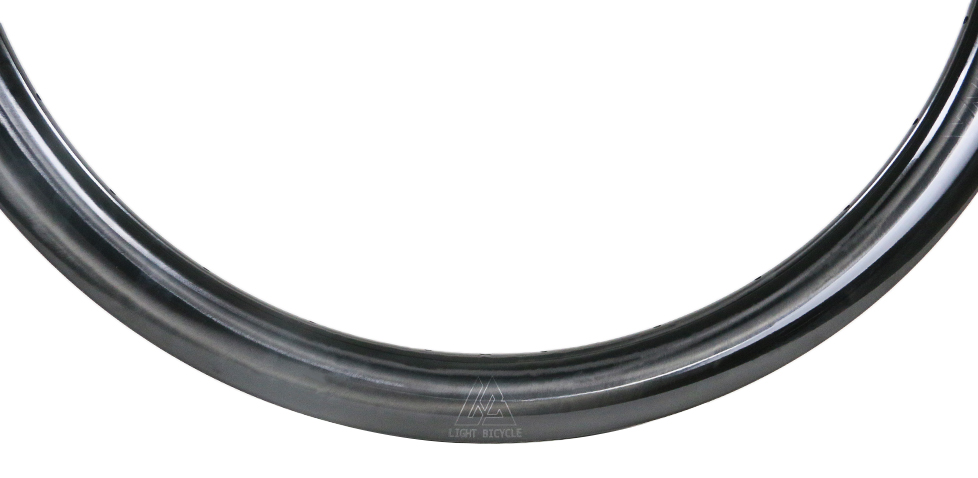

1. Grey Laser Engraving (Falcon Pro) - Our laser engraving technology is eco-friendly and adds a snappy, polished aesthetic to your new rims.
Please note: Contrary to rims with any coated/painted finishes (matte, glossy and satin) as well as Crystal Painting, laser engraving could work with paintless rims only.

2. Full Custom - Add some additional personalization and go full custom with your rim graphics! Laser engraving is available in one colour (light grey) and starts at $5 USD per rim. If you select this option, LEAVE YOUR REQUEST IN QUOTES IN THE NOTES AT CHECKOUT. For example: "I need my personalized logo printed" or "Just text 'ABC racing' ". We will reach out to you once the order is placed to finalize the details of custom graphics.

Full Custom (Laser only) USD +5

Grey Laser Engraving (Falcon Pro)

Blank (No decal)

Valve Stem This is a required option.

We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.
Information of tubeless rim tape

Apply Tubeless Tape: In Light Bicycle, a proprietary taping aid works with our wheel builders to guarantee that a solid taping craft at industrial-level is well implemented in order for you to ride carefree tubeless at any conditions.

You do NOT have to use any tubeless tape to run tubeless if you have chosen "No Access Holes" on the rim center channel.

None

Add Tubeless Tape USD +6 each

Recon Pro orders start shipping in October.

- + PCS

Brake System This is a required option.

Disc

Version This is a required option.

Version	Weight	Material	Layup	Max Load
Standard	Standard	Toray T700	Standard Layup	135 kgs
Flyweight	40g - 70g lighter	Toray T800 and T700	New layup for weight saving	90 kgs

Standard

Bead type This is a required option.

Hybrid Hook

Hole Count This is a required option.

ROAD Product
Road rim brake: Stocked in 20h and 24h
Road disc: Stocked in 24h and 28h

MTB Product
MTB rims: Stocked in 32h. Only XC Flyweight rims are stocked in 28h as well as 32h
Please note that our valves are drilled for presta and spoke holes are made for external nipples by default. If you have a custom drilling requirements please contact us.

24H

28H

Finish This is a required option.

The "Finish" relates to how the rim is coated or painted such as matte or glossy for the most common applications. Our Recon Pro and Falcon Pro rims feature BlackTek and come out of molds as a completed product, with a scratch resistant and near flawless finish, eliminating the need for coating or painting. We name this kind of superior finish the paintless.

Paintless

Weave This is a required option.

Rim Warranty This is a required option.

5 Years

Lifetime USD +100/rim

Decal This is a required option.

Grey Laser Engraving (Falcon Pro)

Valve Stem This is a required option.

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.

Apply Tubeless Tape: The tubeless tape with high tensile strength is tightly installed on the wheel(s) at industrial-level for you to ride carefree tubeless at any conditions.

None

Add Tubeless Tape USD +8 each

Recon Pro orders start shipping in October.

- + PCS

Brake System This is a required option.

Disc

Version This is a required option.

Version	Weight	Material	Layup	Max Load
Standard	Standard	Toray T700	Standard Layup	135 kgs
Flyweight	40g - 70g lighter	Toray T800 and T700	New layup for weight saving	90 kgs

Standard

Bead type This is a required option.

Hybrid Hook

Hole Count This is a required option.

ROAD Product
Road rim brake: Stocked in 20h and 24h
Road disc: Stocked in 24h and 28h

24H

28H

Finish This is a required option.

Paintless

Weave This is a required option.

Rim Warranty This is a required option.

5 Years

Lifetime USD +100/rim

Decal This is a required option.

Grey Laser Engraving (Falcon Pro)

Valve Stem This is a required option.

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

None

Add Tubeless Tape USD +8 each

Recon Pro orders start shipping in October.

- + PCS

Piece Weight: 450.00g+/-15

Subtotal: USD 289+

Piece Weight: 450.00g+/-15

Subtotal: USD 339+

Piece Weight: 450.00g+/-15

Subtotal: USD 339+

PREVIOUS NEXT

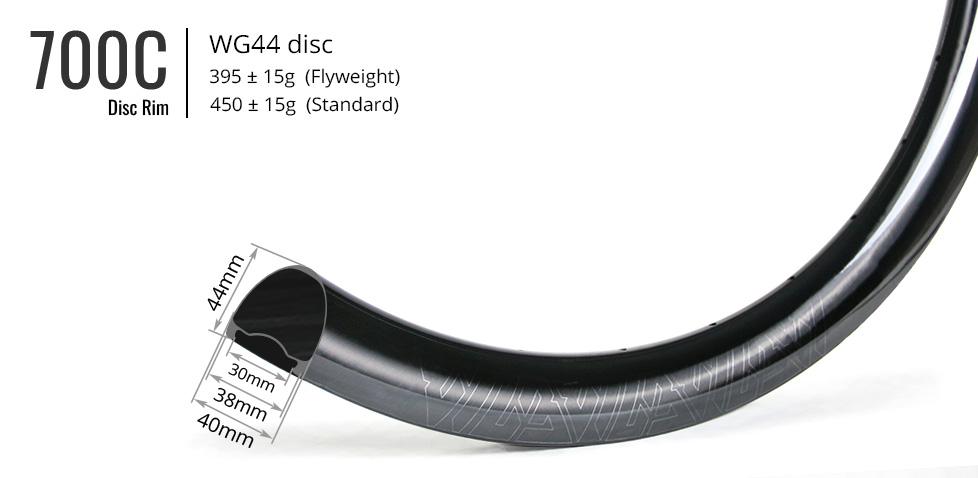

RIM SPECS

Rim Model WG44 disc
Rim Introduction >>
Material Toray T700 & T800 Premium Carbon Fiber
Size 29”/700C (ETRTO 622mm)
Series FALCON PRO
Intended Use CX/Gravel
Bead Type Hybrid Hook
Tubeless Capable Yes

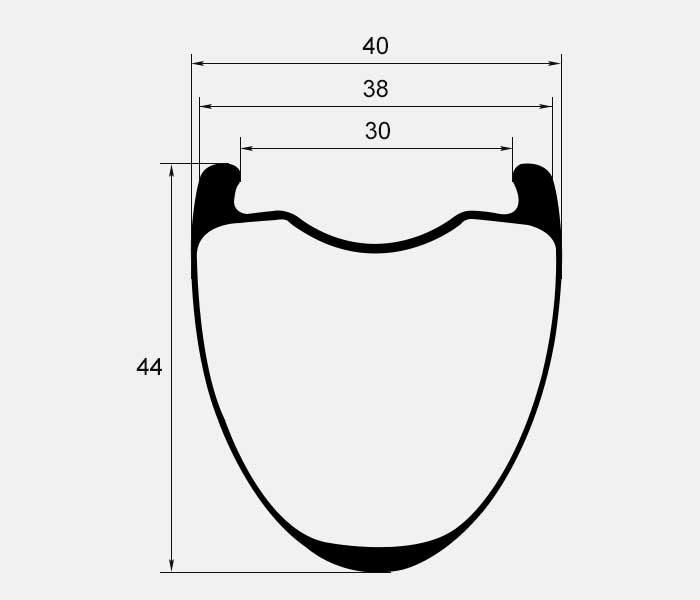

Inner/Outer Width 30mm/38mm
Depth 44mm
ERD 552.3mm (not including nipple head dimension)
Rim Weight Standard 450+/-15g, Flyweight 395+/-15g
Profile Symmetric (0mm)
Max Cyclist Weight (on flat ground) Standard 135kg/ 298lbs, Flyweight 90kg/ 198lbs
Spoke Hole Angle ±8°
Spoke Tension 120~135kgf front disc side and rear drive side
Max Tire Pressure (with 40C) 55psi/3.79bar
Recommended Tire Width 42C~70C

Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Rim Model: WG44 disc
Rim Introduction >>
Material: Toray T700 & T800 Premium Carbon Fiber
Size: 29”/700C (ETRTO 622mm)
Series: FALCON PRO
Intended Use: CX/Gravel
Bead Type: Hybrid Hook
Tubeless Capable: Yes
Inner/Outer Width: 30mm/38mm
Depth: 44mm
ERD: 552.3mm (not including nipple head dimension)
Rim Weight: Standard 450+/-15g, Flyweight 395+/-15g
Profile: Symmetric (0mm)
Max Cyclist Weight (on flat ground): Standard 135kg/ 298lbs, Flyweight 90kg/ 198lbs
Spoke Hole Angle: ±8°
Spoke Tension: 120~135kgf front disc side and rear drive side
Max Tire Pressure (with 40C): 55psi/3.79bar
Recommended Tire Width: 42C~70C

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter
Finish: Matte, Glossy, Satin, Colored Paint
Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services

Please carefully inspect your package when unboxing it and contact us immediately if it is damaged or if anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste using digital docs.

Download user guides >>

Overview

The WG44 (WG for Wide-Gravel) is our widest ever gravel-oriented carbon rim, meeting the needs of elite gravel riders, racers, and marginal gains enthusiasts.

With a massive 30mm inner diameter, the WG44 provides a stable profile for wider gravel tires. It reduces irregular air movements along the rim-tire interface. Air passes the tire and rim concurrently rather than being disrupted prematurely, making the best use of the 44mm aero depth.

Thanks to its mid-depth profile, the WG44 is deep enough to provide aerodynamic gains when riding alone across gravel plains, but not too deep to lose control in crosswinds.

Whether you find yourself racing across the Midwest or month long backpacking trip, the WG44 might just be the perfect match.
The rim/wheelset has passed our in-house R&D impact test of 105J(Standard)/90J(Flyweight).
Specs
Rims

Rim Model: WG44 disc
Rim Introduction >>

Material: Toray T700 & T800 Premium Carbon Fiber

Size: 29”/700C (ETRTO 622mm)

Series: FALCON PRO

Intended Use: CX/Gravel

Bead Type: Hybrid Hook

Tubeless Capable: Yes

Inner/Outer Width: 30mm/38mm

Depth: 44mm

ERD: 552.3mm (not including nipple head dimension)

Rim Weight: Standard 450+/-15g, Flyweight 395+/-15g

Profile: Symmetric (0mm)

Max Cyclist Weight (on flat ground): Standard 135kg/ 298lbs, Flyweight 90kg/ 198lbs

Spoke Hole Angle: ±8°

Spoke Tension: 120~135kgf front disc side and rear drive side

Max Tire Pressure (with 40C): 55psi/3.79bar

Recommended Tire Width: 42C~70C

Read more for actual road tire width

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter

Finish: Matte, Glossy, Satin, Colored Paint

Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services

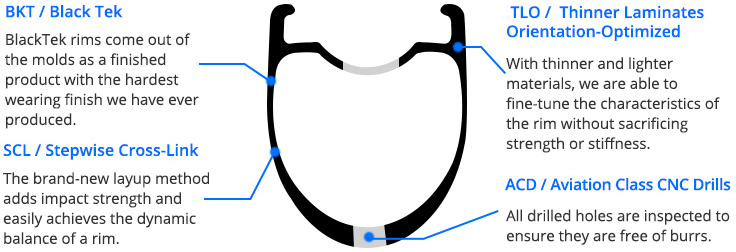

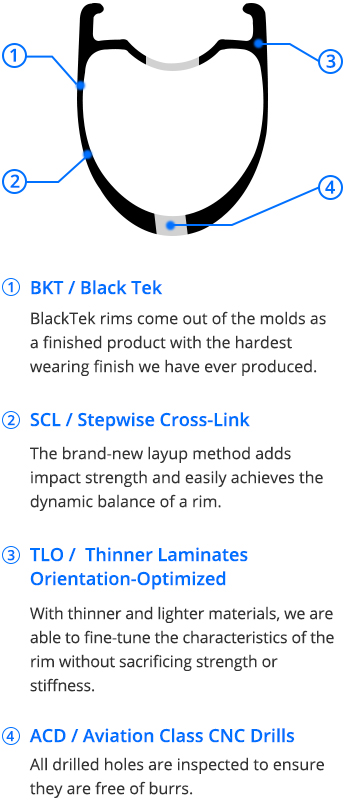

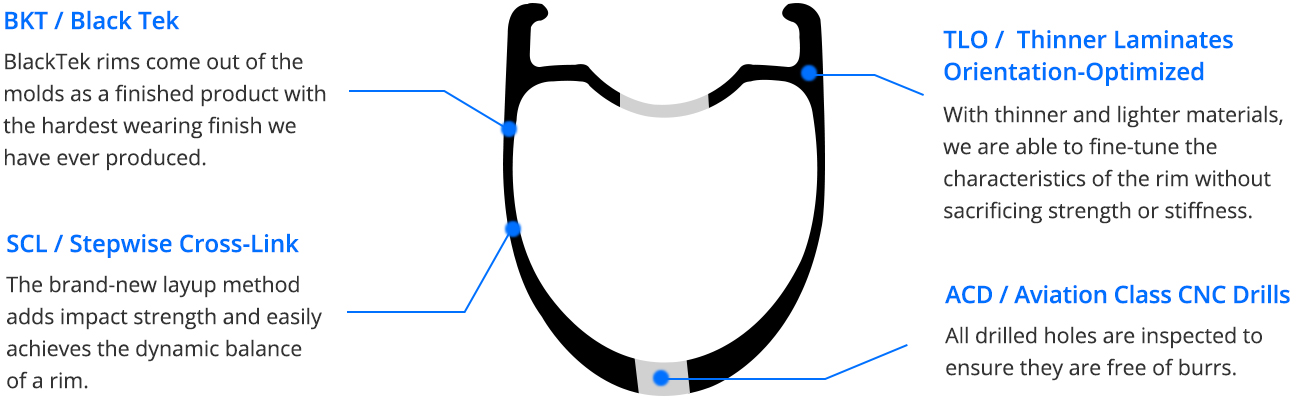

Tech

Learn More >>
Warranty

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>
In The Box

Please carefully inspect your package when unboxing and get in touch with us immediately if the package is damaged or anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste with the use of digital manuals.

Download user guides >>

Gallery

light-bicycle-wg44-disc-review-best-gravel-carbon-wheelset

Marcel : To be honest, I’m absolutely thrilled with the rims so far. Most recently, I tested them during a 560 km event that included some seriously rough MTB sections. I’ve been running 45 mm G-One Overland tires, which fit the rims really well. Thanks to the internal width, the tires sit super stable, and I feel very confident on the bike – especially in corners. Even though the 45 mm tires sit a bit more squared off due to the wide rims, I haven’t experienced any squirming or instability when cornering. Next week, I’ll be riding a 720 km event in the Alps, which also includes a lot of MTB segments. I’ll be testing 50 mm G-One RX tires on the WG44s there – I’m really curious to see how they perform. Also, I have to say: the wheels look absolutely stunning. Great work!

Germany

light-bicycle-wg44-disc-brake-custom-carbon-gravel-bike-wheelset

Nikolaus : Loving my wide WG44 wheelset forvrougher gravel roads to access place like this one...

Germany

light-bicycle-wg44-disc-brake-carbon-gravel-wheel-sets

David : check out how my new bike looks with the LightinBicycle wheels! I’d love it if you could feature it in the “Riders’ Favorites.”

United States

Light Bicycle : RIMS: WG44 Disc Standard Hybrid Hook UD Paintless Disc 24H/28H External Hole With Drain Holes With Access Holes HUB-F: DT SWISS 240 EXP Black 12 / 100mm Straight Pull Center Lock 24H HUB-R: DT SWISS 240 EXP Black 12 / 142mm Straight Pull Center Lock 28H EXP 36 Sram XDR Alloy SPOKE: Sapim CX Ray NIPPLE: Sapim Aluminium Black

light-bicycle-wg44-disc-dt-swiss-240-berd-spoke-build

Light Bicycle : RIMS: WG44d Flyweight Hybrid Hook UD Paintless Disc 24H External Hole With Drain Holes With Access Holes HUB-F: DT SWISS 240 EXP Black 12 / 100mm Straight Pull Center lock 24H HUB-R: DT SWISS 240 EXP Black 12 / 142mm Straight Pull Center lock 28H 36T Sram XDR Alloy SPOKE: Berd PolyLight Black straight pull Standard Head NIPPLE: Sapim Aluminium Black Polyax Double Square Secure Lock External

light-bicycle-wg44-disc-tune-climbhill-cl-custom-build

Erik : falcon pro WG44 rims, 24 spokes front, 28 rear. Tune ClimbHill CL hubs, silver. Sapim CX ray spokes, 2 cross laced. Black spokes to black, silver spokes to white quadrants. Schwalbe Super Moto 60mm tires. Lauf Seigla gravel bike, 1x12.

Netherlands

light-bicycle-wg44-disc-carbon-wheelset-38mm-outer-width

Light Bicycle : RIMS: WG44d Standard Hybrid Hook UD Glossy Disc 28H External Hole No Drain Holes No Access Holes

light-bicycle-wg44-wide-gravel-wheel-dt-swiss-competition-spokes-color-paint-pink

Piotr : Rims: WG44, UD paintless, 32H, with drain holes, no access holes, grey laser engraving Hubs: Hope Pro5, purple, 15/110mm, 12/148mm, Shimano Microspline Spokes: DT Swiss Competition Nipples: Sapim Polyax Brass Black Tires: Pirelli Scorpion XC RC Pro Wall Inserts: CushCore XC Bike: Marino Custom Frame Bike use: Gravel and XC

Germany

View More Reviews >>

COMMENTS

Nathan 2025/09/01

Do you have any plans on making the WG44 in a 650b size? The deepest 650b rim you currently have only comes in a 35mm. Thanks!

LightBicycle 2025/09/02

Hi Nathan, Sorry, we have no 650b WG44 at hand for 650B gravel. Would you be interetsed in our WR35 650B? https://www.lightbicycle.com/650b-road-bicycle-rims-32mm-wide-35mm-deep-symmetric-clincher-road-disc-brake-available.html With a massive 25mm inner diameter, the WR35 650b provides a stable profile for even the widest gravel tires. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Malachi 2025/02/23

Hi there, I’m going to get my rims painted in the uk to match my bike, one pink and one purple colour. Could I get all the parts sent individually for a full Wheelset. Rims: WG44 rims (28h) with access holes, with drainage holes, no paint/no logos just bare carbon. Hubs: DT 240 12x100 and 12x142 XDR hubs with the 54t ratchet Spokes: Samip CX spokes, brass nipples No rim tape needed Thanks Malachi

LightBicycle 2025/02/24

Hi Malachi, Sure, we just quoted this gravel wheelset price to your email address. Please check. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Nils 2024/03/31

Hello, Is there a strength difference between the flyweight and standard version of the rim? I'll be using it for gravel racing and bikepacking, so besides weight strength is also very important to me. With kind regards, Nils Wildeboer

LightBicycle 2024/04/01

Hi Nils, The standard version is stronger than the flyweight version. What is your system weight? I recommend the standard version for your ride condition. Do you need the rims only or the whole wheelset 700C gravel? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Marc 2023/09/02

Is having a 32H rim in this model more beneficial for a heavier rider (130kg) on a gravel bike??

LightBicycle 2023/09/03

Hi Marc , Yes, we could customize the rim for you, I have sent an email to you to discuss more details, please check it. Light Bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Tim 2023/08/14

Could you build a wheel set with WG44 flyweight rim and aero carbon spokes? What is the cost and weight?

LightBicycle 2023/08/15

Hi Tim, Thanks for reaching out! I have sent a quote through the email, please check it : ) best regards, Light Bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Frank 2023/07/28

Hello, Is it possible for the WG44 Disc rims to be made with internal nipple drilling? Specifically for Sapim superspokes which have 1,8mm threads. And if so, what would the ERD value be? I look forward to your reply. Frank

LightBicycle 2023/07/29

Hi Frank, Thanks for reaching out! Please find the answers below: Yes, we could custom drill the internal nipple holes, the diameter is 2.5+/-0.1mm by default. The ERD for the WG44 rim is 552.3mm (not including nipple head dimension) I have sent an email to you for discussing more details, please check it, thank you! Best regards, Light Bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

See all 6 customer reviews>>

Get in touch

Feel free to leave a comment if you have any questions or suggestions on our products or other issues.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Build Your Falcon Pro RIM WG44 disc

Overview

Specs

Tech

Warranty

In The Box

Rims

Full Custom

Overview

Specs

Rims

Full Custom

Tech

Warranty

In The Box

Gallery
