Buy & Configure
Global warehouse ship to most countries while the North America warehouse only ship to the United States and Canada
Hub Brand This is a required option.
| Model | Weight | POE | Cost | Reliability | Quality | Unique Feature | Color Options | Warehouse Location | Website |
|---|---|---|---|---|---|---|---|---|---|
| Novatec | 287g | 27 | Low | Good | Good | Inexpensive | Three | China | NOVATEC |
| Bitex | 258g | 24 | Low | Good | Good | Light | Two | China | BITEX |
| DT 350 | 374g | 18/36/54 | Low | Better | Good | Quiet and reliable (18t option) |
One | China | DT SWISS |
| DT 240S | 317g | 18/36/54 | Medium | Best | Best | Quiet and reliable (18t option) |
One | China/N.A. | DT SWISS |
| DT 240S EXP | 299g | EXP 36 | Medium | Best | Best | Quiet and reliable (EXP 36) |
One | China/N.A. | DT SWISS |
| DT 180 | 290g | EXP 36 | High | Best | Best | Super Light, EXP 36 | One | China/N.A. | DT SWISS |
| Chris King | 326g | 45 | High | Best | Best | Rebuildable bearings | Nine | China | CHRIS KING |
| Industry Nine | 327g | 60 | Medium | Better | Best | Loud, engagement | Eleven | China/N.A. | INDUSTRY NINE |
| Onyx | 434g | Infinite | High | Better | Best | Silent, sprag clutch | Eighteen+ (Custom Available) |
North America | ONYX |
| Carbon-Ti | 270g | 56 | High | Better | Best | Extreme Light | Nine | China | Caron-Ti |
See more about Light Bicycle's INFOGRAPHIC HUB OPTIONS
* POE = Points of Engagement
* DT hubs come standard with an 18t star ratchet but are upgradeable to 36 or 54t.
* Average weight will vary slightly depending on axle and freehub combination.

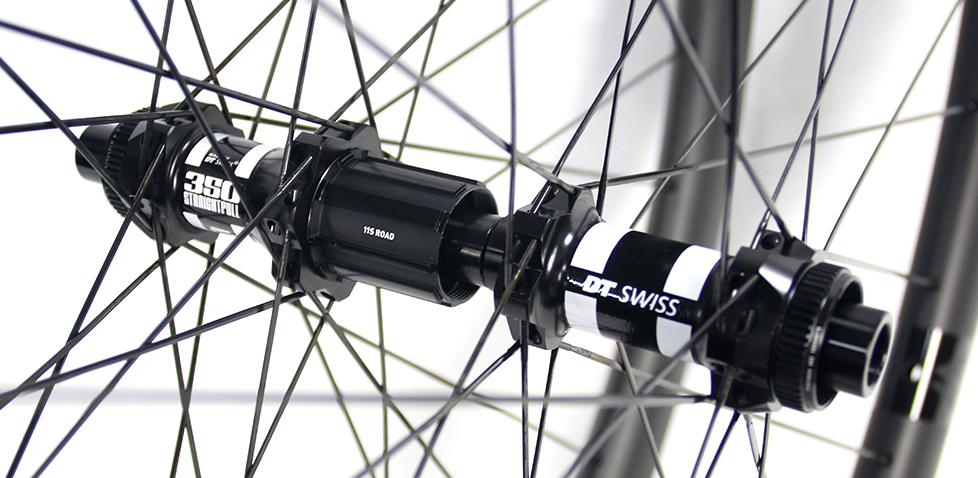

DT SWISS 180
DT SWISS 350
Chris King R45D
Novatec D411SB / D412SB
Industry Nine Torch
Carbon-Ti X-Hub
DT SWISS 240 EXP
Front Axle This is a required option.
If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.
By default, Quick Release skewers are offered with QR hubs.
12 / 100mm
15 / 100mm
QR / 100mm
Rear Axle This is a required option.
If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.
By default, Quick Release skewers are offered with QR hubs.
12 / 142mm
QR / 135mm
Freehub Body This is a required option.
Shimano 11 speed road freehubs come with a spacer ring. If you have an 11 speed road cassette then you do not need to use this spacer. If you have a 8/9/10 speed cassette, you will need to use the space behind the cassette.
Campy 10 and 11 speed use the same freehub body.
Sram XD-R Freehubs do not need a spacer if you have an XD-R (Road) cassette. Mountain bike XD cassettes can be run with a spacer on an XD Freehub.
Shimano Road 11S
Shimano Road 11S Alloy
Sram XDR
Spoke Head This is a required option.
J-bend version: use J-bend hubs and spokes
Straight pull version: use straight pull hubs and spokes
straight pull
J-bend
Brake System This is a required option.
6-Bolt is the more common traditional option.
Centerlock uses a unique interface and it is also convertable to 6-bolt.
If you need the conversion kit, please contact us.
6-bolt
Center lock
Hub Color This is a required option.
Black
Matte Mango
Orange
Red
Turquoise
Front Holes Count This is a required option.
Please note that our valves are drilled for presta and spoke holes are made for external nipples by default. If you have a custom drilling requirements please e-mail us and we'll send you a purchasing link.
24H
28H
Rear Holes Count This is a required option.
Please note that our valves are drilled for presta and spoke holes are made for external nipples by default. If you have a custom drilling requirements please e-mail us and we'll send you a purchasing link.
24H
28H
Ratchet This is a required option.
DT Swiss hubs use star ratchets and are available in 3 different models with varying points of engagement.
18T - Deepest teeth, slowest engagement, least amount of maintenance, suitable for powerful riders.
36T - Happy medium, doubles the engagement points.
54T - Super fast engagement, but shallow teeth require more careful re-greasing and the thru-axle should be checked every ride.
EXP 36 - With only a singlel spring, making the hubs faster and lighter, more complete engagement of the 36 ratchet teeth for more precise contact, and therefore a longer lifespan.
18T
27T
36T
45T
54T
56T
60T
EXP 36
Spoke This is a required option.
| Brand | Model | Type | Thread Diameter (mm) | Weight(g) | Gauge | Riding Style | Available(Warehouse Location) |
|---|---|---|---|---|---|---|---|
| Sapim | Race | Double Butted | 2.0 - 1.8 - 2.0 | 5.7g (260mm) | 14G | Heavy Duty | North America, China |
| Sapim | D-Light | Double Butted | 2.0 - 1.65 - 2.0 | 4.8g (260mm) | 14G | Versatile | North America, China |
| Sapim | CX-Ray | Aero | 2.0 - 0.9/2.3 - 2.0 | 4.4g (260mm) | N/A | Light Aero | North America, China |
| DT SWISS | Competition Race | Double Butted | 2.0 - 1.6 - 2.0 | 4.8g (260mm) | 14G | Versatile | China |
| Pillar | PSR X-TRA 1420 | Aero | 2.0 - 0.95/2.2 - 2.0 | 4.4g (260mm) | N/A | Inexpensive Aero | China |
Sapim D-Light – The best all-around and most popular spoke for carbon wheels. Lightweight but incredibly strong.
Sapim Race – Our strongest and stiffest spoke. These spokes are suitable for heavy or extremely aggressive riders who need a stiffer wheel.
Sapim CX-Ray – The lightest spoke in our lineup is still quite strong due to the elasticity and amazing fatigue life.
DT Competition Race - All Mountain and XC spoke used by the Chinese location as a substitue for the D-Light (depending on availability)
Pillar PSR X-TRA 1420 - An inexpensive bladed spoke, great for road and cyclocross riding.
Pillar Aero X-TRA 1420
Sapim CX Ray
Nipple This is a required option.
| Nipple Brand | Model | Material | Color | Length | Available (Warehouse Location) |
|---|---|---|---|---|---|
| Sapim | Double Square Secure Lock | Alloy | Black, Red, Green, Blue, Gold, Lime, Purple, Orange | 16mm | Norh America |
| Sapim | Polyax/ Polyax Secure Lock | Alloy | Black, Red, Green, Blue, Gold, Lime, Purple, Orange | 14mm | China |
| Sapim | Polyax Secure Lock | Brass | Black | 16mm | China |
| DT Swiss | DT SQUORX (PRO HEAD PRO LOCK) | Alloy | Black, Red | 15mm | China |
| DT Swiss | Standard PRO LOCK | Brass | Black | 14mm | China |
Aluminium Black
Aluminium Red
Brass Black
Brake System This is a required option.
Disc
Version This is a required option.
| Version | Standard | Flyweight |
|---|---|---|
| Weight | Standard | 52g - 80g lighter |
| Material | Toray T700 | Toray T800 and T700 |
| Layup | Standard Layup | New layup for weight saving |
| Max Weight Loaded | 135kg | 90kg |
Standard
Flyweight USD +12

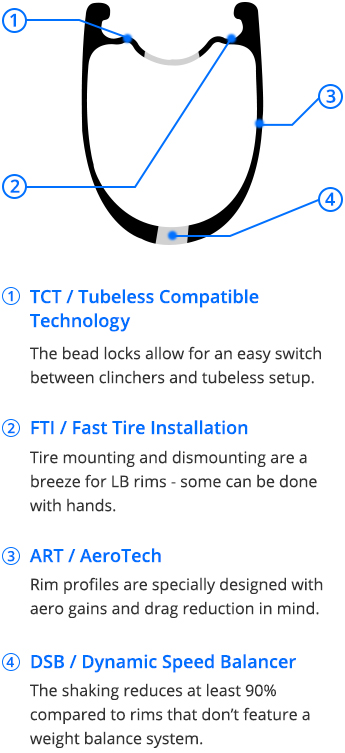

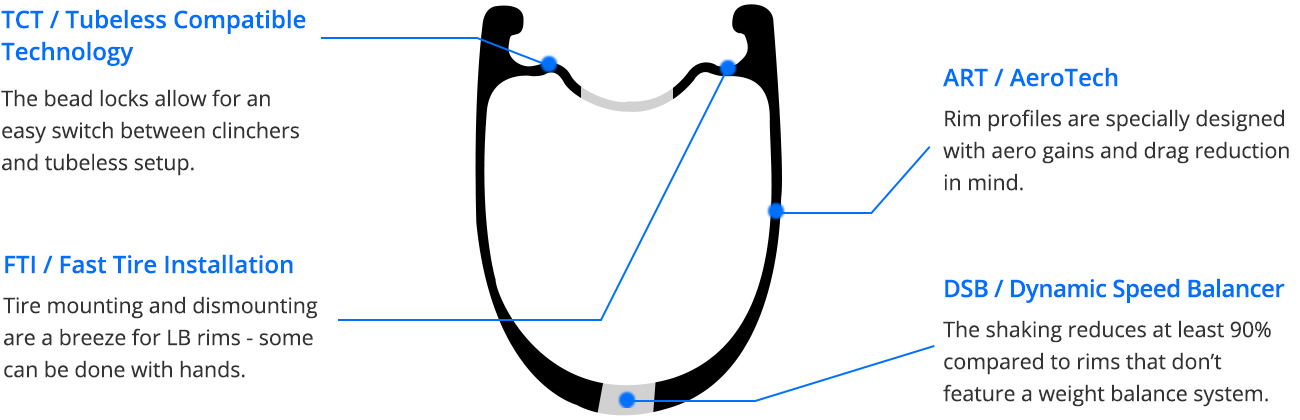

Bead type This is a required option.
hook
hookless
Finish This is a required option.
Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.
glossy
matte

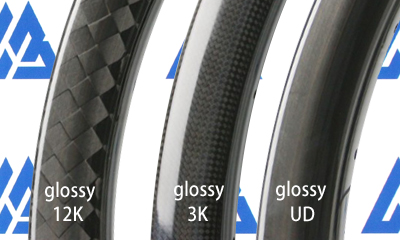

Weave This is a required option.
The layup schedule is predetermined for each model, but you can choose the outer layer.
3k/12k/UD are the 3 choices for cosmetic appearance.The rim strength & weight is virtually identical.
UD Matte is the most popular and has a subtle look.
3k weave has a more traditional carbon fiber look.
More info about Weave >>
12K
3K
UD

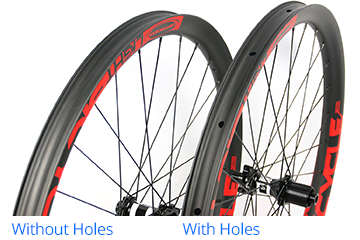

Center Channel Hole This is a required option.
WITH HOLES: This is the traditional method. Holes are drilled in the center channel to allow the nipples to easily be fed through the rim. Tubeless tape is required to seal the rim.
WITHOUT HOLES: No holes are drilled in the center channel. Feeding the nipples through the rim is more challenging, but it allows for a tubeless setup without the need for tape. This kind of system is known as "road tubeless" and was made popular by Mavic. Some companies still refer to it as "UST style", however, UST is actually a specific interface between the tire and rim which was developed by a partnership between Mavic, Michelin, and Hutchinson.
With Holes
Without Holes
Decal This is a required option.
Road rims use super light waterslide decals (glossy black). The decal is very thin and applied under a clearcoat so they are non-removeable.
Pictures about light-bicycle decal >>
If you want custom graphic, Please email us, we will design for you. There will be extra cost for custom graphic on rims.
No
Stealth (Grey)
Blue
Green
Magenta
Orange
Red
White
Yellow
Valve Stem This is a required option.
We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions
None
Add Valve Stem USD +7 each
Tubeless Tape This is a required option.
One 10 yard roll of tape will be included. It is typically covers 2 rims with two laps each or 4 rims with one lap each.The high tensile tubeless tape features a natural rubber adhesive that does not leave a residue on the rims. On mountain bike rims, one layer of 18mm width tape is strong enough to seal the access holes which makes for the lightest tubeless setup.
Instructions of tubeless rim tape
None
Add Tubeless Tape USD +6 each
Recon Pro orders start shipping in October.
Hub Brand This is a required option.
| Model | Weight | POE | Cost | Reliability | Quality | Unique Feature | Color Options | Warehouse Location | Website |
|---|---|---|---|---|---|---|---|---|---|
| Novatec | 287g | 27 | Low | Good | Good | Inexpensive | Three | China | NOVATEC |
| Bitex | 258g | 24 | Low | Good | Good | Light | Two | China | BITEX |
| DT 350 | 374g | 18/36/54 | Low | Better | Good | Quiet and reliable (18t option) |
One | China | DT SWISS |
| DT 240S | 317g | 18/36/54 | Medium | Best | Best | Quiet and reliable (18t option) |
One | China/N.A. | DT SWISS |
| DT 240S EXP | 299g | EXP 36 | Medium | Best | Best | Quiet and reliable (EXP 36) |
One | China/N.A. | DT SWISS |
| DT 180 | 290g | EXP 36 | High | Best | Best | Super Light, EXP 36 | One | China/N.A. | DT SWISS |
| Chris King | 326g | 45 | High | Best | Best | Rebuildable bearings | Nine | China | CHRIS KING |
| Industry Nine | 327g | 60 | Medium | Better | Best | Loud, engagement | Eleven | China/N.A. | INDUSTRY NINE |
| Onyx | 434g | Infinite | High | Better | Best | Silent, sprag clutch | Eighteen+ (Custom Available) |
North America | ONYX |
| Carbon-Ti | 270g | 56 | High | Better | Best | Extreme Light | Nine | China | Caron-Ti |
See more about Light Bicycle's INFOGRAPHIC HUB OPTIONS
* POE = Points of Engagement
* DT hubs come standard with an 18t star ratchet but are upgradeable to 36 or 54t.
* Average weight will vary slightly depending on axle and freehub combination.
DT SWISS 180
DT SWISS 350
Industry Nine Torch
Onyx Vesper
Front Axle This is a required option.
If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.
By default, no Quick Release skewers are offered with hubs.
12 / 100mm
15 / 100mm
QR / 100mm
Rear Axle This is a required option.
If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.
By default, no Quick Release skewers are offered with hubs.
12 / 142mm
QR / 135mm
Freehub Body This is a required option.
Shimano 11 speed road freehubs come with a spacer ring. If you have an 11 speed road cassette then you do not need to use this spacer. If you have a 8/9/10 speed cassette, you will need to use the space behind the cassette.
Campy 10 and 11 speed use the same freehub body.
Sram XD-R Freehubs do not need a spacer if you have an XD-R (Road) cassette. Mountain bike XD cassettes can be run with a spacer on an XD Freehub.
Shimano Road 11S Alloy
Sram XDR Alloy
Campy 11S Alloy
Spoke Head This is a required option.
J-bend version: use J-bend hubs and spokes
Straight pull version: use straight pull hubs and spokes
straight pull
J-bend
Brake System This is a required option.
6-Bolt is the more common traditional option.
Centerlock uses a unique interface and it is also convertable to 6-bolt.
If you need the conversion kit, please contact us.
6-bolt
Center lock
Hub Color This is a required option.
Choose your hub shell colour. By default, Onyx hubs come with anodized black tension caps and end caps. These parts are available in other anodized-only colours, so please specify in the notes at checkout if you want something other than black.
Anodized-Black
Anodized-Black Matte
Anodized-Blue
Anodized-Green
Anodized-Orange
Anodized-Purple
Anodized-Red
Anodized-Silver
Black
Blue
Gold
Green
Lime
Orange
Pink
Powdercoat-Black Aura
Powdercoat-Blue Baby
Powdercoat-Blue Candy
Powdercoat-Gold
Powdercoat-Green Antifreeze
Powdercoat-Green Fluorescent
Powdercoat-Green Kawasaki
Powdercoat-Pink Fluorescent
Powdercoat-Purple Candy
Purple
Red
Silver
Turquoise
Front Holes Count This is a required option.
ROAD Product
Road rim brake: Stocked in 20h and 24h
Road disc: Stocked in 24h and 28h
MTB Product
MTB rims: Stocked in 32h. Only XC Flyweight rims are stocked in 28h as well as 32h
Please note that our valves are drilled for presta and spoke holes are made for external nipples by default. If you have a custom drilling requirements please contact us.
24H
28H
Rear Holes Count This is a required option.
ROAD Product
Road rim brake: Stocked in 20h and 24h
Road disc: Stocked in 24h and 28h
MTB Product
MTB rims: Stocked in 32h. Only XC Flyweight rims are stocked in 28h as well as 32h
Please note that our valves are drilled for presta and spoke holes are made for external nipples by default. If you have a custom drilling requirements please contact us.
24H
28H
Ratchet This is a required option.
DT Swiss hubs use star ratchets and are available in 3 different models with varying points of engagement.
18T - Deepest teeth, slowest engagement, least amount of maintenance, suitable for powerful riders.
36T - Happy medium, doubles the engagement points.
54T - Super fast engagement, but shallow teeth require more careful re-greasing and the thru-axle should be checked every ride.
EXP 36 - With only a singlel spring, making the hubs faster and lighter, more complete engagement of the 36 ratchet teeth for more precise contact, and therefore a longer lifespan.
18T
36T
54T
60T
EXP 36
Sprag Clutch
Spoke This is a required option.
| Brand | Model | Type | Thread Diameter (mm) | Weight(g) | Gauge | Riding Style | Available(Warehouse Location) |
|---|---|---|---|---|---|---|---|
| Sapim | Race | Double Butted | 2.0 - 1.8 - 2.0 | 5.7g (260mm) | 14G | Heavy Duty | North America, China |
| Sapim | D-Light | Double Butted | 2.0 - 1.65 - 2.0 | 4.8g (260mm) | 14G | Versatile | North America, China |
| Sapim | CX-Ray | Aero | 2.0 - 0.9/2.3 - 2.0 | 4.4g (260mm) | N/A | Light Aero | North America, China |
| DT SWISS | Competition Race | Double Butted | 2.0 - 1.6 - 2.0 | 4.8g (260mm) | 14G | Versatile | China |
| Pillar | PSR X-TRA 1420 | Aero | 2.0 - 0.95/2.2 - 2.0 | 4.4g (260mm) | N/A | Inexpensive Aero | China |
Sapim D-Light – The best all-around and most popular spoke for carbon wheels. Lightweight but incredibly strong.
Sapim Race – Our strongest and stiffest spoke. These spokes are suitable for heavy or extremely aggressive riders who need a stiffer wheel.
Sapim CX-Ray – The lightest spoke in our lineup is still quite strong due to the elasticity and amazing fatigue life.
DT Competition Race - All Mountain and XC spoke used by the Chinese location as a substitue for the D-Light (depending on availability)
Pillar PSR X-TRA 1420 - An inexpensive bladed spoke, great for road and cyclocross riding.
Sapim CX Ray
Sapim D-Light
Sapim Race
Nipple This is a required option.
| Nipple Brand | Model | Material | Color | Length | Available (Warehouse Location) |
|---|---|---|---|---|---|
| Sapim | Double Square Secure Lock | Alloy | Black, Red, Green, Blue, Gold, Lime, Purple, Orange | 16mm | Norh America |
| Sapim | Polyax/ Polyax Secure Lock | Alloy | Black, Red, Green, Blue, Gold, Lime, Purple, Orange | 14mm | China |
| Sapim | Polyax Secure Lock | Brass | Black | 16mm | China |
| DT Swiss | DT SQUORX (PRO HEAD PRO LOCK) | Alloy | Black, Red | 15mm | China |
| DT Swiss | Standard PRO LOCK | Brass | Black | 14mm | China |
Why no brass option? The North America warehouse uses Sapim double square secure lock alloy nipples. The oversized head offers 100% thread engagement and a significant increase in strength. The corrosion-resistant anodized treatment makes the need for heavy brass nipples irrelevant. If you want black brass nipples regardless, you can let us know in the notes section at checkout
Aluminium Black
Aluminium Red
Aluminium Blue
Aluminium Gold
Aluminium Green
Aluminium Lime
Aluminium Orange
Aluminium Purple
Brake System This is a required option.
Disc
Version This is a required option.
| Version | Standard | Flyweight |
|---|---|---|
| Weight | Standard | 52g - 80g lighter |
| Material | Toray T700 | Toray T800 and T700 |
| Layup | Standard Layup | New layup for weight saving |
| Max Weight Loaded | 135kg | 90kg |
Standard
Flyweight USD +12
Bead type This is a required option.
hook
Finish This is a required option.
matte
Weave This is a required option.
UD
Decal This is a required option.
Road rims and flyweight rims use super light waterslide decals (glossy black). The decal is very thin and applied under a clearcoat so they are non-removeable.
Non-removable black waterslide graphics
Valve Stem This is a required option.
We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions
None
Add Valve Stem USD +7 each
Tubeless Tape This is a required option.
We use a tubeless tape with high tensile strength and only one lap is required so it is very light. It uses a natural rubber adhesive that does not leave any residue on the rims.
If you would like to purchase an additional roll of tape (not installed), then you can find that in the accessories section here- Buying Tubeless Rim Tape
None
Apply Tubeless Tape USD +8 each
Recon Pro orders start shipping in October.
Weight: 1419.00g+/-25
Final total: USD 651+
Weight: 860.00g+/-25
Final total: USD 448+
Added to cart! View cart or continue shopping.
RIM SPECS

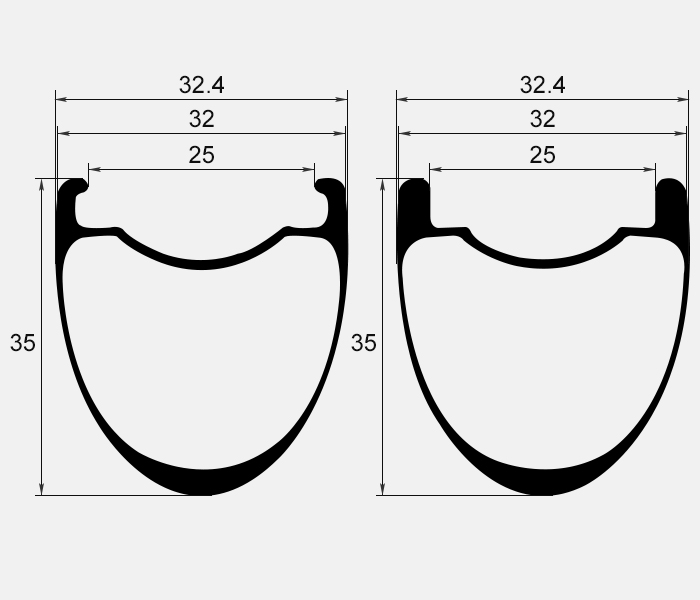

The WR35 was built with one goal in mind: the absolute best long distance gravel rim. The massive 25mm inner width provides a stable profile for even the widest gravel tires. At 35mm deep, you get an aerodynamic benefit without making it hard to control in crosswinds. With a 24 or 28 spoke hole count, the WR35 makes an excellent bike packing or touring rim.
Flyweight: Our lightest construction method uses an exclusive unidirectional prepreg with a very low fiber areal weight. A variable thickness nipple bed reinforces key areas around the spoke holes, eliminating excess material. A blend of Toray T-700 and T-800 offers the weight saving benefits of T-800 carbon without compromising the strength or stiffness of the rim.

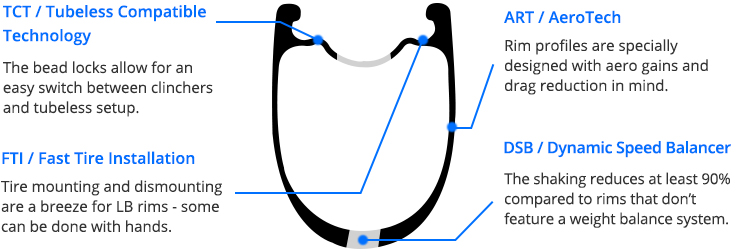

AeroTek: Our latest aerodynamic profile decreases lateral wind resistance and is both more stable and faster in a crosswind. A wider profile allows for larger and more efficient tires to be used without an aerodynamic penalty. Traditionally a tire can form a lightbulb shape when mounted on a narrow rim, but the airflow is much smoother with our wider rims.
DuoTek: Our clincher rims are manufactured in two pieces and then joined together. When designing the rims, our engineers, in every detail, demanded fewer joints. Fewer joints mean higher strength and stability.
TuffTek: A high-grade customized epoxy resin is used in our prepreg, creating a stable base for all of our road rims. Epoxy is less brittle than polyester resins and offers excellent flexural strength. Our consistent resin system, coupled with a precise layup schedule, allows for an extremely reliable and durable product.
T700: Constructed with premium Toray T700 carbon fiber. The best strength to weight ratio with no expense spared.
For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.
For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.
Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.
LEAVE COMMENTS
We are here for you if you need any assistance.
Please leave your name here.
E-mail is required for further contact.
Please enter a message.
