Build Your Falcon Pro WHEELSET WR50 DISC

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.


Buy rim only

WHEELSET SPECS

RIMS

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

  • Rim Model WR50 disc

    UCI-Approved >>

  • Material Toray T700 & T800 Premium Carbon Fiber
  • Size 29”/700C (ETRTO 622mm)
  • Series FALCON PRO
  • Intended Use CX/Gravel
  • Bead Type Clincher
  • Tubeless Capable Yes

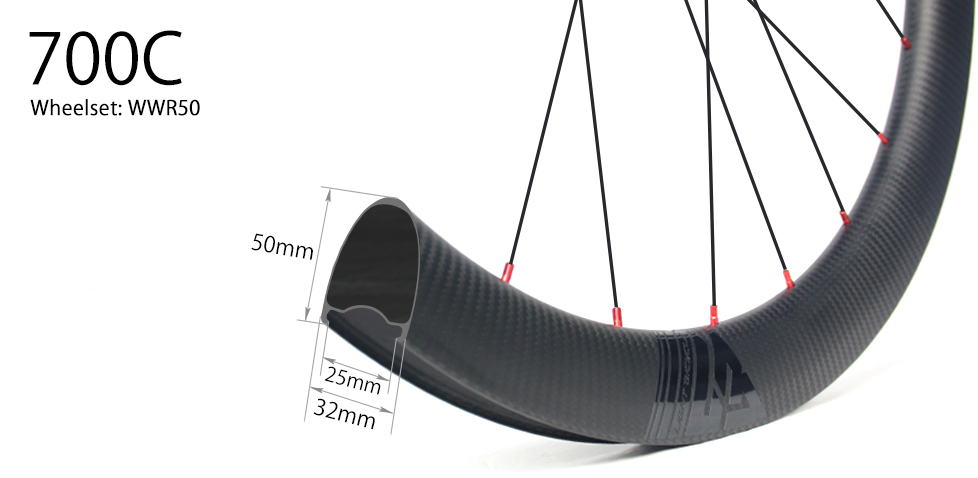

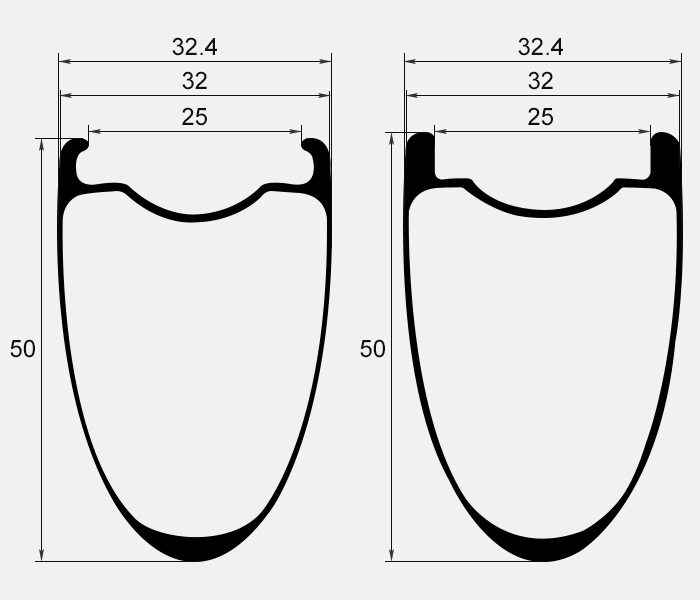

  • Inner/Outer Width 25mm/32mm
  • Depth 50mm
  • ERD 539mm (not including nipple head dimension)
  • Rim Weight Standard 470+/-15g, Flyweight 420+/-15g
  • Profile Symmetric (0mm)
  • Max Cyclist Weight (on flat ground) Standard 135kg/ 298lbs, Flyweight 90kg/ 198lbs
  • Spoke Hole Angle ±9°
  • Spoke Tension 120~135kgf front disc side and rear drive side
  • Max Tire Pressure (with 28C) Hook: 80psi/ 5.52bar, Hookless: 65psi/ 4.48 bar
  • Recommended Tire Width 28C~50C

Read more for actual road tire width

HUBS

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

  • Model DT SWISS 180, DT SWISS 240 EXP, DT SWISS 350, Industry Nine 1/1, Chris King R45D, Novatec D411SB / D412SB, Carbon-Ti X-Hub, ARC MT-032, Bitex BX312F / BX312R, Onyx Vesper
  • Front Axle Size 12 / 100mm, 15 / 100mm, QR / 100mm
  • Rear Axle Size 12 / 142mm, QR / 135mm
  • Driver Body Shimano Road 11S, Shimano Road 11S Alloy, Sram XDR Alloy, Sram XDR, Shimano Micro Spline Road Alloy, Campy 11S Alloy
  • Hole 24H, 28H

OTHER PARTS

Leave a note at checkout or contact us if you want spare spokes or nipples.

  • Spokes Pillar Aero X-TRA 1420, Sapim CX Ray, Pillar Wing 20 in Oil Slick Color (For Bitex Hub only), Sapim CX Sprint-Rear drive side/ CX Ray-Other sides, Sapim D-Light, Sapim Race
  • Nipples Aluminium Black, Aluminium Red, Brass Oil slick, Brass Black, Aluminium Silver, Aluminium Blue, Aluminium Gold, Aluminium Green, Aluminium Lime, Aluminium Orange, Aluminium Purple

TECH

Designed with racing in mind, the WR50 features a deep Gravel Optimized Aero profile that cuts through crosswinds and decreases lateral resistance. With a stiff 50mm deep profile, the WR50 is designed for experienced bike handlers looking for an aerodynamic edge, or for larger riders wanting a really solid feeling wheelset. Smaller or less experienced riders may find the WR38 a more comfortable and easier rim to control.

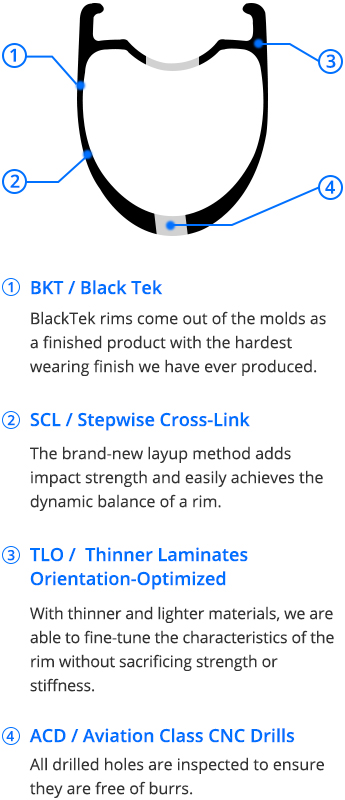

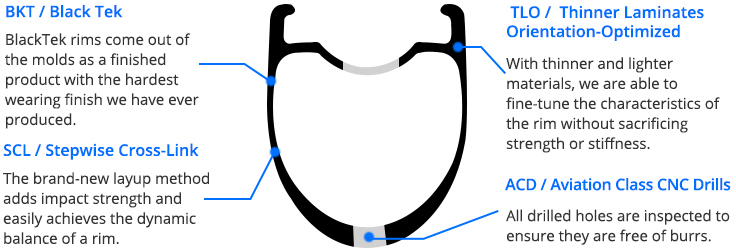

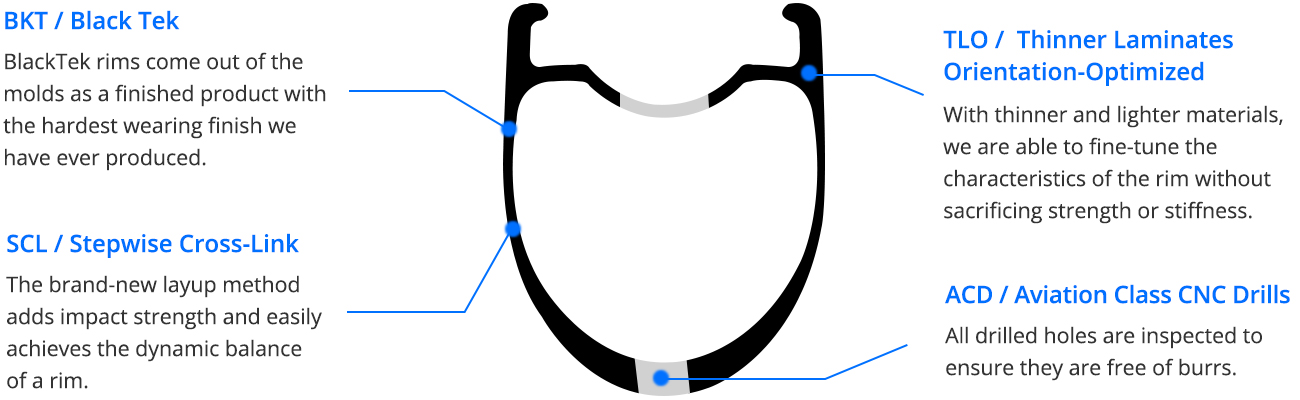

Our Falcon Pro line of rims feature all of our latest manufacturing technologies. The scratch-resistant BlackTek (Paintless) finish will keep your rims looking sharp for miles and miles.


Learn More >>

WARRANTY

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>


WHAT IS IN THE BOX


Designed with racing in mind, the WR50 features a deep Gravel Optimized Aero profile that cuts through crosswinds and decreases lateral resistance. With a stiff 50mm deep profile, the WR50 is designed for experienced bike handlers looking for an aerodynamic edge, or for larger riders wanting a really solid feeling wheelset. Smaller or less experienced riders may find the WR38 a more comfortable and easier rim to control.

Our Falcon Pro line of rims feature all of our latest manufacturing technologies. The scratch-resistant BlackTek (Paintless) finish will keep your rims looking sharp for miles and miles.

  • Overview

    Designed with racing in mind, the WR50 features a deep Gravel Optimized Aero profile that cuts through crosswinds and decreases lateral resistance. With a stiff 50mm deep profile, the WR50 is designed for experienced bike handlers looking for an aerodynamic edge, or for larger riders wanting a really solid feeling wheelset. Smaller or less experienced riders may find the WR38 a more comfortable and easier rim to control.

    Our Falcon Pro line of rims feature all of our latest manufacturing technologies. The scratch-resistant BlackTek (Paintless) finish will keep your rims looking sharp for miles and miles.

  • Specs

  • Tech

  • Warranty

  • In The Box

Light Bicycle : Rim: WR50 Disc UD Hook 24H Crystal Effect Paint (White & Blue)
1
Paul-Julien : I love my custom wheelset! I have built my bike and rode the whole summer with it. I mostly shopped the Journey frameset for those characteristics: Carbon (lightweight) Many mounting points Possible to mount fenders and a rack Possible internal cable routing Accommodate large tires (700x45C) Accepts 2x drivetrain
Canada
1
Ben : Configured with 28 spokes, brass nipples, and 3x lacing for increased strength and reliability. Although far from being a light build wheelset I’m really impressed with these so far. The ability to completely configure the wheels to anyone’s liking really sets Light Bicycle apart from the rest.
Germany
1
Light Bicycle : Rims: WR50 Disc Standard Hook UD Paintless With Drain Holes No Access Holes (Tubeless) Hubs: White Industries CLD Blue 12/100mm 12/142mm J-bend Center lock 28H 48T Shimano Road 11S Spokes: Sapim CX Sprint-Rear drive side/ CX Ray-Other sides Nipples: Sapim brass black external
1
Light Bicycle : Rims: WR50 disc Standard Hook UD Paintless Disc 24H With Drain Holes No Access Holes Hubs: Bitex BX312R Black 12/100mm 12/142mm straight pull Center lock 27T Sram XDR Spokes: Sapim CX Sprint-Rear drive side/ CX Ray-Other sides Nipples: Sapim Aluminium Black
2
Light Bicycle : Rims: AR55 Disc-F WR50 Disc-R UD Paintless 21/21H With Access Holes Hubs: Light Bicycle Speed Hubs 12/100mm 12/142mm Ceramic bearings 36T Shimano Road 11s Spokes: Light Bicycle Flyweight carbon spokes-SE Nipples: Light Bicycle aluminum black Decal: Custom graphics designed by the rider
2
Andrew : WR50 Falcon Pros with 42mm IRC Boken Doublecross pretty much turned my gravel bike in to magic carpet. They still run true after three BWRs, two SBT GRVLs, two CO2UTs, and one Bighorn Gravel. The finish looks brand new! Here’s to many more miles! Cheers.
United States
1
Gerd : The wheels are awesome. The fast acceleration and stiffness ist fascinating.
Germany
2

View More Reviews >>

COMMENTS

L

Lukas 2023/06/07

Hi, I would like to know if the Bitex BX312 hub is available with N3W freehub. Thanks Lukas


LightBicycle 2023/06/07

Hi Lukas, Yes, we could offer Bitex 312F/312R hubs with N3W freehub. Do you want to build the WR50 road disc wheelset with Bitex hubs? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

G

Giuseppe 2022/02/11

Salve sarei intenzionato all'acquisto di un set di ruote Falcon WR50 disc con mozzi DT240 per la mia scott Addict RC con Sram AXS 12V ma durante la configurazione michiede dei parametri che non so come variarli. Potrebbe essere cosi gentile da indicarmi la giusta procedura o eventualmente dirmi il prezzo ?Grazie


LightBicycle 2022/02/11

Hi Grazie, Is it your bike correct as below? It does not show whether it is front 12*100mm/rear 12*142mm. You can check with your bike supplier. https://www.scott-sports.com/us/en/product/scott-addict-rc-ultimate-bike?article=286406 We just sent you the WR50 road disc wheelset 700C with DT 240 EXP hubs quotation to your email. please check. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

M

Maxime 2021/09/06

Hi, I’m interested in the WR50 DISC model. However, the wheelset is intented to be used on a Cannondale Supersix Evo SE/CX, which required the rear wheel to be offset by 6mm to be fully centered between the chainstay. https://cannondale.zendesk.com/hc/en-us/articles/219101107-Ai-Asymmetric-Integration- Is it possible to build these wheels according to these specs?


LightBicycle 2021/09/07

Hi Maxime, Yes, we can build the rear disc wheel 700C with a 6mm offset for your rear wheel with no problem. In fact, we build offset wheels for our customers with the Cannondale AI system all the time, so don't worry. Can you provide the wheel specifications that you want to order so I can send you the order accordingly? You can proceed with the order via email since the option is not listed online. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

J

Johnson 2020/10/06

Hi, I am interested in purchasing a Falcon Pro WR50 wheelset for my bike. I would like to get the DT Swiss 350 hub, but my bike has SRAM Force AXS 12 speed, meaning I would need the SRAM XDR driver which is not an option for that hub for some reason. Is there any way to get the 350 hub and the XDR driver? Thanks, Johnson


LightBicycle 2020/10/07

Hi Johnson, Yes, you can order the XDR drive body for the DT SWISS 350 hubs. There will be USD85 more than standard XD freehub body. I can prepare the road disc wheelset WR50 order and send it to you via email if you can provide detailed specs that you desire. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

T

TJ 2020/08/25

1) Hello, can I purchase a complete wheel set without it being built? I have experience as a bicycle mechanic and have the ability to build my own wheels. However, I’d like to save on the build service fee if possible. 2) What is covered by the warranty? Crashes, impacts, etc? 3) Does the hooked bead make mounting a tubeless tire more difficult? There is no option for a hookless rim in my preferred build. I would prefer the hookless option as I plan on running tubeless tires at low pressures. Thanks!


LightBicycle 2020/08/25

Hi Sir, 1. Yes, you can get the rims, spokes, hubs from us without being built. 2. The road disc wheelset 700C that you are interested in is the pro WR50, so the standard warranty is 5-years. You can learn more details from our support > warranty & guarantees :> warranty policy > premium warranty policy The crash should be listed under crash replacement policy on the same page. The process is very easy if anything does happen. send over the photos and serial number, we will analyze and determine solutions with you. You don't need to send the old rims back. 3. What configurations that you are looking for? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

W

Wolfgang 2020/03/09

Hi, I configured a WR50 Disc wheelset. 1st of all I want to know if you will ship to germany with what costs. (Should I expect a delivery delay regarding the actual corona situation?) If shipping is possible, I have 3 tech. questions: what about the flyweight option: Is this thinner (and lighter) in this option? hook/hookless? what I must have in mind for tire compatibility? Do you plan an AR56 with a hookless bread? regards Wolfgang


LightBicycle 2020/03/10

Hi Sir, 1. Yes, there will be a delay given the current corona situation. But it will become normal at the end of March. 2. We do offer tax-prepaid delivery service to Germany, you can compare the shipping plan in the checkout page. 3. The flyweight version road disc rim is made with Toray T700 and T800 mixed carbon fiber in a certain percentage in a different layup method to reduce some weight. 4. The hookless are more compatible with tubeless tires, but you should check with the tire manufacturer just in case. When you plan to run over 60psi, hookless rim can't hold the tires on the rims, you should choose hooked version instead. If you are running under 60psi, hookless would be fine. 5. We don't have plan to make AR56 a hookless version in the near future. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.
