FALCON rim R88 Road

88mm deep carbon 700C 26.54mm wide road rim clincher U shape tubeless available with grooved graphene brake track

Buy & Configure

Our Global Warehouse ships products worldwide, while our North American Warehouse provides faster shipping service for customers living in North America.

GLOBAL OPTIONS
  • 1

    RIM

  • 2

    ACCESSORIES

  • 3

    OVERVIEW

RIM

Brake System This is a required option.

Road-Rim-High-TG-Surface-Grooved-Graphene-Surface

Non Disc - High TG Surface: Rim Brake 700C road rims use an advanced High TG resin system with a layer of graphene to help dissipate heat. The braking power and reliability is significantly improved over a basalt braking surface.

Non Disc - Grooved Graphene Surface: Our new resin system and construction method, combined with the 3k rim track, withstands over 280°C, dissipates heat, and lowers rim temperatures faster in between braking efforts. Gain confidence-inspiring brake performance on the steepest descents and wettest conditions with our matching brake pads. Also, graphene added to the rim brake track allows for greater resistance to overheating with improved heat dissipation and reduced temperature accumulation during heavy braking. The grooved track helps evacuate trapped moisture between pad and rim in wet conditions, and brings more resistance and force at the lever when conditions are dry.

Disc: The disc version does not have a rim brake track and features a unique disc specific layup process. Our new layup is about 10g ~30g lighter by reducing the unnecessary material and utilizing elements of our Flyweight construction method.

Non Disc - High TG Surface

Non Disc - Grooved Graphene Surface USD +30

Hole Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default. If you have a custom drilling requirements please e-mail us and we'll send you a purchasing link.

16H

18H

20H

24H

28H

32H

36H

Finish This is a required option.

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

glossy

matte

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer.
3k/12k/UD are the 3 choices for cosmetic appearance.The rim strength & weight is virtually identical.
UD Matte is the most popular and has a subtle look.
3k weave has a more traditional carbon fiber look.
More info about Weave >>

12K

3K

UD

Center Channel Hole This is a required option.

WITH HOLES: This is the traditional method. Holes are drilled in the center channel to allow the nipples to easily be fed through the rim. Tubeless tape is required to seal the rim.


WITHOUT HOLES: No holes are drilled in the center channel. Feeding the nipples through the rim is more challenging, but it allows for a tubeless setup without the need for tape. This kind of system is known as "road tubeless" and was made popular by Mavic. Some companies still refer to it as "UST style", however, UST is actually a specific interface between the tire and rim which was developed by a partnership between Mavic, Michelin, and Hutchinson.

With Holes

Without Holes

Decal This is a required option.

Road rims use super light waterslide decals (matte colors). The decal is very thin and applied under a clearcoat so they are non-removeable.

Pictures about light-bicycle decal >>

If you want custom graphic, Please email us, we will design for you. There will be extra cost for custom graphic on rims.

Pictures about custom graphics >>

Blank (No decal)

Stealth (Grey)

Blue

Green

Magenta

Orange

Red

White

Yellow

Valve Stem This is a required option.

We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

One 10 yard roll of tape will be included. It is typically covers 2 rims with two laps each or 4 rims with one lap each.The high tensile tubeless tape features a natural rubber adhesive that does not leave a residue on the rims. On mountain bike rims, one layer of 18mm width tape is strong enough to seal the access holes which makes for the lightest tubeless setup.
Instructions of tubeless rim tape

None

Add Tubeless Tape USD +6 each

Brake Pads This is a required option.

4 pads will be included. These high performance brake pads are designed for carbon bike rims only and offer excellent stopping power even in the wet.
Instructions of brake pads

None

Add Brake Pads USD +10

road wheel-carbon fiber rim-Road bike

Recon Pro orders start shipping in October.

- + PCS

Weight: 650.00g+/-20

Final total: USD 164+

PREVIOUS NEXT You missed some options. You missed some options.

Added to cart! View cart or continue shopping.

RIM SPECS

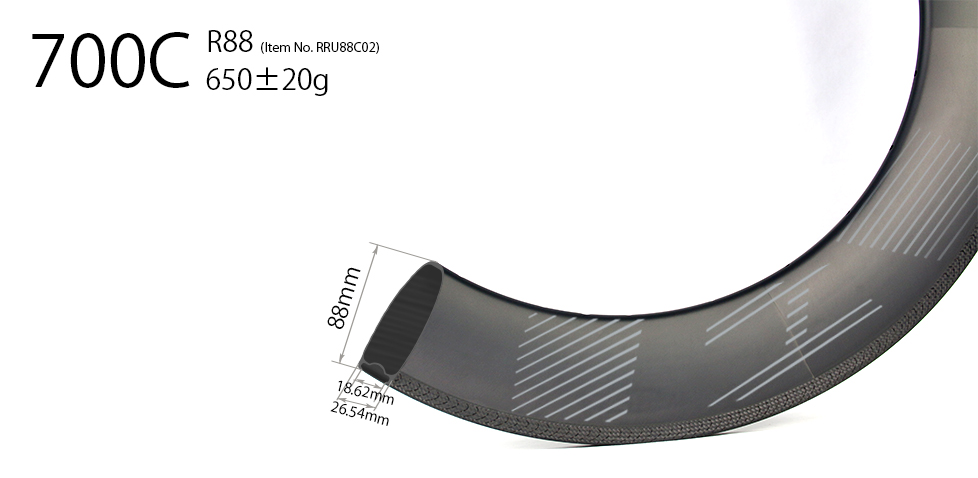

  • Rim Model R88
  • Size 700C
  • Series FALCON
  • Use Road
  • Type Clincher
  • Tubeless Ready

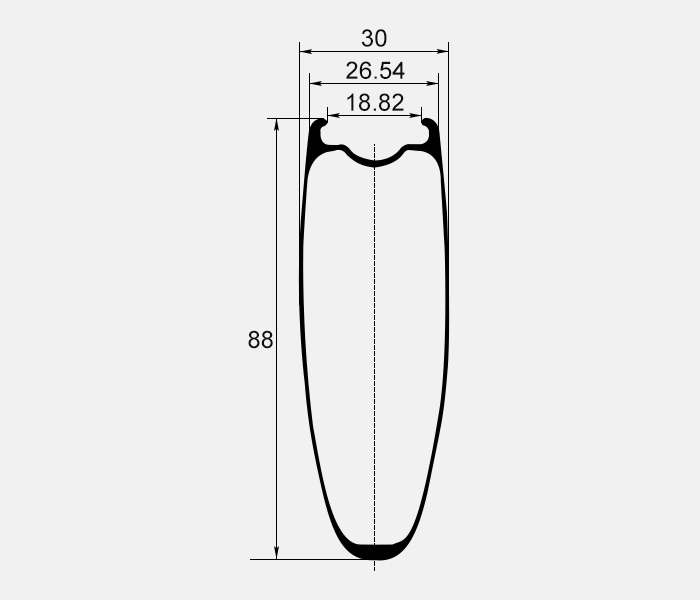

  • Inner/Outer Width 18.82mm/26.54mm
  • Depth 88mm
  • ERD 463mm (not including nipple head dimension)
  • Weight 650+/-20g
  • Offset 0mm (symmetric)
  • Weight Limit 135kg
  • Spoke Hole Angle ±8°
  • Spoke Tension 100 ~110kgf (radial) /115 ~130kgf (disc) front, 120~130kgf rear
  • Tire Pressure (with 25C) 120psi max
  • Tire 21C-38C recommended

Read more for actual road tire width

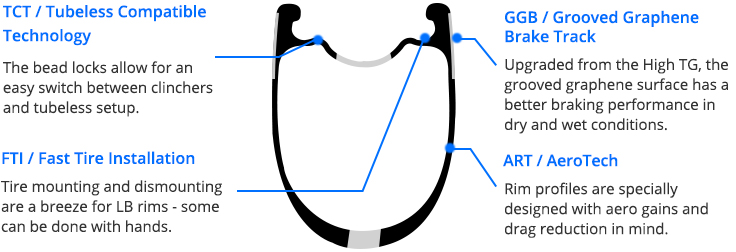

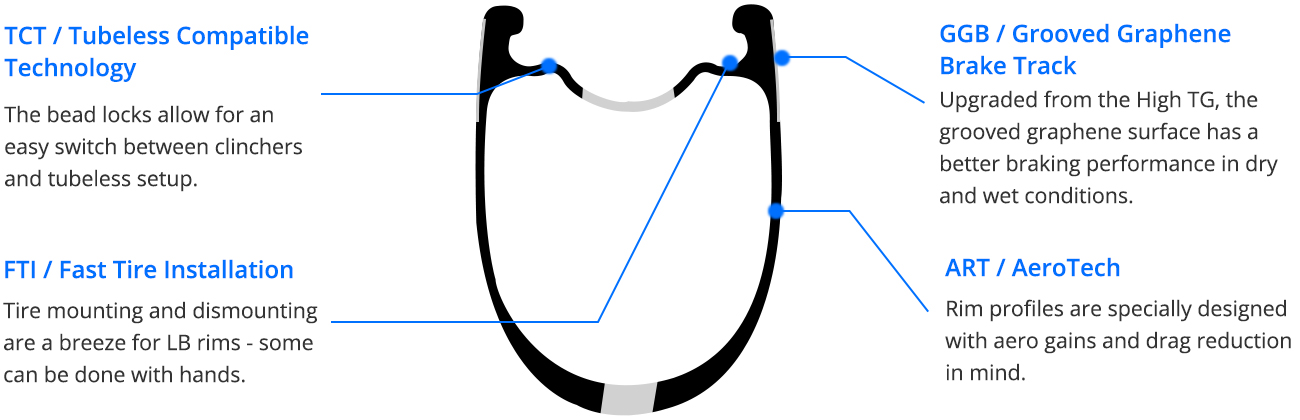

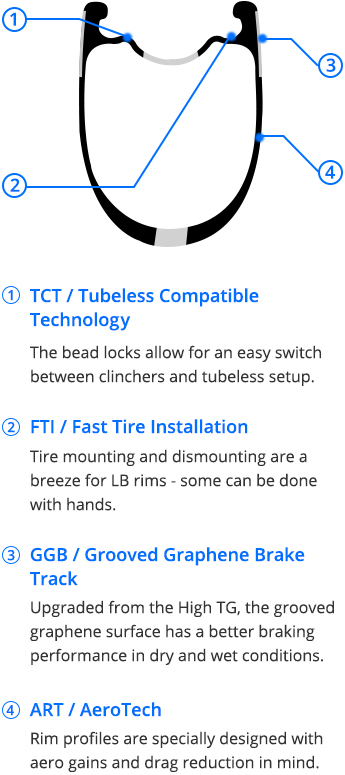

TECH

With an incredibly aerodynamic 88mm depth, the R88 is the perfect partner for your time-trial, triathlon, or crit racing bike. These build up into some of our stiffest and most aerodynamic wheelsets and maintain top speed like no other. The 26.54mm outer width keeps things aerodynamically optimized with smoother rolling for your 25C ~ 28C tires.


Learn More >>

WARRANTY

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>


WHAT IS IN THE BOX


Gallery

PEK : Very stiff wheels and hold speed really well! Only felt the weight penalty starting from a stand still at traffic junctions and climbing up NTU Hill. Quite stable too with varying wind conditions, though some twitches when there were back gusts from heavy vehicles passing by. Very comfortable too with the 28mm tyres (actual measure width close to 30mm).
Singapore
1

COMMENTS

M

Mathias 2020/07/20

Hi, Can I get a quote for a R65 front wheel, 20 spokes, and R88 rear wheel, 24 spokes with DT Swiss 350 hubs or with Bitex (BX301F / BX301R) hubs, drilled holes, no valve stems, no rim tape? Thanks a lot!


LightBicycle 2020/07/21

Hi Mathias, I need to confirm some details before we jump into placing the order. 1. What caliper do you use? The widest area of the R65 700C rim brake is 28.03mm, And it's 30mm for R88. So I want to make sure that the max rim width fits your bike. 2. Here's the hub list for all the hubs we can get, the most used Bitex hubs are RAF10/RAR9. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

J

Jay 2020/07/10

Hi, Can I get a quote for this wheelset for 1) dtswiss (240/350) hub 10s rim brake and 2) Novatec A291-SL 10s rim brake? Thank you!


LightBicycle 2020/07/11

Hi Jay, The cost for the 88mm deep wheelset 700C that built with DT 350 hubs is USD691.2/pair. The cost would be USD560.2/pair if built with Novatec hubs. DT Swiss hubs are more durable. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

A

Anthony 2020/06/08

Can I get a quote for 88mm wheelset with dtswiss hub 11s rim brake.


LightBicycle 2020/06/08

Hi Anthony, The price for 700C 88mm deep clincher wheelset with following specs is USD947/pair. - Rims: RRU88C02, UD matte front 20H/rear 24H, with high TG resin brake surface - Hubs: black DT Swiss 240S exp, front 100mm QR/rear 130mm QR, shimano road 11S, straight pull, 36T EXP - Spokes: black sapim cx-ray bladed - Nipples: black aluminum If it is with DT Swiss 350 18T hubs, it is USD691/pair. Thanks, lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

F

Florian 2020/03/24

Can I use the R88 700c with Clincher tyres? With best regards Florian.


LightBicycle 2020/03/24

Hi Florian, For R88 rims 700C bike, it is okay to use 700C normal clincher tires(with tubes). Which brand of tires are you going to use? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

M

Mads 2020/03/19

Hi. What is the price and specs on your cheapest 88 mm front wheel (clincher, rim brake and optimized for 25mm tire)? And what is the price on shipping? Kind regards Mads


LightBicycle 2020/03/20

Hi Mads, The cheapest front wheel 700C built with rim R88 (18.82mm internal/26.54mm outer width, 88mm depth) we can do is USD260. The configurations are Novatec A291-SL, QR*100mm, Pillar 1420 Aero spokes. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

A

Andrew 2020/02/13

Can I get a quote for 88mm wheelset with dtswiss hub 10s rim brake? Thank you. Andrew


LightBicycle 2020/02/14

Hi Andrew, We just sent you the quotation of this 88mm wheelset rim brake 700C to your email address. Please check. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

M

Mike 2020/01/02

Hi I'm looking for a set of rims for my tri bike. Could you please quote me for a set of wheels (clincher) with you cheapest components as I'm on a tight budget. I'd like a quote for a set of 88 for front and back as well as a quote for 65 on the front and 88 on the back. Thank you in advance, Mike


LightBicycle 2020/01/02

Hi Mike, It is okay to order front 65/rear 88mm mixed depth wheelset 700C. We have a clearance of the Bitex hub which is the cheapest one. We just sent quotation to your email address. Please check. Thanks Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

S

Stephen 2019/12/08

Hi what would be the price of a set of rear 88mm 65mm front wheels built on to DT Swiss 350 or bitex hubs Thanks Stephen


LightBicycle 2019/12/10

Hi Stephen, It is okay to order front 65mm deep/rear 88mm deep mix depth road bike wheelset. We sent wheelset quotation to your email address. Please check. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Y

Yuhao 2019/11/13

Hey I am looking for a set of rim to build with my PowerTab hub. - Are these listed Rim sold as a pair? - Can I use PowerTab power meter hub with your Rim? - Do you sell spokes/nipples to complete my built? Thank you. Yuhao


LightBicycle 2019/11/13

Hi Sir, - It is okay to order 88mm deep clincher rim 700C at just one single rim. - Yes, it is okay to build powertab hub on our carbon fiber bike rims. - Yes, it is okay to sell you spokes and nipples. Please let us know which spokes you like and the spoke length. - Your email looks wrong, we can not reach you actually. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

J

Julien 2019/10/30

Hi do you make wheelset with RRU88C03 rims ?


LightBicycle 2019/10/31

Hi Julien, Yes we can build 88mm deep complete wheelset 700C for you. Dis or non disc? Then we can quote you accordingly for you. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.
