AM930S Carbon MTB Rim - Light Bicycle

Buy & Configure

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

Global Shop

NA Shop

EU Shop

AU Shop

Ships worldwide. See what's on sale>>

Center Channel Hole This is a required option.

No Access Holes

Version This is a required option.

Front Flyweight / Rear Standard

Weave This is a required option.

Braided UD

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h

Paintless, UD, blank (no decal), 28h, with access holes

Standard, paintless, hook, blank (no decal), 24h, with drain holes, without access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

DT Swiss 350 straightpull centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

2 valves & 1 spare 18t ratchet

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD +

Lead time: typically ships in 2 days

ADD TO CART You missed some options.

We do not stock this item at the European warehouse. See what we stock currently.

You can order this product from our Global or North American warehouse.

Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.

Center Channel Hole This is a required option.

No Access Holes

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h, with drain holes

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD +

Lead time: typically ships in 3 business days

ADD TO CART You missed some options.

We do not stock this item at the Australian shop. See what's available.

You can order this product from our Global / NA shops.

Please fill out this form if you are looking for a custom wheelset.

We'll get back to you soon to study the customization requests via email.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the North American warehouse. Check this link to see what items we stock, or send us an email to discuss.

Our Global warehouse can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelset. We will get back to you via email to discuss in 24hrs.

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

Quick Buy (In Stock)

Full Custom (Made to Order)

DEFAULT SETTINGS

Rims

Hook, matte, UD, with drain holes

Hook, matte, UD, with access holes, with drain holes

Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes

Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes

Paintless, UD, 5-year warranty, no drain holes

Grooved graphene surface, hook, matte, UD, with access holes, with drain holes

Grooved graphene surface, hook, matte, UD, no access holes, with drain holes

Matte UD, 32H, Centered (Staggered)

Hubs

Hope Pro 4 Fatsno J-bend 6-bolt

15/150mm (F) & 12/197mm (R) Sram XD

Straightpull centerlock black 24H

12/100mm & 12/142mm

Shimano Road 11S

DT Swiss straightpull / Bitex j-bend, centerlock, 28H

J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H

15/110mm boost & 12/148mm boost Sram XD

DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear

100mm QR & 130mm QR Shimano Road 11S

Spokes

Sapim CX Ray black

Sapim D-Light

Accessories

No decals/valves/tape

No decals/valves/tape/pads

No decals/valves

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Version This is a required option.

Version	Weight	Material	Layup	Max Load
Standard	Standard	Toray T700	Standard Layup	135 kgs
Flyweight	40g - 70g lighter	Toray T800 and T700	New layup for weight saving	90 kgs

Front Flyweight / Rear Standard with specific layup is also a good option that proves the harmony of weight and strength.

Standard

Flyweight

Hole Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc) at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

28H

32H

Finish This is a required option.

The "Finish" relates to how the rim is coated or painted such as matte or glossy for the most common applications. Our Recon Pro and Falcon Pro rims feature BlackTek and come out of molds as a completed product, with a scratch resistant and near flawless finish, eliminating the need for coating or painting. We name this kind of superior finish the paintless.

Full Custom: This option (if provided here to choose) offers custom finish such as Satin/Raw etc at no extra charge but subject to rim models with 3~5 days LONGER on manufacture. And custom color painting is also available with added 15g/rim and extra $20USD/rim as a start. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

Paintless

Full Custom

Weave This is a required option.

Rim Warranty This is a required option.

For Recon Pro Series ( MTB rim), Falcon Pro (road rim) and Drift Pro (fatbike rim), 5-year warranty is set as standard, and optional Lifetime Premium Warranty are kindly offered to purchase with minimum charge respectively.

5 Years

Lifetime USD +100/rim

Decal This is a required option.

Custom Sticker (removable) is also available. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

Blank (No decal)

Custom Sticker

Valve Stem This is a required option.

We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.
Information of tubeless rim tape

Apply Tubeless Tape: In Light Bicycle, a proprietary taping aid works with our wheel builders to guarantee that a solid taping craft at industrial-level is well implemented in order for you to ride carefree tubeless at any conditions.

You do NOT have to use any tubeless tape to run tubeless if you have chosen "No Access Holes" on the rim center channel.

None

Add Tubeless Tape USD +6 each

Recon Pro orders start shipping in October.

- + PCS

Version This is a required option.

Version	Weight	Material	Layup	Max Load
Standard	Standard	Toray T700	Standard Layup	135 kgs
Flyweight	40g - 70g lighter	Toray T800 and T700	New layup for weight saving	90 kgs

Standard

Hole Count This is a required option.

ROAD Product
Road rim brake: Stocked in 20h and 24h
Road disc: Stocked in 24h and 28h

MTB Product
MTB rims: Stocked in 32h. Only XC Flyweight rims are stocked in 28h as well as 32h
Please note that our valves are drilled for presta and spoke holes are made for external nipples by default. If you have a custom drilling requirements please contact us.

28H

32H

Finish This is a required option.

Paintless

Weave This is a required option.

Rim Warranty This is a required option.

5 Years

Lifetime USD +100/rim

Valve Stem This is a required option.

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.

Apply Tubeless Tape: The tubeless tape with high tensile strength is tightly installed on the wheel(s) at industrial-level for you to ride carefree tubeless at any conditions.

None

Add Tubeless Tape USD +8 each

Decal This is a required option.

Blank (No decal)

Recon Pro orders start shipping in October.

- + PCS

Piece Weight: 400.00g+/-15

Subtotal: USD 289+

Piece Weight: 400.00g+/-15

Subtotal: USD 309+

PREVIOUS NEXT

RIM SPECS

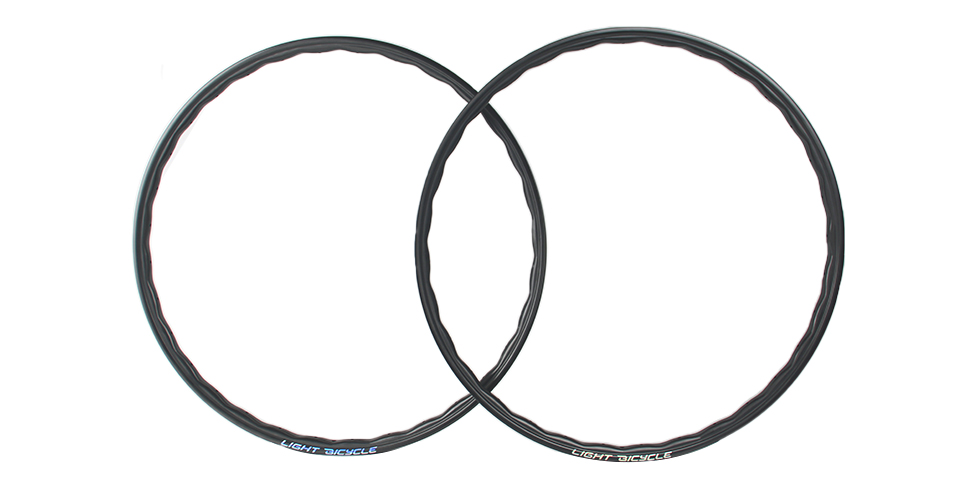

Model AM930S
Introduction >>
Material Toray T700 Carbon Prepregs & Carbon Nanotubes
Size 29"/29er (ETRTO 622mm)
Series RECON PRO
Intended Use All Mountain, XC
Bead Type Hookless
Tubeless Capable Yes

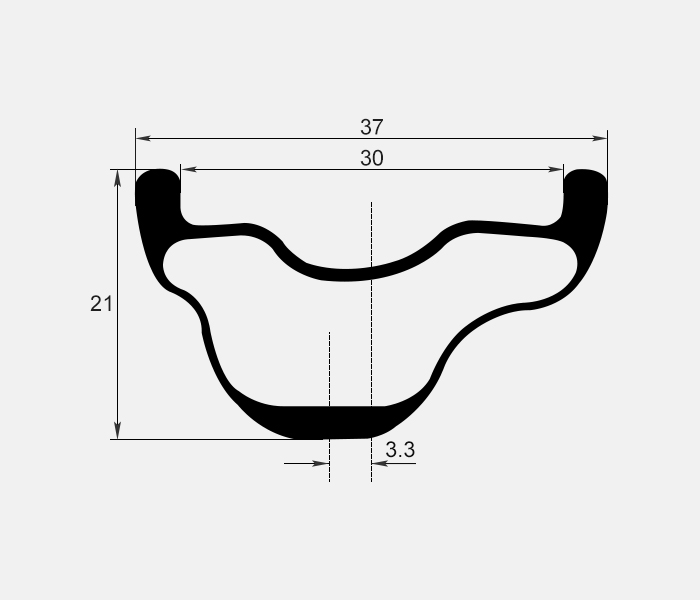

Inner/Outer Width 30mm/37mm
Depth 18.1mm~21mm
ERD 595.4mm (not including nipple head dimension)
Rim Weight Standard 400+/-15g, Flyweight 350+/-15g
Profile Asymmetric (3.3mm)
Max Cyclist Weight (on flat ground) Standard 135kg/ 298lbs, Flyweight 90kg/ 198lbs
Spoke Hole Angle ±8°
Spoke Tension 120~130kgf front disc side and rear drive side
Max Tire Pressure 40psi/ 2.75bar
Recommended Tire Width 2.2" ~ 2.7"

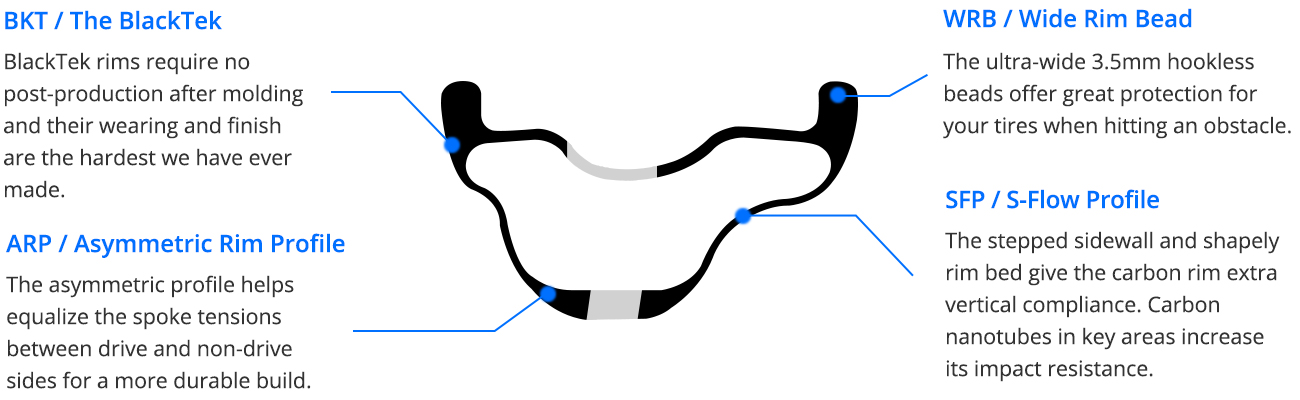

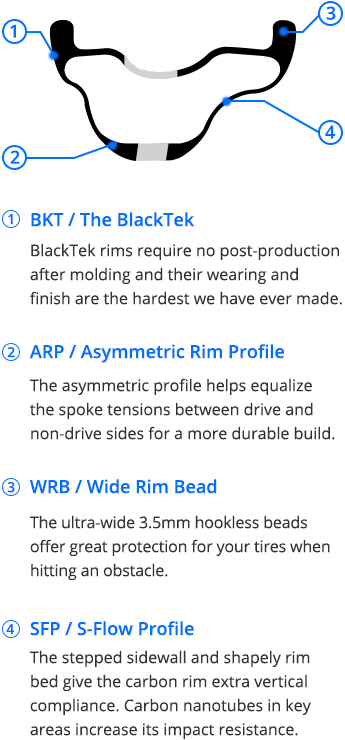

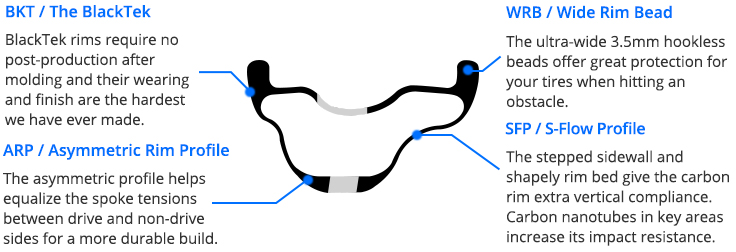

TECH

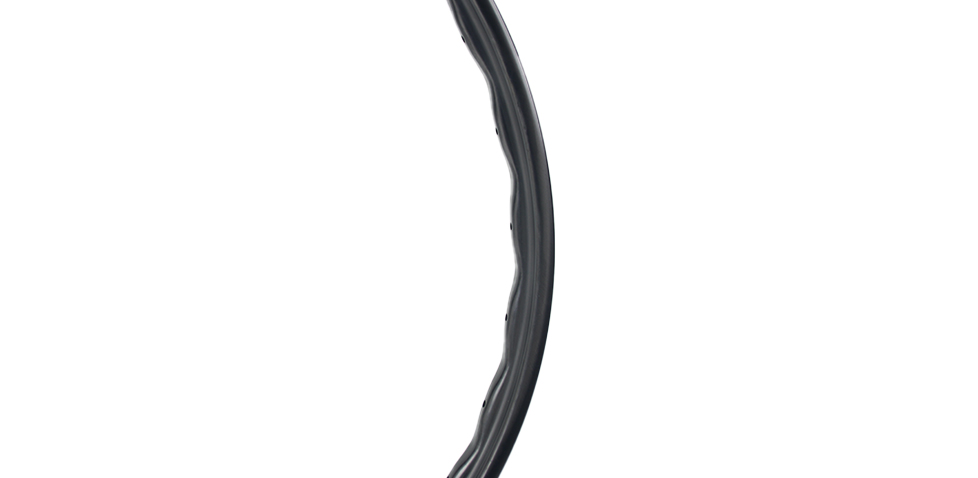

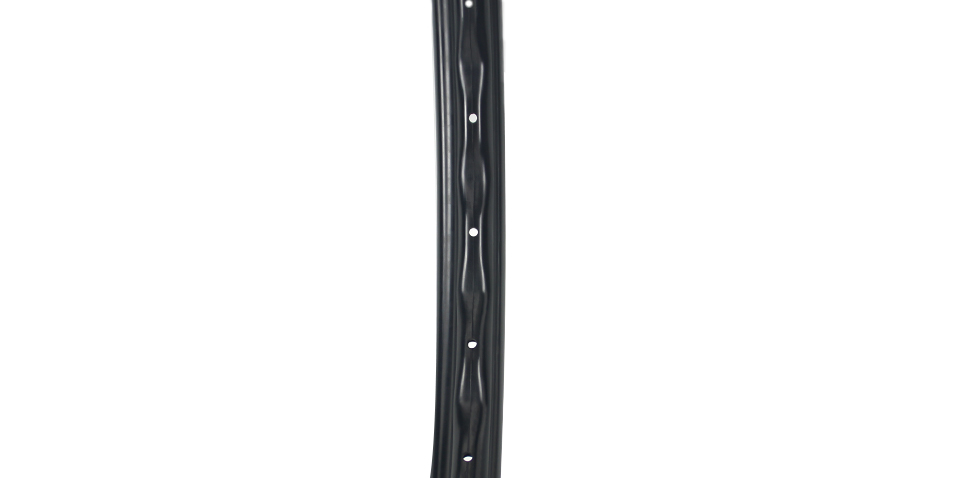

The overall depth alternates between 18.1mm to 21mm, creating a ribbed inner circumference. The unique combination of a stepped sidewall and shapely rim bed gives the carbon rim extra vertical compliance. A finely-tuned Toray T700 layup features layers of carbon nanotubes in key areas to further the vibration damping properties. Carbon nanotubes increase impact resistance by 10% without adding weight. The final result? An all-around player making light work of tough trails.

The thickened rim bead, along with the smooth edge, offers great protection for your tires when hitting an obstacle - the impact energy gets dispersed faster on the broad surface. This greatly reduces the risk of pinch flats (snakebites). The wide profile provides a stable platform with less force required to mount tires.

Learn More >>

WARRANTY

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>

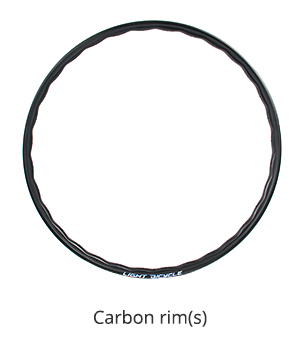

WHAT IS IN THE BOX

Gallery

Light-Bicycle-AM930S-wheels-for-Santa-Cruz-Hightower

Takumi: Santa Cruz Hightower with Michelin Wild Enduro Front and Rear

Philippines

Birdrider: AM930s Ztto 6 pawl boost hubs Sapim race spokes Brass nipples.

United States

Light: AM930S All Mountain Wheels

Light: Rims: AM930S 32H Paintless UD With Access Holes Hubs: DT Swiss 240 EXP 15/110mm Boost J-Bend 6-Bolt DT Swiss 240 EXP 12/148mm Boost J-Bend 6-Bolt Sram XD EXP 36T Spokes: Sapim D-Light Nipples: Sapim aluminum red

SEE MORE ADVENTURES

COMMENTS

Andrzej 2022/08/16

Hi. Currently I have two XC925 rims (flyweight front / standard rear). I would like to assemble a second set of wider wheels for light 2.4" tires. I use the bike for XC / marathon (fullsuspension 120mm). My weight is 67 kg. Will two AM930S flyweight rims be a good idea? Or maybe it is possible to make a rim on the front, e.g. 330g and 360g on the rear?

LightBicycle 2022/08/16

Hi Andrzej, Yes, the AM930S recommends 2.2"-2.7" tires. And the AM930S flyweight version weighs 350g+/-15 only. The front flyweight rear standard version is available if you want a more durable XC 29er wheelset. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Andy 2022/06/26

Hi, are you able to do a custom build with onyx vesper hubs? Do you have prices for this with the AM930S and AM930 rims please?

LightBicycle 2022/06/27

Hi Andy, Yes, we could build the 29er wheelset AM930S with onyx versper. What is your axle size? boost 15*110mm front/rear 12*148mm? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Eugene 2021/10/23

Hi! Are there any plans to release the s-flow profile in a 27.5 rim? Thanks!

LightBicycle 2021/10/25

Hi Eugene, I am sorry that we don't have a plan to make the AM930S in 27.5" at the moment. Because of the special design shape, every different spec would require a new mold and design process. So it might take some time. But I will inform you if we do have a plan to make a 650b version. Do you consider other models right now? Thanks, Lightbicycle

Nathan 2022/06/14

Any new development or plans to make a 650b version of these AM930S rims? Thanks!

LightBicycle 2022/06/14

Hi Nathan, We don''t have the plan to make a 650b mtb rim bike version AM930S at the moment. I will inform you when we do. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

John 2022/05/09

Hi do you recommend 2 cross or 3 cross lacing for the 28hole?

LightBicycle 2022/05/10

Hi John, For the straight-pull head, only 3-cross lacing is available for 29er wheels mtb. If the head is J-bend and you want to get a more stiff wheel, then 3-cross lacing is a better option. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Merrick 2021/10/24

Are these AM930S rims offered in 28h?

LightBicycle 2021/10/25

Hi Merrick, I am sorry that we only have 32H mold for the AM930S-37mm 29er mtb bike rim at the moment. 28H will be ready a few weeks later. Thanks, Lightbicycle

Johnny 2022/04/07

Are the 28H rims available now? Or how soon if not?

LightBicycle 2022/04/07

Hi Johnny, Yes, the AM930S 28H 29er mtb bike rim is available now. Do you need two rims or the whole wheelset 29er? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

James 2022/04/02

Hi how dos the AMS930S Fly weight compare to the RM29C07?

LightBicycle 2022/04/02

Hi James, For starters, AM930S 29er bike rim and RM29C07 are from different lineups. AM930S was designed to gain extra vertical compliance and be able to keep the weight down by 10%. The use of T700 carbon fiber and nanotubes in key areas to further the vibration damping properties. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

hariz 2022/01/18

I'm interested in the new S flow wheels. Would you tell me the difference between the new AM930S flow rim and the regular AM930. I now they both use the Recon Pro rim. What do you give up as far as strength goes with the new S flow rim. I have a Ibis Ripley v4, its a 120/130mm trail bike. I am 165lbs with gear. Looking for a light weight trail wheelset. I have a alloy wheelset that I will use for rougher trail riding/enduro . Thank you

LightBicycle 2022/01/18

Hi hariz, Here're some key differences between 29er bike rims AM930S and AM930 that might help you. 1. The riding experience. If you are riding a hardtail, you will feel a big difference during riding. AM930S provides more comfort due to the special design of the rim profile. But AM930 is better in vertical stiffness if that's what you are after. Or for a suspension bike. 2. Weight The "凸" structure makes the rim strong and is able to reduce 40g/rim compare to AM930. 3. Asymmetric design. Wheelset with AM930S can reach a better balance of spoke tension between the drive and non-drive side of the wheel thanks to the 3.3mm offset. AM930 is also an asymmetric rim, but it's only 2.0mm offset. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Farhan 2022/01/17

Hi! I would like to purchase AM930S wheelset boost along with 240exp hubs 6bolt. How do I go about on this? thanks!

LightBicycle 2022/01/17

Hi Farbon, Thanks for your inquiry! I just add AM930S 29er wheelset with DT 240 EXP boost hubs in the cart for you. Please check below wheelset specs. is it what you like? https://www.lightbicycle.com/site/share-cart?id=4897 Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Colin 2021/12/31

Hello, looking for best price for: AM930S with Hydra hubs and CX-Ray spokes. Front Hub: Boost Rear Hub: SuperBoost Shimano Microspline Driver Centerlock Brakes Tubeless valves and tape. Shipping to Vancouver, Canada (V7J 2S5)

LightBicycle 2021/12/31

Hi Colin, AM930S wheelset 29er with Hydra hubs and CX-Ray spokes will be available in our North American warehouse. The rims will arrive around 10th, January, 2022. The wheelset will ship from our North American warehouse to Vancouver, Canada(V7J2S5) by UPS Standard. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Brent 2021/12/14

I have yet to see these rims appear on the site as an option to "build and configure" into full wheelsets?

LightBicycle 2021/12/15

Hi Brent, We can build the 29er wheelset for you with AM930S rims. Do you have a preferred hub in mind? Thanks, Lightbicyle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Tony 2021/12/07

Hello! Could you build an AM930S wheelset with BERD PolyLight Spokes? https://berdspokes.com/collections/spokes/products/polylight-spokes-black Thanks!

LightBicycle 2021/12/07

Hi Tony, Yes, we can build the AM930S wheel 29er with BERD spokes for you. Have you decided on the hub option yet? I will send you the order via email when everything is settled. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Matt 2021/11/08

Hi there, Are you building custom wheelsets with your new AM930S rims? Or just selling the rims?

LightBicycle 2021/11/09

Hi Matt, Yes, we do sell AM930S rims 29er with custom build option wheels. It's not released online just yet. But you can order it via email. What configurations are you looking for? If you are open to recommendations, I would like to learn more about your riding style to get to know your requirements better. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

ron 2021/10/05

please let me know if you will be making a flyweight version of the AM930S and if so the anticipated weight.

LightBicycle 2021/10/06

Hi Ron, We would love to learn more about your riding style and your weight please. Then we can check whether the lighter version of this 29er bike rim works for you or not. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

See all 13 customer reviews>>

Get in touch

Feel free to leave a comment if you have any questions or suggestions on our products or other issues.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

^
