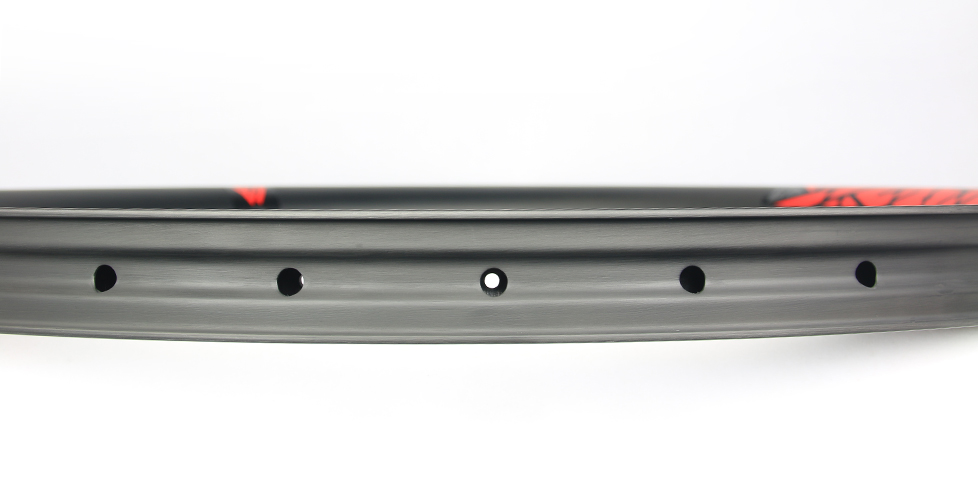

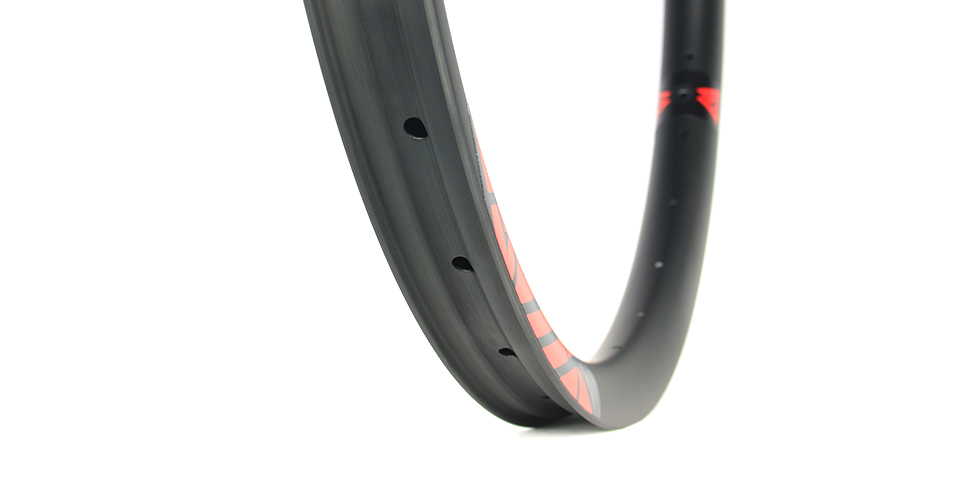

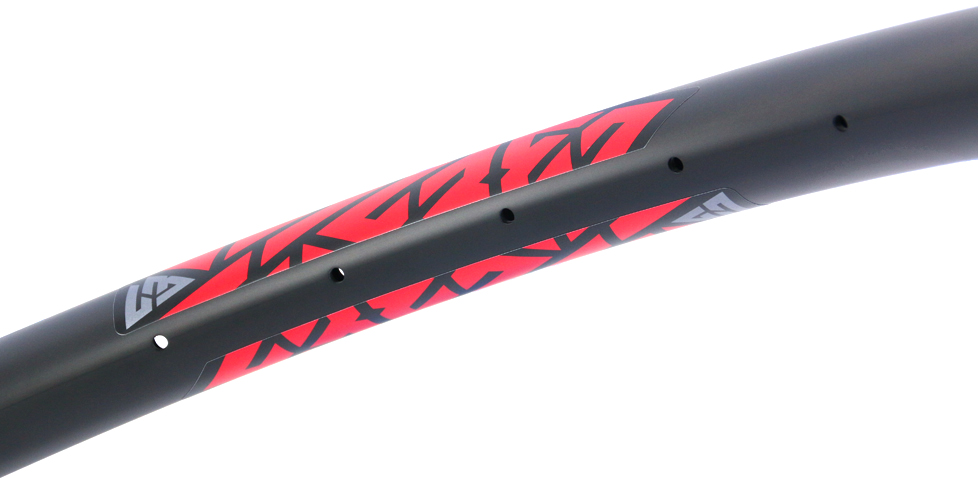

AM933 asymmetric rim profile carbon 29 inch carbon rims mtb

BUYING OPTIONS

Global warehouse ship to most countries while the North American warehouse only ship to the United States and Canada

GLOBAL
NORTH AMERICAN
  • 1

    RIM

  • 2

    ACCESSORIES

  • 3

    OVERVIEW

RIM

Version This is a required option.

AM - This model is mid-weight and suitable for all mountain and trail riding. Can be used for light-duty enduro.
EN - This version has additional reinforcement and is suitable for more aggressive riders. It's the best choice for Enduro style riding.

AM933

EN933 USD +5

Finish This is a required option.

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

glossy

matte

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer.
3k/12k/UD are the 3 choices for cosmetic appearance.The rim strength & weight is virtually identical.
UD Matte is the most popular and has a subtle look.
3k weave has a more traditional carbon fiber look.
More info about Weave >>

12K

3K

UD

Hole This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples only. If you have a custom drilling requirements please e-mail us and we'll send you a purchasing link.

16H

18H

20H

24H

28H

32H

36H

Decal This is a required option.


The new graphics are included and available in 7 colors. The decals are now easily replaceable so you can keep your rims looking fresh.

Stealth

Blue

Green

Magenta

Orange

Red

Yellow

Valve Stem This is a required option.

We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valve with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The vavle core is removeable so you can add sealant withoutn removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

One 10 yard roll of tape will be included. It is typically covers 2 rims with two laps each or 4 rims with one lap each.The high tensile tubeless tape features a natural rubber adhesive that does not leave a residue on the rims. On mountain bike rims, one layer of 18mm width tape is strong enough to seal the access holes which makes for the lightest tubeless setup.
Instructions of tubeless rim tape

None

Add Tubeless Tape USD +6 each

asymmetric bike rims 29er

In Stock, typically ships within 2 business days

In Stock, typically ships within 2 business days

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Recon Pro orders start shipping in October.

- + PCS

Version This is a required option.

AM - This model is mid-weight and suitable for all mountain and trail riding. Can be used for light-duty enduro.
EN - This version has additional reinforcement and is suitable for more aggressive riders. It's the best choice for Enduro style riding.

AM933

EN933 USD +5

Finish This is a required option.

matte

Weave This is a required option.

UD

Hole This is a required option.

ROAD Product
Road rim brake: Stocked in 20h and 24h
Road disc: Stocked in 24h and 28h

MTB Product
MTB rims: Stocked in 32h. Only XC Flyweight rims are stocked in 28h as well as 32h
Please note that our valves are drilled for presta and spoke holes are made for external nipples only. If you have a custom drilling requirements please contact us.

32H

Decal This is a required option.


The new graphics are included and available in 7 colors. The decals are now easily replaceable so you can keep your rims looking fresh.

Stealth

Blue

Green

Magenta

Orange

Red

Yellow

Valve Stem This is a required option.

We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valve with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The vavle core is removeable so you can add sealant withoutn removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

We use a tubeless tape with high tensile strength and only one lap is required so it is very light. It uses a natural rubber adhesive that does not leave any residue on the rims.

None

Add Tubeless Tape USD +8 each

asymmetric bike rims 29er

In Stock, typically ships within 2 business days

In Stock, typically ships within 2 business days

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Recon Pro orders start shipping in October.

- + PCS

Weight: 460.00g+/-15

Final total: USD 163.00+

Weight: 460.00g+/-15

Final total: USD 183.00+

PREVIOUS NEXT You missed some options. You missed some options.

Added to cart! View cart or continue shopping.

RIM SPECS

  • Size 29er
  • Use All Mountain/Enduro
  • Type Hookless
  • Tubeless Ready

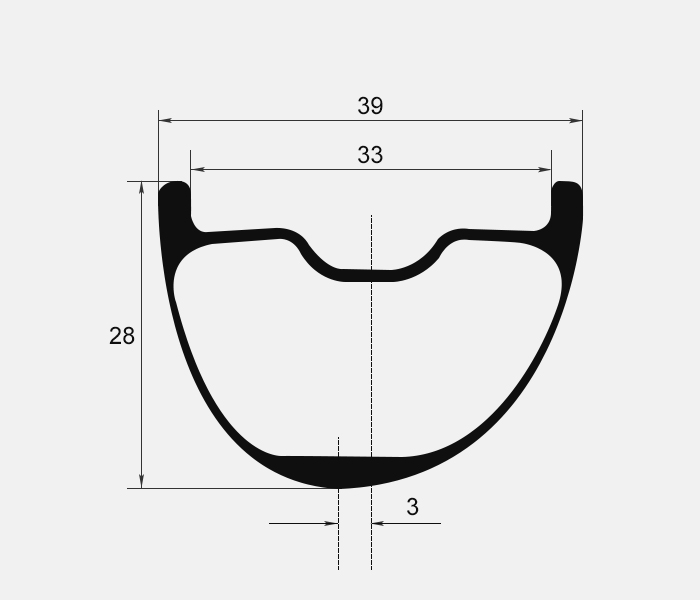

  • Inner/Outer Width 33mm/39mm
  • Depth 28mm
  • ERD 583mm (not including nipple head dimension)
  • Weight AM 460+/-15g, EN 510+/-15g
  • Offset 3mm (asymmetric)
  • Weight Limit 125kg
  • Spoke Hole Angle ±8°
  • Spoke Tension ≤145kgf recommended
  • Tyre Pressure ≤35psi recommended
  • Tire 2.3"-3.1" recommended

Teleport to the wheelset building page.

Wider, stronger and stiffer. When aggressive riding is in your DNA, the 933 is the rim answering the call. With a wide profile, this rim is designed to work perfectly with the new breed of ultra wide trail tires. This huge air volume will give you stability and an insane amount of traction that will encourage riding in the nastiest of conditions. The ability to safely run lower pressure while enjoying the lightweight, quiet and dampened ride carbon provides, will have you shredding the trails like never before.


This rim comes in two different layup styles. While the standard layup is suitable for most riders, the EN version features an extra layer of 3k carbon for heavier riders, or those notoriously tough on equipment. Not only does this help support G-Out forces, but it also makes the EN933 one of our stiffest options.

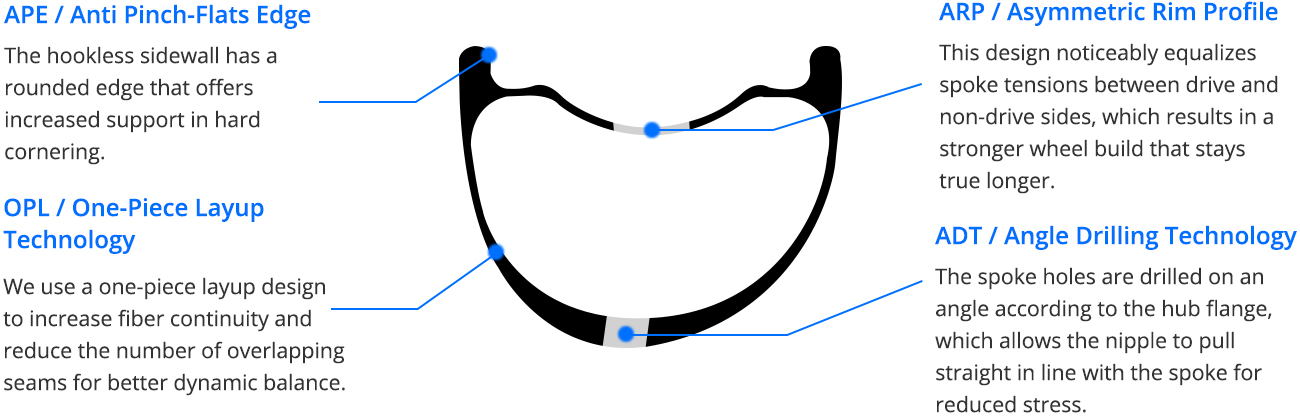

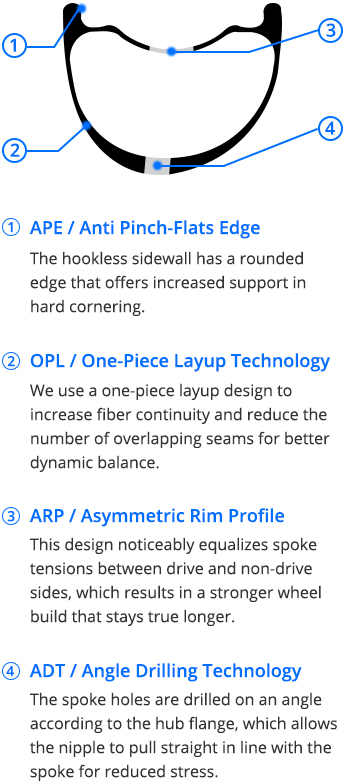

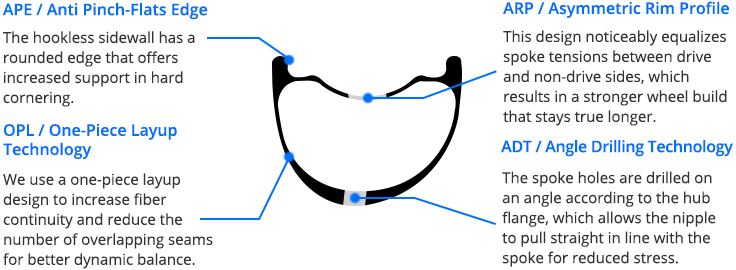

Hookless: Carbon fiber flows continuously over the bead area to provide the best impact resistance and a significant strength increase compared to a clincher rim.


Manufacturing process: Our air bladders are made from a special material which produces smoother walls, result in a lighter rim, and are completely removed without harsh chemicals. They are removed through the valve hole with a unique process so that the rim does not have to be patched like traditional manufacturers use. This significantly improves the strength of the rims. Read More about our process


T700: Constructed with premium Toray T700 carbon fiber. The best strength to weight ratio with no expense spared.


Precise layup: Each rim carries its own layup schedule documents which are followed meticulously by the layup workers. Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim.


Angled Holes: Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress. This results in fewer broken spokes and nipples.


U-Shape: U-shape profile spreads the force of impacts and creates a more robust product.


Asymmetrical: The profile allows for equalized spoke tension which creates a stronger wheel that stays true.


Tubeless: While the rims are optimized for a tubeless setup with the addition of tubeless tape, they also work with tubes.


For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Know more about the warranty policy >>

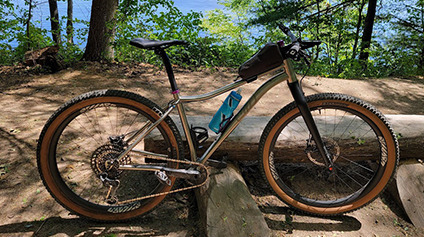

GALLERY

Adventure collection from all over the world.

LEARN MORE

COMMENTS

G

Gary 2018/12/11

Hi, when shopping for rims is the price for one rim only or a set?


LightBicycle 2018/12/11

Hi Gary, The price is for one single 29er rim. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

D

Dunan 2018/11/09

Could I use this rim for e-bike ? if I go with the EN layup ? total weight of rider and bike about 108kg


LightBicycle 2018/11/10

Hi Duncan, This rim in EN version will be strong enough for E-bike. May i know what spokes and hubs that you will use? Is the spoke 14 gauge? Then we can check more detailly for you. Also, we will have E-bike models of rims/wheels in 2 months. If you are not urgent, you can wait for E-bike models. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

R

Riccardo 2018/10/27

1) Is it possible to have holes drilled only in the inner wall of the rim, so only in the side facing the hub? I'm aware that it's a pain to build the wheel in this way, routing nipples through the valve hole, but when done, I get an UST rim, also a bit stronger. 2) Offset is a value mandatory, or you can drill holes also with 2.5 mm offset instead of 3 mm?


LightBicycle 2018/10/27

Hi Riccardo, Yes, we can make a UST rim for you with no extra cost.The holes usually lie in the channel center, and the drilling is with +/-6 degree angle. Do you mean you want the drilling hole to be laid offset on the rim bed? Normally, we would make offset drilling on the plus or fat bike rims. This 29er rims profile is with 3mm offset. Do you mean drilling the spoke holes 2mm offset from the rim center line? Thanks, Lightbicycle


R

Riccardo 2018/10/27

It's highly welcome to have +/- 6 degree angled drills, why don't you declare it in rim description? It's a plus for it! I've no way to provide you an attachment, with a picture it'd have been much more clear, so, lease, look above in product page at black&white drawing with rim dimensions. I mean: don't do any hole at all on the side where there is "33" (this is already agreed by your answer) and apply a value of "2.5" in place of "3" on bottom side, the same for all holes of both DS and NDS. I'm just asking if the 3 mm offset can be reduced to 2.5 mm, without weakening the rim. I think that the answer depends on how the rim is built: if (1) in the area around the drill carbon thickness is constant for a while, and (2) you can easily apply this mod to the drilling machine configuration, it can be done. If instead carbon layer thickness decreases sharply when you leave the 3mm center spot, drilling 0.5 mm laterally from the center would reduce rim strenght, as that's also may be the most critical area of the rim. The reason for this request is that I'm going to use an hub with just 5 mm of difference in left and right flange distances from center, and I'd like to apply this uncommon feature to create a perfectly balanced wheel, but I need an asymmetric rim with an offset of just 2.5 mm. Your rims with 2.5/2.6 mm offset are all smaller than this one, that as the perfect measures I'm looking for, as I'm going to build an Enduro wheel tailored for 2.6" tyres.


LightBicycle 2018/10/29

Hi Riccardo, Great! We will list +/-6degree drilling on rim specs ASAP. This 29er rim is wider, so with 3mm offset profile design. If you like 2.5 mm offset drilling, we can work on the spoke holes with 2.5mm offset from the rim center line. I just sent an drawing about the drilling. Is it what you like? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

G

Guillaume 2018/09/11

I’m interrested by the EN933 rims for tandem bike. But the weight that our bike will support is approximatly 150kg and the maximal weight that your rims support is 125kg. Do you think that it will be possible to chose it or it will be needed to taje something stronger ? Thank for your advice


LightBicycle 2018/09/15

Dear Guillaume, The weight limit is usually referred to the rider weight. If you are under 125kg, the wheelset would be ok for you. If you are doing aggressive riding or you want to reinforce the wheelset just in case. You can use round spokes and stronger hubs while building the wheelset. All in all, if you are lighter than 125kg and not doing very aggressive riding. 29er rims EN933 (enduro version) will be strong enough for you. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

G

Guillaume 2018/09/11

I’m interrested by the EN933 rims for tandem bike. But the weight that our bike will support is approximatly 150kg and the maximal weight that your rims support is 125kg. Do you think that it will be possible to chose it or it will be needed to taje something stronger ? Thank for your advice


LightBicycle 2018/09/12

Hi Sir, The weight limit is usually referred to the rider weight. If you are under 125kg, the wheelset would be ok for you. If you are doing aggressive riding or you want to reinforce the wheelset just in case. You can use round spokes and stronger hubs while building the wheelset. All in all, if you are lighter than 125kg and not doing very aggressive riding. EN933 (enduro version) will be strong enough for you. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

J

Jason 2018/09/01

Hi, I have a pair of Hope Pro 4 hubs I wish to lace with these AM933 rims. What is the spoke length needed? My wheelbuild dimensions are: - axle size: front 15*110mm boost & rear 12*148mm boost - External hole rim - 32 hole - J-bend? - 3-Cross lacing


LightBicycle 2018/09/01

Hi Jason, Please check the spoke length that we use as below. Rims: AM933,29er rim, 32H, external nipple holes Hubs: Hope pro 4, boost front 15*110mm boost/rear 12*148mm boost, J-bend Nipples: 14mm long Lacing pattern: 3 cross Spoke length: front 283mm drive side, 282mm non-drive side rear 282mm drive side, 283mm non-drive side What nipples do you use? It will affect the spoke length also. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

H

Huw 2018/08/04

I am interested in the en933 rims matte UD with 32 holes are these available from the European warehouse?


LightBicycle 2018/08/06

Hi Huw, Sorry, we don't have EN933 29er rims stock in Europe warehouse currently. If the import tax is the main issue that you worried about. You can choose our TPD (tax-prepaid delivery) for shipping. You won't have to pay any import tax. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

E

Eddie 2018/07/04

Hi if I place my order tomorrow how long till I received my rim? I will need it by Monday if next week. I'm going on a trip and need it asap. Please help. Do you ship from US? Thanks Eddie


LightBicycle 2018/07/05

Hi Eddie, Since you request the rims urgently to US. You should place the order from our North American site and make contact with our North American base colleague. But you should note that the US base only stock with the standard setup (UD, matte, 32H). Special orders are ordering to make. If your order is not UD matte 32H, normally it takes around 10 days to manufacture in China, and another 5~10 days for delivery. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

A

Alex 2018/03/23

hi i am looking for a front and rear Am rim how much would it cost for the set?


LightBicycle 2018/03/23

Hi Alex, Do you like AM933 29er rims only or you like to the complete wheelset(built with hubs, spokes and nipples)? Then we can quote accordingly. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

M

michel 2018/02/02

I'd like to order just the front wheel AM933 DT 350 ',center lock, Boost, 28H , Sapim CXRAY spokes. How much is it?


LightBicycle 2018/02/03

Hi Michel, Thanks for your inquiry! It is okay to order front wheel only. The price for front wheel with following specs is USD479 each - Rim: AM933, UD matte 28H no decal - Hub: black DT Swiss 350, straight pull, center lock, 15*110mm boost - Spokes: black sapim cx-ray bladed straight pull - Nipples: black aluminum or brass? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.
