FALCON WHEELSET AR46 DISC Road/CX/Gravel

700C Gravel-Optimized-Aero-Shape 46mm depth hand-built carbon road disc wheels - 28mm wide and tubeless compatible

Buy & Configure

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

WHEELSET SPECS

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

  • Rim Model AR46 disc
  • Size 700C
  • Series FALCON
  • Use Road/CX/Gravel
  • Type Clincher
  • Tubeless Ready

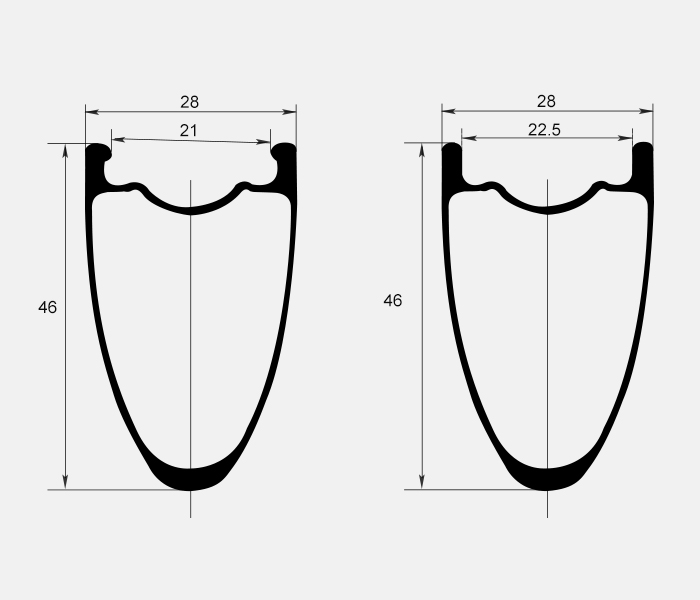

  • Inner/Outer Width Hook 21mm/28mm, Hookless 22.5mm/28mm
  • Depth 46mm
  • ERD 548mm (not including nipple head dimension)
  • Weight 435+/-15g
  • Offset 0mm (symmetric)
  • Weight Limit (on flat ground) 130kg
  • Spoke Hole Angle ±6°
  • Spoke Tension 115 ~130kgf front, 120~130kgf rear
  • Tire Pressure (with 25C) Hook: 110psi, Hookless: 70psi max
  • Tire 23C~43C recommended

Read more for TL tire pressure charts

Read more for actual road tire width

HUBS

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

  • Model DT SWISS 180, DT SWISS 240 EXP, DT SWISS 350, Industry Nine 1/1, Chris King R45D, Novatec D411SB / D412SB, Industry Nine Torch, Carbon-Ti X-Hub, ARC MT-032, Bitex BX312F / BX312R, Onyx Vesper
  • Front Axle Size 12 / 100mm, 15 / 100mm, QR / 100mm
  • Rear Axle Size 12 / 142mm, QR / 135mm
  • Driver Body Shimano Road 11S, Shimano Road 11S Alloy, Sram XDR Alloy, Sram XDR, Campy 11S Alloy
  • Hole 24H, 28H

OTHER PARTS

Leave a note at checkout or contact us if you want spare spokes or nipples.

  • Spokes Pillar Aero X-TRA 1420, Pillar Wing 20 in Oil Slick Color (For Bitex Hub only), Sapim CX Ray, Sapim CX Sprint-Rear drive side/ CX Ray-Other sides, Sapim D-Light, Sapim Race
  • Nipples Aluminium Black, Aluminium Red, Brass Oil slick, Brass Black, Aluminium Blue, Aluminium Gold, Aluminium Green, Aluminium Lime, Aluminium Orange, Aluminium Purple

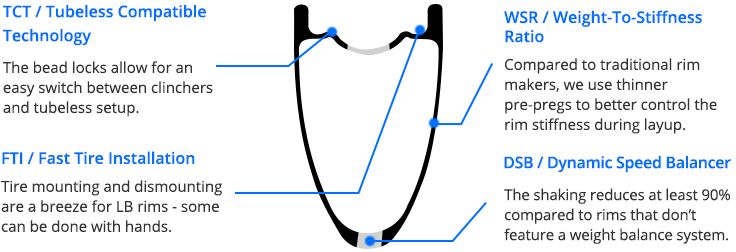

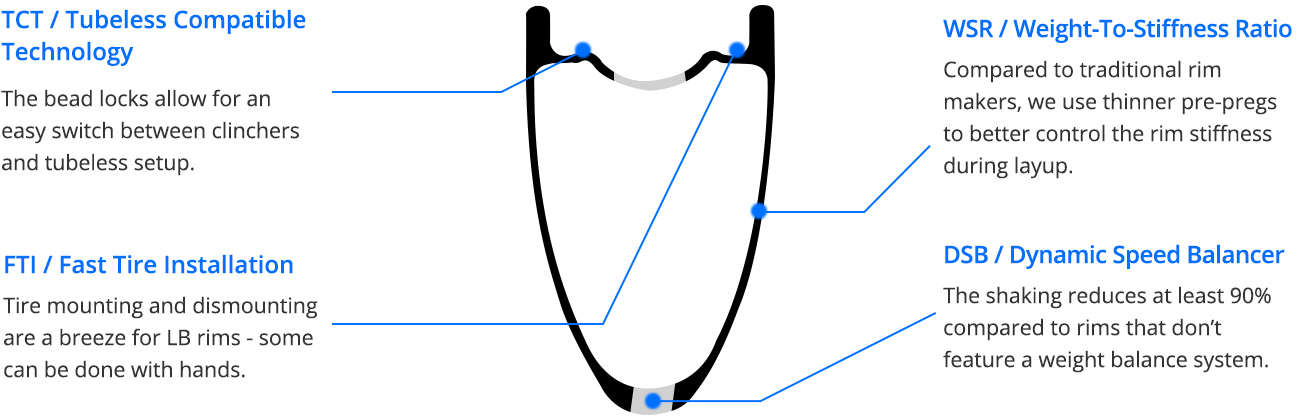

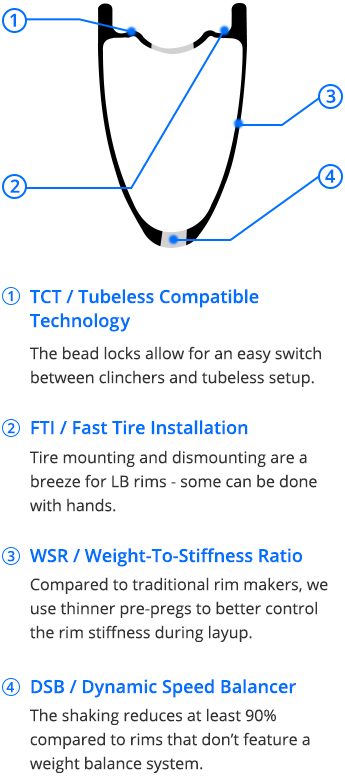

TECH

Featuring a wide 28mm external width, this tubeless ready wheelset offers a wide and stable platform for everything from road to gravel tires.

With the 21mm internal width and 46mm depth, the 46mm wheels are well suited as an aerodynamic gravel race wheels or a deep dish cyclocross wheelset. The width is versatile enough for 25-28c road tires and lighten up your road bike to give you an edge at the next Gran Fondo!


Learn More >>

WARRANTY

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>


WHAT IS IN THE BOX


Gallery

Klass: The Wheelset is arrived, today i put the Wheels in my Bike and make a Ride. I’m Ferry happy whith the Wheels.
Netherlands
1
Timothy: Custom Waltly Titanium frame, Whiskey fork and stem, Chris King hubs and headset, Sapim laser spokes, Light Bicycle AR46 rims, Thomson Masterpiece saddle post, Selle SMP saddle, Ultegra groupset. Brilliant responsive dream bike.
Canada
1
David: Falcon Wheelset AR46 Disc on Rinasclta Aero
Singapore
1
Light: Rims: AR46 disc hexa-comb matte 24/24h tubeless hooked (orange decals) Hubs: DT SWISS 240 EXP 12/100mm Center lock Black DT SWISS 240 EXP 12/142mm Shimano Road 11S Center lock Black EXP 36 Spokes: Pillar Aero X-TRA 1420 straight pull Nipples: Sapim aluminium black Weight: 1421.28 grams
1
Light: Rims: AR46 disc hookless 24/24H external hole matte UD Tubeless Hubs: Novatec D411SB 12 / 100mm straight pull Center lock Black Novatec D412SB 12 / 142mm Sram XDR straight pull Center lock Black 27T Spokes: Pillar Aero X-TRA 1420 Nipples: Sapim Aluminium Black Decals: Foil Silver Weight: 1434.28g
1
Light: Rims: AR46 disc matte hexa-comb 24/24H tubeless-ready ultralight front flyweight rear Hubs: Novatec D411SB 12 / 100mm straight pull center lock black Novatec D412SB 12 / 142mm Shimano Road 11S straight pull center lock black 27t Spokes: Sapim CX Ray black straight pull Nipples: Sapim aluminum black external Weight: 1415 grams
1

COMMENTS

P

Paul 2021/07/19

Hello, Is it possible to order the AR46 in the satin finish with the pro decals? Thanks in advance!


LightBicycle 2021/07/19

Hi Paul, It is okay to manufacture AR46 28mm wide road disc rims/wheels 700C in satin finish and with pro valve logo. You can list the order specs here. Then we can work on invoice accordingly for you. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

T

Tommo 2021/07/05

Se avete delle offerte al riguardo delle ruote ar465 sono interessato . Che siano a sconto con una tipologia di mozzi o un'altra va bene lo stesso , spero ci sia qualche offerta presto . Grazie


LightBicycle 2021/07/06

Hi Tommo, Can you tell me the hubs you want for this AR46 28mm wide road disc wheelset 700C or the price range you consider so I can send you an offer accordingly? Thanks, Lightbicyclce


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

M

Matze 2021/07/02

Hey, I am a quite heavy sprinter (90 kg) and ride a lot of gravel or cyclocross -> are 24 spokes enough or should I go for 28? Do you offer DT Swiss 350 with 28 Spokes? Since I wash my bike a lot due to dirty conditions, do you include water drainage holes in the rims or are they not necessary? Thanks a lot Matze


LightBicycle 2021/07/02

Hi Matze, If you ride aggressively, you can go for front 24H/rear 28H. But we only have DT Swiss 240 exp road disc hubs with front 24H/rear 28H in stock. For DT Swiss 350 hubs, we only have front 24H/rear 28H available now. Or we can make rims road disc AR46 with around 50g carbon fiber material added( heavy duty version), then you can choose front 24H/rear 24H. What do you think? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

L

LUCIANO.ceglie.luciano@yahoo.it 2021/07/02

buongiorno,vorrei acquistare un set ruote AR46 x28 strada,perno passante anteriore/posteriore 12 mm,incluso le tasse per l'Italia,puo farmi un preventivo? grazie


LightBicycle 2021/07/02

Hi Sir, For AR46 road disc wheelset, what hubs do you prefer? Then we can quote accordinlgy for you. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

M

Michael 2021/04/16

Can these AR46 come with 15mm TA on the 240 front hups


LightBicycle 2021/04/16

Hi Michael, It is okay to order AR46 road disc wheels with front 15mm TA. You can list the wheelset specs here, i can work on invoice accordingly for you. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

L

Liam 2020/12/04

I'm after a set of disc road wheels. These ones look great - 28mm wide, 46 deep, and extremely light. But the description says they're for road, cx and gravel, but "gravel optimised". Does that mean a different set of wheels would be a better choice / faster for road?


LightBicycle 2020/12/07

Hi Liam, Can you describe the wind condition on your side? AR46 road disc wheels 700C provides better aerodynamics in no wind. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

P

Paul 2020/10/17

Outstanding customer service. Quick to reply and answer customer's concerns questions and provide alternatives to meet customer's needs, as well as (*"ABC"...Always Be Closing...") *Glen Ross. The AR46 is my 2nd pair from Light Bicycles. Continue the outstanding job.


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

A

Angelo 2020/09/01

Hello, is it possible to have a customization (and the quotation) whit different rims for front and rear: front: AR36 DISC-28mm wide-36mm deep rear: AR46 DISC-28mm wide-46mm deep HUB: Novatec D411SB / D412SB AXLE: 12 / 100mm - 12 / 142mm Freehub: Shimano Road 11S Brake System: centerlock Spoke: Sapim CX Ray Nipple: Aluminium Black Bead type: hook Finish: matte Weave: 3k Center Channel Hole: With Holes Decal: Stealth (Grey) Valve Stem: None Tubeless Tape: Add Tubeless Tape Expedition: to Italy whit prepaid Taxes Thanks in advance, Angelo


LightBicycle 2020/09/02

Hi Angelo, Yes, we can custom build a mixed depth wheelset 700C 28mm wide for you. We just sent it throught email to you. Please check. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

B

B5000 2020/08/27

Love this wheelset - it's been excellent in all conditions. Wondering if you will ever make a flyweight version?


LightBicycle 2020/08/28

Hi Bryant, Yes, we can custom make a lighter version road disc for you if you want. May i know your weight please? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

R

RP 2020/07/15

Hi, What is the approximate shipping cost to New Zealand?


LightBicycle 2020/07/15

Hi RP, Currently, we only have FedEx that available for New Zealand shipments. Do you like AR46 road disc wheelset? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

B

Buco 2020/05/26

Hello, what is the diameter of the spoke hole in the rim? Thanks


LightBicycle 2020/05/27

Hi Buco, The spoke access hole on the rim bed is 8mm by default. The nipple hole on the inner side of the rim is 4.5mm for the external nipples and 2.5mm for the inner nipples. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

J

Jim 2020/03/03

Can you do Cannondale offset 6mm wheels


LightBicycle 2020/03/03

Hi Jim, Yes, we could do the Cannondale offset 6mm offset on rear wheel for you. May i know your 700C disc wheelset specs here? Then we can work on invoice accordingly for you. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

E

Eddy 2020/02/15

Vorrei acquistare questa ruota: Coppia ruote 700C-FALCON Set ruote AR46 disco-28mm larghezza-46mm profondità, come devo fare per effettuare l'ordine? Assale anteriore 12/100 posteriore 12/142 ruota libera shimano 11v , sistema frenante centerlock, mozzo nero


LightBicycle 2020/02/15

Hi Eddy, Thank you for your reaching out! We can work on invoice for road disc wheelset AR46 for you. Which hubs do you like? DT Swiss 350 or 240S? Then we can work on invoice accordingly for you. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

L

Lou 2020/02/12

Is it possible to purchase a wheelset from LightBicycle with the RRU45CO2d rims, RED Novatec hubs (D791SB/D792SB), RED nipples, and Sapim CX-Ray spokes 28 spokes front and rear? If so, here is what I would like.... - Rims: RRU45C02d, UD matte 28H, no brake surface (for disc), with RED lightbicycle decal - Hubs: RED Novatec D791/D792, J-Bend, front QR/100 / rear QR/135, Shimano road 11S, 6-Bolt - Spokes: black Sapim CX-Ray bladed - Nipples: RED aluminum What would be the price, including shipping, in Canadian Dollars? Thank You.


LightBicycle 2020/02/12

Hi Lou, Thanks for your reaching out! We had sent you R45 road disc wheelset with Novatec hub price to your email address. Please check. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

V

Vandit 2019/12/19

Hello - I am interested in a pair of 40-46mm lightweight road disc wheels, with 28mm external/21mm internal rim width and using U-shaped hubs (not V-shaped). I was looking at this one, but it appears to be a V-shaped rim: https://www.lightbicycle.com/700C-Gravel-Optimized-Aero-Shape-46mm-depth-hand-built-carbon-road-disc-wheels---28mm-wide-and-tubeless-compatible.html Would you have anything that fits my needs? Thank you!


LightBicycle 2019/12/24

Hi Vandit, We will have new 28mm wide 35mm and 45mm 700C rims in two months. They will be more close to U shape. If you are not urgent, you can wait for these two new models. Thanks, Lightbicycle


K

Kieran 2020/01/09

Hi LightBicycle Love your products, range and customisation options by the way. I’m also interested in the upcoming 45mm deep u shaped rims with a 28mm rim width. Is it possible to be advised when they are available, I rarely check your website. Many thanks, K


LightBicycle 2020/01/10

Hi Kieran, The AR46 (28mm wide, 46mm deep) rim was between the U-shape and V-shape profile. The fact is that we tested many shapes during our developing process, and turns out this shape is with the best aero and stiff performance among all other designs we made. And so far, this shape has proved to be a great rim for road/CX/gravel use by so many riders and became our best seller. Thanks, Lightbicycle
