Build Your Falcon Pro RIM AR465

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

Buy wheelset

Global Shop

NA Shop

EU Shop

AU Shop

Ships worldwide. See what's on sale>>

Drain Hole This is a required option.

With Drain Holes

Center Channel Hole This is a required option.

No Access Holes

Version This is a required option.

Front Flyweight / Rear Standard

Weave This is a required option.

Braided UD

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h

Paintless, UD, blank (no decal), 28h, with access holes

Standard, paintless, hook, blank (no decal), 24h, with drain holes, without access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12/100mm (F) & 12/142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

DT Swiss 350 straightpull centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18t ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

2 valves & 1 spare 18t ratchet

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD +

Lead time: typically ships in 2 days

ADD TO CART You missed some options.

We do not stock this item at the European warehouse. See what we stock currently.

You can order this product from our Global or North American warehouse.

Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.

Center Channel Hole This is a required option.

No Access Holes

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h, with drain holes

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD + (discount price)

Lead time: typically ships in 3 business days

ADD TO CART You missed some options.

We do not stock this item at the Australian shop. See what's available.

You can order this product from our Global / NA shops.

Please fill out this form if you are looking for a custom wheelset.

We'll get back to you soon to study the customization requests via email.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the North American warehouse. Check this link to see what items we stock, or send us an email to discuss.

Our Global warehouse can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelset. We will get back to you via email to discuss in 24hrs.

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

Quick Buy (In Stock)

Full Custom (Made to Order)

DEFAULT SETTINGS

Rims

Hook, matte, UD, with drain holes

Hook, matte, UD, with access holes, with drain holes

Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes

Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes

Paintless, UD, 5-year warranty, no drain holes

Grooved graphene surface, hook, matte, UD, with access holes, with drain holes

Grooved graphene surface, hook, matte, UD, no access holes, with drain holes

Matte UD, 32H, Centered (Staggered)

Hubs

Hope Pro 4 Fatsno J-bend 6-bolt

15/150mm (F) & 12/197mm (R) Sram XD

Straightpull centerlock black 24H

12/100mm & 12/142mm

Shimano Road 11S

DT Swiss straightpull / Bitex j-bend, centerlock, 28H

J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H

15/110mm boost & 12/148mm boost Sram XD

DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear

100mm QR & 130mm QR Shimano Road 11S

Spokes

Sapim CX Ray black

Sapim D-Light

Accessories

No decals/valves/tape

No decals/valves/tape/pads

No decals/valves

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Brake System This is a required option.

Road-Rim-High-TG-Surface-Grooved-Graphene-Surface

Non Disc - High TG Surface: Rim Brake 700C road rims use an advanced High TG resin system with a layer of graphene to help dissipate heat. The braking power and reliability is significantly improved over a basalt braking surface.

Non Disc - Grooved Graphene Surface: Our new resin system and construction method, combined with the 3k rim track, withstands over 280°C, dissipates heat, and lowers rim temperatures faster in between braking efforts. Gain confidence-inspiring brake performance on the steepest descents and wettest conditions with our matching brake pads. Also, graphene added to the rim brake track allows for greater resistance to overheating with improved heat dissipation and reduced temperature accumulation during heavy braking. The grooved track helps evacuate trapped moisture between pad and rim in wet conditions, and brings more resistance and force at the lever when conditions are dry.

Full Custom: This option (if provided here to choose) offers custom braking track in other various weaves (UD/12K/3K twill etc) with 1-2 weeks LONGER on manufacture and extra $10USD/rim only as a start (with High TG Surface by default). If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

Disc: The disc version does not have a rim brake track and features a unique disc specific layup process. Our new layup is about 10g ~30g lighter by reducing the unnecessary material and utilizing elements of our Flyweight construction method.

Non Disc - High TG Surface

Non Disc - Grooved Graphene Surface USD +30

Version This is a required option.

Version	Weight	Material	Layup	Max Load
Standard	Standard	Toray T700	Standard Layup	135 kgs
Flyweight	40g - 70g lighter	Toray T800 and T700	New layup for weight saving	90 kgs

Front Flyweight / Rear Standard with specific layup is also a good option that proves the harmony of weight and strength.

Standard

Flyweight USD +12

Bead type This is a required option.

Hook

Hole Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc), most of which are at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

20H

24H

Finish This is a required option.

Paintless: The "Finish" relates to how the rim is coated or painted such as matte or glossy for the most common applications. Our Recon Pro and Falcon Pro rims feature BlackTek and come out of molds as a completed product, with a scratch resistant and near flawless finish, eliminating the need for coating or painting. We name this kind of superior finish the paintless.

Crystal Painting: A fantastic painting effect designed by Light Bicycle.

Full Custom: This option offers custom finish such as Satin/Raw etc at no extra charge but subject to rim models with 3~5 days LONGER on manufacture. And custom color painting is also available with added 15g/rim and extra $20USD/rim as a start. If you select this option and LEAVE YOUR REQUIREMENT IN QUOTES IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed to finalize the details.

Paintless

Full Custom

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer for cosmetic appearence.

The rim strength & weight is virtually identical.

Matte UD is the most popular and has a subtle look.

The futuristic Hexa-Comb and Braided UD are smooth and looks great on deep rims.
More info about Weave >>

Full Custom: This option (if provided here to choose) offers custom weaves such as 3k twill vertical/ horizontal/ Braided UD etc with extra charge of $15USD/rim as a start but subject to rim models with 3~5 days LONGER on manufacture. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

Braided UD USD +15

Rim Warranty This is a required option.

For Recon Pro Series ( MTB rim), Falcon Pro (road rim) and Drift Pro (fatbike rim), 5-year warranty is set as standard, and optional Lifetime Premium Warranty are kindly offered to purchase with minimum charge respectively.

5 Years

Lifetime USD +100/rim

Center Channel Hole This is a required option.

With Access Holes: This is the traditional method. Spoke access holes are drilled in the center channel to allow the nipples to easily be fed through the rim. Tubeless tape is required to seal the rim.

No Access Holes: No spoke access holes are drilled in the center channel. Feeding the nipples through the rim is more challenging, but it allows for a tubeless setup without the need for tape. This kind of system is known as "road tubeless" and was made popular by Mavic. Some companies still refer to it as "UST style", however, UST is actually a specific interface between the tire and rim which was developed by a partnership between Mavic, Michelin, and Hutchinson.

Currently, rims with 'No Access Holes' do not work with our carbon spokes.

With Access Holes

No Access Holes

Drain Hole This is a required option.

The two small drain holes located 90° to the valve hole effectively help evacuate both the water trapped inside the rim and the air leaking into the rim chamber caused by nonperfect tubeless tape sealing handwork that may risk rim explosure in an aggressive tire inflating.

It is the small reinforced layer prelaminated on the area where the drain hole is drilled later that makes the rim strength fairly ensured without any compromise of weight added.

Riders who ride in wet areas are suggested to order rims with drain holes.
More info about holes >>

With Drain Holes

No Drain Holes

Decal << Read It First This is a required option.

1. Grey Laser Engraving (Falcon Pro) - Our laser engraving technology is eco-friendly and adds a snappy, polished aesthetic to your new rims.
Please note: Contrary to rims with any coated/painted finishes (matte, glossy and satin) as well as Crystal Painting, laser engraving could work with paintless rims only.

2. Full Custom - Add some additional personalization and go full custom with your rim graphics! Laser engraving is available in one colour (light grey) and starts at $5 USD per rim. If you select this option, LEAVE YOUR REQUEST IN QUOTES IN THE NOTES AT CHECKOUT. For example: "I need my personalized logo printed" or "Just text 'ABC racing' ". We will reach out to you once the order is placed to finalize the details of custom graphics.

Full Custom (Laser only) USD +5

Grey Laser Engraving (Falcon Pro)

Blank (No decal)

Valve Stem This is a required option.

We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.
Information of tubeless rim tape

Apply Tubeless Tape: In Light Bicycle, a proprietary taping aid works with our wheel builders to guarantee that a solid taping craft at industrial-level is well implemented in order for you to ride carefree tubeless at any conditions.

You do NOT have to use any tubeless tape to run tubeless if you have chosen "No Access Holes" on the rim center channel.

None

Add Tubeless Tape USD +6 each

Brake Pads This is a required option.

By default, Shimano type is offered only (Contact us if you want Campagnolo type). 4 pads will be included. These high performance brake pads are designed for carbon bike rims only and offer excellent stopping power even in the wet.
Instructions of brake pads

None

Add Shimano-type Brake Pads USD +10

Recon Pro orders start shipping in October.

- + PCS

Piece Weight: 470.00g+/-15

Subtotal: USD 279+

PREVIOUS NEXT

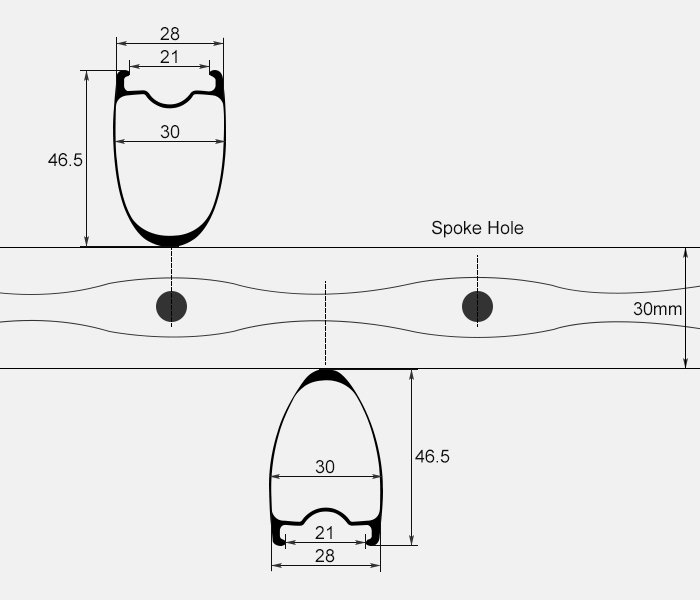

RIM SPECS

Rim Model AR465
UCI-Approved >>
Material Toray T700 & T800 Premium Carbon Fiber
Size 29”/700C (ETRTO 622mm)
Series FALCON PRO
Intended Use Road/CX/Gravel
Bead Type Clincher
Tubeless Capable Yes
Inner/Outer Width 21mm/28mm
Depth 46.5mm
ERD 547mm (not including nipple head dimension)
Rim Weight Standard 470+/-15g, Flyweight 430+/-15g
Profile Symmetric (0mm)
Max Cyclist Weight (on flat ground) Standard 135kg/ 298lbs, Flyweight 90kg/ 198lbs
Spoke Hole Angle ±8°
Spoke Tension 100 ~115kgf front, 120~135kgf rear drive side
Max Tire Pressure (with 28C) 110psi/ 7.58bar
Recommended Tire Width 23C~43C

Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.)

Rim Model: AR465
UCI-Approved >>
Material: Toray T700 & T800 Premium Carbon Fiber
Size: 29”/700C (ETRTO 622mm)
Series: FALCON PRO
Intended Use: Road/CX/Gravel
Bead Type: Clincher
Tubeless Capable: Yes
Inner/Outer Width: 21mm/28mm
Depth: 46.5mm
ERD: 547mm (not including nipple head dimension)
Rim Weight: Standard 470+/-15g, Flyweight 430+/-15g
Profile: Symmetric (0mm)
Max Cyclist Weight (on flat ground): Standard 135kg/ 298lbs, Flyweight 90kg/ 198lbs
Spoke Hole Angle: ±8°
Spoke Tension: 100 ~115kgf front, 120~135kgf rear drive side
Max Tire Pressure (with 28C): 110psi/ 7.58bar
Recommended Tire Width: 23C~43C

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter
Finish: Matte, Glossy, Satin, Colored Paint
Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services

Please carefully inspect your package when unboxing it and contact us immediately if it is damaged or if anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste using digital docs.

Download user guides >>

Overview

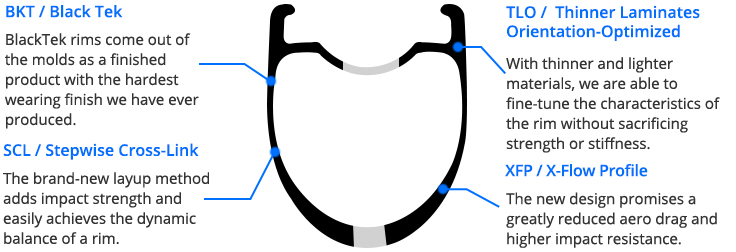

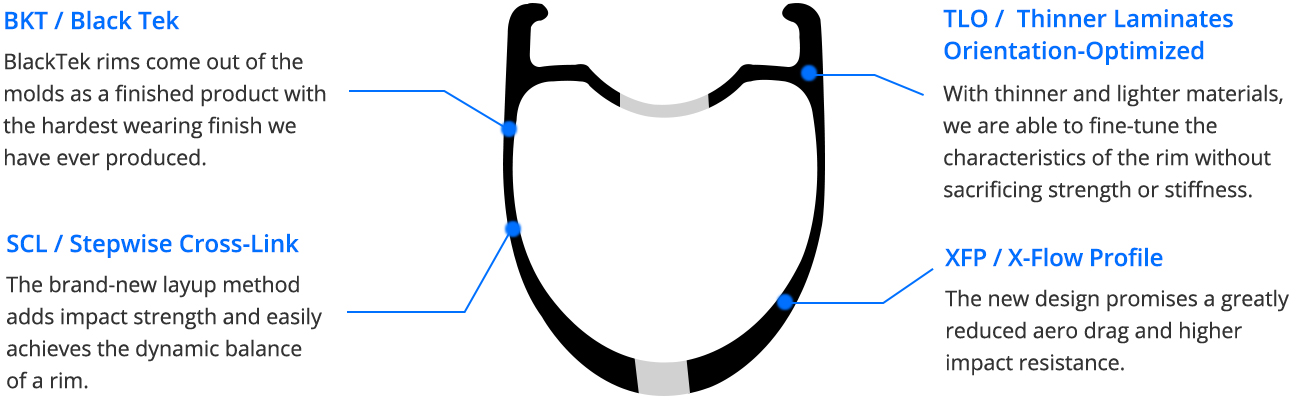

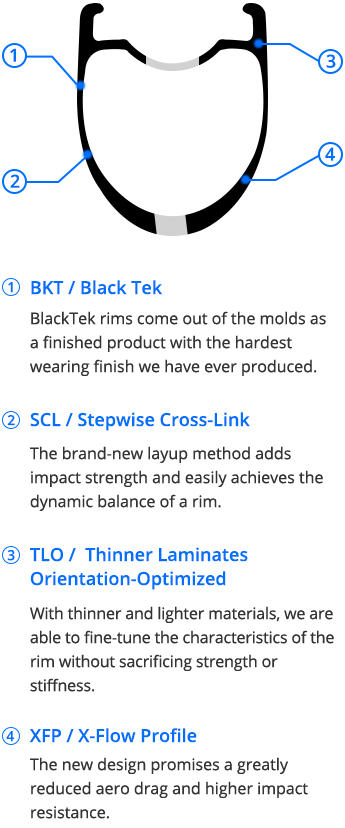

The latest advancement of our popular Pro AR - All Road Series, our new X-Flow profile offers significant performance benefits.

The design reduces aero drag, is more laterally stiff, and has 30% greater impact resistance.

AR465’s are a great choice if you want a fast mid-depth rim that will give you an edge over the competition.
Specs
Rims

Rim Model: AR465
UCI-Approved >>

Material: Toray T700 & T800 Premium Carbon Fiber

Size: 29”/700C (ETRTO 622mm)

Series: FALCON PRO

Intended Use: Road/CX/Gravel

Bead Type: Clincher

Tubeless Capable: Yes

Inner/Outer Width: 21mm/28mm

Depth: 46.5mm

ERD: 547mm (not including nipple head dimension)

Rim Weight: Standard 470+/-15g, Flyweight 430+/-15g

Profile: Symmetric (0mm)

Max Cyclist Weight (on flat ground): Standard 135kg/ 298lbs, Flyweight 90kg/ 198lbs

Spoke Hole Angle: ±8°

Spoke Tension: 100 ~115kgf front, 120~135kgf rear drive side

Max Tire Pressure (with 28C): 110psi/ 7.58bar

Recommended Tire Width: 23C~43C

Read more for actual road tire width

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter

Finish: Matte, Glossy, Satin, Colored Paint

Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services
Tech

Learn More >>
Warranty

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>
In The Box

Please carefully inspect your package when unboxing and get in touch with us immediately if the package is damaged or anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste with the use of digital manuals.

Download user guides >>

Gallery

Light Bicycle : Rims: AR465 grooved graphene brake track 24H with drain holes no access holes

Light-Bicycle-AR465-carbon-road-bike-wheelset-700c-rim-brake

Light Bicycle : Rims: AR465 Non Disc-Grooved Graphene Surface Standard Hook UD Paintless No Drain Holes With Access Holes Hubs: DT SWISS 240 EXP 100QR 130QR straight pull 20/24H EXP 36T Shimano Road 11S Spokes: Sapim CX Ray Nipples: Sapim Aluminum Black Decal: LB Laser Graphics

Lynskey-R360-Titanium-Bike-Frame-On-Light-Bicycle-AR465-carbon-wheels

James : Just got my AR465 LB Wheels built and have done 100km on them and they are stiff/strong & roll smooth. They also are cosmetically easy on the eyes as per photos. One thing I have noticed with braking with LB Blue brake pads is that it could have more bite as braking does require abit more work. However this could be because they aren't worn in yet (only 100km done so far) Bike: Lynskey R360 Titanium Wheels & Hubs: AR45 LB + Chris King R45 Hubs Groupset: Shimano Ultegra 6800 Cheers James Love from Melbourne Australia ❤️

Australia

Paul : Falcon Pro AR465 Flyweight Edition. Loving it!

Singapore

eddy-merckx-emx-5-on-light-bicycle-x-flow-ar465-wheels

Raf : Made a special order for a wheel build of AR465 Non Disc rims together with DT SWISS 240 EXP quick release hubs. The rims have a Grooved Graphene Surface and don't have holes for easier tubeless setup. I finished off with Sapim CX Ray Black straight pull spokes and Oil slick decals. I also ordered the LB rim brakes. I had to re-adjust my brakes as this rim is wider compared to my previous wheels. Currently I'm running Continental GP5000 TL 28mm tyres on my Eddy Merckx EMX-5 bike. So far I have ridden about 650km with them and extremely happy with my purchase. I have yet to find out the stopping power in the rain. The rims very much suit the wider 28mm tyre and roll very fast. I'm very impressed with the hubs as well. The buying process was very smooth. It took some time for the rims to be manufactured, but it's very easy to track and one finished I was surprised how quickly they were shipped to South Africa.

South Africa

light-bicycle-ar465-x-flow-road-wheel-braided-ud-carbon

Light Bicycle : Rims: AR465 Non-Disc (Flyweight) - high TG surface paintless braided UD hook 20/24H with access holes Hubs: Carbon-Ti X-Hub SP 100QR 130QR non-disc black 20/24H Shimano Road 11s 56T Spokes: Sapim CX Ray black straight-pull Nipples: Sapim aluminium black external Weight: 1323.84g

View More Reviews >>

COMMENTS

John 2021/08/21

Can you build a wheel set with FALCON PRO rim AR465? I do not see an option

LightBicycle 2021/08/21

Hi John, Here's the link for the AR465 Pro road disc wheelset 700C , if you don't see the specs you want on the options panel. Please let me know so I can check if we have access to the options you want. We only list the most popular options online, so it's normal if you don't see the options you desired. https://www.lightbicycle.com/700C-tubeless-bicycle-wheels-28mm-wide-46-5mm-deep-clincher-for-road-rim-brake-bikes.html Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Mirek 2021/06/11

Hi good people from lightbicycle, Can I use swissstop pads?

LightBicycle 2021/06/12

Hi Mirek, Yes, it is okay to use Swisstop pads that for carbon rims only on our 700C rim brake wheelset. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Raf 2021/06/02

when will the Falcon Pro AR465 rim brake be available as part of a wheelset?

LightBicycle 2021/06/02

Hi Raf, You can find the rim brake version AR465-28mm wide located at the Rim Brake 700C category. Here's the link for your ref. Let me know if you have further questions. https://www.lightbicycle.com/700C-road-bicycle-rims-28mm-wide-46-5mm-deep-symmetric-clincher-road-rim-brake-available.html Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Get in touch

Feel free to leave a comment if you have any questions or suggestions on our products or other issues.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Build Your Falcon Pro RIM AR465

Overview

Specs

Tech

Warranty

In The Box

Rims

Full Custom

Overview

Specs

Rims

Full Custom

Tech

Warranty

In The Box

Gallery
