AR45-Disc-Brake-700c-Carbon-All-Road-Wheelset

AR45-disc-700c-carbon-road-wheelset-45mm-deep

AR45-disc-all-road-tubeless-ready-clincher-carbon-wheelset

AR45-disc-Falcon-Pro-carbon-wheelset-road-grave-cyclocross

Build Your Falcon Pro WHEELSET AR45 DISC

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

Buy rim only

Global Shop

US Shop

EU Shop

Ships worldwide. See what's on sale>>

Drain Hole This is a required option.

With Drain Holes

Center Channel Hole This is a required option.

No Access Holes

Version This is a required option.

Front Flyweight / Rear Standard

Weave This is a required option.

Braided UD

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h

Paintless, UD, blank (no decal), 28h, with access holes

Standard, paintless, hook, blank (no decal), 24h, with drain holes, without access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12/100mm (F) & 12/142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

DT Swiss 350 straightpull centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18t ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

2 valves & 1 spare 18t ratchet

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD +

Lead time: typically ships in 2 days

ADD TO CART You missed some options.

We do not stock this item at the European warehouse. See what we stock currently.

You can order this product from our Global or North American warehouse.

Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.

Center Channel Hole This is a required option.

No Access Holes

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h, with drain holes

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD + (discount price)

Lead time: typically ships in 3 business days

ADD TO CART You missed some options.

We do not stock this item at the Australian shop. See what's available.

You can order this product from our Global / NA shops.

Please fill out this form if you are looking for a custom wheelset.

We'll get back to you soon to study the customization requests via email.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the US Shop. Check this link to see what items we stock, or send us an email to discuss.

Our Global Shop can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelsets. We will get back to you via email to discuss in 24hrs.

Our apologies, we do not stock this item at the CA Shop. Check this link to see what items we stock, or send us an email to discuss.

DEFAULT SETTINGS

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

Quick Buy (In Stock)

Full Custom (Made to Order)

DEFAULT SETTINGS

Rims

Hook, matte, UD, with drain holes

Hook, matte, UD, with access holes, with drain holes

Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes

Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes

Paintless, UD, 5-year warranty, no drain holes

Grooved graphene surface, hook, matte, UD, with access holes, with drain holes

Grooved graphene surface, hook, matte, UD, no access holes, with drain holes

Matte UD, 32H, Centered (Staggered)

Hubs

Hope Pro 4 Fatsno J-bend 6-bolt

15/150mm (F) & 12/197mm (R) Sram XD

Straightpull centerlock black 24H

12/100mm & 12/142mm

Shimano Road 11S

DT Swiss straightpull / Bitex j-bend, centerlock, 28H

J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H

15/110mm boost & 12/148mm boost Sram XD

DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear

100mm QR & 130mm QR Shimano Road 11S

Spokes

Sapim CX Ray black

Sapim D-Light

Accessories

No decals/valves/tape

No decals/valves/tape/pads

No decals/valves

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Hub Brand This is a required option.

Model	Weight	POE	Cost	Reliability	Quality	Unique Feature	Color Options	Warehouse Location	Website
Novatec	287g	27	Low	Good	Good	Inexpensive	Three	China	NOVATEC
Bitex	258g	24	Low	Good	Good	Light	Two	China	BITEX
DT 350	374g	18/36/54	Low	Better	Good	Quiet and reliable (18t option)	One	China	DT SWISS
DT 240S	317g	18/36/54	Medium	Best	Best	Quiet and reliable (18t option)	One	China/N.A.	DT SWISS
DT 240 EXP	299g	EXP 36	Medium	Best	Best	Quiet and reliable (EXP 36 )	One	China/N.A.	DT SWISS
DT 180	290g	EXP 36	High	Best	Best	Super Light, EXP 36	One	China/N.A.	DT SWISS
Chris King	326g	45	High	Best	Best	Rebuildable bearings	Nine	China	CHRIS KING
Industry Nine	327g	60	Medium	Better	Best	Loud, engagement	Eleven	China/N.A.	INDUSTRY NINE
Onyx	434g	Infinite	High	Better	Best	Silent, sprag clutch	Eighteen+ (Custom Available)	North America	ONYX
Carbon-Ti	270g	56	High	Better	Best	Extreme Light	Nine	China	Caron-Ti
ARC	332g	48	Low	Better	Good	Economic and reliable	One	China	ARC
Chosen	260g	24	Low	Better	Good	Economic and reliable	One	China	Chosen
Light Bicycle Pace-Hub	275/285g	36/48	Low	Better	Good	Economic, reliable, light	One	China	Light Bicycle
Light Bicycle Speed-Hub Gen3	275g	36	Low	Better	Good	Proprietary for Carbon Spokes Steel Bearing (upgradable to ceramic)	Two	China	Light Bicycle
Light Bicycle Speed-Hub Gen2	295g	36	Low	Better	Good	Proprietary for Carbon Spokes Steel Bearing (upgradable to ceramic)	Two	China	Light Bicycle

Besides hubs listed to choose online directly, you could also have more others built to the wheels on your custom order by contacting us.
See more about Light Bicycle's FULL HUB OPTIONS

* POE = Points of Engagement

* DT hubs come standard with an 18t star ratchet but are upgradeable to 36 or 54t.

* Average weight will vary slightly depending on axle and freehub combination.

Light Bicycle Pace-Hub

DT SWISS 180

DT SWISS 240 EXP

DT SWISS 350

Industry Nine 1/1

Chris King R45D

Industry Nine Solix

Carbon-Ti X-Hub

Front Axle This is a required option.

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, skewers are only offered with QR hubs.

12 / 100mm

Rear Axle This is a required option.

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, skewers are only offered with QR hubs.

12 / 142mm

Freehub Body This is a required option.

1. Shimano Road 11S works with 11/12-speed cassette directly or 8/9/10-speed mountain cassette with a spacer(s) .
2. Shimano MTB 10/11S works with 8/9-speed directly or 10-speed with a spacer or 11-speed road cassette if one of the inner cogs removed.
3. Campagnolo (Campy) 11S works with 9/10/11/12-speed Campy cassette with no spacers required.
4. Sram XDR could run XDR (road) cassette inherently and is compatible to run mountain bike XD cassette with a 1.85mm spacer.
5. Shimano Micro Spline (MS) works with 12-speed MS cassette only.

Shimano Road 11S

Shimano Road 11S Alloy

Sram XDR Alloy

Sram XDR

Shimano Micro Spline Road Alloy

Spoke Head This is a required option.

J-bend version: use J-bend hubs and spokes
Straight pull version: use straight pull hubs and spokes

straight pull

J-bend

Brake System This is a required option.

6-Bolt is the more common traditional option.
Centerlock uses a unique interface and it is also convertable to 6-bolt. If you need the conversion kit, please contact us. Our hubs are provided without rotor lockrings by default.

6-bolt

Center lock

Hub Color This is a required option.

Black

Matte Black

Orange

Red

Turquoise

Front Holes Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc), most of which are at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

24H

Rear Holes Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

24H

28H

Ratchet This is a required option.

DT Swiss hubs use star ratchets and are available in 4 different models with varying points of engagement.

18T - Deepest teeth, slowest engagement, least amount of maintenance, suitable for powerful riders.

36T - Happy medium, doubles the engagement points.

54T - Super fast engagement, but shallow teeth require more careful re-greasing and the thru-axle should be checked every ride.

24T - Made out of hardened steel as e-bike specific.

EXP 36 - With only a single spring, making the hubs faster and lighter. More precise contact makes a longer lifespan.

EXP 54 - Upgraded from EXP 36 to gain incredibly faster engagement.

36T

45T

54T

56T

605T

90T

EXP 36

EXP 54

Spoke This is a required option.

Brand	Model	Type	Thread Diameter (mm)	Weight(g)	Gauge	Riding Style	Available(Warehouse Location)
Sapim	Race	Double Butted	2.0 - 1.8 - 2.0	5.7g (260mm)	14G	Heavy Duty	North America, China
Sapim	D-Light	Double Butted	2.0 - 1.65 - 2.0	4.8g (260mm)	14G	Versatile	North America, China
Sapim	CX-Ray	Aero	2.0 - 0.9/2.2 - 2.0	4.4g (260mm)	N/A	Light Aero	North America, China
Sapim	CX-Sprint	Aero	2.0 - 1.25/2.25 - 2.0	5.2g (260mm)	N/A	Light Aero	China
DT SWISS	Competition Race	Double Butted	2.0 - 1.6 - 2.0	4.8g (260mm)	14G	Versatile	China
Pillar	PSR X-TRA 1420	Aero	2.0 - 0.95/2.2 - 2.0	4.4g (260mm)	N/A	Inexpensive Aero	China
Pillar	Wing 20	Aero	2.2 - 1.2/2.0 - 2.0	4.3g (260mm)	N/A	Light Aero	China
Light Bicycle	Oil slick J-bend	Single butted	2.0 - 2.0 - 1.95	6.7g (260mm)	14G	Cool color	China
Light Bicycle	Thrust-4 Carbon	Aero	2.2-1.1/4.0-2.2	2.8g (SP, 260mm)	N/A	Light Aero/Stiff	China
Berd	PolyLight	Rope-like	2.0-1.8	2.5g (260mm)	N/A	Extreme Light	North America

Sapim D-Light – The best all-around and most popular spoke for carbon wheels. Lightweight but incredibly strong.
Sapim Race – Our strongest and stiffest spoke. These spokes are suitable for heavy or extremely aggressive riders who need a stiffer wheel.
Sapim CX-Ray – The lightest spoke in our lineup is still quite strong due to the elasticity and amazing fatigue life.
DT Competition Race - All Mountain and XC spoke used by the Chinese location as a substitue for the D-Light (depending on availability)
Pillar PSR X-TRA 1420 - An inexpensive bladed spoke, great for road and cyclocross riding.
Pillar Wing 20 - Pillar patented highest level of aerodynamic bladed spoke reducing potential weak spots and twisting during tensioning. Currently, they are offered in oil slick color only with increased wear and corrosion resistance.
Sapim CX Sprint-Rear drive side/ CX Ray-Other sides - This customized combo increases the rear drive side power transmition efficiency significantly while grabs superior light-weight and aero performance.
Oil slick J-bend - They are made by a qualified manufacturer in Taiwan with custom design by Light Bicycle. They are J-bend only so do not order these spokes for SP hubs you configured in the previous step.
LB Thrust-4 Carbon - The Thrust-4 Carbon spokes are designed to boost high tensile strength. The 4mm all-road profile ensures great crosswind stability.
Berd PolyLight >> - It is constructed from an advanced polymer called ultra high molecular weight polyethylene (UHMWPE) and are widely considered to be the lightest bicycle spoke option in the world.

Pillar Aero X-TRA 1420

Sapim CX Ray

Sapim CX Sprint-Rear drive side/ CX Ray-Other sides

Nipple This is a required option.

Nipple Brand	Model	Material	Color	Length	Available (Warehouse Location)
Sapim	Double Square Secure Lock	Alloy	Black, Red, Green, Blue, Gold, Lime, Purple, Orange	16mm	Norh America
Sapim	Polyax/ Polyax Secure Lock	Alloy	Black, Red, Green, Blue, Gold, Lime, Purple, Orange	14mm	China
Sapim	Polyax Secure Lock	Brass	Black	14mm	China/N.A.
DT Swiss	DT SQUORX (PRO HEAD PRO LOCK)	Alloy	Black, Red	15mm	China
DT Swiss	Standard PRO LOCK	Brass	Black	14mm	China
Light Bicycle	N/A	Brass	Oil slick	14mm	China
Light Bicycle	Aluminium Black (for carbon spokes)	Alloy	Black	8.9mm	China

Please select Aluminium Black (for carbon spokes) nipples when you have chosen LB Flyweight Carbon spokes.

Aluminium Black

Brass Oil slick

Brass Black

Brake System This is a required option.

Disc

Version This is a required option.

Version	Weight	Material	Layup	Max Load
Standard	Standard	Toray T700	Standard Layup	135 kgs
Flyweight	40g - 70g lighter	Toray T800 and T700	New layup for weight saving	90 kgs

Front Flyweight / Rear Standard with specific layup is also a good option that proves the harmony of weight and strength.

Standard

Flyweight USD +12

Bead type This is a required option.

Hook

Hookless

Finish This is a required option.

Paintless: The "Finish" relates to how the rim is coated or painted such as matte or glossy for the most common applications. Our Recon Pro and Falcon Pro rims feature BlackTek and come out of molds as a completed product, with a scratch resistant and near flawless finish, eliminating the need for coating or painting. We name this kind of superior finish the paintless.

Crystal Painting: A fantastic painting effect designed by Light Bicycle.

Full Custom: This option offers custom finish such as Satin/Raw etc at no extra charge but subject to rim models with 3~5 days LONGER on manufacture. And custom color painting is also available with added 15g/rim and extra $20USD/rim as a start. If you select this option and LEAVE YOUR REQUIREMENT IN QUOTES IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed to finalize the details.

Paintless

Glossy Crystal Painting (silver) USD +20

Full Custom

Weave This is a required option.

Rim Warranty This is a required option.

For Recon Pro Series ( MTB rim), Falcon Pro (road rim) and Drift Pro (fatbike rim), 5-year warranty is set as standard, and optional Lifetime Premium Warranty are kindly offered to purchase with minimum charge respectively.

5 Years

Lifetime USD +100/rim

Drain Hole This is a required option.

The two small drain holes located 90° to the valve hole effectively help evacuate both the water trapped inside the rim and the air leaking into the rim chamber caused by nonperfect tubeless tape sealing handwork that may risk rim explosure in an aggressive tire inflating.

It is the small reinforced layer prelaminated on the area where the drain hole is drilled later that makes the rim strength fairly ensured without any compromise of weight added.

Riders who ride in wet areas are suggested to order rims with drain holes.
More info about holes >>

With Drain Holes

No Drain Holes

Center Channel Hole & Nipple Hole This is a required option.

Center Channel Hole options:
1) With Access Holes: This is the traditional method. Spoke access holes are drilled in the center channel to allow the nipples to easily be fed through the rim. Tubeless tape is required to seal the rim.
2) No Access Holes: No spoke access holes are drilled in the center channel. Feeding the nipples through the rim is more challenging, but it allows for a tubeless setup without the need for tape. This kind of system is known as "road tubeless" or referred as 'UST style'. Currently, rims with 'No Access Holes' do not work with our carbon spokes.

Nipple Hole options:
1) External Nipple Hole is the commentional way drilled for external nipples and is the default standard for Light Bicycle rims.
2) Internal Nipple Hole is drilled for internal nipples('upside down/ hidden style'). This is optional for some Light Bicycle rims.

With Access Holes and External Nipple Holes

With Access Holes and Internal Nipple Holes

No Access Holes and External Nipple Holes

Decal << Read It First This is a required option.

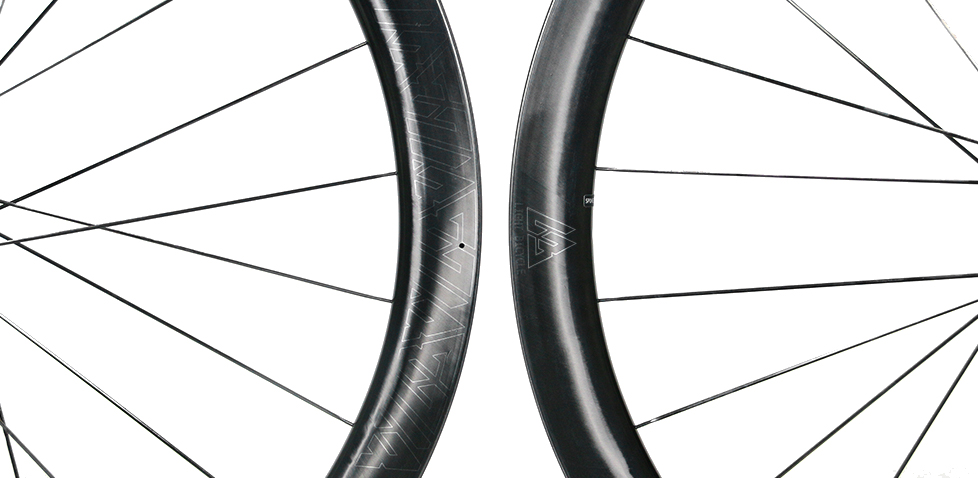

1. Grey Laser Engraving (Falcon Pro) - Our laser engraving technology is eco-friendly and adds a snappy, polished aesthetic to your new rims.
Please note: Contrary to rims with any coated/painted finishes (matte, glossy and satin) as well as Crystal Painting, laser engraving could work with paintless rims only.

2. Full Custom - Add some additional personalization and go full custom with your rim graphics! Laser engraving is available in one colour (light grey) and starts at $5 USD per rim. If you select this option, LEAVE YOUR REQUEST IN QUOTES IN THE NOTES AT CHECKOUT. For example: "I need my personalized logo printed" or "Just text 'ABC racing' ". We will reach out to you once the order is placed to finalize the details of custom graphics.

Full Custom (Laser only) USD +5

Grey Laser Engraving (Falcon Pro)

Blank (No decal)

Wheel Bag This is a required option.

Our all-new single wheel bag provides reliable storage for your wheel. Plus, an internal pocket is designed to store skewers and other tools. The wheel bag safely and comfortably accommodates most road and mountain bike wheels, including 700C, 26", 27.5", and 29" wheels. The wheel bag is with Light Bicycle logo by default. If you hope to get one without logo, please leave a note at checkout.

For a wheelset product, when selecting "Add Wheel Bag", you'll get two wheel bags; while for a single front/rear wheel product, you'll get one wheel bag.

None

Add Wheel Bag USD +25.5 each

Valve Stem This is a required option.

We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.
Information of tubeless rim tape

Apply Tubeless Tape: In Light Bicycle, a proprietary taping aid works with our wheel builders to guarantee that a solid taping craft at industrial-level is well implemented in order for you to ride carefree tubeless at any conditions.

You do NOT have to use any tubeless tape to run tubeless if you have chosen "No Access Holes" on the rim center channel.

None

Add Tubeless Tape USD +6 each

Apply Tubeless Tape USD +6 each

Rear Wheel Dishing Pattern This is a required option.

While the vast majority of frames require Centered (Traditional) dishing, those of Cannondale’s with Ai offset design (Asymmetric Integration) comply with a special kind of offset dishing for the rear wheel.

Know more about Cannondale’s Ai technology >>

Centered (Traditional)

Ai offset- 6mm

Ai offset- 3mm

Send Photos for Shipping Confirmation This is a required option.

Send Photos for Shipping Confirmation could be offered at NO extra charge so that you could have your tailored products viewed/inspected before shipping and the photos shared with your friends in advance.

It takes about 1~3 business days added to the lead time subject to the orders queuing status.

If you have any special requirement on the photos, such as weight measurement, please leave a note at checkout.

Yes (1-3 days longer)

No ( I do not need photos)

Recon Pro orders start shipping in October.

- + Pair

Piece Weight: 1479.00g+/-3%

Subtotal: USD 791+

PREVIOUS NEXT

WHEELSET SPECS

RIMS

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Rim Model AR45 disc
Material Toray T700 & T800 Premium Carbon Fiber
Size 29”/700C (ETRTO 622mm)
Series FALCON PRO
Intended Use Road/CX/Gravel
Bead Type Clincher
Tubeless Capable Yes

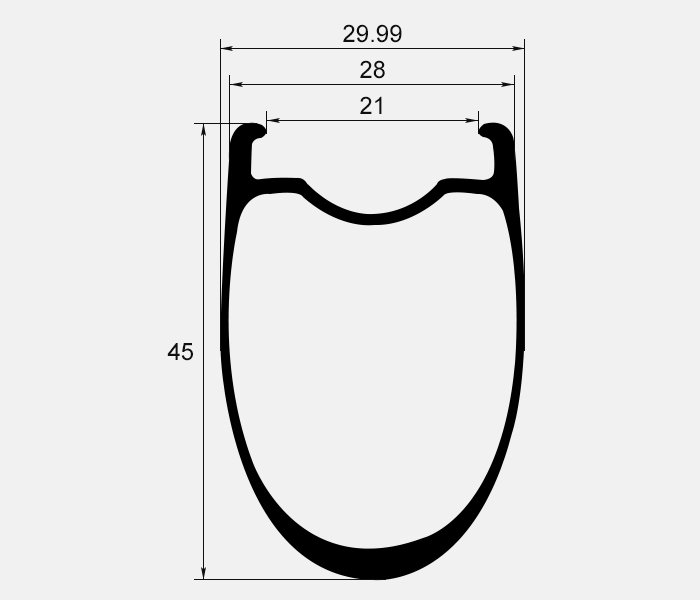

Inner/Outer Width 21mm/28mm
Depth 45mm
ERD 550mm (not including nipple head dimension)
Rim Weight Standard 460+/-15g, Flyweight 390+/-15g
Profile Symmetric (0mm)
Max Cyclist Weight (on flat ground) Standard 135kg/ 298lbs, Flyweight 90kg/ 198lbs
Spoke Hole Angle ±9°
Spoke Tension 120~135kgf front disc side and rear drive side
Max Tire Pressure (with 25C) Hook: 110psi/ 7.58bar, Hookless: 75psi/ 5.17bar
Recommended Tire Width 23C~43C

Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Rim Model: AR45 disc
Material: Toray T700 & T800 Premium Carbon Fiber
Size: 29”/700C (ETRTO 622mm)
Series: FALCON PRO
Intended Use: Road/CX/Gravel
Bead Type: Clincher
Tubeless Capable: Yes
Inner/Outer Width: 21mm/28mm
Depth: 45mm
ERD: 550mm (not including nipple head dimension)
Rim Weight: Standard 460+/-15g, Flyweight 390+/-15g
Profile: Symmetric (0mm)
Max Cyclist Weight (on flat ground): Standard 135kg/ 298lbs, Flyweight 90kg/ 198lbs
Spoke Hole Angle: ±9°
Spoke Tension: 120~135kgf front disc side and rear drive side
Max Tire Pressure (with 25C): Hook: 110psi/ 7.58bar, Hookless: 75psi/ 5.17bar
Recommended Tire Width: 23C~43C

Hubs

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

Model: Light Bicycle Pace-Hub, DT SWISS 180, DT SWISS 240 EXP, DT SWISS 350, Industry Nine 1/1, Chris King R45D, Industry Nine Solix, Carbon-Ti X-Hub
Front Axle Size: 12 / 100mm
Rear Axle Size: 12 / 142mm
Driver Body: Shimano Road 11S, Shimano Road 11S Alloy, Sram XDR Alloy, Sram XDR, Shimano Micro Spline Road Alloy
Hole: 24H, 28H

Other Parts

Leave a note at checkout or contact us if you want spare spokes or nipples.

Spokes: Pillar Aero X-TRA 1420, Sapim CX Ray, Sapim CX Sprint-Rear drive side/ CX Ray-Other sides
Nipples: Aluminium Black, Brass Oil slick, Brass Black

Please carefully inspect your package when unboxing it and contact us immediately if it is damaged or if anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste using digital docs.

Download user guides >>

Overview

Featuring a wide 28mm external width, these tubeless ready Falcon Pro rims offer a wide and stable platform for gravel tires.
With the 21mm internal width and 45mm depth, the AR45’s are well suited as an aerodynamic gravel race rim or a deep dish cyclocross wheelset. The width is versatile enough for 25-28c road tires and lighten up your road bike to give you an edge at the next Gran Fondo!
Specs
Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Rim Model: AR45 disc

Material: Toray T700 & T800 Premium Carbon Fiber

Size: 29”/700C (ETRTO 622mm)

Series: FALCON PRO

Intended Use: Road/CX/Gravel

Bead Type: Clincher

Tubeless Capable: Yes

Inner/Outer Width: 21mm/28mm

Depth: 45mm

ERD: 550mm (not including nipple head dimension)

Rim Weight: Standard 460+/-15g, Flyweight 390+/-15g

Profile: Symmetric (0mm)

Max Cyclist Weight (on flat ground): Standard 135kg/ 298lbs, Flyweight 90kg/ 198lbs

Spoke Hole Angle: ±9°

Spoke Tension: 120~135kgf front disc side and rear drive side

Max Tire Pressure (with 25C): Hook: 110psi/ 7.58bar, Hookless: 75psi/ 5.17bar

Recommended Tire Width: 23C~43C

Read more for actual road tire width

Hubs

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

Model: Light Bicycle Pace-Hub, DT SWISS 180, DT SWISS 240 EXP, DT SWISS 350, Industry Nine 1/1, Chris King R45D, Industry Nine Solix, Carbon-Ti X-Hub

Front Axle Size: 12 / 100mm

Rear Axle Size: 12 / 142mm

Driver Body: Shimano Road 11S, Shimano Road 11S Alloy, Sram XDR Alloy, Sram XDR, Shimano Micro Spline Road Alloy

Hole: 24H, 28H

Other Parts

Leave a note at checkout or contact us if you want spare spokes or nipples.

Spokes: Pillar Aero X-TRA 1420, Sapim CX Ray, Sapim CX Sprint-Rear drive side/ CX Ray-Other sides

Nipples: Aluminium Black, Brass Oil slick, Brass Black

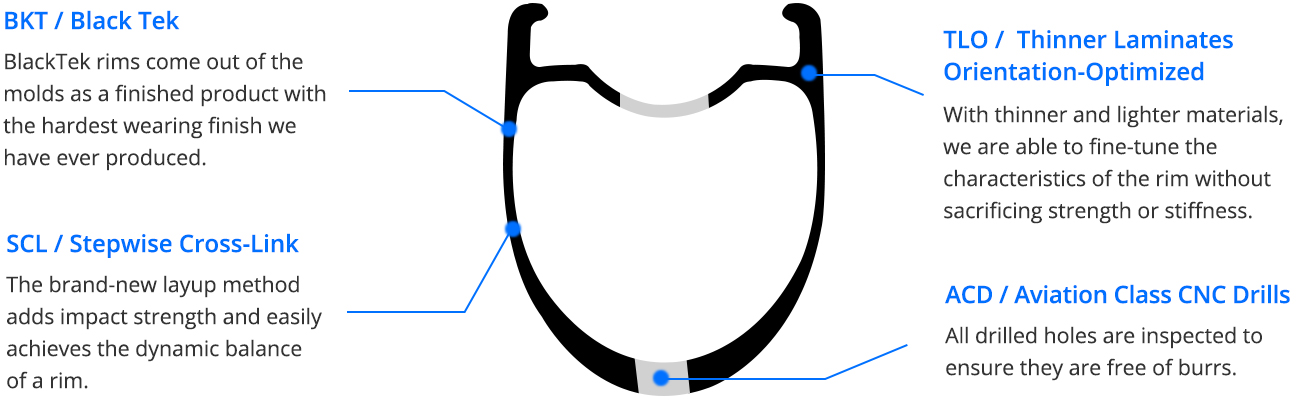

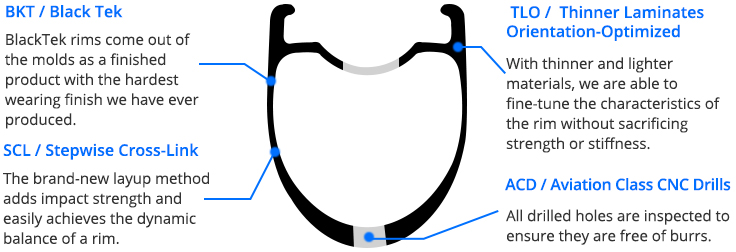

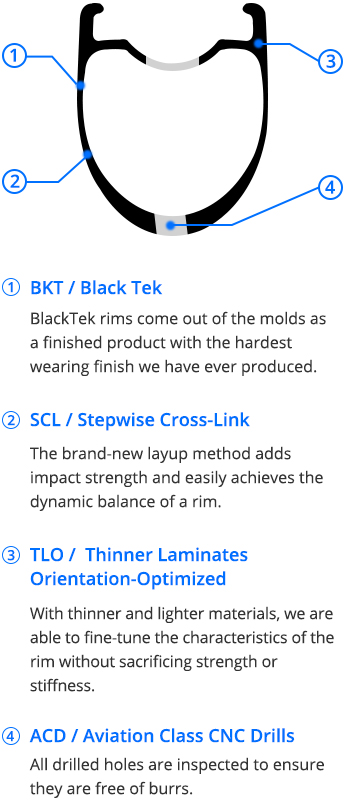

Tech

Learn More >>
Warranty

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>

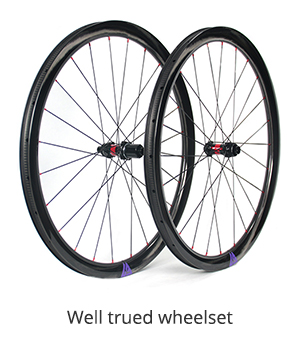

In The Box

Please carefully inspect your package when unboxing and get in touch with us immediately if the package is damaged or anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste with the use of digital manuals.

Download user guides >>

Gallery

Light Bicycle : RIMS: AR45 Flyweight Hookless UD Paintless Disc 24H With Drain Holes No Access Holes and External Nipple Holes HUB-F: Chris King R45D Black 12 / 100mm J-bend Center Lock 24H HUB-R: Chris King R45D Black 12 / 142mm J-bend Center Lock 24H 45T Shimano Road 11S SPOKE: Sapim CX Ray NIPPLE: Sapim Aluminium Black

light-bicycle-ar45-disc-carbon-wheels-laced-to-dt-swiss-240-wxp-hubs-ud-matte

Jurel : Best wheels I ever bought. Light, stiff, can take a beating, fully customizable. Hard to beat and will definitely be my go to wheels for every build!

Philippines

light-bicycle-ar45-disc-custom-build-crystal-painting-finish

Ozzie : This is my 6th set of LB wheels for different bicycles. Every set was custom drilled to be able to handle my weight. All have been great.

United States

light-bicycle-ar45-disc-wheelset-build-on-factor-o2-vam

Alon : RIMS: AR45 Disc Flyweight Hook 24H Paintless UD No Access Holes No Drain Holes External Hole HUB-F DT SWISS 240 EXP 12/100mm straight pull Center lock Black 24H HUB-R DT SWISS 240 EXP 12/142mm Shimano Road 11S straight pull Center lock Black 24H EXP 36 SPOKE: Pillar Aero X-TRA 1420 NIPPLE: Sapim Aluminium Black

Canada

endurance-carbon-wheels-light-bicycle-ar45-disc-brake

John : I've built two tubeless endurance bikes with LB Falcon Pro rims and DT Swiss hubs - and I'll probably go for a third build soon. It doesn't take long for orders to ship, customer service is responsive, and the wheels are perfectly up to spec. I'm especially happy with the style of rim that omits access holes, making rim tape completely unnecessary.

Switzerland

light-bicycle-full-custom-carbon-wheels-bike-rim-paint

Uri : RIMS: AR45 disc Flyweight Hook UD Raw Disc 28H With Drain Holes With Access Holes and External Nipple Holes

United States

scott-bike-on-light-bicycle-ar35-ar45-wheels

Richard : Great wheelset Light Stiff Dt swiss 350 hubs Cycled 3 winters now in all weather with these wheels Bomb proof Tru out of box 10/10

Ireland

specialized-s-works-custom-paint-bike-on-lightbicycle-ar45-wheels

Tim : Love these wheels. LightBicycle are my go-to wheels from now on. Had one set (AR45) built up by them, then ordered some rims (AR55) to build up another set myself. Fantastic build, super light, and will now need these on my mtb too. Can’t wait to build a new set this year. Keep up the good work LightBicycle!!!

Netherlands

View More Reviews >>

COMMENTS

Amram 2020/05/29

Hello, I'm interested in the 45 clincher model. Are all of them for disc? Do you have any model specific for rim brakes? Thank you so much

LightBicycle 2020/05/30

Hi Amram, We don't have the rim brake version at the moment. It will be ready around one month later. Thanks, Lightbicycle

Enrique 2021/04/09

Hi, any news on the falcon pro rim brake? Thanks

LightBicycle 2021/04/09

Hi Enrique, Yes, we will have new pro falcon pro rims 700C in both disc & rim brake version coming next week. I just sent you an email. Please check. Thanks, Lightbicycle

gianluca 2021/04/18

hello, I'm really interested in new falcon pro models for rim brakes! will they come both in v-shaped and u-shaped models? I'm looking for rim brake 21/28mm inner/outer rim width, u-shaped 45mm with falcon pro technologies thanks

LightBicycle 2021/04/19

Hi Sir, We have new AR375 and AR465(28mm wide/46.5mm deep) in falcon pro, and both disc and rim brake surface. Please check below link. If you like rim brake version 700C, we can work on invoice accordingly for you. https://www.lightbicycle.com/700C-road-bicycle-rims-28mm-wide-46.5mm-deep-symmetric-clincher-road-disc-brake-available.html Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Bernie 2021/02/04

Hi, Is it possible to order (from the Global Warehouse - shipping to Australia) - Falcon Pro AR45 w/ Industry Nine Torch w/ 6-bolt disc interface? I notice these are only normally available from the US warehouse. Specifically, this is my configuration that I've created: Wheelset AR45 disc RIM: Disc, Standard, hook, paintless, UD, 5 Years HUB: Industry Nine Torch, 12 / 100mm, 12 / 142mm, Shimano Road 11S Alloy, J-bend, 6-bolt, Gold (although can be black), 28H, 60T SPOKES: Sapim D-light NIPPLES: Aluminium Black ACCESSORIES: Black (default), Add Valve Stem, Apply Tubeless Tape Thank you!

LightBicycle 2021/02/06

Hi Bernie, Yes, we can build the road disc wheelset AR45 with the hubs you want. But, the 6-bolt hubs are not in stock, so it will take a few weeks to get them. We are on Chinese New Year vacation recently, will be back on Feb 16th. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Michael 2020/09/28

Can I get DT Swiss hub options for AR45 wheelset for North America?

LightBicycle 2020/09/29

Hi Michael, Sure, it is okay. You can list your AR45 road disc wheelset 700C here. I can let our NA team to work on invoice for you.They just have a batch of new 240 EXP hubs arrived. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Marcus 2020/08/23

Having a wheelset built by you, are you able to build it with internal nipples? Falcon Pro Ar 45 is the model.

LightBicycle 2020/08/24

Hi Marcus, Did you order the internal option when you first placed the order Falcon pro AR45 pro road disc and wheelset? The internal nipple hole is smaller than the external holes to fit the nipples. Thanks, Lightbicycle

Matt 2020/08/31

I believe Marcus is asking if you can make the rim with the nipples INSIDE of the rim, so they are not showing, thus improving aerodynamics. He is not asking about center channel holes. I would also like to know the answer to Marcus' question.

LightBicycle 2020/09/01

Hi Matt, Of course, we can custom made the nipple as internal for all bike rims. The internal nipple is one of the many options that we haven't listed online. There's too much customization that we can do, so the wheel builder will turn out loading really slow if we put all options online. You can order the custom options by email. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Sharon 2020/07/03

Hi there, I am looking to purchase 2 sets of wheels and was wondering if you offer a discount for group buys of 2 orders? Thanks, Sharon

LightBicycle 2020/07/04

Hi Sharon, Yes, you can list your road disc wheelset specs here. Then we can quote accordingly for you. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Stephen 2020/06/08

Hello. How much for AR 45 clincher with 28 Spokes front and rear with dt swiss 240 hubs please?

LightBicycle 2020/06/09

Hi Stephen, We only have the new EXP version of DT SWISS 240s available now. But you should know that we only purchase 24H spoke count for the road disc hubs. If you like 28H old DT Swiss 240s option, we will have them around July. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

George 2020/05/29

Request for quote. Seeking for a set of carbon road wheels, black matt in color, 45-50cm. These will be going on my wife’s low power e-bike 240 watt. She is not a racer, we just want a nice looking aero wheelset. The e-bike has 160cm disk brakes, center lock , thru axle, and has boosted sizing so the hubs need to be 12 X 110 & 12 X 148. This is the set up for the Specialized Turbo Carbon Creo. What would be best price for these wheels keeping in mind that we are NOT seeking for super strength, or ultra light race wheels. Thank you.

LightBicycle 2020/05/30

Hi George, I will get back to you on the 12/110mm hub when I confirm the details from DT SWISS. We only have the standard boost 240 EXP hubs in our hands at the moment. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

See all 7 customer reviews>>

Get in touch

Feel free to leave a comment if you have any questions or suggestions on our products or other issues.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

We use cookies for a better experience. Learn more.

Customize

Your Cookie Preferences

We use cookies to improve your experience on this website. You may choose which types of cookies to allow and change your preferences at any time. Disabling cookies may impact your experience on this website. You can learn more by viewing our Cookie Policy.

Essential Cookies

Cookies required to enable basic website functionality.
Performance Cookies

Cookies used to understand how the website is being used.
Preference Cookies

Cookies that are used to enhance the functionality of the website.
Advertising Cookies

Cookies used to deliver advertising that is more relevant to your interests.

Aceept All Cookies

Save Preferences

Reject All Cookies

Save Preferences

Reject All Cookies

Accept All Cookies

Build Your Falcon Pro WHEELSET AR45 DISC

Overview

Specs

Tech

Warranty

In The Box

Rims

Hubs

Other Parts

Overview

Specs

Rims

Hubs

Other Parts

Tech

Warranty

In The Box

Gallery
