Build Your Falcon RIM Moto G2

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

Global Shop

NA Shop

EU Shop

AU Shop

Ships worldwide. See what's on sale>>

Drain Hole This is a required option.

With Drain Holes

Center Channel Hole This is a required option.

No Access Holes

Version This is a required option.

Front Flyweight / Rear Standard

Weave This is a required option.

Braided UD

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h

Paintless, UD, blank (no decal), 28h, with access holes

Standard, paintless, hook, blank (no decal), 24h, with drain holes, without access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12/100mm (F) & 12/142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

DT Swiss 350 straightpull centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18t ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

2 valves & 1 spare 18t ratchet

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD +

Lead time: typically ships in 2 days

ADD TO CART You missed some options.

We do not stock this item at the European warehouse. See what we stock currently.

You can order it from our Global warehouse.

Please email us (sales@lightbicycle.com) with your requests if you want a custom rim/wheelset.

Center Channel Hole This is a required option.

No Access Holes

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h, with drain holes

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD + (discount price)

Lead time: typically ships in 3 business days

ADD TO CART You missed some options.

We do not stock it at the Australian shop. See what's available.

This product is currently available from the Global shop only.

Please email us (sales@lightbicycle.com) if you want to customize.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the North American warehouse.

Our Global warehouse can make any rim model and ship worldwide.

Feel free to email us (sales@lightbicycle.com) if you want custom builds. We’ll get back to you in 24hrs.

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

Quick Buy (In Stock)

Full Custom (Made to Order)

DEFAULT SETTINGS

Rims

Hook, matte, UD, with drain holes

Hook, matte, UD, with access holes, with drain holes

Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes

Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes

Paintless, UD, 5-year warranty, no drain holes

Grooved graphene surface, hook, matte, UD, with access holes, with drain holes

Grooved graphene surface, hook, matte, UD, no access holes, with drain holes

Matte UD, 32H, Centered (Staggered)

Hubs

Hope Pro 4 Fatsno J-bend 6-bolt

15/150mm (F) & 12/197mm (R) Sram XD

Straightpull centerlock black 24H

12/100mm & 12/142mm

Shimano Road 11S

DT Swiss straightpull / Bitex j-bend, centerlock, 28H

J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H

15/110mm boost & 12/148mm boost Sram XD

DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear

100mm QR & 130mm QR Shimano Road 11S

Spokes

Sapim CX Ray black

Sapim D-Light

Accessories

No decals/valves/tape

No decals/valves/tape/pads

No decals/valves

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Brake System This is a required option.

Rim Brake

None

Hole Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc), most of which are at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

20H

24H

28H

32H

36H

Finish This is a required option.

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

Full Custom: This option (if provided here to choose) offers custom finish such as Satin/Raw etc at no extra charge but subject to rim models with 3-5 days LONGER on manufacture. And custom color painting is also available with added 15g/rim and extra $20USD/rim as a start. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

Glossy

Matte

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer for cosmetic appearence.

The rim strength & weight is virtually identical.

Matte UD is the most popular and has a subtle look.

The futuristic Hexa-Comb and Braided UD are smooth and looks great on deep rims.
More info about Weave >>

Full Custom: This option (if provided here to choose) offers custom weaves such as 3k twill vertical/ horizontal/ Braided UD etc with extra charge of $15USD/rim as a start but subject to rim models with 3~5 days LONGER on manufacture. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

12K

Valve Hole Type This is a required option.

Presta

Schrader

Decal This is a required option.

Our BMX rims share with MTB rims the stunning Avery vinyl logo-kit stickers- Item No. STMTB03

Blank (No decal)

Blue

Green

Magenta

Orange

Red

White

Yellow

Silver

Gold

Turquoise

Purple

Valve Stem This is a required option.

We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.
Information of tubeless rim tape

Apply Tubeless Tape: In Light Bicycle, a proprietary taping aid works with our wheel builders to guarantee that a solid taping craft at industrial-level is well implemented in order for you to ride carefree tubeless at any conditions.

You do NOT have to use any tubeless tape to run tubeless if you have chosen "No Access Holes" on the rim center channel.

None

Add Tubeless Tape USD +6 each

Recon Pro orders start shipping in October.

- + PCS

Piece Weight: 310.00g+/-15

Subtotal: USD 155+

PREVIOUS NEXT

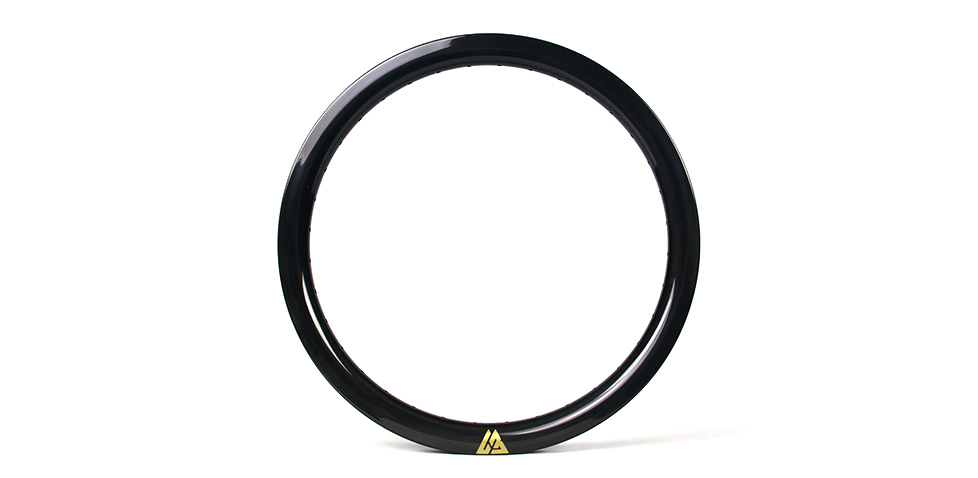

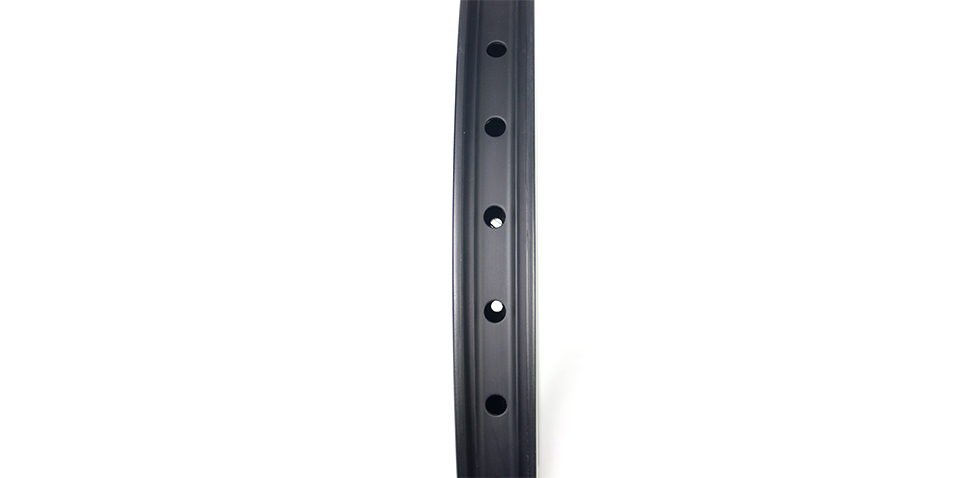

RIM SPECS

Rim Model Moto G2
Material Toray T700 & T800 Premium Carbon Fiber
Size 20" (ETRTO 406mm)
Intended Use BMX
Bead Type Hook
Tubeless Capable Yes

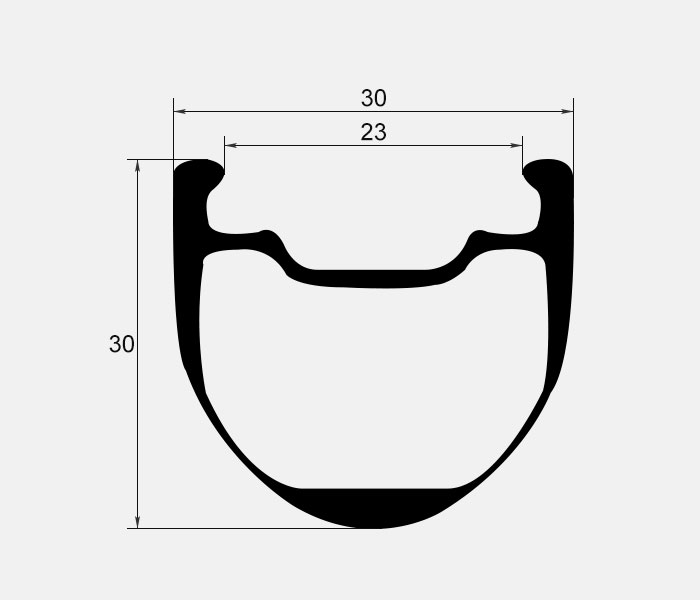

Inner/Outer Width 23mm/30mm
Depth 30mm
BSD 406mm
ERD 363mm (not including nipple head dimention)
Rim Weight 310+/-15g
Profile Symmetric (0mm)
Max Cyclist Weight (on flat ground) 130 kgs/ 287 lbs
Spoke Tension 120~130kgf front disc side and rear drive side
Max Tire Pressure 110psi/ 7.58 bar
Recommended Tire Width 23C~ 50C

The Moto G2 features a 23mm internal width and is able to support tires from 23C-50C. A stiffer, more responsive wheel with minimal rotational weight will get you up to speed faster and keep momentum longer. This is the all around rim that can make you a track legend or trail boss. Whether you’re aiming for the hole shot or hitting that lippy 8 pack, the Moto G2 will boost control with a lower rotational weight and a wide, stable contact patch.

Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.)

Rim Model: Moto G2
Material: Toray T700 & T800 Premium Carbon Fiber
Size: 20" (ETRTO 406mm)
Intended Use: BMX
Bead Type: Hook
Tubeless Capable: Yes
Inner/Outer Width: 23mm/30mm
Depth: 30mm
BSD: 406mm
ERD: 363mm (not including nipple head dimention)
Rim Weight: 310+/-15g
Profile: Symmetric (0mm)
Max Cyclist Weight (on flat ground): 130 kgs/ 287 lbs
Spoke Tension: 120~130kgf front disc side and rear drive side
Max Tire Pressure: 110psi/ 7.58 bar
Recommended Tire Width: 23C~ 50C

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter
Finish: Matte, Glossy, Satin, Colored Paint
Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services

Please carefully inspect your package when unboxing it and contact us immediately if it is damaged or if anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste using digital docs.

Download user guides >>

Overview

The Moto G2 features a 23mm internal width and is able to support tires from 23C-50C. A stiffer, more responsive wheel with minimal rotational weight will get you up to speed faster and keep momentum longer. This is the all around rim that can make you a track legend or trail boss. Whether you’re aiming for the hole shot or hitting that lippy 8 pack, the Moto G2 will boost control with a lower rotational weight and a wide, stable contact patch.
Specs
Rims

Rim Model: Moto G2

Material: Toray T700 & T800 Premium Carbon Fiber

Size: 20" (ETRTO 406mm)

Intended Use: BMX

Bead Type: Hook

Tubeless Capable: Yes

Inner/Outer Width: 23mm/30mm

Depth: 30mm

BSD: 406mm

ERD: 363mm (not including nipple head dimention)

Rim Weight: 310+/-15g

Profile: Symmetric (0mm)

Max Cyclist Weight (on flat ground): 130 kgs/ 287 lbs

Spoke Tension: 120~130kgf front disc side and rear drive side

Max Tire Pressure: 110psi/ 7.58 bar

Recommended Tire Width: 23C~ 50C

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter

Finish: Matte, Glossy, Satin, Colored Paint

Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services
Warranty

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>
In The Box

Please carefully inspect your package when unboxing and get in touch with us immediately if the package is damaged or anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste with the use of digital manuals.

Download user guides >>

Gallery

chase-rsp-3.0-on-20in-rb023-moto-g2-bmx-carbon-wheels

Keira : My daughter loves the way they make the bike feel and the fact they're different from everyone else's.

UK(Britain)

20er-ftb-bmx-bike-with-light-bicycle-moto-g2-carbon-wheels-12k-matte

Christiam : Mi paquete a llegado muchas gracias!! SPECS: Rims: Moto G2 (RB023) Hubs: Onyx Racing Tires: Tioga Fastr React

United States

View More Reviews >>
