Build Your Falcon Pro RIM AR35 disc

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

Buy wheelset

Global Shop

US Shop

EU Shop

Ships worldwide. See what's on sale>>

Drain Hole This is a required option.

With Drain Holes

Center Channel Hole This is a required option.

No Access Holes

Version This is a required option.

Front Flyweight / Rear Standard

Weave This is a required option.

Braided UD

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h

Paintless, UD, blank (no decal), 28h, with access holes

Standard, paintless, hook, blank (no decal), 24h, with drain holes, without access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12/100mm (F) & 12/142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

DT Swiss 350 straightpull centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18t ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

2 valves & 1 spare 18t ratchet

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD +

Lead time: typically ships in 2 days

ADD TO CART You missed some options.

We do not stock this item at the European warehouse. See what we stock currently.

You can order this product from our Global or North American warehouse.

Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.

Center Channel Hole This is a required option.

No Access Holes

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h, with drain holes

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD + (discount price)

Lead time: typically ships in 3 business days

ADD TO CART You missed some options.

We do not stock this item at the Australian shop. See what's available.

You can order this product from our Global / NA shops.

Please fill out this form if you are looking for a custom wheelset.

We'll get back to you soon to study the customization requests via email.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the US Shop, or it may be only available to order as a complete wheelset.

Our Global Shop can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelsets. We will get back to you via email to discuss in 24hrs.

Our apologies, we do not stock this item at the CA Shop. Check this link to see what items we stock, or send us an email to discuss.

DEFAULT SETTINGS

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

Quick Buy (In Stock)

Full Custom (Made to Order)

DEFAULT SETTINGS

Rims

Hook, matte, UD, with drain holes

Hook, matte, UD, with access holes, with drain holes

Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes

Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes

Paintless, UD, 5-year warranty, no drain holes

Grooved graphene surface, hook, matte, UD, with access holes, with drain holes

Grooved graphene surface, hook, matte, UD, no access holes, with drain holes

Matte UD, 32H, Centered (Staggered)

Hubs

Hope Pro 4 Fatsno J-bend 6-bolt

15/150mm (F) & 12/197mm (R) Sram XD

Straightpull centerlock black 24H

12/100mm & 12/142mm

Shimano Road 11S

DT Swiss straightpull / Bitex j-bend, centerlock, 28H

J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H

15/110mm boost & 12/148mm boost Sram XD

DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear

100mm QR & 130mm QR Shimano Road 11S

Spokes

Sapim CX Ray black

Sapim D-Light

Accessories

No decals/valves/tape

No decals/valves/tape/pads

No decals/valves

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Brake System This is a required option.

Disc

Version This is a required option.

Version	Weight	Material	Layup	Max Load
Standard	Standard	Toray T700	Standard Layup	135 kgs
Flyweight	40g - 70g lighter	Toray T800 and T700	New layup for weight saving	90 kgs

Front Flyweight / Rear Standard with specific layup is also a good option that proves the harmony of weight and strength.

Standard

Flyweight USD +12

Bead type This is a required option.

Hook

Hookless

Hole Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc), most of which are at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

24H

28H

32H

Full Custom

Finish This is a required option.

Paintless: The "Finish" relates to how the rim is coated or painted such as matte or glossy for the most common applications. Our Recon Pro and Falcon Pro rims feature BlackTek and come out of molds as a completed product, with a scratch resistant and near flawless finish, eliminating the need for coating or painting. We name this kind of superior finish the paintless.

Crystal Painting: A fantastic painting effect designed by Light Bicycle.

Full Custom: This option offers custom finish such as Satin/Raw etc at no extra charge but subject to rim models with 3~5 days LONGER on manufacture. And custom color painting is also available with added 15g/rim and extra $20USD/rim as a start. If you select this option and LEAVE YOUR REQUIREMENT IN QUOTES IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed to finalize the details.

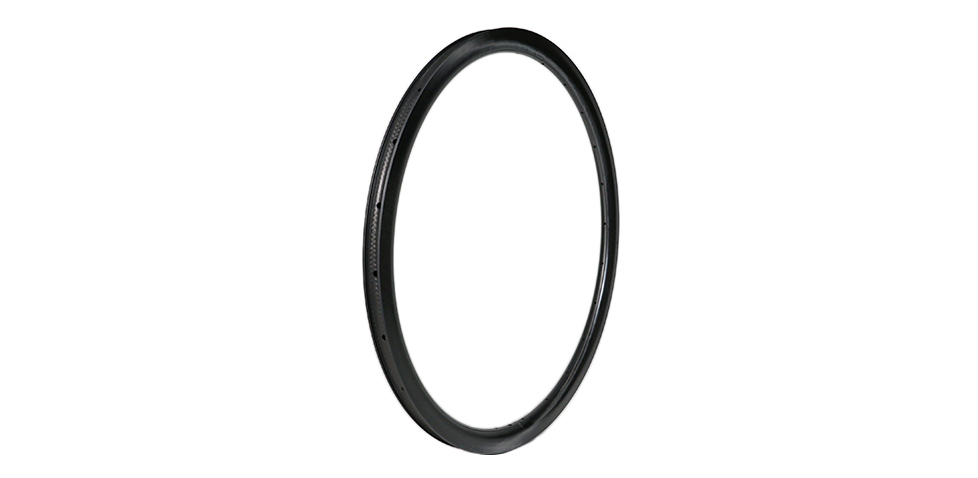

Paintless

Glossy Crystal Painting (silver) USD +20

Full Custom

Weave This is a required option.

Rim Warranty This is a required option.

For Recon Pro Series ( MTB rim), Falcon Pro (road rim) and Drift Pro (fatbike rim), 5-year warranty is set as standard, and optional Lifetime Premium Warranty are kindly offered to purchase with minimum charge respectively.

5 Years

Lifetime USD +100/rim

Center Channel Hole This is a required option.

With Access Holes: This is the traditional method. Spoke access holes are drilled in the center channel to allow the nipples to easily be fed through the rim. Tubeless tape is required to seal the rim.

No Access Holes: No spoke access holes are drilled in the center channel. Feeding the nipples through the rim is more challenging, but it allows for a tubeless setup without the need for tape. This kind of system is known as "road tubeless" and was made popular by Mavic. Some companies still refer to it as "UST style", however, UST is actually a specific interface between the tire and rim which was developed by a partnership between Mavic, Michelin, and Hutchinson.

Currently, rims with 'No Access Holes' do not work with our carbon spokes.

With Access Holes

No Access Holes

Drain Hole This is a required option.

The two small drain holes located 90° to the valve hole effectively help evacuate both the water trapped inside the rim and the air leaking into the rim chamber caused by nonperfect tubeless tape sealing handwork that may risk rim explosure in an aggressive tire inflating.

It is the small reinforced layer prelaminated on the area where the drain hole is drilled later that makes the rim strength fairly ensured without any compromise of weight added.

Riders who ride in wet areas are suggested to order rims with drain holes.
More info about holes >>

With Drain Holes

No Drain Holes

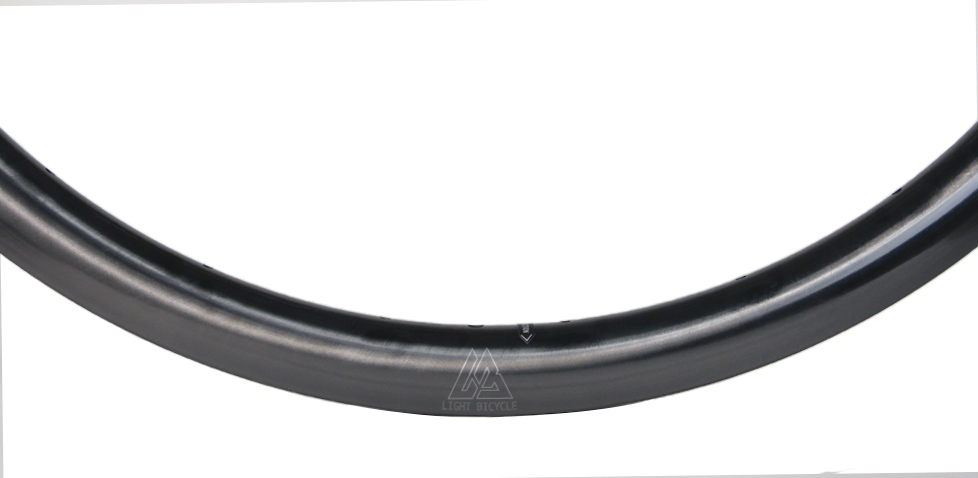

Decal << Read It First This is a required option.

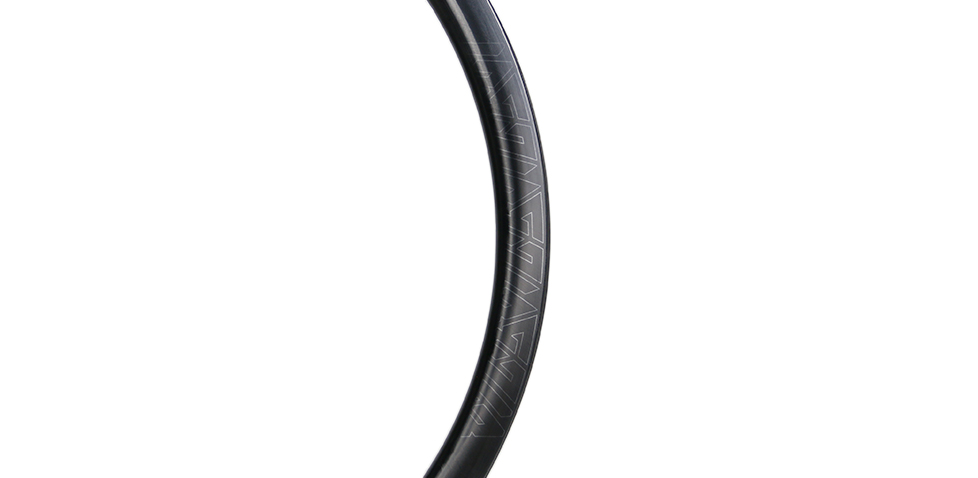

1. Grey Laser Engraving (Falcon Pro) - Our laser engraving technology is eco-friendly and adds a snappy, polished aesthetic to your new rims.
Please note: Contrary to rims with any coated/painted finishes (matte, glossy and satin) as well as Crystal Painting, laser engraving could work with paintless rims only.

2. Full Custom - Add some additional personalization and go full custom with your rim graphics! Laser engraving is available in one colour (light grey) and starts at $5 USD per rim. If you select this option, LEAVE YOUR REQUEST IN QUOTES IN THE NOTES AT CHECKOUT. For example: "I need my personalized logo printed" or "Just text 'ABC racing' ". We will reach out to you once the order is placed to finalize the details of custom graphics.

Full Custom (Laser only) USD +5

Grey Laser Engraving (Falcon Pro)

Blank (No decal)

Valve Stem This is a required option.

We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.
Information of tubeless rim tape

Apply Tubeless Tape: In Light Bicycle, a proprietary taping aid works with our wheel builders to guarantee that a solid taping craft at industrial-level is well implemented in order for you to ride carefree tubeless at any conditions.

You do NOT have to use any tubeless tape to run tubeless if you have chosen "No Access Holes" on the rim center channel.

None

Add Tubeless Tape USD +6 each

Recon Pro orders start shipping in October.

- + PCS

Piece Weight: 410.00g+/-15

Subtotal: USD 239+

PREVIOUS NEXT

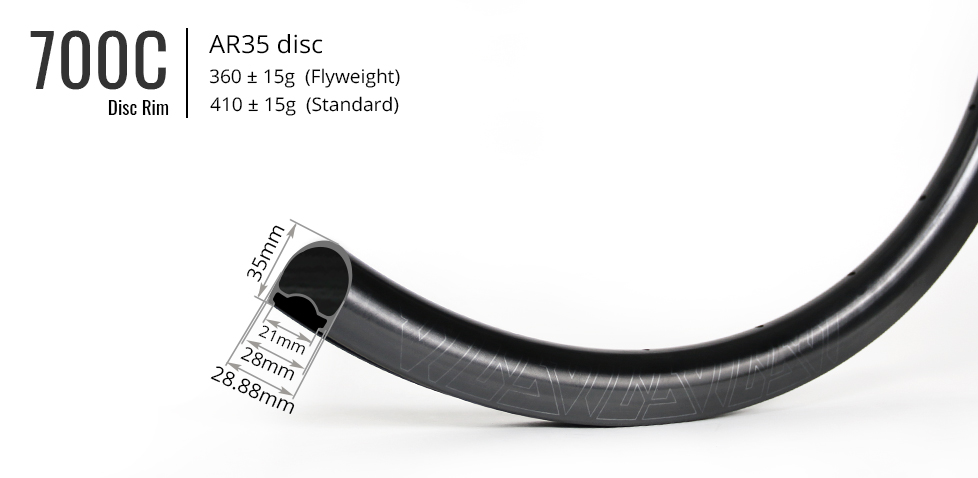

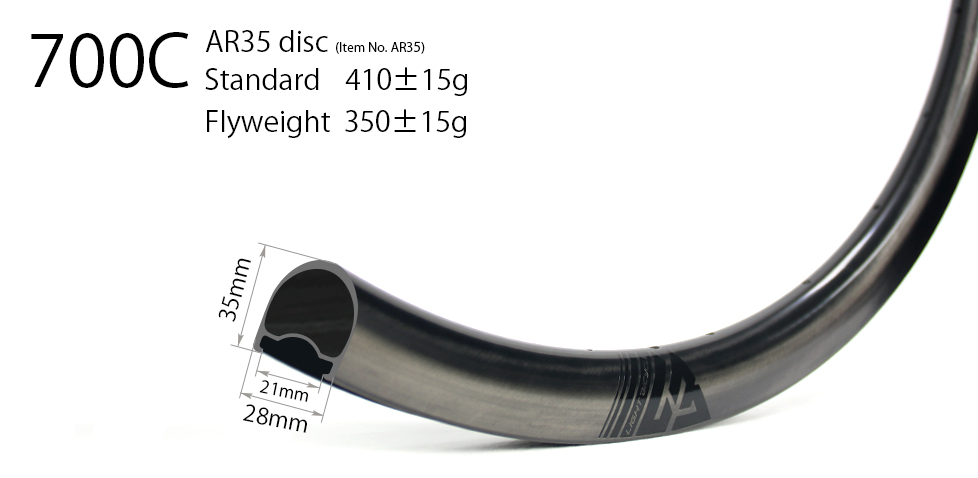

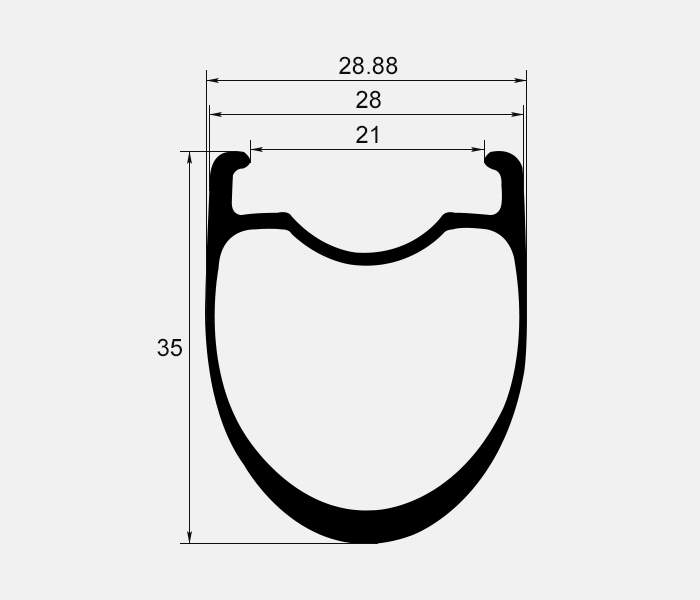

RIM SPECS

Rim Model AR35 disc
Material Toray T700 & T800 Premium Carbon Fiber
Size 29”/700C (ETRTO 622mm)
Series FALCON PRO
Intended Use Road/CX/Gravel
Bead Type Clincher
Tubeless Capable Yes
Inner/Outer Width 21mm/28mm
Depth 35mm
ERD 570mm (not including nipple head dimension)
Rim Weight Standard 410+/-15g, Flyweight 360+/-15g
Profile Symmetric (0mm)
Max Cyclist Weight (on flat ground) Standard 135kg/ 298lbs, Flyweight 90kg/ 198lbs
Spoke Hole Angle ±9°
Spoke Tension 120~135kgf front disc side and rear drive side
Max Tire Pressure (with 25C) Hook: 110psi/ 7.58bar, Hookless: 75psi/ 5.17bar
Recommended Tire Width 23C~43C

Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Rim Model: AR35 disc
Material: Toray T700 & T800 Premium Carbon Fiber
Size: 29”/700C (ETRTO 622mm)
Series: FALCON PRO
Intended Use: Road/CX/Gravel
Bead Type: Clincher
Tubeless Capable: Yes
Inner/Outer Width: 21mm/28mm
Depth: 35mm
ERD: 570mm (not including nipple head dimension)
Rim Weight: Standard 410+/-15g, Flyweight 360+/-15g
Profile: Symmetric (0mm)
Max Cyclist Weight (on flat ground): Standard 135kg/ 298lbs, Flyweight 90kg/ 198lbs
Spoke Hole Angle: ±9°
Spoke Tension: 120~135kgf front disc side and rear drive side
Max Tire Pressure (with 25C): Hook: 110psi/ 7.58bar, Hookless: 75psi/ 5.17bar
Recommended Tire Width: 23C~43C

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter
Finish: Matte, Glossy, Satin, Colored Paint
Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services

Please carefully inspect your package when unboxing it and contact us immediately if it is damaged or if anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste using digital docs.

Download user guides >>

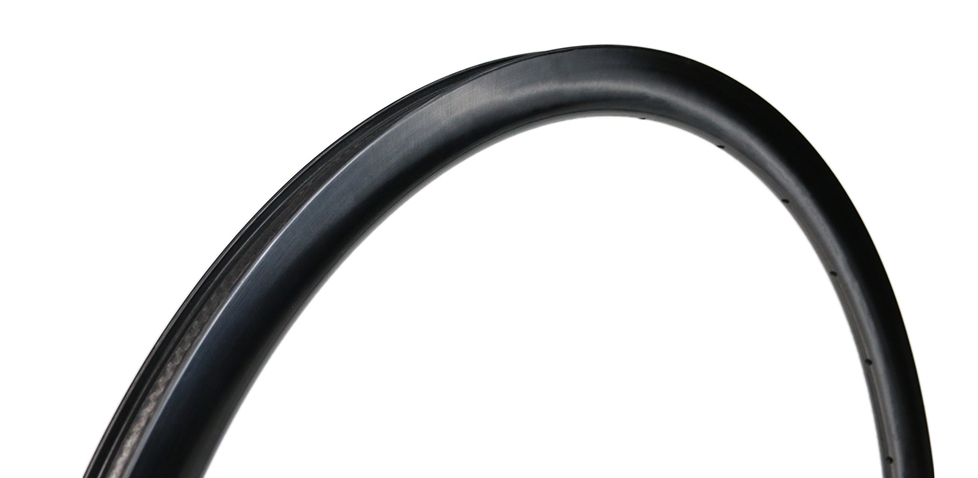

Overview

The most versatile option in our Falcon Pro road lineup, the AR35 can handle cyclocross and all-day gravel rides. The mid-depth rim profile has a reassuring stiffness, building confidence through ruts and railing corners. It remains compliant for long distances and weighs in at just 410g per rim.
This wide tubeless ready platform has a 21mm internal width, suitable for a wide range of tire choices.
Specs
Rims

Rim Model: AR35 disc

Material: Toray T700 & T800 Premium Carbon Fiber

Size: 29”/700C (ETRTO 622mm)

Series: FALCON PRO

Intended Use: Road/CX/Gravel

Bead Type: Clincher

Tubeless Capable: Yes

Inner/Outer Width: 21mm/28mm

Depth: 35mm

ERD: 570mm (not including nipple head dimension)

Rim Weight: Standard 410+/-15g, Flyweight 360+/-15g

Profile: Symmetric (0mm)

Max Cyclist Weight (on flat ground): Standard 135kg/ 298lbs, Flyweight 90kg/ 198lbs

Spoke Hole Angle: ±9°

Spoke Tension: 120~135kgf front disc side and rear drive side

Max Tire Pressure (with 25C): Hook: 110psi/ 7.58bar, Hookless: 75psi/ 5.17bar

Recommended Tire Width: 23C~43C

Read more for actual road tire width

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter

Finish: Matte, Glossy, Satin, Colored Paint

Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services

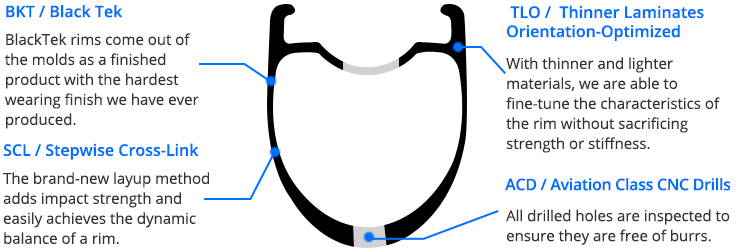

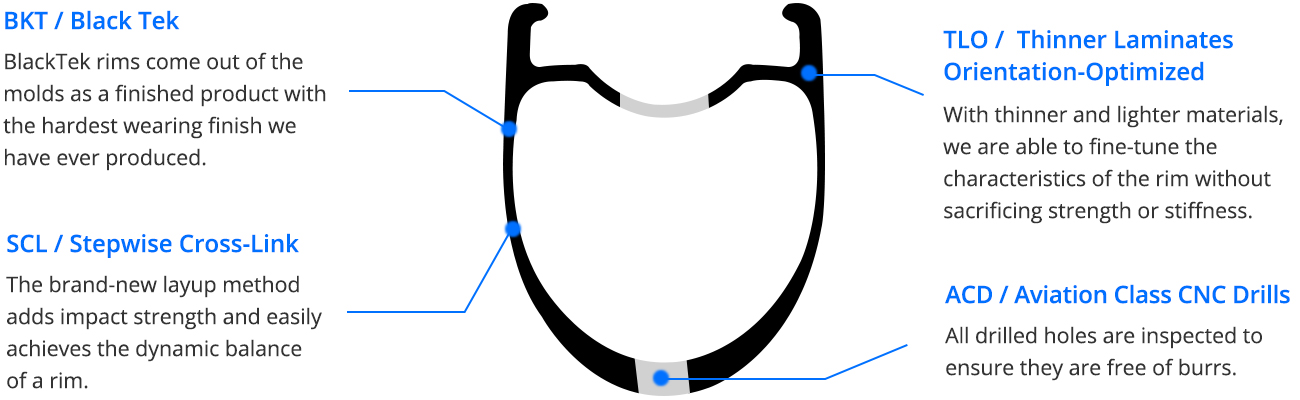

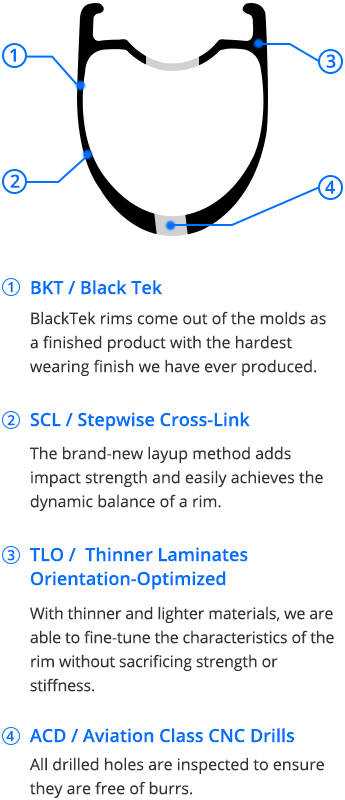

Tech

Learn More >>
Warranty

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>
In The Box

Please carefully inspect your package when unboxing and get in touch with us immediately if the package is damaged or anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste with the use of digital manuals.

Download user guides >>

Gallery

light-bicycle-ar35-disc-brake-custom-carbon-wheelset-installed-to-vittoria-corsa-pro-control-tyres

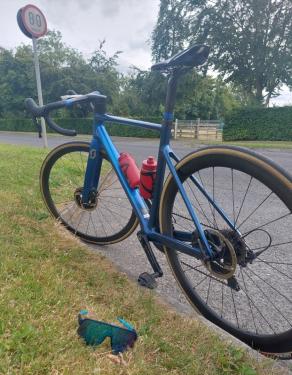

Edward : I just wanted to thank you and the Light Bicycle team for the AR35 rims. The wheels are magnificent, I was very impressed with the build quality of the rims and I've matched them to Chris King R45 hubs laced with Sapim spokes, 24h 2x front and 28h 3x rear. They ride beautifully and feel fast. The bike frame I made using a mix of Columbus Zona and Life tubing to accommodate up to 32mm tyres (a limit of the fork). The dropouts are Paragon Machine Works DR-1103 with BOBI insert to support UDH. The build: SRAM Red AXS 12spd E1 groupo Chris King headset, BB and hubs R45 Enve road disk fork Deda Superleggera finishing kit Vittoria Corsa Pro Control tyres Arundell biden cages Specialised Romin Evo Gel saddle The paint is DNA Paints Emerald Green candy mixed in the clear coat over a silver base. Lovely wheels, thank you.

Australia

light-bicycle-ar35-disc-carbon-wheelset-installed-on-a-scott-addict-

Shusei : Wonderful rims! It is light but also stiff enough and I love them. The default wheels on Scott Addict were about 1,700g but the AR35 rims allowed me to build a sub 1,400g wheelset with DT350 hubs and spokes mixing both CX-Sprint and CX-Ray. This 300+g difference allowed me to climb up steep mountain paths with ease and I appreciate it. In addition, 35mm deep rims provide decent aero on flats. It is not as good as 50mm deep wheels but should be better than that of 25mm wheels. I highly recommend AR35 rims for those who like to climb up the mountains but also like to go on flats. For more hilly climbs (like ones with a 20%+ gradient), I would go for AR25 rims. For more aero, I would go for AR465s or turbo 50s. However, if you want an all-round “I can do everything” type of wheels, the AR35 should be the one to go for.

Japan

light-bicycle-ar35-dics-wheelset-laced-to-carbon-ti-x-hubs

Pekka : I have three LB wheelsets, two rim brake ones with Bitex hubs, one disk brake set with Carbon-Ti hubs. Never had any problem with any of them, they are an absolute pleasure to ride. Been really satisfied with these wheelsets.

France

pinarello-dogma-f-disc-on-light-bicycle-ar35-carbon-wheels

Add a comment...

United States

light-bicycle-ar35-disc-wheels-on-standert-bike-group-ride

James : Sharing with you a nice shot taken recently in early morning. The wheels look good even in low light!

Singapore

Specialized-s-works-tarmac-cx-bike-on-light-bicycle-ar35-disc-brake-wheels

Jeffrey : I bought two pairs of LightBicycle AR35 DT240 wheels and have used them for several years on my road bike and cyclocross bikes. They are very light and fast wheels, and I am very impressed with the quality and design. When I first received the wheels I measured the spoke tensions and found that they were very consistent, unlike a different off-brand carbon wheelset I previously purchased. I had some concerns with using carbon clinchers in cyclocross due to the low tire pressures and potential impact with roots/rocks, but the wheels have held up great for two full race seasons and show no signs of wobbling even with ocassional rim-strikes. I'll definitely be picking up at least one more set for my backup CX bike!

United States

scott-bike-on-light-bicycle-ar35-ar45-wheels

Richard : Great wheelset Light Stiff Dt swiss 350 hubs Cycled 3 winters now in all weather with these wheels Bomb proof Tru out of box 10/10

Ireland

lauf-seigla-gravel-bike-light-bicycle-wheels

Dan : I’m patiently waiting for delivery of my 3rd set of LB wheels. My AM set has over 4K miles, my gravel set has over 2K and is flawless. No spoke holes = No rim tape! So reliable. I’ll never order from anyone else again because no one else can do within without spoke holes!

United States

View More Reviews >>

COMMENTS

Mike 2021/03/08

Hookless?

LightBicycle 2021/03/08

Hi Mike, Thanks for your inquiry! Are you interested in AR35 hookless road disc? May i know your tire width and tire pressure please? Then we can check whether hookless works for you or not. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Nicolas 2021/02/22

Hi, I'm interested in those 28 mm wide / 35 mm deep Falcon Pro rims for disc brakes. I would like to build wheelsets using Novatec D411/D412 hubs, 24 Berd spokes (front and rear), internal aluminium nipples and 28 mm or 32 mm tyres. I have a few questions :) First, I weigh 70 kg, so I was thinking taking the Flyweight version. However, I was wondering whether the Flyweight version was strong enough to resist the harsh pavements we have here in Paris or to resist a hit in a pothole. Is it safer to go with the Standard version or is the Flyweight version strong enough ? Second, since I would like to use internal nipples, spokes' holes do not require to be as big as with external nipples. Is it then possible to have smaller holes ? Thanks Nicolas

LightBicycle 2021/02/22

Hi Nicolas, Do you like AR35 road disc rims 700C only? or complete 700C disc wheelset? It is okay to maufacture rims for internal nipples.The nipple holes will be 2.5mm size for itnernal nipple hole. For external nipple hole, it is 4.5mm size. Do you ride aggressively? Standard version is more durable than flyweight version if you do not mind the weight. Thanks, Lightbicycle

Nicolas 2021/02/23

Hi, Thank you for your reply. I'm interested in rims only. I want to build the wheelsets myself. For me it's part of the fun of building my bicycle :) It's good news that hole can be made smaller for internal nipples. I will be using my bike mostly for city commuting and travels. I don't race. But here in Paris we have quite a lot of bad roads with irregular pavements or potholes. So I was a bit afraid that the Flyweight version would be a fragile precious little thing you have to be very gentle with or if it could still be used without worrying too much as long as you respect the weight limit. Given my weight, I think I will take my chances with the Flyweight version :) (I will finalize the whole design of my bike first before ordering everything) Thanks Nicolas

LightBicycle 2021/02/23

Hi Nicolas, Thanks for your reply! Or you can try from flyweight/ rear standard version on the AR35 28mm wide road disc rims 700C. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Ronei 2020/10/09

Hi Lightbicycle, Would you guys offer a discount if buying 2 "FALCON PRO rim AR35 disc Road/CX/Gravel" rims Flyweight version with 24h without center channel hole? I'm base in Ireland. Thanks, Ronei

LightBicycle 2020/10/10

Hi Ronei, My apologies, our MOQ for multiple purchase discount is 8pcs of rims road disc 700C. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

CW 2020/08/18

Hello, I can run 32s comfortably on these, correct?

LightBicycle 2020/08/19

Hi Sir, Yes, you can use 32c tires on AR45 (28mm wide) 700C road disc. Our recommended tire range is 23-43c. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Zoran 2020/08/04

Hello, What is maximum tire pressure with the inner tube for AR35 Disc rims Thank you

LightBicycle 2020/08/04

Hi Zoran, What tires are you plan to run with AR35 700C road disc rims? For different tire width, the max tire pressure is different. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Tim 2020/07/30

When are the hookless rims going to be available for build? Thanks for your time. Tim T.

LightBicycle 2020/07/31

Hi Tim, Hookless will be able to order around 12 days later. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Lucas 2020/05/08

Hello, will these AR35 rims be available in hookless at all?

LightBicycle 2020/05/08

Hi Lucas, Actually, there are few people order hookless rims. So, at the beginning, we do not have hookless version for AR35 and AR45 road disc rims. It should be available around one month later. Thanks, Lightbicycle

Max 2020/06/23

Hello Are the hookless bead AR35 falcon pros available yet? I’m looking for a set with the new DT Swiss 240’ EXP, CL XD drivers, 100/142 for gravel. Id like to order them asap but want to make sure they are in stock before I do so. Thanks so much! Please feel free to email. Max

LightBicycle 2020/06/23

Hi Max, Yes, the hookless version AR35 road disc is open to order now. But we don't have them in stock. We can work on invoice for you if you are ready to order. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

See all 7 customer reviews>>

Get in touch

Feel free to leave a comment if you have any questions or suggestions on our products or other issues.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Build Your Falcon Pro RIM AR35 disc

Overview

Specs

Tech

Warranty

In The Box

Rims

Full Custom

Overview

Specs

Rims

Full Custom

Tech

Warranty

In The Box

Gallery
