Build Your Falcon Pro RIM WR38 disc

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

Buy wheelset

Global Shop

US Shop

EU Shop

Ships worldwide. See what's on sale>>

Center Channel Hole This is a required option.

No Access Holes

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h, with drain holes

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD + (discount price)

Lead time: typically ships in 3 business days

ADD TO CART You missed some options.

We do not stock this item at the Australian shop. See what's available.

You can order this product from our Global / NA shops.

Please fill out this form if you are looking for a custom wheelset.

We'll get back to you soon to study the customization requests via email.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the US Shop, or it may be only available to order as a complete wheelset.

Our Global Shop can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelsets. We will get back to you via email to discuss in 24hrs.

Our apologies, we do not stock this item at the CA Shop. Check this link to see what items we stock, or send us an email to discuss.

The wheelsets are still in transit to this shop. We’ll update this page when they’re available. Learn more about our European shop.

You can order this product from our Global or North American shops.

Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.

DEFAULT SETTINGS

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

Quick Buy (In Stock)

Full Custom (Made to Order)

DEFAULT SETTINGS

Rims

Hook, matte, UD, with drain holes

Hook, matte, UD, with access holes, with drain holes

Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes

Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes

Paintless, UD, 5-year warranty, no drain holes

Grooved graphene surface, hook, matte, UD, with access holes, with drain holes

Grooved graphene surface, hook, matte, UD, no access holes, with drain holes

Matte UD, 32H, Centered (Staggered)

Hubs

Hope Pro 4 Fatsno J-bend 6-bolt

15/150mm (F) & 12/197mm (R) Sram XD

Straightpull centerlock black 24H

12/100mm & 12/142mm

Shimano Road 11S

DT Swiss straightpull / Bitex j-bend, centerlock, 28H

J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H

15/110mm boost & 12/148mm boost Sram XD

DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear

100mm QR & 130mm QR Shimano Road 11S

Spokes

Sapim CX Ray black

Sapim D-Light

Accessories

No decals/valves/tape

No decals/valves/tape/pads

No decals/valves

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Brake System This is a required option.

Disc

Version This is a required option.

Version	Weight	Material	Layup	Max Load
Standard	Standard	Toray T700	Standard Layup	135 kgs
Flyweight	40g - 70g lighter	Toray T800 and T700	New layup for weight saving	90 kgs

Front Flyweight / Rear Standard with specific layup is also a good option that proves the harmony of weight and strength.

Standard

Flyweight USD +12

Bead type This is a required option.

Hook

Hookless

Hole Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc), most of which are at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

24H

28H

32H

Full Custom

Finish This is a required option.

Paintless: The "Finish" relates to how the rim is coated or painted such as matte or glossy for the most common applications. Our Recon Pro and Falcon Pro rims feature BlackTek and come out of molds as a completed product, with a scratch resistant and near flawless finish, eliminating the need for coating or painting. We name this kind of superior finish the paintless.

Crystal Painting: A fantastic painting effect designed by Light Bicycle.

Full Custom: This option offers custom finish such as Satin/Raw etc at no extra charge but subject to rim models with 3~5 days LONGER on manufacture. And custom color painting is also available with added 15g/rim and extra $20USD/rim as a start. If you select this option and LEAVE YOUR REQUIREMENT IN QUOTES IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed to finalize the details.

Paintless

Glossy Crystal Painting (silver) USD +20

Full Custom

Weave This is a required option.

Rim Warranty This is a required option.

For Recon Pro Series ( MTB rim), Falcon Pro (road rim) and Drift Pro (fatbike rim), 5-year warranty is set as standard, and optional Lifetime Premium Warranty are kindly offered to purchase with minimum charge respectively.

5 Years

Lifetime USD +100/rim

Center Channel Hole This is a required option.

With Access Holes: This is the traditional method. Spoke access holes are drilled in the center channel to allow the nipples to easily be fed through the rim. Tubeless tape is required to seal the rim.

No Access Holes: No spoke access holes are drilled in the center channel. Feeding the nipples through the rim is more challenging, but it allows for a tubeless setup without the need for tape. This kind of system is known as "road tubeless" and was made popular by Mavic. Some companies still refer to it as "UST style", however, UST is actually a specific interface between the tire and rim which was developed by a partnership between Mavic, Michelin, and Hutchinson.

Currently, rims with 'No Access Holes' do not work with our carbon spokes.

With Access Holes

No Access Holes

Drain Hole This is a required option.

The two small drain holes located 90° to the valve hole effectively help evacuate both the water trapped inside the rim and the air leaking into the rim chamber caused by nonperfect tubeless tape sealing handwork that may risk rim explosure in an aggressive tire inflating.

It is the small reinforced layer prelaminated on the area where the drain hole is drilled later that makes the rim strength fairly ensured without any compromise of weight added.

Riders who ride in wet areas are suggested to order rims with drain holes.
More info about holes >>

With Drain Holes

No Drain Holes

Decal This is a required option.

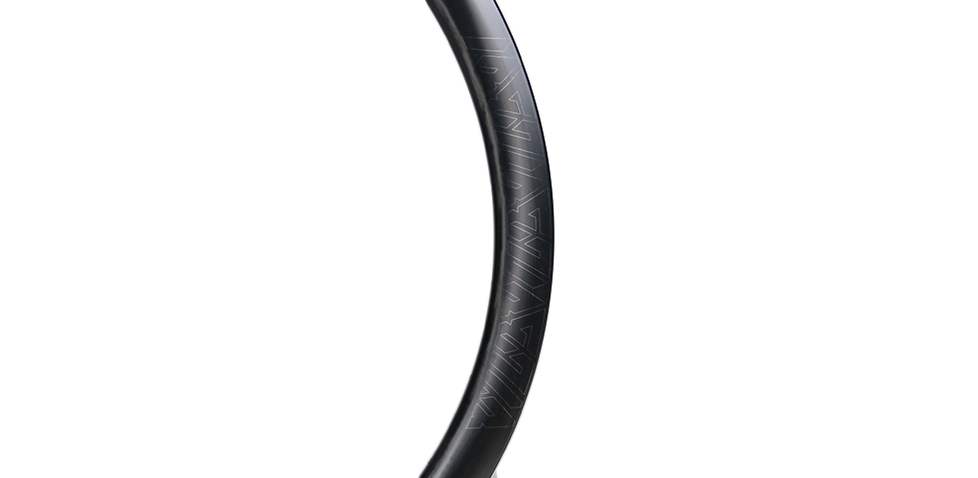

1. Grey Laser Engraving (Falcon Pro) - Our laser engraving technology is eco-friendly and adds a snappy, polished aesthetic to your new rims.
Please note: Contrary to rims with any coated/painted finishes (matte, glossy and satin) as well as Crystal Painting, laser engraving could work with paintless rims only.

2. Full Custom - Add some additional personalization and go full custom with your rim graphics! Laser engraving is available in one colour (light grey) and starts at $5 USD per rim. If you select this option, LEAVE YOUR REQUEST IN QUOTES IN THE NOTES AT CHECKOUT. For example: "I need my personalized logo printed" or "Just text 'ABC racing' ". We will reach out to you once the order is placed to finalize the details of custom graphics.

Full Custom (Laser only) USD +5

Grey Laser Engraving (Falcon Pro)

Blank (No decal)

Valve Stem This is a required option.

We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.
Information of tubeless rim tape

Apply Tubeless Tape: In Light Bicycle, a proprietary taping aid works with our wheel builders to guarantee that a solid taping craft at industrial-level is well implemented in order for you to ride carefree tubeless at any conditions.

You do NOT have to use any tubeless tape to run tubeless if you have chosen "No Access Holes" on the rim center channel.

None

Add Tubeless Tape USD +6 each

Recon Pro orders start shipping in October.

- + PCS

Brake System This is a required option.

Disc

Version This is a required option.

Version	Weight	Material	Layup	Max Load
Standard	Standard	Toray T700	Standard Layup	135 kgs
Flyweight	40g - 70g lighter	Toray T800 and T700	New layup for weight saving	90 kgs

Standard

Bead type This is a required option.

Hook

Hole Count This is a required option.

ROAD Product
Road rim brake: Stocked in 20h and 24h
Road disc: Stocked in 24h and 28h

MTB Product
MTB rims: Stocked in 32h. Only XC Flyweight rims are stocked in 28h as well as 32h
Please note that our valves are drilled for presta and spoke holes are made for external nipples by default. If you have a custom drilling requirements please contact us.

24H

28H

Finish This is a required option.

The "Finish" relates to how the rim is coated or painted such as matte or glossy for the most common applications. Our Recon Pro and Falcon Pro rims feature BlackTek and come out of molds as a completed product, with a scratch resistant and near flawless finish, eliminating the need for coating or painting. We name this kind of superior finish the paintless.

Paintless

Weave This is a required option.

Rim Warranty This is a required option.

5 Years

Lifetime USD +100/rim

Valve Stem This is a required option.

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.

Apply Tubeless Tape: The tubeless tape with high tensile strength is tightly installed on the wheel(s) at industrial-level for you to ride carefree tubeless at any conditions.

None

Add Tubeless Tape USD +8 each

Decal This is a required option.

Grey Laser Engraving (Falcon Pro)

Recon Pro orders start shipping in October.

- + PCS

Piece Weight: 440.00g+/-15

Subtotal: USD 239+

Piece Weight: 440.00g+/-15

Subtotal: USD 289+

PREVIOUS NEXT

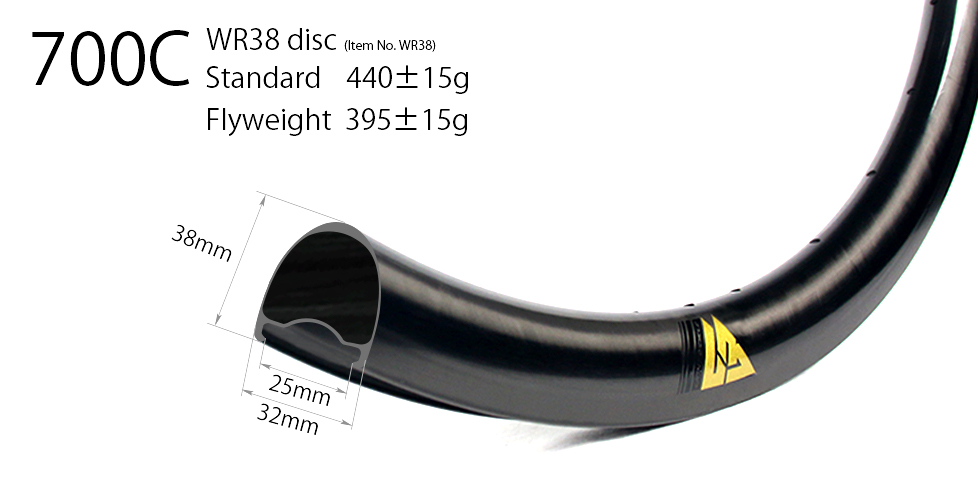

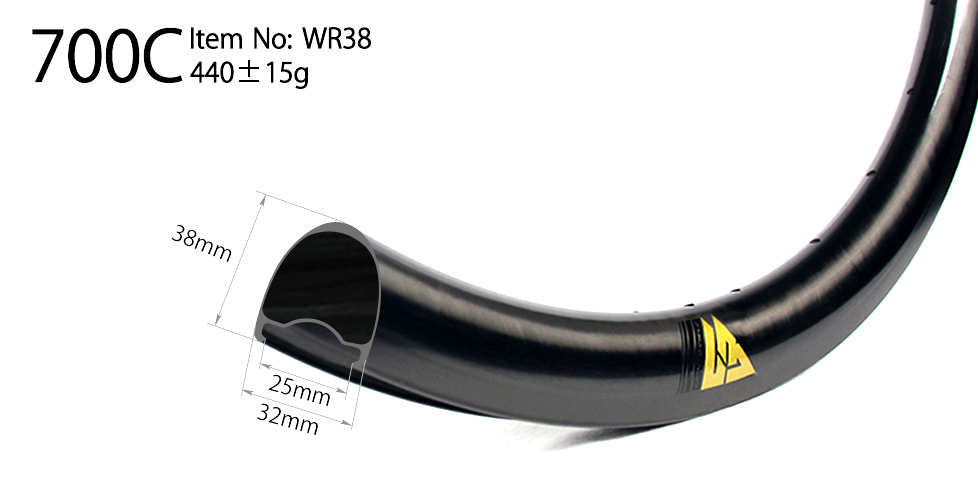

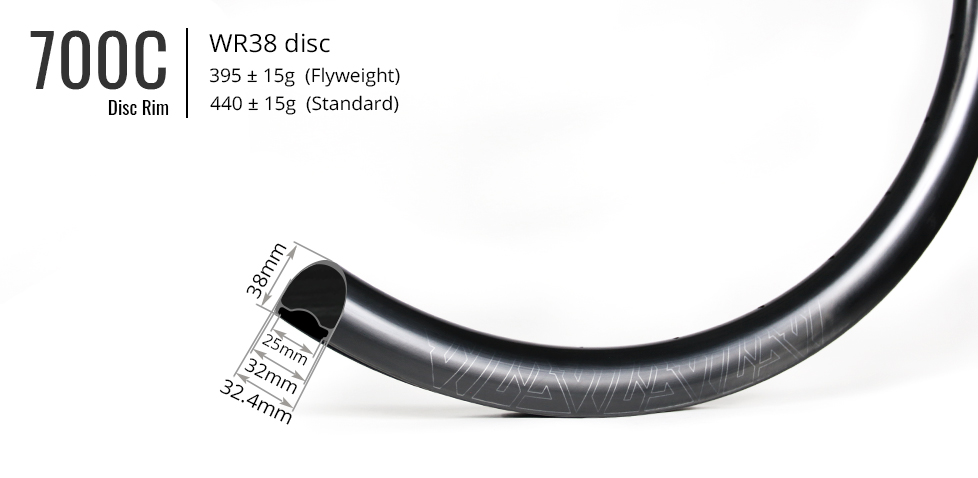

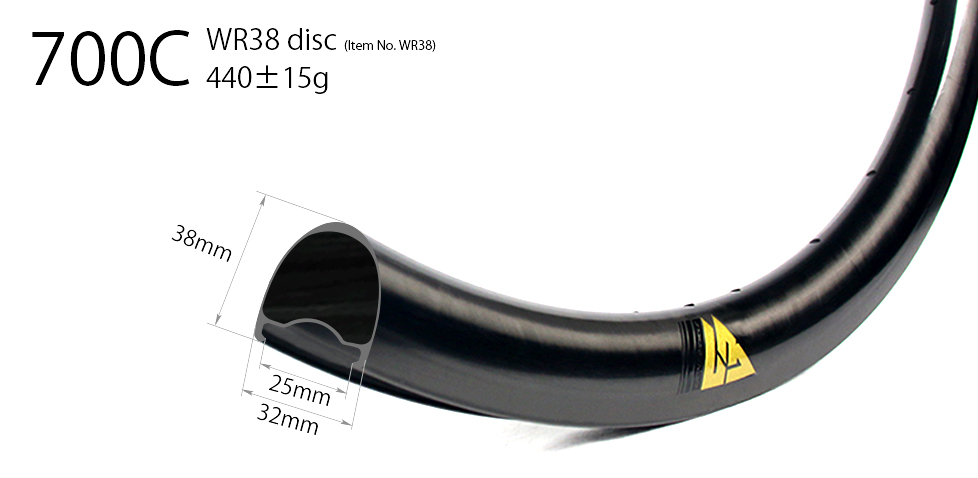

RIM SPECS

Rim Model WR38 disc
UCI-Approved >>
Material Toray T700 & T800 Premium Carbon Fiber
Size 29”/700C (ETRTO 622mm)
Series FALCON PRO
Intended Use CX/Gravel
Bead Type Clincher
Tubeless Capable Yes

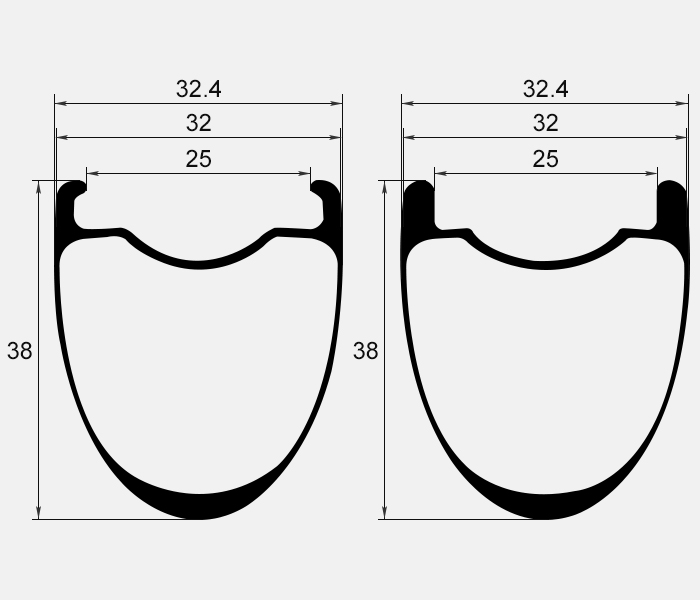

Inner/Outer Width 25mm/32mm
Depth 38mm
ERD 563mm (not including nipple head dimension)
Rim Weight Standard 440+/-15g, Flyweight 395+/-15g
Profile Symmetric (0mm)
Max Cyclist Weight (on flat ground) Standard 135kg/ 298lbs, Flyweight 90kg/ 198lbs
Spoke Hole Angle ±9°
Spoke Tension 120~135kgf front disc side and rear drive side
Max Tire Pressure (with 28C) Hook: 80psi/ 5.52bar, Hookless: 65psi/ 4.48.bar
Recommended Tire Width 28C~50C

Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Rim Model: WR38 disc
UCI-Approved >>
Material: Toray T700 & T800 Premium Carbon Fiber
Size: 29”/700C (ETRTO 622mm)
Series: FALCON PRO
Intended Use: CX/Gravel
Bead Type: Clincher
Tubeless Capable: Yes
Inner/Outer Width: 25mm/32mm
Depth: 38mm
ERD: 563mm (not including nipple head dimension)
Rim Weight: Standard 440+/-15g, Flyweight 395+/-15g
Profile: Symmetric (0mm)
Max Cyclist Weight (on flat ground): Standard 135kg/ 298lbs, Flyweight 90kg/ 198lbs
Spoke Hole Angle: ±9°
Spoke Tension: 120~135kgf front disc side and rear drive side
Max Tire Pressure (with 28C): Hook: 80psi/ 5.52bar, Hookless: 65psi/ 4.48.bar
Recommended Tire Width: 28C~50C

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter
Finish: Matte, Glossy, Satin, Colored Paint
Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services

Please carefully inspect your package when unboxing it and contact us immediately if it is damaged or if anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste using digital docs.

Download user guides >>

Overview

The WR38 was built with one goal in mind: making the best rim possible for long distance gravel racing or riding.

With a massive 25mm inner diameter, the WR38 provides a stable profile for even the widest gravel tires.

Thanks to its mid-depth profile, the WR38 is deep enough to provide aerodynamic help when riding alone across gravel plains, but not so deep that is hard to control in crosswinds.

Whether you find yourself racing across the Midwest or month long backpacking trip, the WR38 might just be the perfect match.
Specs
Rims

Rim Model: WR38 disc
UCI-Approved >>

Material: Toray T700 & T800 Premium Carbon Fiber

Size: 29”/700C (ETRTO 622mm)

Series: FALCON PRO

Intended Use: CX/Gravel

Bead Type: Clincher

Tubeless Capable: Yes

Inner/Outer Width: 25mm/32mm

Depth: 38mm

ERD: 563mm (not including nipple head dimension)

Rim Weight: Standard 440+/-15g, Flyweight 395+/-15g

Profile: Symmetric (0mm)

Max Cyclist Weight (on flat ground): Standard 135kg/ 298lbs, Flyweight 90kg/ 198lbs

Spoke Hole Angle: ±9°

Spoke Tension: 120~135kgf front disc side and rear drive side

Max Tire Pressure (with 28C): Hook: 80psi/ 5.52bar, Hookless: 65psi/ 4.48.bar

Recommended Tire Width: 28C~50C

Read more for actual road tire width

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter

Finish: Matte, Glossy, Satin, Colored Paint

Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services

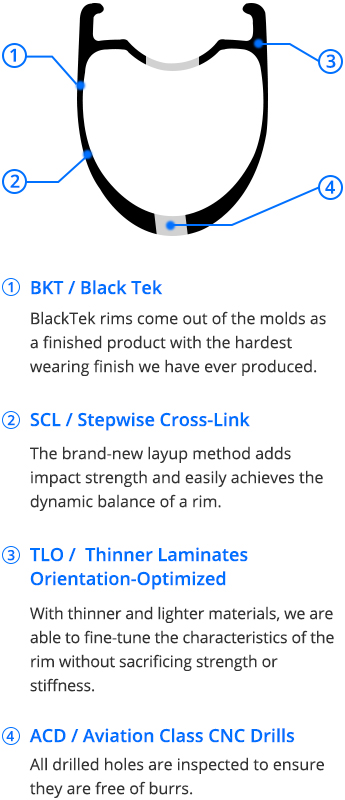

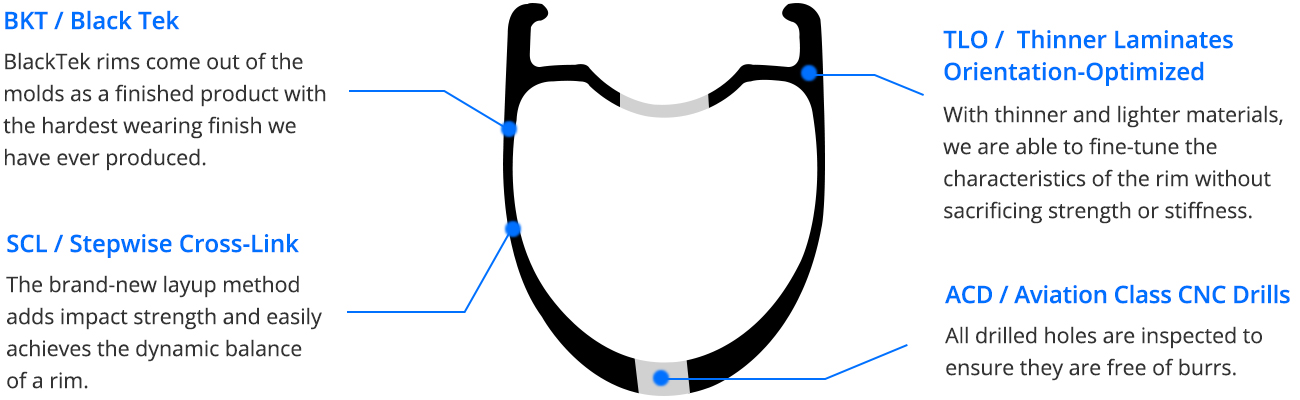

Tech

Learn More >>
Warranty

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>
In The Box

Please carefully inspect your package when unboxing and get in touch with us immediately if the package is damaged or anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste with the use of digital manuals.

Download user guides >>

Gallery

light-bicycle-wr38-disc-custom-carbon-wheelset-installed-on-a-standert-erdgeschoss-

Stefan : WR38 with DT Swiss 240s and custom laser etching. My second set of Light Bicycle wheels and super happy!

Germany

light-bicycle-wr38-disc-carbon-wheels-built-on-a-fairlight-bike

Pete : WR38 rims, 25mm internal built onto Hope hubs with 35c Pirelli Cinturato Velo TLR tyres. Commuter/tourer/winter setup.

UK(Britain)

light-bicycle-wr38-disc-carbon-wheelset-ud-paintless

Norman : Using Light Bicycle WR38 Falcon Pro on my Ritchey Swiss Cross.

China

light-bicycle-32mm-ext-wide-38mm-deep-rim-for-28c-and-30c-road-tires

Light Bicycle : Rims: WR38 Standard Hook UD Paintless Disc 28H External Hole With Drain Holes With Access Holes Decals: Custom laser engraved graphics

rose-gravel-bike-on-light-bicycle-wr38-carbon-wheels

Daniel : Custom WR38 Falcon Pro Wheelset for my Gravelbike. With a Hub Dynamo in the front and the new DT Swiss 350 Hub in the back. Oilslick brass nipple and Oilslick decals. Incredibly light and stiff, and just beautiful to look at.

Germany

specialized-roubaix-on-light-bicycle-wr38-custom-built-wheels

Angel : Over several years I have built several wheelsets using LB carbon fiber rims. R45, AR46, AR36 Disc, Custom AR46/AR56 to repurpose Roval hubs with 16/21 spokes. The results have been excellent, every single wheelset has been straight forward to build and perform just as good if not better than the famous brands (I've owned Zipp, Roval, Enve). The quality is excellent and customer service the same.

United States

orbea-orca-omr-on-light-bicycle-wr38-carbon-wheels

Jim : WR38s on an Orca OMR. Well built, light, and they ride quite nicely!

United States

light-bicycle-wr38-carbon-gravel-bike-wheelset-custom-build

Lars : I have already build a Wheelset with your WR38 for my gravel bike and I really love them! So I want to build another set of wheels soon.

Germany

View More Reviews >>

COMMENTS

Dave 2020/02/28

Can you please tell me why the WR38 disc (Standard) rim is $239 and the WR35 disc (Standard) rim is only $179? Why the big price difference? Thanks.

LightBicycle 2020/02/29

Hi Dave, The WR38 (32mm wide, 38mm deep) disc rim is from our Falcon Pro series, which is produced with a totally different technology and process (from the material, layup to molding). The WR38 is able to come out of the mold as a finished product. No post-production (painting, sanding, etc) applied what so ever. The scratch resistance ability is significantly increased. The rim is also stronger than traditional rims. On the other hand, WR35 (32mm wide, 35mm deep) is from our Falcon series, in which the rims are made with the traditional processes. It's also very strong, durable, lightweight, and the price is more friendly. If you are not a heavy/aggressive rider, the WR35 will be a good choice. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Jay 2020/01/08

Hello, I am interested in a wr38 based wheel set for my gravel bike. The wheels would be used for gravel racing. Would a flyweight rim with 24 spokes, cx-rays, be strong enough for the abuse of racing? I weight 65 kg and commonly wear a 5 kg hydration pack. Also, I see that the flyweight rims are only listed as a global option. Could they be sourced for the North American office to be built with i9 torch hubs? Thank you.

LightBicycle 2020/01/09

Hi Jay, 1. Sorry that you missed the Christmas sale. We do offer a 5% returning customer if you are interested. 2. What would be your idea wheel build this time? We do have DT Swiss hubs/I9/Onyx hubs for this wide road disc wheelset. Will you be interested? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Stan 2019/11/21

Is the flyweight version suitable for my use? Using 28hole front/back hubs I weigh 86 kg Thanks

LightBicycle 2019/11/22

Hi Stan, The flyweight version of WR38 32mm wide road disc rims is okay for your weight, but we recommend the front flyweight and rear standard combo, which would be more durable. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

David 2019/08/02

Hi, On the WR38 disc, what is the maximum tyre pressure if running a 32mm tyre tubeless? Thanks, David

LightBicycle 2019/08/03

Hi David, For our WR38C road disc, the max tire pressure is 130psi recommended max. It is with hook design, can hold high tire pressure. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Gavin 2019/07/19

I would also like a hookless version of this rim. I am riding 40mm tyres at 35 psi

LightBicycle 2019/07/19

Hi Gavin, Currently, we only have hook version for road wide disc rim WR38 rims. If you like, we can make hookless version for you. It takes around 30 days, it is okay for you. Thanks, Lightbicycle

LightBicycle 2019/07/20

Hi Gavin, Currently, we only have hook version for road wide disc rim WR38 rims. If you like, we can make hookless version for you. It takes around 30 days, it is okay for you. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Tyler 2019/06/24

Is this rim available hookless? That would be preferred for a tubeless application.

LightBicycle 2019/06/25

HI Tyler, The hookless version of WR38 wide road 700C rim is currently not available. What is the reason that you want it to be hookless? How much tire pressure are you running with? What would be the target riding style? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Brian 2019/05/03

Do you stock these in the North America warehouse? If not, what is the lead time to get them? Thanks, Brian

LightBicycle 2019/05/08

Hi Brian, We don't have the Falcon Pro WR38 road wide bike rim stock in North America warehouse just yet. It would be faster if you order from the Global warehouse. Usually, the rims would take about 1~2 weeks to ship. another 7~10 days for shipping and delivery. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Elliot 2019/05/04

Hi, Do these rims have a braking surface for rim brakes? Thanks

LightBicycle 2019/05/05

Hi Elliot, It is okay to manufacture these rims with rim brake. But is your bike and brake caliper wide enough for 32mm wide wheelset? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Érico 2019/04/28

Any chance they can be made for rim brake too? Do you have any plans of releasing a deeper version of the 30x56? Something like 80x30mm?

LightBicycle 2019/04/29

Hi Erico, What kind of riding do you do? Is it for non disc? The all-new WR38 road rim is with a wider section than normal non-disc rims. It's 25mm inner and 32mm outer. Will this be ok with your frame and caliper? Usually, calipers have limitation for the rim width. For deeper verson coming soon, it is 50mm deep, not 80mm deep. Is it okay for you? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Fred 2019/04/27

1) Will this work with tubeless tires? 2) Are you planning to release Falcom Pro rims in other depths? What about new tubular rims? Thank you! I'm ready to place North American order after these questions.

LightBicycle 2019/04/27

Hi Fred, Thanks for your inquiry! Yes, these new falcon pro wide road disc rims are okay for tubeless tires. You can use rim tape, sealant and tubeless tires. They will work perfectly. For falcon pro series, another 50mm depth will be ready in one week on website. For tubular version, how much tire width do you use? i will check with our engineer team. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

See all 10 customer reviews>>

Get in touch

Feel free to leave a comment if you have any questions or suggestions on our products or other issues.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Build Your Falcon Pro RIM WR38 disc

Overview

Specs

Tech

Warranty

In The Box

Rims

Full Custom

Overview

Specs

Rims

Full Custom

Tech

Warranty

In The Box

Gallery
