Build Your Recon Pro RIM AM935

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

Buy wheelset

Global Shop

US Shop

EU Shop

Ships worldwide. See what's on sale>>

Drain Hole This is a required option.

With Drain Holes

Center Channel Hole This is a required option.

No Access Holes

Version This is a required option.

Front Flyweight / Rear Standard

Weave This is a required option.

Braided UD

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h

Paintless, UD, blank (no decal), 28h, with access holes

Standard, paintless, hook, blank (no decal), 24h, with drain holes, without access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12/100mm (F) & 12/142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

DT Swiss 350 straightpull centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18t ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

2 valves & 1 spare 18t ratchet

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD +

Lead time: typically ships in 2 days

ADD TO CART You missed some options.

We do not stock this item at the European warehouse. See what we stock currently.

You can order this product from our Global or North American warehouse.

Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.

Center Channel Hole This is a required option.

No Access Holes

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h, with drain holes

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD + (discount price)

Lead time: typically ships in 3 business days

ADD TO CART You missed some options.

We do not stock this item at the Australian shop. See what's available.

You can order this product from our Global / NA shops.

Please fill out this form if you are looking for a custom wheelset.

We'll get back to you soon to study the customization requests via email.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the US Shop. Check this link to see what items we stock, or send us an email to discuss.

Our Global Shop can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelsets. We will get back to you via email to discuss in 24hrs.

Our apologies, we do not stock this item at the CA Shop. Check this link to see what items we stock, or send us an email to discuss.

DEFAULT SETTINGS

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

Quick Buy (In Stock)

Full Custom (Made to Order)

DEFAULT SETTINGS

Rims

Hook, matte, UD, with drain holes

Hook, matte, UD, with access holes, with drain holes

Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes

Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes

Paintless, UD, 5-year warranty, no drain holes

Grooved graphene surface, hook, matte, UD, with access holes, with drain holes

Grooved graphene surface, hook, matte, UD, no access holes, with drain holes

Matte UD, 32H, Centered (Staggered)

Hubs

Hope Pro 4 Fatsno J-bend 6-bolt

15/150mm (F) & 12/197mm (R) Sram XD

Straightpull centerlock black 24H

12/100mm & 12/142mm

Shimano Road 11S

DT Swiss straightpull / Bitex j-bend, centerlock, 28H

J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H

15/110mm boost & 12/148mm boost Sram XD

DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear

100mm QR & 130mm QR Shimano Road 11S

Spokes

Sapim CX Ray black

Sapim D-Light

Accessories

No decals/valves/tape

No decals/valves/tape/pads

No decals/valves

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Hole Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc), most of which are at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

28H

32H

36H

Full Custom

Finish This is a required option.

Paintless: The "Finish" relates to how the rim is coated or painted such as matte or glossy for the most common applications. Our Recon Pro and Falcon Pro rims feature BlackTek and come out of molds as a completed product, with a scratch resistant and near flawless finish, eliminating the need for coating or painting. We name this kind of superior finish the paintless.

Crystal Painting: A fantastic painting effect designed by Light Bicycle.

Full Custom: This option offers custom finish such as Satin/Raw etc at no extra charge but subject to rim models with 3~5 days LONGER on manufacture. And custom color painting is also available with added 15g/rim and extra $20USD/rim as a start. If you select this option and LEAVE YOUR REQUIREMENT IN QUOTES IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed to finalize the details.

Paintless

Glossy Crystal Painting (silver) USD +20

Full Custom

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer for cosmetic appearence.

The rim strength & weight is virtually identical.

Matte UD is the most popular and has a subtle look.

The futuristic Hexa-Comb and Braided UD are smooth and looks great on deep rims.
More info about Weave >>

Full Custom: This option (if provided here to choose) offers custom weaves such as 3k twill vertical/ horizontal/ Braided UD etc with extra charge of $15USD/rim as a start but subject to rim models with 3~5 days LONGER on manufacture. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

Drain Hole This is a required option.

The two small drain holes located 90° to the valve hole effectively help evacuate both the water trapped inside the rim and the air leaking into the rim chamber caused by nonperfect tubeless tape sealing handwork that may risk rim explosure in an aggressive tire inflating.

It is the small reinforced layer prelaminated on the area where the drain hole is drilled later that makes the rim strength fairly ensured without any compromise of weight added.

Riders who ride in wet areas are suggested to order rims with drain holes.
More info about holes >>

With Drain Holes

No Drain Holes

Rim Warranty This is a required option.

For Recon Pro Series ( MTB rim), Falcon Pro (road rim) and Drift Pro (fatbike rim), 5-year warranty is set as standard, and optional Lifetime Premium Warranty are kindly offered to purchase with minimum charge respectively.

5 Years

Lifetime USD +100/rim

Decal This is a required option.

1. Grey Laser Engraving (Recon Pro) - Our laser engraving technology is eco-friendly and adds a snappy, polished aesthetic to your new rims.
Please note: Contrary to rims with any coated/painted finishes (matte, glossy and satin) as well as Crystal Painting, laser engraving could work with paintless rims only.

2. Full Custom - Add some additional personalization and go full custom with your rim graphics! Laser engraving is available in one colour (light grey) and starts at $5 USD per rim. If you select this option, LEAVE YOUR REQUEST IN QUOTES IN THE NOTES AT CHECKOUT. For example: "I need my personalized logo printed" or "Just text 'ABC racing' ". We will reach out to you once the order is placed to finalize the details of custom graphics.

Grey Laser Engraving (Recon Pro)

Blank (No decal)

Full Custom (Laser only) USD +5

Valve Stem This is a required option.

We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.
Information of tubeless rim tape

Apply Tubeless Tape: In Light Bicycle, a proprietary taping aid works with our wheel builders to guarantee that a solid taping craft at industrial-level is well implemented in order for you to ride carefree tubeless at any conditions.

You do NOT have to use any tubeless tape to run tubeless if you have chosen "No Access Holes" on the rim center channel.

None

Add Tubeless Tape USD +6 each

Recon Pro orders start shipping in October.

- + PCS

Hole Count This is a required option.

ROAD Product
Road rim brake: Stocked in 20h and 24h
Road disc: Stocked in 24h and 28h

MTB Product
MTB rims: Stocked in 32h. Only XC Flyweight rims are stocked in 28h as well as 32h
Please note that our valves are drilled for presta and spoke holes are made for external nipples by default. If you have a custom drilling requirements please contact us.

32H

Finish This is a required option.

The "Finish" relates to how the rim is coated or painted such as matte or glossy for the most common applications. Our Recon Pro and Falcon Pro rims feature BlackTek and come out of molds as a completed product, with a scratch resistant and near flawless finish, eliminating the need for coating or painting. We name this kind of superior finish the paintless.

Paintless

Weave This is a required option.

Rim Warranty This is a required option.

5 Years

Lifetime USD +100/rim

Valve Stem This is a required option.

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.

Apply Tubeless Tape: The tubeless tape with high tensile strength is tightly installed on the wheel(s) at industrial-level for you to ride carefree tubeless at any conditions.

None

Add Tubeless Tape USD +8 each

Decal This is a required option.

Grey Laser Engraving (Recon Pro)

Recon Pro orders start shipping in October.

- + PCS

Piece Weight: 470.00g+/-15

Subtotal: USD 289+

Piece Weight: 470.00g+/-15

Subtotal: USD 339+

PREVIOUS NEXT

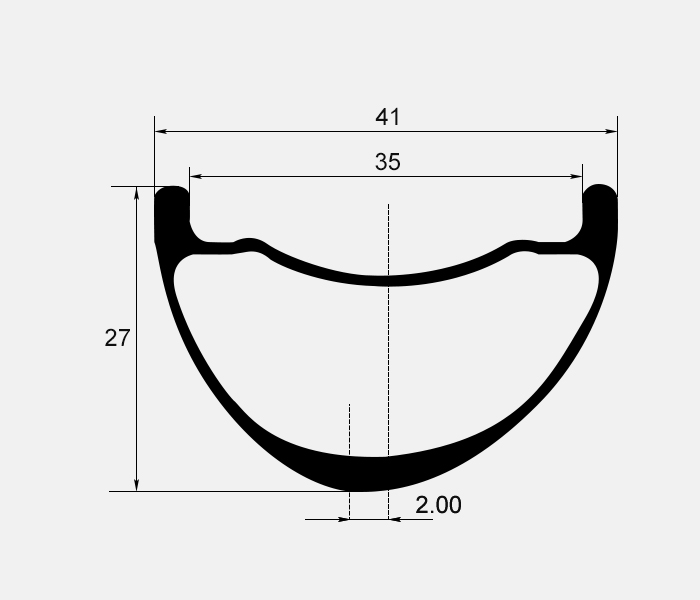

RIM SPECS

Model AM935
Material Toray T700 & T800 Premium Carbon Fiber
Size 29"/29er (ETRTO 622mm)
Series RECON PRO
Intended Use All Mountain
Bead Type Hookless
Tubeless Capable Yes
Inner/Outer Width 35mm/41mm
Depth 27mm
ERD 585mm (not including nipple head dimension)
Rim Weight 470+/-15g
Profile Asymmetric (2mm)
Max Cyclist Weight (on flat ground) 140kg/ 309lbs
Spoke Hole Angle ±7°
Spoke Tension 115~130kgf front disc side and rear drive side
Max Tire Pressure 35psi/ 2.41bar
Recommended Tire Width 2.4" ~ 3.1"

Built to handle a host of new wide format tires all the way up to a full-on 3.0” Plus tire, with our durable BlackTek finish, updated profile, and new manufacturing process, the AM935 is sure to stand the test of time.

Utilizing our updated asymmetric profile and new manufacturing process, you’re getting a very modern rim that is not only strong and scratch resistant, but also quite versatile.

Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Model: AM935
Material: Toray T700 & T800 Premium Carbon Fiber
Size: 29"/29er (ETRTO 622mm)
Series: RECON PRO
Intended Use: All Mountain
Bead Type: Hookless
Tubeless Capable: Yes
Inner/Outer Width: 35mm/41mm
Depth: 27mm
ERD: 585mm (not including nipple head dimension)
Rim Weight: 470+/-15g
Profile: Asymmetric (2mm)
Max Cyclist Weight (on flat ground): 140kg/ 309lbs
Spoke Hole Angle: ±7°
Spoke Tension: 115~130kgf front disc side and rear drive side
Max Tire Pressure: 35psi/ 2.41bar
Recommended Tire Width: 2.4" ~ 3.1"

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter
Finish: Matte, Glossy, Satin, Colored Paint
Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services

Please carefully inspect your package when unboxing it and contact us immediately if it is damaged or if anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste using digital docs.

Download user guides >>

Overview

Built to handle a host of new wide format tires all the way up to a full-on 3.0” Plus tire, with our durable BlackTek finish, updated profile, and new manufacturing process, the AM935 is sure to stand the test of time.

Utilizing our updated asymmetric profile and new manufacturing process, you’re getting a very modern rim that is not only strong and scratch resistant, but also quite versatile.
Specs
Rims

Model: AM935

Material: Toray T700 & T800 Premium Carbon Fiber

Size: 29"/29er (ETRTO 622mm)

Series: RECON PRO

Intended Use: All Mountain

Bead Type: Hookless

Tubeless Capable: Yes

Inner/Outer Width: 35mm/41mm

Depth: 27mm

ERD: 585mm (not including nipple head dimension)

Rim Weight: 470+/-15g

Profile: Asymmetric (2mm)

Max Cyclist Weight (on flat ground): 140kg/ 309lbs

Spoke Hole Angle: ±7°

Spoke Tension: 115~130kgf front disc side and rear drive side

Max Tire Pressure: 35psi/ 2.41bar

Recommended Tire Width: 2.4" ~ 3.1"

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter

Finish: Matte, Glossy, Satin, Colored Paint

Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services

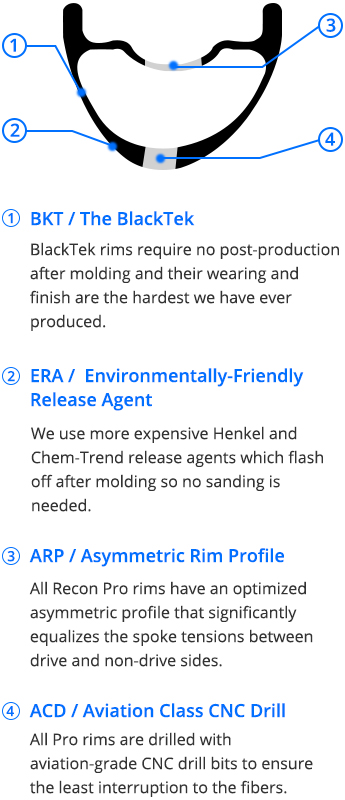

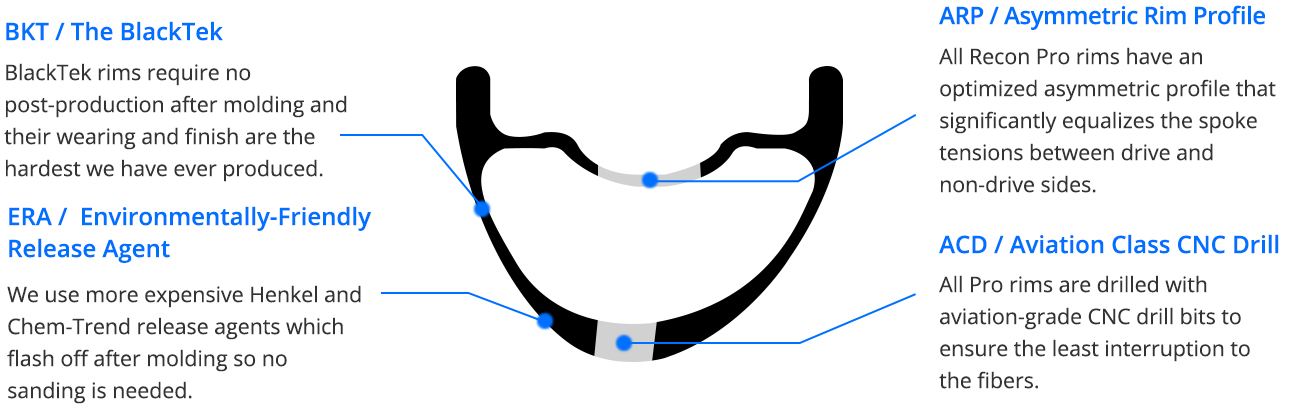

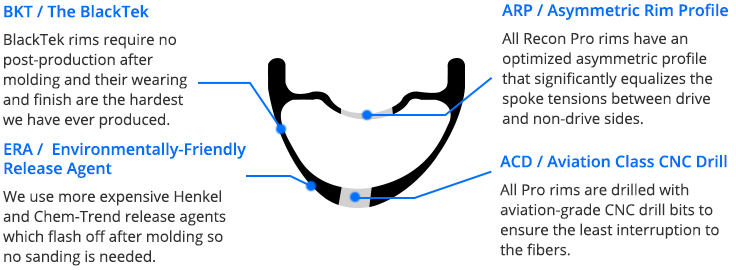

Tech

Learn More >>
Warranty

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>
In The Box

Please carefully inspect your package when unboxing and get in touch with us immediately if the package is damaged or anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste with the use of digital manuals.

Download user guides >>

Gallery

light-bicycle-am935-am735-mixed-wheels-for-a-mullet-e-bike

Gino : This is my E-Bike IBIS OSO, with my new carbon rims front 29 AM935 and rear 27.5 AM735.

Switzerland

light-bicycle-am935-29er-all-mountain-wheelset-

Light Bicycle : Rims: AM935 UD Paintless 28H External Hole With Drain Holes With Access Holes Hubs: DT SWISS 240 EXP Black 15/110mm 12/148mm BOOST straight pull 6-bolt 28H EXP 36 Sram XD Spokes: Sapim CX Ray Nipples: Sapim Aluminium Red

Light Bicycle : Rims: AM935 UD Paintless 32H With Drain Holes With Access Holes Hubs: DT SWISS 350 Big Ride 15/150mm 12/197mm J-bend 6-bolt 32/32H 54T Sram XD Spokes: Sapim D-Light Nipples: Sapim Brass Black

Light Bicycle : RIMS: AM935 UD Paintless 28H External Hole With Drain Holes With Access Holes HUB-F: DT SWISS 240 EXP 15 / 110mm BOOST straight pull 6-bolt HUB-R: DT SWISS 240 EXP 12 / 148mm BOOST straight pull 6-bolt 54T Sram XD SPOKE: Sapim CX Ray NIPPLE: Sapim Brass Oil slick

Brian : I thought I'd show you where & what the new wheels are being used for. I use them as my bikepacking/adventure wheel set. I've attached a couple of photos from a recent overnighter. They're fantastic. Thanks again for such wonderful service.

New Zealand

View More Reviews >>

COMMENTS

Don 2025/02/19

I have purchased 2 sets of the AM935 wheelsets and and still loving them. The last set I purchased was a mullet setup with the AM935 up front and the AM735 in the rear. I can't see how the get that set on the website?

LightBicycle 2025/02/19

Hi Don, Yes, it is okay to order front AM935 and rear AM735. What hubs do you prefer? We can quote on complete wheelset accordingly. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Tad 2023/02/28

I want to purchase a pair (2 rims) of Recon Pro AM935 in 32 holes, from the Canadian warehouse. The finish is unimportant if I can save time and money getting them from North America. What exactly do you have there? I am a returning customer, very happy and impressed with my previous rims from Light Bicycle. Thank You Tad Teays The Dalles, Oregon

LightBicycle 2023/02/28

Hi Tad, We do have AM935 32H rims 29er stock in the Canada warehouse. We sent you the quotation in email. Please check. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Mark 2022/12/03

Hi which of your wheelsets (carbon/Alu) do you recommend for a surly ecr with 3“ (tubeless ready)? Can I save some weight if I do not go for 40mm, or is this not safe to go for 35mm or 30? Thanks mark

LightBicycle 2022/12/08

Hi Mark, Hi Mark, We only sell carbon bike wheels . And we got some great suited wheels as per your request. 1. For 3" tires, we recommend using wider rims. So 32mm internal would work. 2. Can you tell me more about your riding style and personal profile so I can make better recommendations for you. 3. We can reduce the weight by building with lighter hubs and parts. Do you have a preferred budget range in mind? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Robert 2021/05/22

Hi. Good Afternoon! I was wondering if it would be possible to send you a set of hubs and spokes and have them built into a wheelset?? If this is possible could you also do custom decals on the rims and hubs?? Cheers!

LightBicycle 2021/05/22

Hi Robert, It is okay to send us the hubs, and we can build mtb wheelset 29er for you. Are you hubs normal lacing pattern? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Mike 2021/01/30

Hello, I had a question about two of your 29er rims. I was looking at the AM 935 and the EN 934. I usually run tires between 2.6 and 2.8, weigh close to 200lbs and often bikepack. The AM 935 have a weight limit of 140kg while the EN 934 has a weight limit of 125kg while claiming to be one of your stiffest options. Can you explain the difference in weight limits as well as make a recommendation. Thanks, Mike

LightBicycle 2021/01/30

Hi Mike, As the model name indicates, the AM935 was designed for All-Mountain 29er riding. On the other hand, the EN rims are for Enduro riding, which is way more aggressive than AM riding. The wheels suffer from big drops and force. We evaluate both the durability and strength of the wheels to adjust the rider weight recommendation range. I hope this makes sense. On the other hand, if you are a super aggressive rider, we can make a specially reinforced version for you. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Get in touch

Feel free to leave a comment if you have any questions or suggestions on our products or other issues.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Build Your Recon Pro RIM AM935

Overview

Specs

Tech

Warranty

In The Box

Rims

Full Custom

Overview

Specs

Rims

Full Custom

Tech

Warranty

In The Box

Gallery
