Hand-built carbon mountain bike 29er plus wheels 50mm wide beadless tubeless compatible

BUYING OPTIONS

Global warehouse ship to most countries while the North American warehouse only ship to the United States and Canada

GLOBAL
NORTH AMERICAN
  • 1

    HUB

  • 2

    SPOKES/NIPPLES

  • 3

    RIM

  • 4

    ACCESSORIES

  • 5

    OVERVIEW

HUB

Spoke This is a required option.

Brand Model Type Thread Diameter (mm) Weight(g) Gauge Riding Style Available(Warehouse Location)
Sapim Race Double Butted 2.0 - 1.8 - 2.0 5.7g (260mm) 14G Heavy Duty North America, China
Sapim D-Light Double Butted 2.0 - 1.65 - 2.0 4.8g (260mm) 14G Versatile North America, China
Sapim CX-Ray Aero 2.0 - 0.9/2.3 - 2.0 4.4g (260mm) N/A Light Aero North America, China
DT SWISS Competition Race Double Butted 2.0 - 1.6 - 2.0 4.8g (260mm) 14G Versatile China
Pillar PSR X-TRA 1420 Aero 2.0 - 0.95/2.2 - 2.0 4.4g (260mm) N/A Inexpensive Aero China

Sapim D-Light – The best all-around and most popular spoke for carbon wheels. Lightweight but incredibly strong.
Sapim Race – Our strongest and stiffest spoke. These spokes are suitable for heavy or extremely aggressive riders who need a stiffer wheel.
Sapim CX-Ray – The lightest spoke in our lineup is still quite strong due to the elasticity and amazing fatigue life.

DT Competition Race - All Mountain and XC spoke used by the Chinese location as a substitue for the D-Light (depending on availability)

Pillar PSR X-TRA 1420 - An inexpensive bladed spoke, great for road and cyclocross riding.

DT Swiss Competition Race

Sapim CX Ray

Nipple This is a required option.

Nipple Brand Model Material Color Length Available
(Warehouse Location)
Sapim Double Square Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 16mm Norh America
Sapim Polyax/ Polyax Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 14mm China
Sapim Polyax Secure Lock Brass Black 16mm China
DT Swiss DT SQUORX (PRO HEAD PRO LOCK) Alloy Black, Red 15mm China
DT Swiss Standard PRO LOCK Brass Black 14mm China

Aluminium Black

Aluminium Red

Brass Black

Spoke hole drilling This is a required option.

Centered drilling is the most popular.

centered

offset

Finish This is a required option.

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

glossy

matte

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer.
3k/12k/UD are the 3 choices for cosmetic appearance.The rim strength & weight is virtually identical.
UD Matte is the most popular and has a subtle look.
3k weave has a more traditional carbon fiber look.
More info about Weave >>

12K

3K

UD

Decal This is a required option.


The new graphics are included and available in 7 colors. The decals are now easily replaceable so you can keep your rims looking fresh.

Stealth

Blue

Green

Magenta

Orange

Red

Yellow

Valve Stem This is a required option.

We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valve with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The vavle core is removeable so you can add sealant withoutn removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

One 10 yard roll of tape will be included. It is typically covers 2 rims with two laps each or 4 rims with one lap each.The high tensile tubeless tape features a natural rubber adhesive that does not leave a residue on the rims. On mountain bike rims, one layer of 18mm width tape is strong enough to seal the access holes which makes for the lightest tubeless setup.
Instructions of tubeless rim tape

None

Add Tubeless Tape USD +6 each

mountain bicycle plus rim

In Stock, typically ships within 2 business days

In Stock, typically ships within 2 business days

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Recon Pro orders start shipping in October.

- + Pair

Spoke This is a required option.

Brand Model Type Thread Diameter (mm) Weight(g) Gauge Riding Style Available(Warehouse Location)
Sapim Race Double Butted 2.0 - 1.8 - 2.0 5.7g (260mm) 14G Heavy Duty North America, China
Sapim D-Light Double Butted 2.0 - 1.65 - 2.0 4.8g (260mm) 14G Versatile North America, China
Sapim CX-Ray Aero 2.0 - 0.9/2.3 - 2.0 4.4g (260mm) N/A Light Aero North America, China
DT SWISS Competition Race Double Butted 2.0 - 1.6 - 2.0 4.8g (260mm) 14G Versatile China
Pillar PSR X-TRA 1420 Aero 2.0 - 0.95/2.2 - 2.0 4.4g (260mm) N/A Inexpensive Aero China

Sapim D-Light – The best all-around and most popular spoke for carbon wheels. Lightweight but incredibly strong.
Sapim Race – Our strongest and stiffest spoke. These spokes are suitable for heavy or extremely aggressive riders who need a stiffer wheel.
Sapim CX-Ray – The lightest spoke in our lineup is still quite strong due to the elasticity and amazing fatigue life.

DT Competition Race - All Mountain and XC spoke used by the Chinese location as a substitue for the D-Light (depending on availability)

Pillar PSR X-TRA 1420 - An inexpensive bladed spoke, great for road and cyclocross riding.

Sapim CX Ray

Sapim D-Light

Sapim Race

Nipple This is a required option.

Nipple Brand Model Material Color Length Available
(Warehouse Location)
Sapim Double Square Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 16mm Norh America
Sapim Polyax/ Polyax Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 14mm China
Sapim Polyax Secure Lock Brass Black 16mm China
DT Swiss DT SQUORX (PRO HEAD PRO LOCK) Alloy Black, Red 15mm China
DT Swiss Standard PRO LOCK Brass Black 14mm China

Aluminium Black

Aluminium Red

Aluminium Blue

Aluminium Gold

Aluminium Green

Aluminium Lime

Aluminium Orange

Aluminium Purple

Spoke hole drilling This is a required option.

Centered drilling is the most popular.

centered

Finish This is a required option.

matte

Weave This is a required option.

UD

Decal This is a required option.


The new graphics are included and available in 7 colors. The decals are now easily replaceable so you can keep your rims looking fresh.

Stealth

Blue

Green

Magenta

Orange

Red

Yellow

Valve Stem This is a required option.

We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valve with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The vavle core is removeable so you can add sealant withoutn removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

We use a tubeless tape with high tensile strength and only one lap is required so it is very light. It uses a natural rubber adhesive that does not leave any residue on the rims.

None

Add Tubeless Tape USD +8 each

mountain bicycle plus rim

In Stock, typically ships within 2 business days

In Stock, typically ships within 2 business days

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Recon Pro orders start shipping in October.

- + Pair

Weight: 980.00g+/-30

Final total: USD 376.00+

Weight: 980.00g+/-30

Final total: USD 436.00+

PREVIOUS NEXT You missed some options. You missed some options.

Added to cart! View cart or continue shopping.

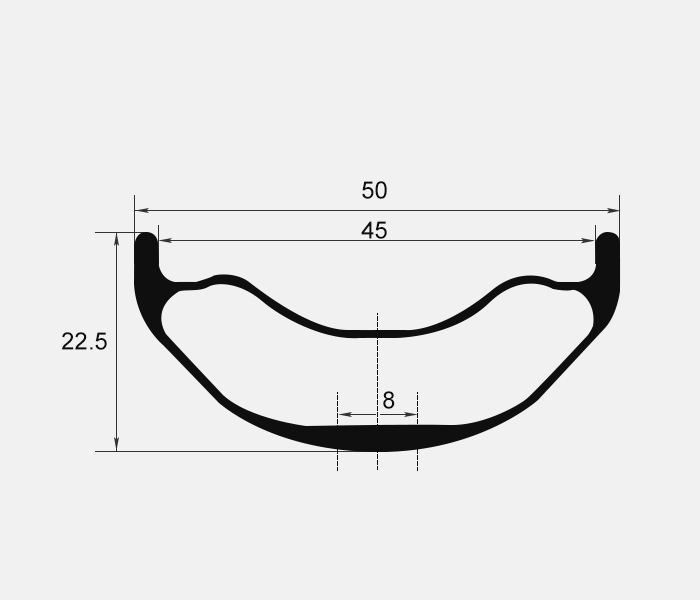

RIM SPECS

  • Size 29er
  • Use Plus
  • Type Hookless
  • Tubeless Ready
  • Inner/Outer Width 45mm/50mm
  • Depth 22.5mm
  • ERD 594mm (not including nipple head dimension)
  • Weight 490+/-20g
  • Offset 0mm (symmetric)
  • Drilling Offset ±4mm
  • Weight Limit 135kg
  • Spoke Hole Angle ±5°
  • Spoke Tension ≤145kgf recommended
  • Tyre Pressure ≤35psi recommended
  • Tire 2.8" ~ 3.1" recommended

Teleport to the rim page.

With a huge 45mm internal width and the ability to run anything from a 2.8” tire right up to a monstrous 3.2”, the XC745 (WM29C15) will give you the smooth rolling traction you’ve always wanted.


Typically, stock alloy plus wheelsets are built with heavier spokes to make up for their lack of stiffness. With a vertically compliant rim and significant side stiffness, lighter spokes are used to reduce overall wheel weight. Upgrading to our plus wheelset can easily save more than a pound off of a stock wheelset! Breath new life into your ride and bring a new level of responsiveness, stiffness, and control.

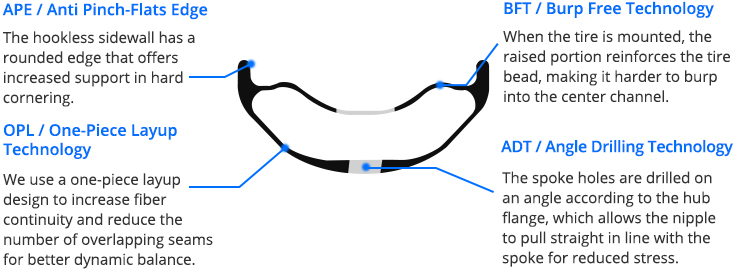

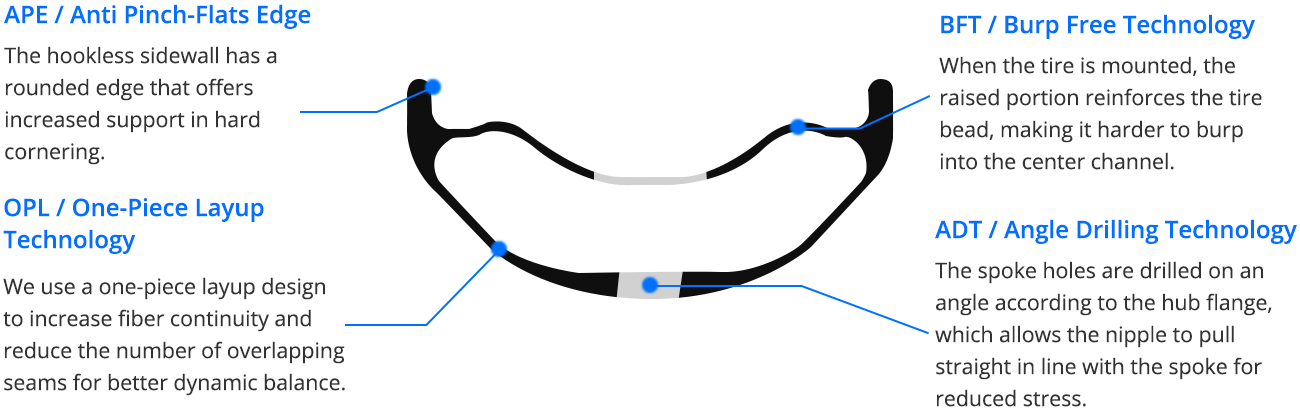

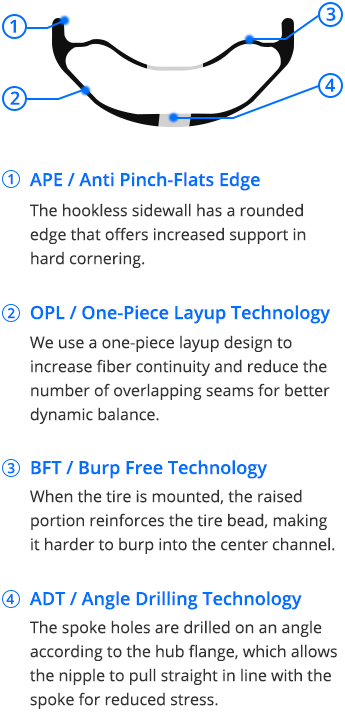

Hookless: Carbon fiber flows continuously over the bead area to provide the best impact resistance and a significant strength increase compared to a clincher rim.


Manufacturing process: Our air bladders are made from a special material which produces smoother walls, result in a lighter rim, and are completely removed without harsh chemicals. They are removed through the valve hole with a unique process so that the rim does not have to be patched like traditional manufacturers use. This significantly improves the strength of the rims. Read More about our process


Hand-Built: Each wheelset is painstakingly built by hand to tension within 5% variance. Each spoke's tension rating is recorded in our system, as is the roundness and lateral tolerance.


T700: Constructed with premium Toray T700 carbon fiber. The best strength to weight ratio with no expense spared.


Precise layup: Each rim carries its own layup schedule documents which are followed meticulously by the layup workers. Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim.


Angled Holes: Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress. This results in fewer broken spokes and nipples.


Bead lock: The small ridges on either side of the drop channel help secure tubeless tires in place. The bead lock makes it easier to seal up tubeless tires with a floor pump, and they are incredibly hard to burp.


Tubeless: While the rims are optimized for a tubeless setup with the addition of tubeless tape, they also work with tubes.


For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Know more about the warranty policy >>

GALLERY

Adventure collection from all over the world.

LEARN MORE

COMMENTS

R

Rey 2018/04/08

Would like to convert my fatty aswelll to 29er plus. Front 15x150TH, Rear 12x197TH. Prefer DT Swiss 350 big ride hubs, please send me quote, thank u


LightBicycle 2018/04/09

Dear Rey , Thank you for your inquiry! Please find our quotation as below. 29er plus Wheelset RM29C15 is USD907/pair with below specs --Rims: RM29C15, 50mm wide, UD, matte, 32H --Hubs: black DT Swiss 350 big ride, front 15*150mm/rear 12*197mm, SRAM XD, J-bend, 6-bolt --Spokes: black Sapim cx-ray, J-bend --Nipples: black alloy Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

C

clint 2017/06/06

can you make and cost please 29 50mm rims DTswiss 240s hubs 28 hole both boost sram xx1 CX Ray spokes red ali nipples matte 3 k finnish


LightBicycle 2017/06/07

Hello Clint, Thanks for your inquiry. The 50mm wide 29er plus wheelset with following specs is $1082/pair. -Rims: RM29C15, 490 /-20g, 3k matte, 28H. With center drilling? -Hubs: Black, DT 240S straight pull 6-bolt boost front 15*110mm TA/ rear 12*148mm TA for Sram xx1 -Spokes: Black, Sapim cx-ray straight pull spoke -Nipples: Red, alloy Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

J

Joe 2017/03/12

I want to convert my fatty to 29 but it has 12x177 TH 10s in the rear (15x150 TH front).


LightBicycle 2017/03/13

Hello Joe, Thanks for your inquiry. We can build the 29er 50mm plus wheelset with front 15*150mm TA/ rear 12*177mm TA. Please find our quotations as below. All pricing in USD. -WM29C15 (with Hope pro4 fatsno hubs): $923/pair -WM29C15 (with DT 350 Big ride hubs): $823/pair Which do you prefer? Thanks, Lightbicycle


R

Rey 2018/04/08

Would like to convert my fatty aswelll to 29er plus. Front 15x150TH, Rear 12x197TH. Prefer DT Swiss 350 big ride hubs, please send me quote, thank u


LightBicycle 2018/04/19

Hi Rey, A few days ago, we sent this 29er plus wheelset quotation to your email address. Have you got it? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

I

IS 2017/02/17

Can you get also DT Swiss Big Ride hubs centerlock version for wheels?


LightBicycle 2017/02/17

Hello IS, Thanks for your inquiry. Currently, only DT 350 Big Rider J-bend 6-bolt 32H hubs are available. Does that work for you? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

C

Chip 2016/12/28

Are Hope hubs for 15/150mm and QR 190mm available in the colors shown? If so, is there an up-charge? Are there any aluminum spoke nipple color options other than red?


LightBicycle 2016/12/29

Hello Chip, Thanks for your inquiry. For Hope fatsno hubs, may I know which color you prefer? Then we will check if that is available. The price is the same if hubs are in different color. For spoke nipple, black and silver are available also, does that work for you? Thanks, Lightbicycle


T

Tony 2017/02/10

I'd like to order the 50mm 29er wheel set: -Rim: RM29C15, 3k, matte, 28H with custom decal -Hub: front: DT 240S 15*110mm straight pull predictive steering hub is available for Rock Shox RS-1 forks. rear: DT 240 12*148 boost, SRAM XX1 free hub -Spokes: black DT competition -Nipples: black alloy How much is the cost and what is file format for custom rim graphic? Thanks, Tony


LightBicycle 2017/02/13

Hello Tony, Thanks for your inquiry. The 50mm wide 29er plus wheelset price as required (with DT 240S front predictive steering hub/ rear boost hub and DT competition spokes) is $1048/pair. The delivery cost is $78 for one wheelset to Spain by EMS. All pricing in USD. For the custom decals, please email me a picture or describe what you would like. Then we will quote accordingly. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

A

Art 2016/11/25

I'd like to order just a front wheel based on your 29C15 wheelset. 29" rim, 50mm wide, Matte, UD, Black decal, DT 350 110x15 boost straight pull front hub, DT comp black spokes, black alloy nipples and valve stem. How much would that be including shipping to the USA? Thanks, Art


LightBicycle 2016/11/25

Hello Art, Thanks for your continued support. The 50mm wide 29er plus front wheel with following specs is $373/pcs. The rim tape is $6 each, and valve stem is $7 each. Shipping with EMS is $57. -Rim: RM29C15, UD matte, 28H, with black decal -Hub: Black, DT 350 straight pull 6-bolt boost 15*110mm -Spokes: Black, DT competition race -Nipples: Black alloy Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

A

Anton 2016/11/20

Hi, I have two sworks fatboy with the 26HED weels on that I want to get two sets of 29 Weels that would fit the bike. I know they are through axle and I am running sram 1/11 on them.can you buildt me a Set that I can just bolt on and go with 3" tyres. I run them rigit so everyrhing clears. Not to sure on the axle lenghts and hubs and stuff. It needs to be the lightest.


LightBicycle 2016/11/21

Hello Anton, Thanks for your inquiry. The 29er plus rims mounted with 3’’ tires is 778mm (OD). Picture attached for reference. Would you please check if it works with your 26er fat bike? If our 29er plus wheels work with your bike, we will email you the wheelset price and weight accordingly for you. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

T

Tyler 2016/10/23

Hi, How much weight does the rim reinforcement add? Thanks Tyler


Light-Bicycle 2016/10/24

Hello Tyle, Thanks for your inquiry. We can add some carbon fiber to enhance the rims' strength, with a heavier weight about 50g added. Does it work for you? Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

J

Jim 2016/10/03

I'm looking to build up a set of 29 wheels for my FatBoy Pro. 150x15 front 190QR rear w/xD freehub body & an additional set of 197x12 endcaps Do you have the DT Swiss 350 hubs or is Hope FatSnow the only option? Thanks!


Light-Bicycle 2016/10/20

Hello Jim, Sorry for the late reply. We were on National Day vacation during Oct 1st ~ 7th. We are able to build the 29er plus wheels with DT 350 big ride hubs or Hope fat bike hubs. Which do you prefer? Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

M

marc 2016/09/04

do supply complete bike too or just wheels?


Light-Bicycle 2016/09/05

Hello Marc, Thanks for your inquiry. Currently, we only sell rims or wheels, no complete bike. You can order the wheels here to build the bike at your local bike shops. Does that work for you? Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

LEAVE COMMENTS
