Build Your Falcon RIM AR56 disc - 30mm

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

Buy wheelset

Global Shop

US Shop

EU Shop

Ships worldwide. See what's on sale>>

Center Channel Hole This is a required option.

No Access Holes

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h, with drain holes

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD + (discount price)

Lead time: typically ships in 3 business days

ADD TO CART You missed some options.

We do not stock this item at the Australian shop. See what's available.

You can order this product from our Global / NA shops.

Please fill out this form if you are looking for a custom wheelset.

We'll get back to you soon to study the customization requests via email.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the US Shop. Check this link to see what items we stock, or send us an email to discuss.

Our Global Shop can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelsets. We will get back to you via email to discuss in 24hrs.

Our apologies, we do not stock this item at the CA Shop. Check this link to see what items we stock, or send us an email to discuss.

The wheelsets are still in transit to this shop. We’ll update this page when they’re available. Learn more about our European shop.

You can order this product from our Global or North American shops.

Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.

DEFAULT SETTINGS

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

Quick Buy (In Stock)

Full Custom (Made to Order)

DEFAULT SETTINGS

Rims

Hook, matte, UD, with drain holes

Hook, matte, UD, with access holes, with drain holes

Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes

Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes

Paintless, UD, 5-year warranty, no drain holes

Grooved graphene surface, hook, matte, UD, with access holes, with drain holes

Grooved graphene surface, hook, matte, UD, no access holes, with drain holes

Matte UD, 32H, Centered (Staggered)

Hubs

Hope Pro 4 Fatsno J-bend 6-bolt

15/150mm (F) & 12/197mm (R) Sram XD

Straightpull centerlock black 24H

12/100mm & 12/142mm

Shimano Road 11S

DT Swiss straightpull / Bitex j-bend, centerlock, 28H

J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H

15/110mm boost & 12/148mm boost Sram XD

DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear

100mm QR & 130mm QR Shimano Road 11S

Spokes

Sapim CX Ray black

Sapim D-Light

Accessories

No decals/valves/tape

No decals/valves/tape/pads

No decals/valves

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Bead type This is a required option.

Hook

Brake System This is a required option.

Disc

Hole Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc), most of which are at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

24H

28H

32H

Full Custom

Finish This is a required option.

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

Full Custom: This option (if provided here to choose) offers custom finish such as Satin/Raw etc at no extra charge but subject to rim models with 3-5 days LONGER on manufacture. And custom color painting is also available with added 15g/rim and extra $20USD/rim as a start. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

Glossy

Matte

Full Custom

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer for cosmetic appearence.

The rim strength & weight is virtually identical.

Matte UD is the most popular and has a subtle look.

The futuristic Hexa-Comb and Braided UD are smooth and looks great on deep rims.
More info about Weave >>

Full Custom: This option (if provided here to choose) offers custom weaves such as 3k twill vertical/ horizontal/ Braided UD etc with extra charge of $15USD/rim as a start but subject to rim models with 3~5 days LONGER on manufacture. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

12K

Hexa-Comb USD +15

Full Custom USD +15

Center Channel Hole This is a required option.

With Access Holes: This is the traditional method. Spoke access holes are drilled in the center channel to allow the nipples to easily be fed through the rim. Tubeless tape is required to seal the rim.

No Access Holes: No spoke access holes are drilled in the center channel. Feeding the nipples through the rim is more challenging, but it allows for a tubeless setup without the need for tape. This kind of system is known as "road tubeless" and was made popular by Mavic. Some companies still refer to it as "UST style", however, UST is actually a specific interface between the tire and rim which was developed by a partnership between Mavic, Michelin, and Hutchinson.

Currently, rims with 'No Access Holes' do not work with our carbon spokes.

With Access Holes

No Access Holes

Drain Hole This is a required option.

The two small drain holes located 90° to the valve hole effectively help evacuate both the water trapped inside the rim and the air leaking into the rim chamber caused by nonperfect tubeless tape sealing handwork that may risk rim explosure in an aggressive tire inflating.

It is the small reinforced layer prelaminated on the area where the drain hole is drilled later that makes the rim strength fairly ensured without any compromise of weight added.

Riders who ride in wet areas are suggested to order rims with drain holes.
More info about holes >>

With Drain Holes

No Drain Holes

Decal This is a required option.

Road rims use super light waterslide decals (matte colors). The decal is very thin and applied under a clearcoat so they are non-removeable.

Pictures about light-bicycle decal >>

If you want custom graphic, Please email us, we will design for you. There will be extra cost for custom graphic on rims.

Pictures about custom graphics >>

Blank (No decal)

Stealth (Grey)

Blue

Green

Magenta

Orange

Red

White

Yellow

Valve Stem This is a required option.

We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.
Information of tubeless rim tape

Apply Tubeless Tape: In Light Bicycle, a proprietary taping aid works with our wheel builders to guarantee that a solid taping craft at industrial-level is well implemented in order for you to ride carefree tubeless at any conditions.

You do NOT have to use any tubeless tape to run tubeless if you have chosen "No Access Holes" on the rim center channel.

None

Add Tubeless Tape USD +6 each

AR56-road-disc-56mm-carbon-rims-avalable

Recon Pro orders start shipping in October.

- + PCS

Bead type This is a required option.

Hook

Brake System This is a required option.

Disc

Hole Count This is a required option.

ROAD Product
Road rim brake: Stocked in 20h and 24h
Road disc: Stocked in 24h and 28h

MTB Product
MTB rims: Stocked in 32h. Only XC Flyweight rims are stocked in 28h as well as 32h
Please note that our valves are drilled for presta and spoke holes are made for external nipples by default. If you have a custom drilling requirements please contact us.

24H

28H

Finish This is a required option.

Matte

Weave This is a required option.

Decal This is a required option.

NA warehouse offers road rims and flyweight rims using super light waterslide decals (glossy black). The decal is very thin and applied under a clearcoat so they are non-removeable.

Non-removable glossy black waterslide graphics

Valve Stem This is a required option.

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.

Apply Tubeless Tape: The tubeless tape with high tensile strength is tightly installed on the wheel(s) at industrial-level for you to ride carefree tubeless at any conditions.

None

Add Tubeless Tape USD +6 each

Recon Pro orders start shipping in October.

- + PCS

Piece Weight: 460.00g+/-15

Subtotal: USD 163+

Piece Weight: 460.00g+/-15

Subtotal: USD 213+

PREVIOUS NEXT

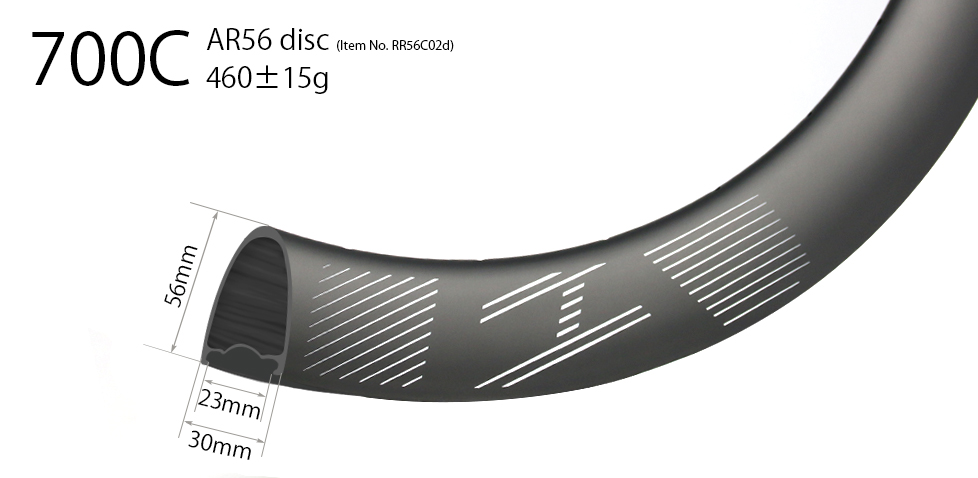

RIM SPECS

Rim Model AR56 disc
Material Toray T700 & T800 Premium Carbon Fiber
Size 29”/700C (ETRTO 622mm)
Series FALCON
Intended Use Road/CX/Gravel
Bead Type Clincher
Tubeless Capable Yes
Inner/Outer Width 23mm/30mm
Depth 56mm
ERD 527mm (not including nipple head dimension)
Rim Weight 460+/-15g
Profile Symmetric (0mm)
Max Cyclist Weight (on flat ground) 135kg/ 298lbs
Spoke Hole Angle ±8°
Spoke Tension 120~135kgf front disc side and rear drive side
Max Tire Pressure (with 25C) 110psi/ 7.58bar
Recommended Tire Width 23C~50C

Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Rim Model: AR56 disc
Material: Toray T700 & T800 Premium Carbon Fiber
Size: 29”/700C (ETRTO 622mm)
Series: FALCON
Intended Use: Road/CX/Gravel
Bead Type: Clincher
Tubeless Capable: Yes

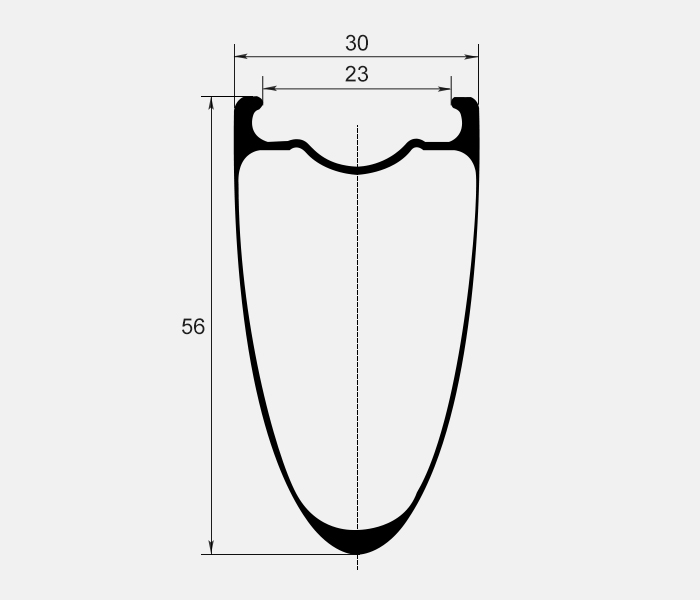

Inner/Outer Width: 23mm/30mm
Depth: 56mm
ERD: 527mm (not including nipple head dimension)
Rim Weight: 460+/-15g
Profile: Symmetric (0mm)
Max Cyclist Weight (on flat ground): 135kg/ 298lbs
Spoke Hole Angle: ±8°
Spoke Tension: 120~135kgf front disc side and rear drive side
Max Tire Pressure (with 25C): 110psi/ 7.58bar
Recommended Tire Width: 23C~50C

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter
Finish: Matte, Glossy, Satin, Colored Paint
Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services

Please carefully inspect your package when unboxing it and contact us immediately if it is damaged or if anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste using digital docs.

Download user guides >>

Overview

The 30mm external and 23mm internal width 56mm road disc rim provides the perfect platform for anything from a 23C to 50C road, gravel, or cyclocross tire and makes tubeless set up a breeze. Whether you're sprinting for primes or tackling a 200-mile gravel epic, the versatile AR56-30 is up for the challenge.
Specs
Rims

Rim Model: AR56 disc

Material: Toray T700 & T800 Premium Carbon Fiber

Size: 29”/700C (ETRTO 622mm)

Series: FALCON

Intended Use: Road/CX/Gravel

Bead Type: Clincher

Tubeless Capable: Yes

Inner/Outer Width: 23mm/30mm

Depth: 56mm

ERD: 527mm (not including nipple head dimension)

Rim Weight: 460+/-15g

Profile: Symmetric (0mm)

Max Cyclist Weight (on flat ground): 135kg/ 298lbs

Spoke Hole Angle: ±8°

Spoke Tension: 120~135kgf front disc side and rear drive side

Max Tire Pressure (with 25C): 110psi/ 7.58bar

Recommended Tire Width: 23C~50C

Read more for actual road tire width

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter

Finish: Matte, Glossy, Satin, Colored Paint

Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services

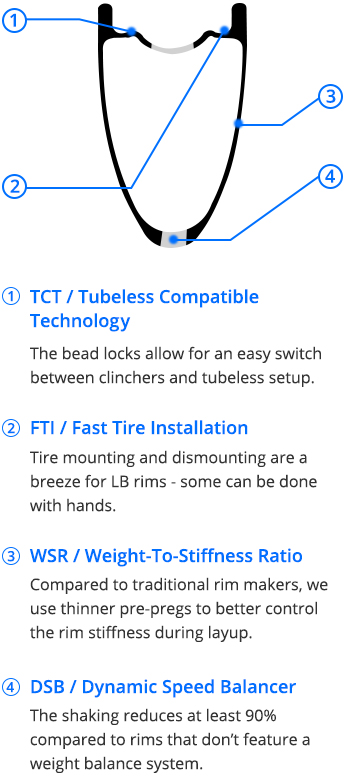

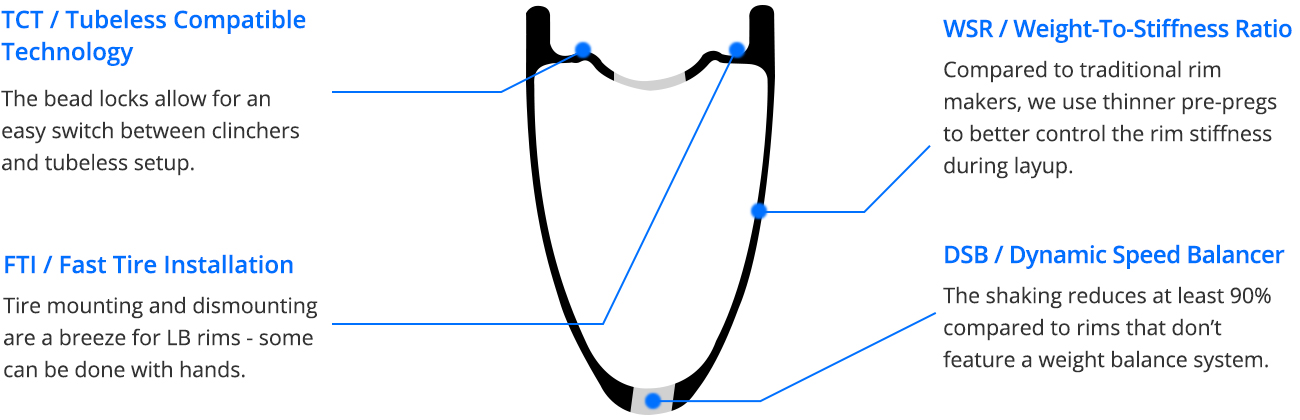

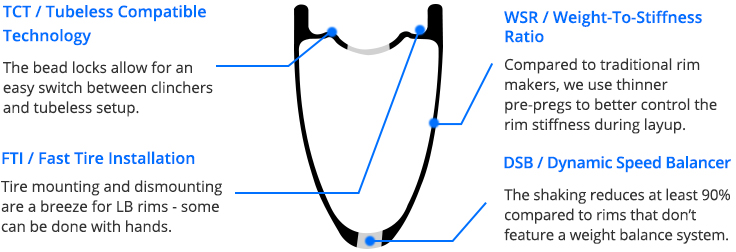

Tech

Learn More >>
Warranty

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>
In The Box

Please carefully inspect your package when unboxing and get in touch with us immediately if the package is damaged or anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste with the use of digital manuals.

Download user guides >>

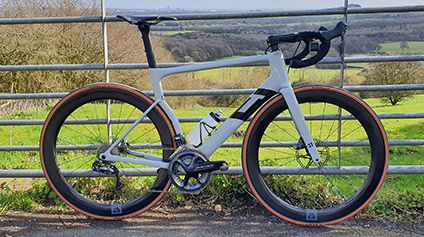

Gallery

light-bicycle-ar56-disc-brake-gravel-carbon-wheelset-installed-on-a-scott-addict-gravel-tuned-bike

John : Post on my ig @svpxjohn2 has all the bikes details and over 100k views and a ton of comments and saves

light-bicycle-ar56-best-all-road-wheelset-disc-brake-30mm-wide

Erik : My son is happy with his AR56 wheelset on his Cannondale.

Sweden

light-bicycle-ar56-disc-carbon-wheelset-built-on-a-mmr-bike

Maciek : They turned out to be a lot cuter than I thought they would be. The bike is around 600g lighter than 30mm alloy wheelset before. It rides a little stiffer, and gives ease on turns I wasn't sure to make before. But would take AR45 instead of 56 next time :)

Poland

light-bicycle-ar56-disc-installed-on-a-canyon-grail-7-etap

Linh : 2022 Canyon Grail 7 eTap Wheel build: LightBicycle AR56 Falcon Sapim CX-Ray White Industries CLD (XDR) hubs Peaty’s X Chris King MK2 80mm valves Specialized Pathfinder Pro 2Bliss Ready 700x42 Muc-Off Ultimate tubeless kit

Australia

light-bicycle-ar56-disc-carbon-wheelset-built-on-a-van-nicholas-yukon

Marcus : The wheels arrived safely a few days ago and I set them up on my titanium 'Van Nicholas Yukon Disc' bike The weather was good enough yesterday to get out on the bike for an hour! (Last night the snow came in and is now on the ground!) First impressions: I am very impressed with this wheelset! These wheels make a notable and huge difference compared to the (pretty good) alloy wheelset that they replaced and are very competitive against other well-known carbon wheelsets that I have used in the past! It was particularly windy yesterday and due to the 56mm depth the stability in such wind was not so bad! So, so far so good!

Germany

light-bicycle-ar56-30-disc-custom-carbon-wheelset

Michael : Loving the AR56 wheels on my Ribble ultra sl

UK(Britain)

light-bicycle-ar56-disc-wheels-upgrade-on-a-canyon-bike

Jason : The AR56 disc wheelset of gloss finish with Bitex oil slick hubs is perfectly compatible with my raw carbon gloss finish Canyon Aeroad. These wheels are lightweight, fast and handle cross winds really well. The perfect depth in my opinion.

UK(Britain)

factor-o2-on-light-bicycle-ar56-56mm-depth-carbon-wheels

Thomas : I’m super satisfied with the process of designing, ordering, communication and the final build. The Falcon AR56/30 is a perfect fit for my Factor o2, they are light (1380gr) and stiff for climbing, super aero for going fast and even wide to maintain fairly low pressure. I love this setup and especially how LB (Edwin and the team) carry out my special wishes, regarding the paint job/finish and hub/lacing. Great job, thank you. Best wishes Thomas

Germany

View More Reviews >>

COMMENTS

Eirik 2025/07/18

Hello guys. Does the "Quick buy" rim come all black (total stealth without logos)

LightBicycle 2025/07/19

Hi Eirik, Yes, "Quick buy" rims/ wheelset bicycle is all black (total stealth without logos), if you want, we can help add stickers. Could you share the rims/wheelset spec? Then we can help recheck the quote for you accordingly~ Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Joel 2020/07/20

Hi, Do you offer this rim in 28mm width? I see you have a 28mm but is only 46mm. I would like to get a rim with Inner 21mm Outer 28mm Width Hook type with 56mm Depth. Thank you.

LightBicycle 2020/07/20

Hi Joel, Thanks for your inquiry! We do have RR56C03 rim with 28mm wide/56mm deep road 700C bike rim. Please check attached rim profile. Is it what you like? Thanks, Lightbicycle

Domen 2025/02/16

Hello, do you still make this RR56C03 rim? If yes, can I see the profile and what is the lightest you can make 28mm and 30mm for a 70 kg rider? Thanks.

LightBicycle 2025/02/18

Hi Domen, Yes, it is okay to order road disc rim RR56C03(21.6mm inner width, 28mm outer width, 56mm depth) disc now. We can custom 430g weight version RR56C03/RR56C02 for you. Do you want wheelset or only rims? Could you share the details, then we can quote to you accordingly. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Maciek 2024/10/14

Hi I would like to know if you have experience with building wheelset with Mahle x35+ hub motor? I know there are 32H but what spoke length should I pick to fit with this rim?

LightBicycle 2024/10/15

Hi Maciek, Yes, this is the wheel we assembled with the customer's Mahle X35 hub. We just shared some pictures with you through email. Please check. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Mario 2024/03/01

Hi, can I get these with 32 holes? Is there a Pro Version?

LightBicycle 2024/03/02

Hi Mario, Yes, we can manufacture AR565 road disc rim with 32H. What kind of your bike is it? Is it normal road disc bike? May I know your weight? And what is the bike packing weight? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Tim 2024/02/06

Hi! What spoke length and nipple size/length do you use for the AR56 when used with a 24 hole DT Swiss 240 in front and 28 hole for the rear wheel?

LightBicycle 2024/02/07

Hi Tim, Thanks for reaching out. What is your hubs axle size? 12*100mm/12*142mm? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Paolo 2021/02/07

I want to order 2 rims AR56 disc-30mm wide-56mm deep 28 hole 3k AR56 disc-30mm wide-56mm deep 24 hole 3k Center channel with holes TPD delivery to Italy Can you send me a price? Best regards, Paolo

LightBicycle 2021/02/08

Hi Paolo, We just sent an invoice for these two 700C road disc AR56 deep rims throu email. Please check. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

William 2020/06/10

Hello, I'd like to buy a set of AR56 wheels, how much would deformate a Continental GP5000 tubeless 25mm? Is your chart made on tube tires or tubeless one? Best regards, William

LightBicycle 2020/06/11

Hi William, We tested with tubeless tires. If you like to run GP5000 on the AR56 road disc wheels 700C, I would suggest you go wider (28c). 25c is too difficult to handle. But some people find it easier than others. Érico shared his experience with AR56 rims with GP5000*25C tires with us, you can check it out see if it's helpful. https://www.lightbicycle.com/storytelling/Erico--my-choice-of-quality-rims-based-on-race-performance-and-price Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Adam 2020/04/02

What is the thickness of the carbon at the nipple hole? This number will help calculate spoke length.

LightBicycle 2020/04/03

Hi Adam, Normally, it's 3mm thickness of the carbon at the nipple hole. Did you order AR56 road disc rims? What hubs and spokes/nipples are you going to use? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

desiron 2020/02/27

Hello, I want to order 2 rims AR56 disc-30mm wide-56mm deep 28 hole ud weave matte AR56 disc-30mm wide-56mm deep 24 hole ud weave matte Center channel with holes TPD delivery (belgium) Can you send me a price? Best regards, Frank

LightBicycle 2020/02/28

Hi Sir, Sure, we just sent your these two road disc rims 700C tubless price to your email. Please check. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Bill 2020/01/23

Hi, I would like to know if I can have the same "paintless" finish as the WR50 Disc on the AR56 Disc? I don't mind paying extra for the option. Also is it available with internal nipples? Thank You! Bill

LightBicycle 2020/01/24

Hi Bill, Thanks for your reaching out!For AR56, they are non pro series. We can not manufacture with paintless finish right now. For paintless(pro finish), it needs different mold material. I am sorry about that. But we will have two new pro models, they are 28mm wide/35mm deep or 45mm deep. Does it work for you? It is okay to manufacture rims with internal nipples holes. If you like internal nipple holes on 700C road rims, you can leave a message on the order. We can see it and double check with you, manufacture accordingly. Do you celebrate Chinese New Year in Hongkong? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

John 2019/11/25

A few questions: 1. For the US-sourced AR56 rims---do these come with center channel holes? 2. Would it be possible to purchase a global-sourced wheelset in AR56 that are custom made with Shimano Ultegra hubs? HB-RS770 and FH-RS770. Here would be all the specifications for a custom quote: - Shimano Ultegra hubs, 32H for both front and rear - (these hubs are centerlock, 10x100 and 12x142 J-pull) - Sapim CX-Ray Silver spokes 3. For the standard global-sourced AR56 wheelset options, what are the standard spokes? If Sapim CX-Ray were specified, what is the increase in cost? Thank you!! John

LightBicycle 2019/11/25

Hi John, 1. For AR56 road rims 30mm wide, they are with spoke access holes on rim bed in North American warehouse. If you like rims without spoke access holes, you can place special order. It takes around two days to manufacture for you. 2. Yes, we can build this road disc wheelset with shimano front HB-RS770 12 / 100mm/rear FH-RS770 12 / 142mm road disc hubs. But we do not have silver spokes. Is it black okay for you? 3. Currently, we only have these shimano hubs in global shop not North American. We can build wheelset in global shop and ship by EMS delivery to you. Does it work? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

See all 11 customer reviews>>

Get in touch

Feel free to leave a comment if you have any questions or suggestions on our products or other issues.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Build Your Falcon RIM AR56 disc - 30mm

Overview

Specs

Tech

Warranty

In The Box

Rims

Full Custom

Overview

Specs

Rims

Full Custom

Tech

Warranty

In The Box

Gallery
