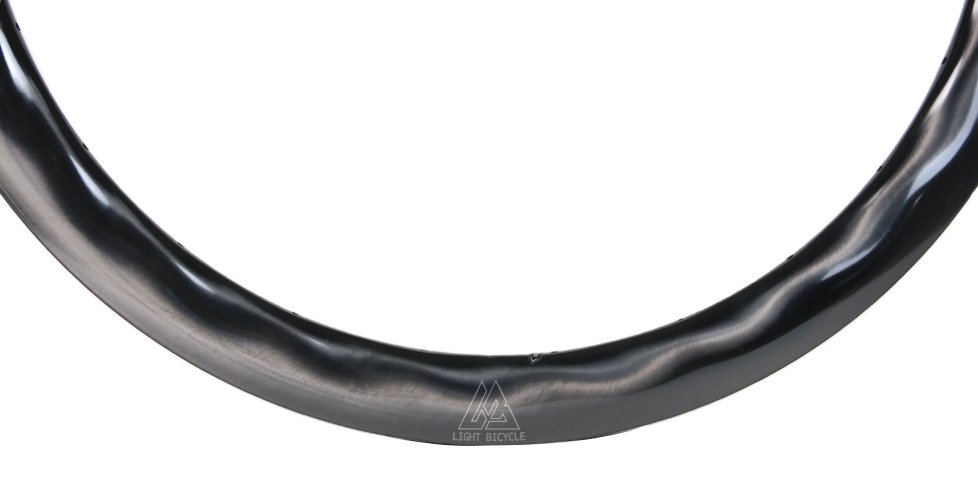

AR465 Disc Carbon Road/CX/Gravel Rim

AR465-disc-tubeless-ready-all-road-bike-rim

AR465-disc-road-clincher-tubeless-wheel-rim

Buy & Configure

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

Global Shop

NA Shop

EU Shop

AU Shop

Ships worldwide. See what's on sale>>

Center Channel Hole This is a required option.

No Access Holes

Version This is a required option.

Front Flyweight / Rear Standard

Weave This is a required option.

Braided UD

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h

Paintless, UD, blank (no decal), 28h, with access holes

Standard, paintless, hook, blank (no decal), 24h, with drain holes, without access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

DT Swiss 350 straightpull centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

2 valves & 1 spare 18t ratchet

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD +

Lead time: typically ships in 2 days

ADD TO CART You missed some options.

We do not stock this item at the European warehouse. See what we stock currently.

You can order this product from our Global or North American warehouse.

Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.

Center Channel Hole This is a required option.

No Access Holes

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h, with drain holes

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD +

Lead time: typically ships in 3 business days

ADD TO CART You missed some options.

We do not stock this item at the Australian shop. See what's available.

You can order this product from our Global / NA shops.

Please fill out this form if you are looking for a custom wheelset.

We'll get back to you soon to study the customization requests via email.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the North American warehouse. Check this link to see what items we stock, or send us an email to discuss.

Our Global warehouse can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelset. We will get back to you via email to discuss in 24hrs.

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

Quick Buy (In Stock)

Full Custom (Made to Order)

DEFAULT SETTINGS

Rims

Hook, matte, UD, with drain holes

Hook, matte, UD, with access holes, with drain holes

Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes

Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes

Paintless, UD, 5-year warranty, no drain holes

Grooved graphene surface, hook, matte, UD, with access holes, with drain holes

Grooved graphene surface, hook, matte, UD, no access holes, with drain holes

Matte UD, 32H, Centered (Staggered)

Hubs

Hope Pro 4 Fatsno J-bend 6-bolt

15/150mm (F) & 12/197mm (R) Sram XD

Straightpull centerlock black 24H

12/100mm & 12/142mm

Shimano Road 11S

DT Swiss straightpull / Bitex j-bend, centerlock, 28H

J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H

15/110mm boost & 12/148mm boost Sram XD

DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear

100mm QR & 130mm QR Shimano Road 11S

Spokes

Sapim CX Ray black

Sapim D-Light

Accessories

No decals/valves/tape

No decals/valves/tape/pads

No decals/valves

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Brake System This is a required option.

Disc

Version This is a required option.

Version	Weight	Material	Layup	Max Load
Standard	Standard	Toray T700	Standard Layup	135 kgs
Flyweight	40g - 70g lighter	Toray T800 and T700	New layup for weight saving	90 kgs

Front Flyweight / Rear Standard with specific layup is also a good option that proves the harmony of weight and strength.

Standard

Flyweight USD +12

Bead type This is a required option.

Hook

Hole Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc) at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

20H

24H

Finish This is a required option.

The "Finish" relates to how the rim is coated or painted such as matte or glossy for the most common applications. Our Recon Pro and Falcon Pro rims feature BlackTek and come out of molds as a completed product, with a scratch resistant and near flawless finish, eliminating the need for coating or painting. We name this kind of superior finish the paintless.

Full Custom: This option (if provided here to choose) offers custom finish such as Satin/Raw etc at no extra charge but subject to rim models with 3~5 days LONGER on manufacture. And custom color painting is also available with added 15g/rim and extra $20USD/rim as a start. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

Paintless

Full Custom

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer for cosmetic appearence.

The rim strength & weight is virtually identical.

Matte UD is the most popular and has a subtle look.

The futuristic Hexa-Comb and Braided UD are smooth and looks great on deep rims.
More info about Weave >>

Full Custom: This option (if provided here to choose) offers custom weaves such as 3k twill vertical/ horizontal/ Braided UD etc with extra charge of $15USD/rim as a start but subject to rim models with 3~5 days LONGER on manufacture. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

Braided UD USD +15

Rim Warranty This is a required option.

For Recon Pro Series ( MTB rim), Falcon Pro (road rim) and Drift Pro (fatbike rim), 5-year warranty is set as standard, and optional Lifetime Premium Warranty are kindly offered to purchase with minimum charge respectively.

5 Years

Lifetime USD +100/rim

Center Channel Hole This is a required option.

With Access Holes: This is the traditional method. Spoke access holes are drilled in the center channel to allow the nipples to easily be fed through the rim. Tubeless tape is required to seal the rim.

No Access Holes: No spoke access holes are drilled in the center channel. Feeding the nipples through the rim is more challenging, but it allows for a tubeless setup without the need for tape. This kind of system is known as "road tubeless" and was made popular by Mavic. Some companies still refer to it as "UST style", however, UST is actually a specific interface between the tire and rim which was developed by a partnership between Mavic, Michelin, and Hutchinson.

Currently, rims with 'No Access Holes' do not work with our carbon spokes.

With Access Holes

No Access Holes

Drain Hole This is a required option.

The two small drain holes located 90° to the valve hole effectively help evacuate both the water trapped inside the rim and the air leaking into the rim chamber caused by nonperfect tubeless tape sealing handwork that may risk rim explosure in an aggressive tire inflating.

It is the small reinforced layer prelaminated on the area where the drain hole is drilled later that makes the rim strength fairly ensured without any compromise of weight added.

Riders who ride in wet areas are suggested to order rims with drain holes.
More info about holes >>

With Drain Holes

No Drain Holes

Decal << Read It First This is a required option.

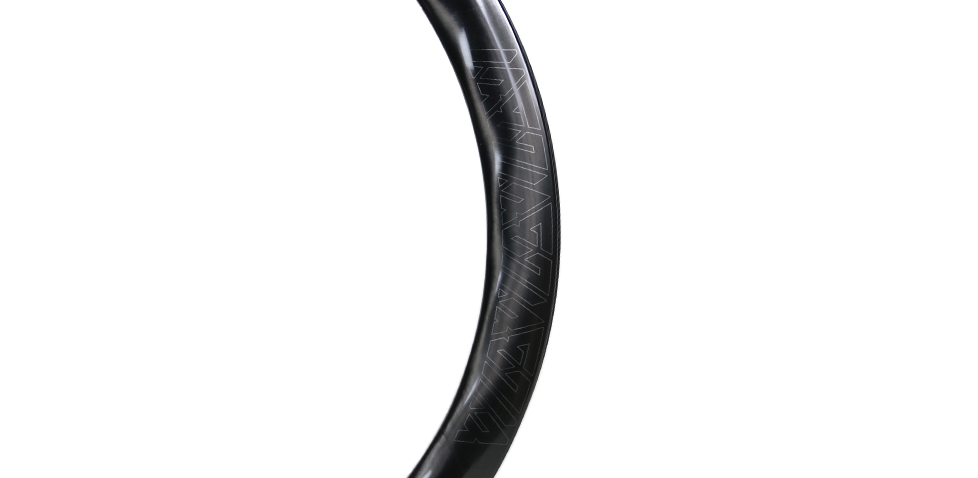

1. Grey Laser Engraving (Falcon Pro) - Our laser engraving technology is eco-friendly and adds a snappy, polished aesthetic to your new rims.

2. Full Custom - Add some additional personalization and go full custom with your rim graphics! Laser engraving is available in one colour (light grey) and starts at $5 USD per rim. If you select this option, LEAVE YOUR REQUEST IN QUOTES IN THE NOTES AT CHECKOUT. For example: "I need my personalized logo printed" or "Just text 'ABC racing' ". We will reach out to you once the order is placed to finalize the details of custom graphics.

Full Custom (Laser only) USD +5

Grey Laser Engraving (Falcon Pro)

Blank (No decal)

Valve Stem This is a required option.

We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.
Information of tubeless rim tape

Apply Tubeless Tape: In Light Bicycle, a proprietary taping aid works with our wheel builders to guarantee that a solid taping craft at industrial-level is well implemented in order for you to ride carefree tubeless at any conditions.

You do NOT have to use any tubeless tape to run tubeless if you have chosen "No Access Holes" on the rim center channel.

None

Add Tubeless Tape USD +6 each

Recon Pro orders start shipping in October.

- + PCS

Brake System This is a required option.

Disc

Version This is a required option.

Version	Weight	Material	Layup	Max Load
Standard	Standard	Toray T700	Standard Layup	135 kgs
Flyweight	40g - 70g lighter	Toray T800 and T700	New layup for weight saving	90 kgs

Standard

Flyweight USD +12

Bead type This is a required option.

Hook

Hole Count This is a required option.

ROAD Product
Road rim brake: Stocked in 20h and 24h
Road disc: Stocked in 24h and 28h

MTB Product
MTB rims: Stocked in 32h. Only XC Flyweight rims are stocked in 28h as well as 32h
Please note that our valves are drilled for presta and spoke holes are made for external nipples by default. If you have a custom drilling requirements please contact us.

24H

Finish This is a required option.

Paintless

Weave This is a required option.

Rim Warranty This is a required option.

5 Years

Lifetime USD +100/rim

Decal << Read It First This is a required option.

The "Black" graphic is a glossy black non-removeable waterslide for a subtle look. Avery vinyl logo-kits are available in 12 colours. The vinyl is replaceable and easy to install.

Black (default)

Green

Magenta

Orange

Red

Yellow

Blue

White

Silver

Gold

Turquoise

Purple

Oil slick

Valve Stem This is a required option.

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.

Apply Tubeless Tape: The tubeless tape with high tensile strength is tightly installed on the wheel(s) at industrial-level for you to ride carefree tubeless at any conditions.

None

Add Tubeless Tape USD +8 each

Recon Pro orders start shipping in October.

- + PCS

Piece Weight: 460.00g+/-15

Subtotal: USD 279+

Piece Weight: 460.00g+/-15

Subtotal: USD 299+

PREVIOUS NEXT

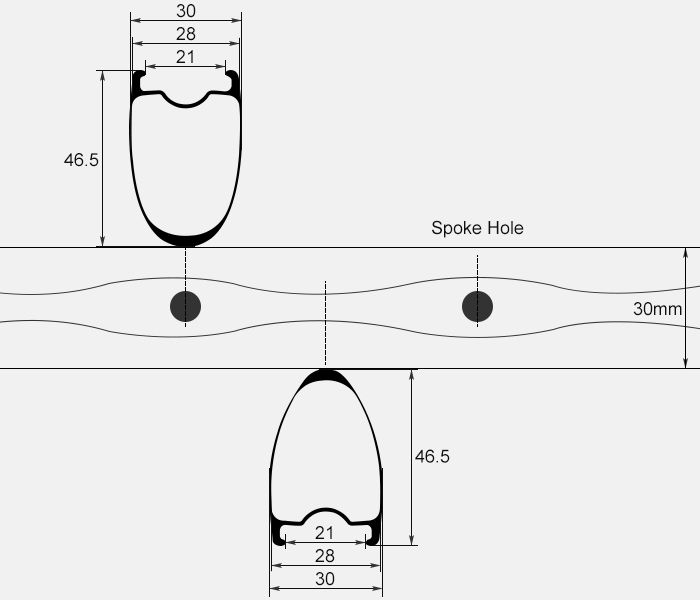

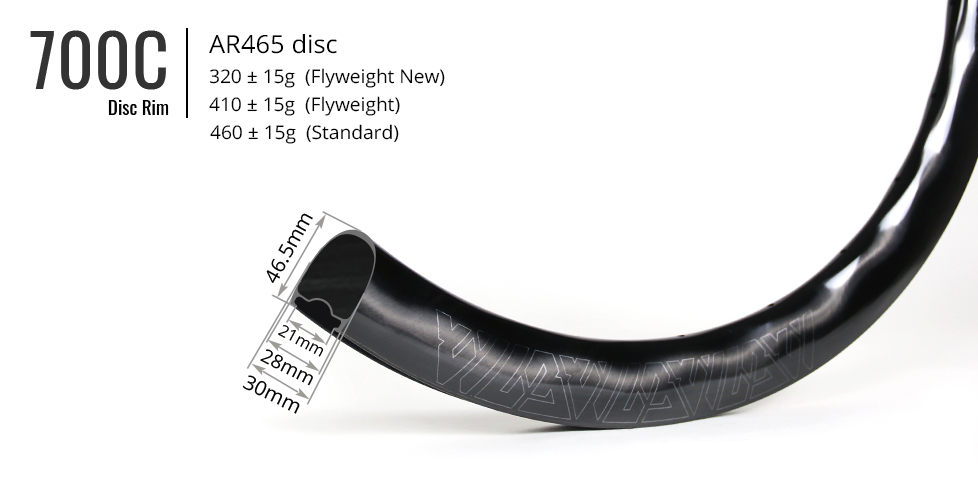

RIM SPECS

Rim Model AR465 disc
UCI-Approved >>
Material Toray T700 & T800 Premium Carbon Fiber
Size 29”/700C (ETRTO 622mm)
Series FALCON PRO
Intended Use Road/CX/Gravel
Bead Type Clincher
Tubeless Capable Yes
Inner/Outer Width 21mm/28mm
Depth 46.5mm
ERD 547mm (not including nipple head dimension)
Rim Weight Standard 460+/-15g, Flyweight 410+/-15g
Profile Symmetric (0mm)
Max Cyclist Weight (on flat ground) Standard 135kg/ 298lbs, Flyweight 90kg/ 198lbs
Spoke Hole Angle ±8°
Spoke Tension 120~130kgf front disc side and rear drive side
Max Tire Pressure (with 25C) 110psi/ 7.58bar
Recommended Tire Width 23C~43C

Read more for actual road tire width

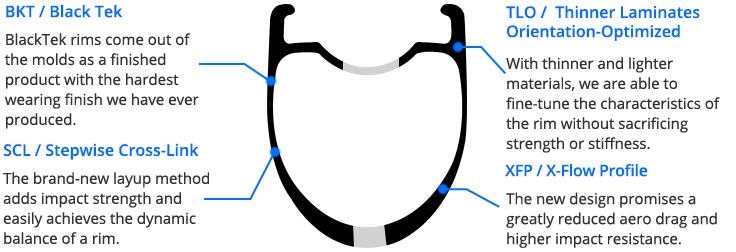

TECH

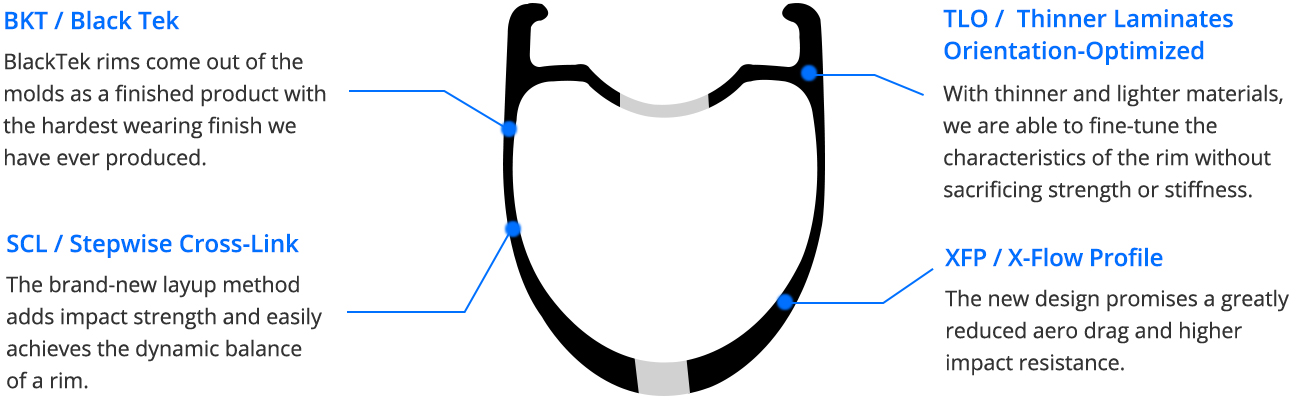

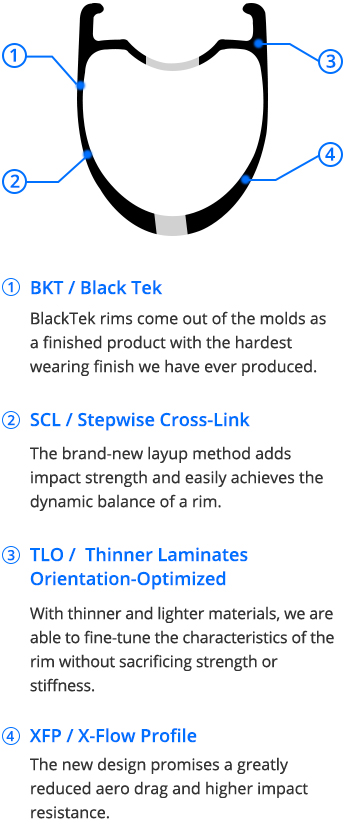

The latest advancement of our popular Pro AR - All Road Series, our new X-Flow profile offers significant performance benefits.

The design reduces aero drag, is more laterally stiff, and has 30% greater impact resistance.

AR465 disc’s are a great choice if you want a fast mid-depth rim that will give you an edge over the competition.

Learn More >>

WARRANTY

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>

WHAT IS IN THE BOX

Gallery

light-bicycle-mixed-depth-carbon-aero-wheelset-

Light: RIM-F: AR465d Flyweight Disc Hook UD Paintless 24H External Hole With Drain Holes No Access Holes RIM-R: AR565d Flyweight Disc Hook UD Paintless 24H External Hole With Drain Holes No Access Holes HUB-F: Carbon-Ti X-Hub Black 12 / 100mm straight pull Centerlock 24H HUB-R: Carbon-Ti X-Hub Black 12 / 142mm straight pull Centerlock 24H 56T Sram XDR SPOKE: Sapim CX Ray straight pull NIPPLE: DT Swiss / Sapim Aluminium Black Universal External

Dennis: AR465 Disc

Netherlands

canyon-aeroad-bike-on-light-bicycle-ar465-disc-wheels

Ben: The AR465 disc is absolutely great! The new X-Flow rim profile is surprisingly stable in crosswind conditions. Also, really love the build quality.

Germany

Light: Rim: AR465 Disc Flyweight Braided UD Paintless UD 21H With Access Holes With Drain Holes Hub: Light Bicycle Speed Hubs 12/142mm Straightpull Centerlock Shimano Road 11s Spokes: Light Bicycle Flyweight Carbon Spokes (custom paint: red - Pantone 185C, orange - 165C, blue - 2184c) 2:1 lacing Nipples: Light Bicycle aluminum (specific for carbon spokes)

GP: Bike is Trek Emonda ALR5. AR565 rear and AR465 front, UD braid. Tires are Continental GP5000 TR 700x25. Rims are just a hair wider than the tires.

Canada

Light: Rims: AR465 Disc Flyweight Hook 24/24H Paintless UD With Access Holes No Drain Holes Hubs: Carbon-Ti X-Hub 12/100mm 12/142mm straight pull Center lock Black Shimano Road 11S 56T Spokes: Sapim CX Sprint-Rear drive side/ CX Ray-Other sides Nipples: Sapim Brass Black

SEE MORE ADVENTURES

COMMENTS

Benjamin 2022/06/07

Dear LB Team! I really find the AR365 and 465 Series really interesting. Most new rims from other vendors are produces HOOKLESS in the meantime. The rim is a bit wider in the bed, offers better tirefitt for TLR TyreS/more aero and I am quite sure the rim itself could be a bit lighter and is wider. Are there plans to built the AR-Series hookless as an option? I know you have some rims of the WR and AR Series already with an hookless option. THX!

LightBicycle 2022/06/07

Hi Benjamin, Glad to hear that you are taking interest in the X-Flow design 700C bike rim. The width of the rim is dynamically changing to provide a better aero performance. We have to make the layup design specific for the design in order to maintain the weight to stiffness ratio. The flyweight version is what we offer currently. We can certainly make the rim lighter if it's a consistent profile rim. We acheive 360g for AR35 and 390g for AR45 if you prefer a lighter rim. The hookless rims are limited in tire pressure. which is less than75psi/ 5.17bar. Hook rim can hold higher tire pressure. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Philip 2022/04/04

Will AR465 Rims be available in a hookless version anytime soon? I run 28/30 mm GP5000TR S and would like to run hookless. Or do you recommend wider rims (WR) for this tire combination?

LightBicycle 2022/04/05

Hi Philip, Thanks for your inquiry! How much tire pressure do you ride? For hookless, it is better to ride less than 60PSI, to prevent from tires blowing off. We also have wider gravel rims 700C in the same design, like WR40( it is 32mm wide/40mm deep). https://www.lightbicycle.com/700C-road-bicycle-rims-32mm-wide-40mm-deep-symmetric-clincher-road-disc-brake-available.html Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Piers 2021/12/24

Want a set of falcon pro wheels from 40 to 46 in depth and 28 width preferably with bites hubs and for disc brakes- I would prefer from us/Canada warehouse- is this possible? Otherwise the overall price probably won’t be cost effective - I’m willing to wait a few months

LightBicycle 2021/12/24

Hi Piers, We can send the parts or wheels to the North America warehouse, and then ship the AR465 road disc wheelset 700C to you. But it would not be cost-effective or fast. What's the reason that you prefer to ship from Canada or US? If you are concerned about the tax, don't worry. We do have shipping options that include the tax. So my recommendation would be to order from the Global warehouse. It would be easier, and more customized options. Also, be cheaper. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Joe 2021/07/27

I have a 32 spoke hole SON Dynamo hub, Is there any way to get 32h drilled rims?

LightBicycle 2021/07/27

Hi Joe, I am sorry that the AR375 & AR465 700C road disc special rim shape makes custom hole count impossible. The spoke hole position is aligned with the wave surface by mold. We only have 20H and 24H mold made. But, we can make other rims in 32H without any problem. Will AR45-28mm wide ok for you? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Julien 2021/04/30

Have you guys tested this in a tunnel? Do you know how many watts faster it is at 40kph vs. the AR45 or WR50?

LightBicycle 2021/05/03

Hi Julien, Currently, the test is computer simulation on X-flow proflies. What is your tire width? For different tire width, the result will be different. Because WR50 is 32mm wide, and AR45/AR465 are 28mm wide. For AR465 X-flow, they also have much better lateral stiffness than all other models, so they provide better bike control, not just aerodynamics. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Get in touch

Feel free to leave a comment if you have any questions or suggestions on our products or other issues.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

^
