Available Now: Pillar PSR X-TRA 1420 Spokes for MTB Wheels

pillar aero spoke

Butted Aero

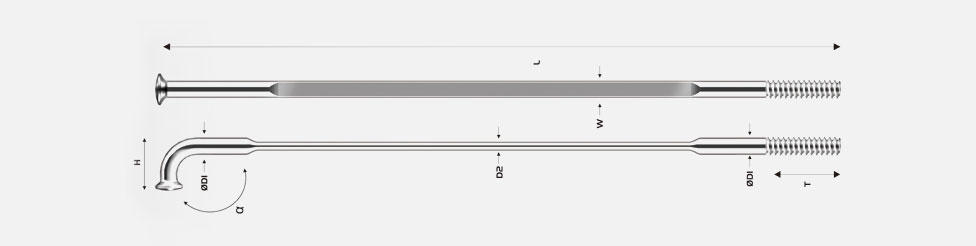

Model T(mm) ØD1(mm) w(mm) ØD2(mm) α H(mm) L(mm) Weight(260mm)
PBA 1425 9.0 2.0 2.5 1.05 95° 6.2 160-310 5.7 g
PBA 1422 9.0 2.0 2.2 0.95 95° 6.2 160-310 4.7 g
PBA 1420 9.0 2.0 2.0 0.95 95° 6.2 160-310 4.3 g


SPEC

Material Sandvik T302 (18/10)
Advantage

Pillar cold drawn technology.

Double butted with three Blade options.

Up to 30% weight saving without compromising strength.

Thread

Rolled (BC 56, DIN 79012)

FG 2.3

Application Race/MTB/Down Hill
mountain bike spoke

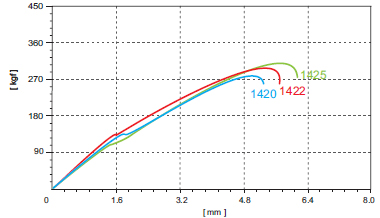

Breaking Strength

mtb spoke

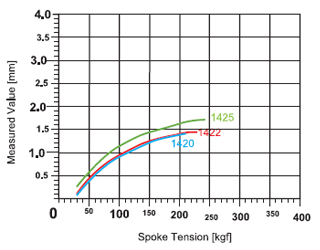

Spoke Tension


According above datas and our client feedback, we find the PBA 1420 spokes are strong enough, and the weight is lightest, comparing to PBA 1425 spokes and PBA 1422 spokes. So we choose PBA 1420 spokes for wheelsets currently.


Pillar PSR X-TRA 1420 spoke VS CN Aero 424 spoke


We have do some research on pillar 1420 spokes and CN 424 spoke these weeks. Both pillar 1420 spokes and CN 424 spokes are light, around 4.0g/pcs to 4.3g/pcs. But CN 424 spokes are much thinner and much cheaper(the price is only half of pillar 1420 spoke) , we have got some to test and if the spokes are ok, we can use it and make the wheelset price lower for customers. But while we build one wheelset, two pieces CN 424 spokes are broken.

So, we decide not to use CN 424 spokes, still use pillar 1420 spokes. For pillar psr-xtra 1420 spokes,there are detail testing data on Pillar Spoke website like breaking strength, spoke tension breaking strength & spoke tension. But for CN 424 spokes, the data is not clear on CN Spoke website.

Pillar PSR X-TRA 1420 spokes are really better than CN Aero424 spokes.


We will keep on looking for better spokes with good price for customers,like DT super comp and Sapim CX-ray spokes. Sapim spokes are much expensive than pillar spokes, and we will try to contact the agent to get better price.


COMMENTS

J

Jesus 2020/03/11

Where I can buy this spokes?


LightBicycle 2020/03/11

Hi Sir, You can order these pillar spokes directly from us. We also have sapim cx-ray spokes and DT Swiss spokes here. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

L

Lukasz 2016/05/25

Can i get pillar 1420 in 300mm and 302mm straightpull


Light-Bicycle 2016/05/27

Hello Lukasz, Thanks for your inquiry. Yes, the Pillar x-tra 1420 aero straight pull in 300mm and 302mm are available. Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

D

david 2016/05/25

Hi!! Which is the prize to 70 Pillar 1420 black And the shipment to Spain


Light-Bicycle 2016/05/26

Hello David, Thanks for your inquiry. Spoke (Pillar x-tra 1420 aero): $1.67/pcs including nipple Nipple: Black or silver? Alloy or brass? Shipping with DHL is $21. Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

L

Lukasz 2016/05/24

what sizes you got in straight pull, i'm more intresting in 295 302 sizes


Light-Bicycle 2016/05/25

Hello Lukasz, Thanks for your inquiry. The Sapim cx-ray straight pull spokes in 295mm are available (USD2.7/pcs including nipple). The Sapim D-light straight pull spokes in 298mm and 302mm are available (USD1.67/pcs including nipple). We can cut the 298mm into 295mm. Does that work for you? Thanks, Light-bicycle


L

Lukasz 2016/05/25

may there are some chance to get 1420 straghtpull


Light-Bicycle 2016/05/26

Hello Lukasz, I double checked with other spoke agent, and the Pillar x-tra 1420 aero straight pull spokes in 295mm and 302mm will be available in next week. Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

B

bpb 2016/05/02

are the straight pull pillar 1420 spokes just normal pillar 1420 cut ? thx


Light-Bicycle 2016/05/03

Hello Bob, Thanks for your inquiry. No. All the spokes we stock are J-bend version. If you like Pillar 1420 straight pull version, we will purchase accordingly, not the cutting one. Do you like to order the spoke only or wheels? Then we will quote accordingly. Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

L

Lukasz 2015/10/17

Can i order them 32 piece in red and 32 piece in white


Light-Bicycle 2015/10/19

Hello Lukasz, Thanks for your inquiry. Currently, only black spokes are available, no spokes in other color. Is that ok for you? For spoke, it is USD1.67/pcs including nipple. What is the spoke length you like? Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

M

Mark 2015/04/09

Hi Light Bikes... Do you have Pillar PSR X-TRA 1420 straight pull spokes available? Also if I order the new 38 mm wide 650b rims, how should I adjust the ERD if I get a DH layup for my rear wheel? Thanks, Mark


Light-Bicycle 2015/04/10

Hello Mark, Thanks for your inquiry. Yes, the Pillar X-TRA 1420 straight pull spokes is available. It is USD1.67/pcs including nipple. What is the spoke length you like? How many? For nipples, it is Pillar PT 734. Do you like black/blue/gold/green/red/silver? RM650BC13 (38mm wide 650B DH rim) hookless: 490 /-15g, USD188/pcs Please find attached rim cross-section drawing. For rim weave, do you prefer 3k, 12k or UD? Matte or glossy? 32H? For spoke length, you can use below link & attached picture to get correct spoke length. The 38mm wide 650B rim ERD is 536mm. http://www.prowheelbuilder.com/spokelengthcalculator/ You have to fill in rim ERD 536, choose the hubs, spoke pattern. Then you can get correct spoke length. Thanks, Light-bicycle


E

Emanuele 2015/05/18

I ordered RM650BC13.I need to know the lacing pattern for DTswiss hubs classic 240s. Let me know, the spokes lenght calculator needs to know it. Thanks, Emanuele


Light-Bicycle 2015/05/19

Hello Emanuele, Thanks for your support. For lacing, we do front 3 cross/ rear 3 cross. Maybe you can have a try. Sorry, we can not make sure they can share the same spoke length as DT Swiss 240 hubs. Because for different spoke pattern & different builder, it will make the spoke length different. If you built the wheelset, maybe the spoke length can not work. You can use below link & attached picture to get correct spoke length. The rim ERD is 536mm. Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

V

Vic 2015/04/08

Now I am using ztr 650b 32h hadley hubs dt Swiss spokes.if I upgrade to light bicycle xc carbon rims only, will my hubs spokes nipples still can be transfer to your light bicycle xc carbon rims


Light-Bicycle 2015/04/09

Hello Vic, Thanks for your inquiry. For spokes, may I know your rim ERD? Then we will check if you can reuse your spokes. Normally, you need to get some new spokes, because the rim ERD is different, so the spoke length will be different. RM650BC09 (27mm wide 650B XC rim) hookless: 320 /-15g, USD163/pcs RM650BC02 (30mm wide 650B XC rim) hookless: 370 /-15g, USD163/pcs Which do you prefer? Please find attached rims cross-section drawing. For rim weave, do you prefer 3k, 12k or UD? Matte or glossy? 32H? Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

J

Jing 2015/02/26

Good day, The pillar 1420 spoke is 1.67/pcs it is including shipping cost? to be ship in saudi arabia Thanks looking forward for your reply


Light-Bicycle 2015/03/02

Hello Jing, Thanks for your inquiry. For spokes, we have black Pillar Aero X-TRA 1420 aero. It is USD1.67 including nipple, not including shipping cost. What is the spoke length you like? How many spokes do you like? Then we can get the shipping cost accordingly for you. Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

R

Ron 2015/02/13

I would like to know the spoke lengths for my rear wheel it has hope pro2 evo hub the 35mm rim with 589 erd


Light-Bicycle 2015/02/15

Hello Ron, Thanks for your inquiry. For 29er wheelset you ordered (with 35mm rims, Hope hubs), we used 284mm & 287mm spoke length (3cross). If you like to rebuild the wheels, it will be great if can double check with your local builder. Because for different spoke pattern & different builder, it will make the spoke length different. Any question please let us know. Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

R

Rafael 2014/12/23

Hello! I need 10 model spokes 'PBA 1420' size 260mm in black color, and four of the same model in red color. I also need 12 nipples model 'PT 734' 14mm size in red color. 14 spokes Pillar PBA 1420 260 mm (10 black 4 red). 12 nipples Pillar PT 734 14mm (red). Please include the price of shipping to Brazil.


Light-Bicycle 2014/12/24

Hello Rafael, Thanks for your inquiry. For spokes, we only have black Pillar Aero X-TRA 1420 spokes, no red. Is that ok for you? It is USD1.67/pcs including nipple. For nipples, it is red Pillar PT 734 (14mm). So, you like 28pcs spokes in 260mm length. Right? Thanks, Light-bicycle


R

Rafael 2014/12/24

The nipples comes along with the spokes or are sold separately? All my spokes are 'PBA 1420', it is possible you get this model?


Light-Bicycle 2014/12/25

Hello Rafael, Thanks for your inquiry. For spokes, we only have black Pillar Aero X-TRA 1420 spokes, no red. Is that ok for you? It is USD1.67/pcs including nipple. For nipples, it is red Pillar PT 734 (14mm). Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

C

Casper 2014/11/29

297, 299, 294 Do you have these lengths? 32 pcs 294 16 pcs 297 16 pcs 299 Do you also have a weight and price for them?


Light-Bicycle 2014/12/01

Hello Casper, Hello Casper, Thanks for your inquiry. For spokes, we only have 294mm and 296mm lengths, no 297mm or 299mm lengths. Is that ok for you? Spokes (Black, Pillar Aero X-TRA 1420 aero): 5g, USD1.67/pcs including nipple Nipples: Pillar PT 734. Do you like black, blue, gold, green or red? So, how many spokes do you like to order? Normally, the shipping cost is USD39 for 64pcs spokes to Denmark. Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

K

Kamykaz57 2014/03/22

Hello Are available spokes 1420 whit this size? 58 x 270mm 10 x 258mm 64 red nipples How much will it cost with shipping to France? Thanks. Best regards. Kamy


Light-Bicycle 2014/03/28

Hello sir, Thanks for your inquiry. Currently, there are no 270mm and 258mm. But we have 272mm, 256mm and 260mm. Is it OK for you? Cheers, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

A

alfio 2014/03/13

Hello Are available spokes 1420 whit this size? 29 spokes 285 mm 15 spokes 283 mm 15 spokes 281 mm


Light-Bicycle 2014/03/14

Hello Alfio, Thanks for your inquiry. Cerrently, there are no white spokes of 285mm, 283mm and 281mm. But we have black spokes of 286mm, 284mm, 282mm and 280mm. Is it OK for you? Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

O

Onekona 2014/01/21

Hi, do you have stocks of Pillar PSR TB 2015 our PSR TB 2016 for 26" rim


Light-Bicycle 2014/01/22

Hello Onekona, Thanks for your inquiry. For the spokes, it’s bladed Pillar Aero X-TRA 1420 (4.3g/pcs for 260mm). Is it OK for you? There are 2 kind of 26er rims. Please find the attached cross-section drawings. Which one do you prefer? Thanks, Light-bicycle
