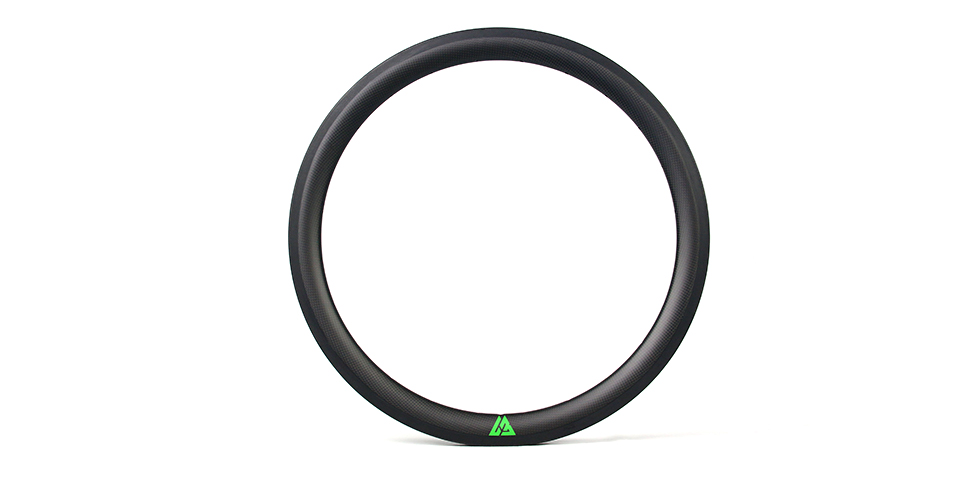

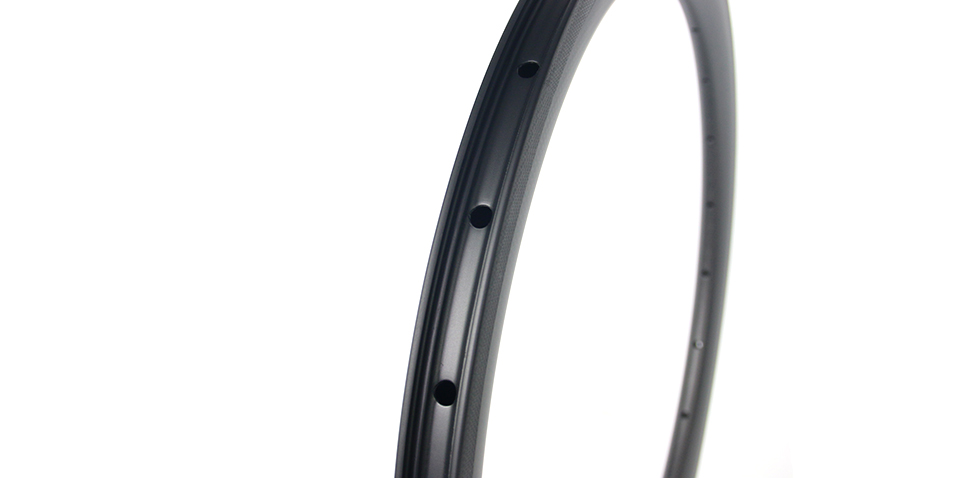

20 inch BMX carbon rim 451mm BSD 23mm wide 35mm deep

Buy & Configure

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

Global WAREHOUSE Ship Anywhere

North AMERICAN USA/Canada Only

EUROPEAN Europe Only

Warehouse Compare >>

Options Features	Global Warehouse	North American Warehouse	European Warehouse
Options Features	Availability	All models	Most popular models	Most popular models
Rim Customization	100% customizable	Default options (special order possible)	Default options
Wheelset Customization	Yes	Yes	No
To Ship In	Full Custom: 4 weeks Quick Buy: 3 days	1 week typical	2 days typical
Shipping Region	Worldwide	North America	E.U countries only ?
Wheel building fee	$30 USD/set	$50 USD/set	$30 USD/set
Warehouse Transfer Fee	No	USD20/rim USD40/set	$40 USD/set
European Shipments Taxes, Duty or Brokerage	Not charged by us, may be charged by the carrier upon importation. (*Prepaid option available at checkout!)	Best to ship from Global warehouse due to excessive shipping costs	No customs duties
Canadian Shipments Taxes, Duty or Brokerage	Not charged by us, may be charged by the carrier upon importation	Charged by Light Bicycle upfront	N/A
Other Areas Taxes, Duty or Brokerage	Not charged by us, may be charged by the carrier upon importation	Not charged by us, may be charged by the carrier upon importation	N/A
Shipping Methods	EMS, DHL, TPD, TNT, FedEx, MTS (Sea/Air), SF	UPS	DPD ($30 USD/set)

Center Channel Hole This is a required option.

With Holes

Without Holes

DEFAULT SETTINGS

RIMS

Matte UD, Hook, Blank (No decal), 24H

HUBS

DT SWISS 240 EXP Straight Pull C-Lock Shimano Road 11s EXP 36

12*100mm (F) & 12*142mm (R)

SPOKES & NIPPLES

Sapim CX Ray & Sapim Polyax Aluminum Black

ACCESSORIES

Valve Stems (×2)

Note: the wheelset price includes the warehouse transfer cost (USD40).

Piece Weight:g+/-25

Subtotal: +

Lead time: typically ships in 2 days

ADD TO CART You missed some options.

Our apologies

We do not stock this item at the European warehouse. See what we stock currently.

You can order it from our Global warehouse. Please email us (sales@lightbicycle.com) with your requests if you want a custom rim/wheelset.

Our apologies, we do not stock this item at the North American warehouse.

Our Global warehouse can make any rim model and ship worldwide. Feel free to email us (sales@lightbicycle.com) if you want custom builds. We’ll get back to you in 24hrs.

The data will take some time to load, please wait.

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

QUICK BUY

FULL CUSTOM

Bead type This is a required option.

hook

Version This is a required option.

Front Flyweight / Rear Standard

Finish This is a required option.

matte

paintless

Weave This is a required option.

Rim Warranty This is a required option.

5 Years

Center Channel Hole This is a required option.

With Holes

Without Holes

Brake System This is a required option.

Non Disc - Grooved Graphene Surface

Disc

Decal This is a required option.

Blank (No decal)

Front Holes Count This is a required option.

20H

Rear Holes Count This is a required option.

24H

Hole Count This is a required option.

24H

32H

28H

DEFAULT SETTINGS

HUBS

DT Swiss 350 Black Straight Pull Shimano Road 11s 18t

F-QR/100mm R-QR/130mm Non-disc(Rim-brake)

Carbon-Ti X-Hub Black Straight Pull Shimano Road 11s 56t

F-12/100mm R-12/142mm CenterLock

DT SWISS 350 Black J-bend 6-bolt Sram XD 18t

F-15/110mm Boost R-12/148mm Boost

DT SWISS 350 Black StraightPull CenterLock Sram XD 18t

F-15/110mm Boost R-12/148mm Boost

SPOKES & NIPPLES

Sapim CX-Ray and aluminum black nipples

ACCESSORIES

Valve stems (x2) are included

Piece Weight:g+/-25

Subtotal: USD +

Lead time: typically ships in 3 days

ADD TO CART

Brake System This is a required option.

Rim Brake

None

Hole Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default. If you have a custom drilling requirements please e-mail us and we'll send you a purchasing link.

20H

24H

28H

32H

36H

Finish This is a required option.

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

glossy

matte

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer.
3k/12k/UD/Hexa-Comb are the 4 options for cosmetic appearence. The rim strength & weight is virtually identical.
Matte UD is the most popular and has a subtle look.
The futuristic Hexa-Comb is smooth and looks great on deep rims.
More info about Weave >>

12K

Valve Hole Type This is a required option.

Presta

Schrader

Decal This is a required option.

Our BMX rims share with MTB rims the stunning Avery vinyl logo-kit stickers- Item No. STMTB03

Blank (No decal)

Blue

Green

Magenta

Orange

Red

White

Yellow

Silver

Gold

Turquoise

Purple

Valve Stem This is a required option.

We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

One 10 yard roll of tape will be included. It is typically covers 2 rims with two laps each or 4 rims with one lap each.The high tensile tubeless tape features a natural rubber adhesive that does not leave a residue on the rims. On mountain bike rims, one layer of 18mm width tape is strong enough to seal the access holes which makes for the lightest tubeless setup.
Instructions of tubeless rim tape

None

Add Tubeless Tape USD +6 each

Recon Pro orders start shipping in October.

- + PCS

Piece Weight: 320.00g+/-15

Subtotal: USD 155+

PREVIOUS NEXT

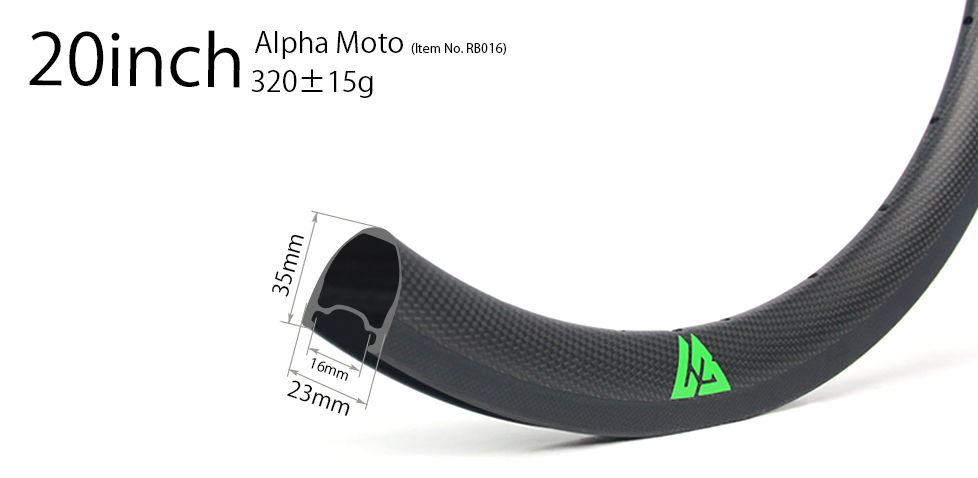

RIM SPECS

Size 20 inch
Use BMX
Type Hook
Tubeless Ready

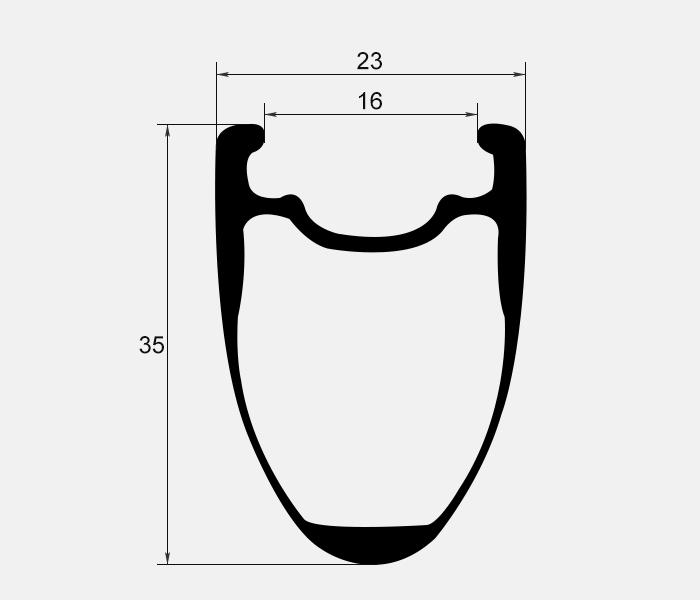

Inner/Outer Width 16mm/23mm
Depth 35mm
BSD 451mm
ERD 398mm (not including nipple head dimention)
Weight 320+/-15g
Offset 0mm (symmetric)
Weight Limit 130 kgs
Spoke Tension ≤145kgf recommended
Tire Pressure 110psi max
Tire size 23C~38C recommended

TECH

With an 18mm internal width and a depth of 35mm, the Alpha Moto is for the dedicated racer looking for the advantage of an aerodynamic rim with a wider contact patch on the track. Extra traction means better cornering and more control.

WARRANTY

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>

WHAT IS IN THE BOX

Gallery

RB016-Alpha-Moto-Rim-Brake-3k-matte-carbon-rim

Light Bicycle: Rims: Alpha Moto (RB016) Rim Brake matte 3K 24H external hole Presta With Holes Weight: 315 grams

SEE MORE ADVENTURES

COMMENTS

Louis 2021/03/04

Hello lightbicycle, I want to buy a carbon rim for my folding bike. The size is 20 inch. Do you have any recommendation because you have several types of 20 inches. I also saw the price is 155 usd, is that the price for 1 wheel or 2 wheels? And also can you ship to Japan? Thank you!

LightBicycle 2021/03/04

Hi Louis, May i know your tire width please? Then we can check which rim is better for you. For USD155, it is for one single rim. The shipping cost is around USD47 by EMS to Japan for 2 rims. Thanks, Lightbicycle

LightBicycle 2021/03/04

Hi Louis, May i know your tire width please? Then we can check which 20inch rim is better for you. For USD155, it is for one single rim. The shipping cost is around USD47 by EMS to Japan for 2 rims. Thanks, Lightbicycle
