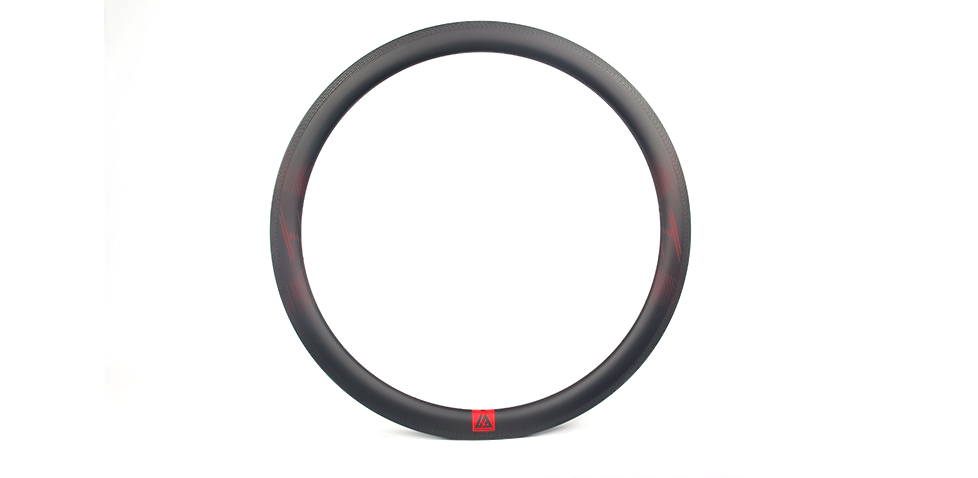

Build Your Falcon RIM R45

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.


Buy wheelset

RIM SPECS

  • Rim Model R45

    UCI-Approved >>

  • Material Toray T700 & T800 Premium Carbon Fiber
  • Size 29”/700C (ETRTO 622mm)
  • Series FALCON
  • Intended Use Road/CX
  • Bead Type Clincher
  • Tubeless Capable Yes
  • Inner/Outer Width 17.9mm/25mm
  • Depth 45mm
  • ERD 550mm (not including nipple head dimension)
  • Rim Weight 475+/-15g
  • Profile Symmetric (0mm)
  • Max Cyclist Weight (on flat ground) 130kg/ 287lbs
  • Spoke Hole Angle ±6°
  • Spoke Tension 100 ~115kgf front, 120~135kgf rear drive side
  • Max Tire Pressure (with 25C) 120psi/ 8.27bar
  • Recommended Tire Width 21C-38C

Read more for actual road tire width

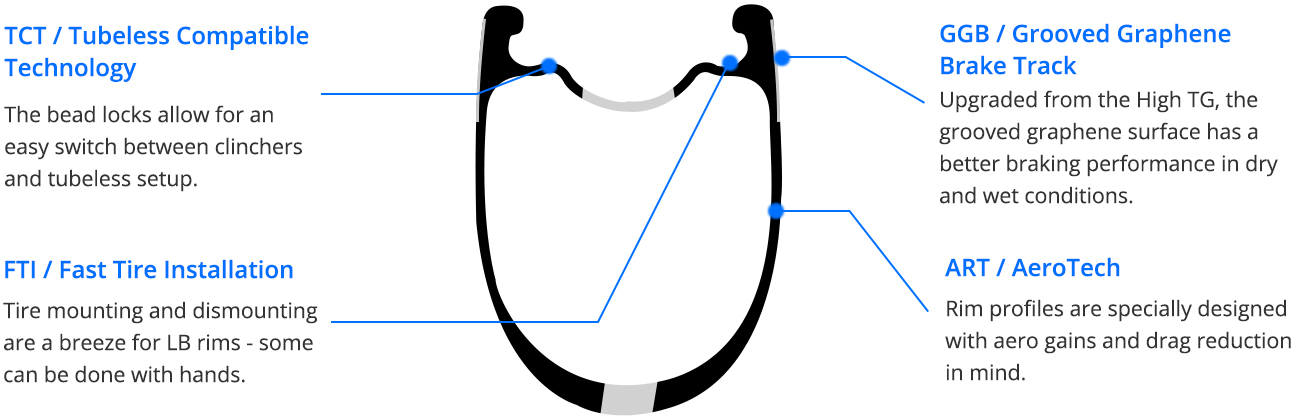

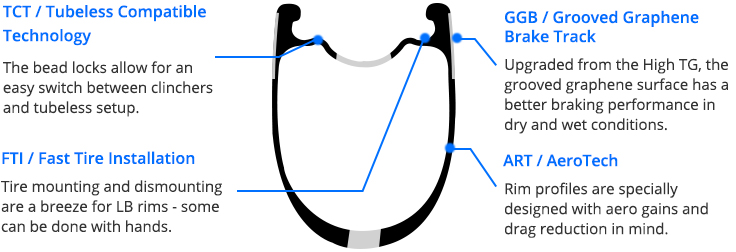

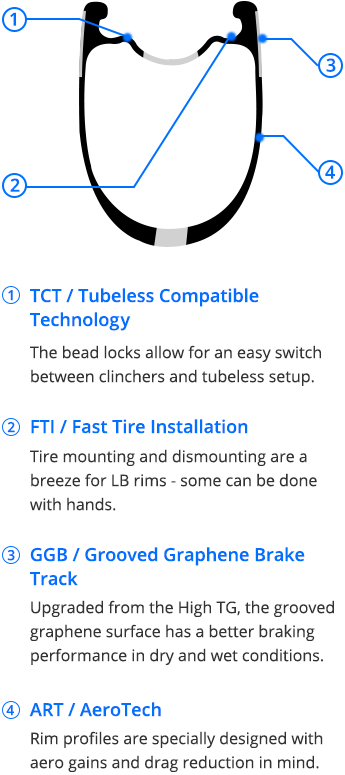

TECH

At only 475g with an aerodynamic 45mm deep profile, the U45 is our jack-of-all-trades rim. Whether you are chasing KOMs on the mountain or racing your buddies to the next checkpoint, this rim is for you.

With a 45mm depth, this rim offers all the aerodynamic benefits of a much deeper profile in a lighter package that’s easier to control in crosswinds. If there’s climbing to do, these could be your best choice.


Learn More >>

WARRANTY

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>


WHAT IS IN THE BOX


At only 475g with an aerodynamic 45mm deep profile, the U45 is our jack-of-all-trades rim. Whether you are chasing KOMs on the mountain or racing your buddies to the next checkpoint, this rim is for you.

With a 45mm depth, this rim offers all the aerodynamic benefits of a much deeper profile in a lighter package that’s easier to control in crosswinds. If there’s climbing to do, these could be your best choice.

Angel : Over several years I have built several wheelsets using LB carbon fiber rims. R45, AR46, AR36 Disc, Custom AR46/AR56 to repurpose Roval hubs with 16/21 spokes. The results have been excellent, every single wheelset has been straight forward to build and perform just as good if not better than the famous brands (I've owned Zipp, Roval, Enve). The quality is excellent and customer service the same.
United States
1
Jared : I have two sets of Light rims. One on my mountain bike, one on my road bike. Laced to White Industry's, I have a beautiful set of Custom R45 Hex-comb rims. They absolutely changed the appearance and ride of the bike overall! I opted for the grooved braking surface which makes a massive difference in braking power. overall excellent quality rim and super happy!! I also laced a set of of Recon Pro for my 29" FS mountain bike to Hadley Hubs, I am a big rider....6'3" 240Lb. and these have been taking a beating so far. Super happy again with the level of durability and performance. Add that Light has given me outstanding customer service, I have zero reason to buy any other wheel or rim. Thank you!!
United States
1
Light Bicycle : Rims: R45 Non Disc - Grooved Graphene Surface Hook 3K Glossy 20/24H With Drain Holes No Access Holes Hubs: Carbon-Ti X-Hub Black 100QR 130QR Straightpull 20/24H 56T Campy 11S Spokes: Sapim CX Ray Nipples: Aluminium Black
1
Michael : Let me start by saying a huge thank you to Edwin and Nicole. Edwin and I went back and forth literally over 50 times, over email. Never once did I feel like I was frustrating them with all of my questions, although I'm sure it was getting annoying for them haha. I obviously wanted to make sure I was customizing the perfect wheel for my bike, and with their help I definitely did. R45 set with Carbon Ti hubs, Gloss Hex finish.... chef's kiss. I absolutely love them so far. They look and sound amazing. I ride pretty aggressive and so far these feel like the perfect setup to climb and descend fast with little crosswind effect. Thanks again LB fam!
Canada
1
Ivan : I ordered carbon rims from Lightbicycle back in September 2020 and so far, I am very happy with those. The rims are 45 front 55 rear. It felt like a nice combination.
Germany
1
Tim : R45 - light, aero, fast
United States
9

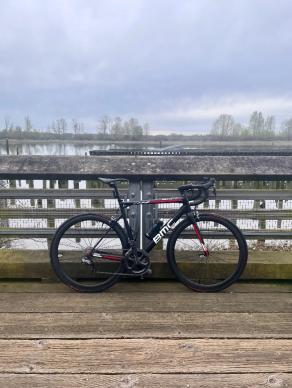

Mohsin : R45 wheelset. This is my second purchase from LB. I'm very happy with the wheels as well as the helpful service I received from everyone at LB.
China
1
Les : Excellent wheel set. Quick shipping. When I took them out of the box I was amazed at the quality of the build. Used the Bitex hub configuration and they spin forever. I can definitely notice an increase in speed over my stock wheels.
United States
2

View More Reviews >>

COMMENTS

M

Mariano 2023/07/04

Hello, I am looking for carbon rims, and I have chosen the Falcon RIM R45 as my favourite. I need one with 20 and another one with 24 holes. On the pics they come with grey or red decals. When clicking "Buy" they are describes as non-printed. How are they delivered? What is the price for one rim? And I also have another question: I live in Europe - I read that tere is an option to buyx with the taxes prepaid. How can I manage it to put the order with taxes prepaid? Thank you for your respond. Best regards Mariano


LightBicycle 2023/07/04

Hi Mariano, Thanks for reaching out! 1. We have a few color options for the decals. What color do you prefer? I can send you some photos for ref. 2. The rim is USD164 each with standard high TG brake surface, and USD184 for graphene brake surface. We have some rims 700C rim brake in stock if you have a rather narrow time window. But all stock rims are without any decals. 3. Yes, we do have tax-prepaid delivery optional. You can check out the cost on the checkout page. I can also send you the order via email to save you some trouble if you like. Feel free to ask if you have any questions. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

R

Robin 2022/07/11

What is the shipping time to the US for a pair of Falcon R45 clincher rims?


LightBicycle 2022/07/12

Hi Robin, Do you like R45 rims 700C disc or rim brake? How many? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

G

Giovanni 2021/06/08

Hello, Is it possible to have a 21 hole RRU45C02 rim? (rim brake falcon R45) Thanks Giovanni


LightBicycle 2021/06/08

Hi Giovanni, It is okay to manufacture the rim R45 rim brake 700C with 21H spoke holes. Are all spoke holes evenly spaced on the rim? Or 2:1 lacing pattern? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

A

Asbjorn 2021/02/19

Hi, thinking about lacing a pair of r45 falcon to a set of da m7900 hubs I have (16h/20h). Will this be a good combo for me? I am 92kgs, and a recreational rider. What spokes/nipples/washers? Can you offer to match? Thanks asbjorn


LightBicycle 2021/02/20

Hi Asbjorn, 1. The R45 700C rim brake wheels would be a good fit for you, the max rider weight we recommend is under 130kg. But please make sure your frame spacing is ok with the 25mm width. Some road models are only compatible with narrow rims. 2. We don't use the washers for our wheels(our wheel spoke holes are durable enough), but you can use Sapim washers if you prefer to have washers while building if you do not mind weights adding. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

F

Francesco 2020/05/29

I would buy a pair of R45 clincher rim to mount them with dtswiss 240s straightpull hubs, the spoke hole angle (+-6) is ok for this hub? Is safe to fit 23mm tires on these rims? Regards Francesco


LightBicycle 2020/05/29

Hi Francesco, 1. The R45 700C rims are ok to build with the DT Swiss hubs. Note that we only provide the new DT 240 EXP hubs and 350 hubs at the moment. Here's the most popular build for your ref. https://www.lightbicycle.com/site/share-cart?id=1573 2. The drilling angle makes the spoke align better and spoke tension balanced. 3. 23c tires would be a bit narrow for the 25mm wide rim. But the mounting varies from tires. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

D

Dave 2019/12/02

Hello, I'm looking at your r45 rim in 20/24h. How wide is the rim at its widest point and how far is this away from the edge of the rim? I need to know for clearance. Is there any discount codes for black Friday/cybermonday? I want to place an order but I'll wait until the new year unless there is much reason not to. Thanks, Dave.


LightBicycle 2019/12/03

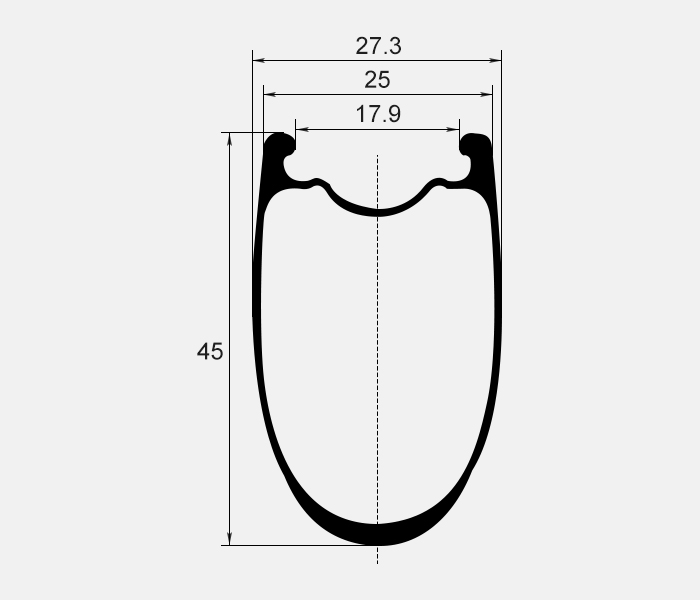

Hi Dave, You can see the widest area is 27.3mm at the middle of this road bike rim body area. We sent the rim profile to your email address. Please check. Does it work for you? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

S

Steven 2019/10/23

I would appreciate your advice on primarily rim depth. I am after a set of rims for general road use. I am thinking of the Falcon RA46 or R45. I ride mainly on roads, at moderate speeds, with a variety of terrain including hills. My weight is 115kg, and I use rim brakes with 28 mm tyres. I dont race, and comfort is more important than speed but speed is still important. I am looking for a good stong general purpose set of rims.


LightBicycle 2019/10/24

Hi Steven, 1. Both our road bike rims AR46 (28mm wide, 46mm deep) and R45 (25mm wide, 45mm deep) are compatibile with 28mm tires. So you don't have to worry about the mouting. 2. Those two rims are with different shape as you might learn from the rim profile section (attach to you so you can compare. The R45 is with a more rounded shape, which leading edge allows for more attached airflow, which reduces drags and increases balancing side force. On the other hand, the AR46 is more of a V-shape like relatively. This provide better aerodynamics in no wind and lighter. You can choose the better fit rim base on how you goona ride and the location condition. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

W

Wayne 2019/02/01

Hi there I am 185cm tall and weigh 87kg , I have a set of hope mono rs hubs 28/32 holes would these rims be ok for me with 28/32 holes or would the wheels be better with less spokes Thanks Wayne


LightBicycle 2019/02/02

Hi Wayne, Thanks for your inquiry! For road disc wheelset, most customers use front 24H/rear 24H, front 28H/rear 28H or front 24H/rear 28H. For front 28H/rear 32H, it is really strong enough for your riding. Don't worry. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

D

Douglas 2018/11/14

Hi, any plans for an 80-90mm deep rim or disk wheel for time trial?


LightBicycle 2018/11/15

Hi Douglas, We do have 88mm deep rim road bike rim for the time trial, you can see the rim profile from the attached photo. Will this work for you? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

J

James 2018/09/23

For US customers can I get the U45 in a 28 hole drilling? I on;y see that option for international buyers.


LightBicycle 2018/09/25

Hi, James Yes, you can have 28H rims from our North American warehouse if you like. Note that the reason why you cannot find the 28H at the North American warehouse is that we don't have stock for this rim. So the rim would be ordered to make from our factory and takes about 3~5 weeks. My suggestion is to order the rims you want directly from International (China )warehouse to save the time. Because we have last two 45C02 (25mm wide, 45mm deep with UD, matte, 28H, with brake surface ) in stock currently, which means you can get the rims in 7~10 days. We can discuss more details by mail. Please check with your inbox for our reply mail. Thanks Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

D

David 2018/09/22

Hi, Can you do road rims with hole for internal nipples ?


LightBicycle 2018/09/25

Hi, David Yes, we can drill for internal nipples. the spoke hole diameter would be 2.5mm. And we won't charge extra for this. If you like to order the rims online, you can leave a message during checkout. If you like us to handle this for you, we can discuss further details by mail. We already sent an e-mail to you, please check your inbox. Thanks Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

R

Rob 2018/08/07

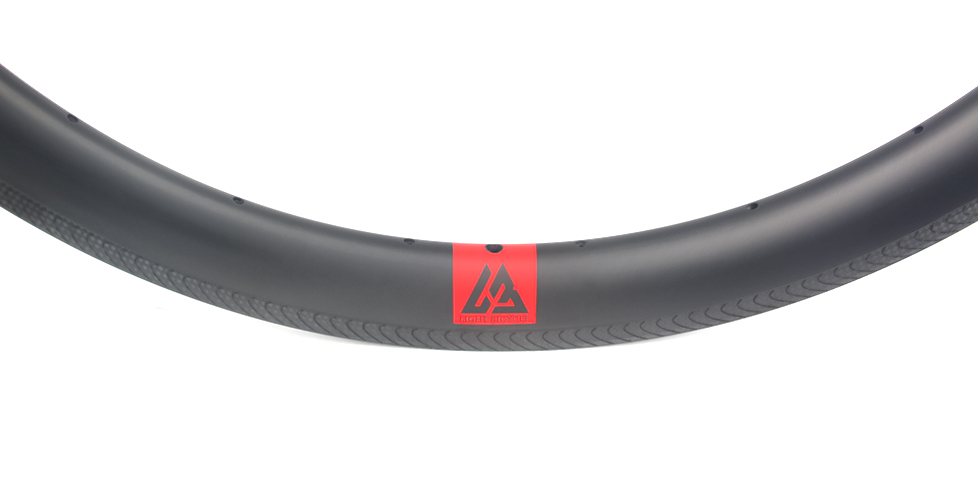

Do these rims have groves on the brake surface similar to how other companies are doing it now to improve braking in all conditions? If not, are you planning on adding them in the future and when?


LightBicycle 2018/08/08

Hi Rob, Yes, we already have texture on rim brake surface on road rims. We will revise our website accordingly late this month or early September. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

A

Adam 2018/04/01

I'm interested in purchasing they U Shape 45mm rim (20h) and U Shape 55mm (24h) rim in 25 wide to build up with DT Swiss 240 hubs that I have already. I would like to use the Sapim CX Ray spokes for this build. I would like to get the spokes from you. Is there something specific you need to know about the DT Swiss 240 hubs tht I have so you can provide me the right spoke length? Also what will cost be for Sapim CX Ray spokes? Thanks, Adam


LightBicycle 2018/04/02

Hi Adam, Quotation is as below. Please check and let us know if there is any questions. For spoke length, we can get it for you can provide your hubs specs. --Rims: Front RRU45C02, clincher, 25mm wide, 45mm deep, UD, matte, 20H is USD170 each Rear: RRU55C02, clincher, 25mm wide, 45mm deep, UD, matte, 24H is USD178 each. --Spokes: A pair of Sapim cx-ray is USD2.7 (one spoke and one nipple) Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

T

Trevor 2018/02/25

Good evening, Are the prices I'm seeing in my cart in USD or AUD? Thank You Trevor


LightBicycle 2018/02/26

Hi Trevor, As a global company, using USD as the currency is the simplest way to maintain price consistency with the changing exchange rate. This helps us keeps costs down and offer the best possible prices to our customers around the world. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

M

Mark 2017/07/10

I have a rear hub with an asymmetric spoking pattern - 16 spokes on the drive side and 8 spokes on the non-drive side. Can the angled spoke drilling be done to accommodate that (i.e. a 2:1 ratio of left-to right holes?).


LightBicycle 2017/07/11

Hello Sir, It is okay to drill 2:1 pattern for you. Are all the 24 spoke holes evenly spaced on rims? For attached two 2:1 drilling, which do you prefer? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.
