700C V-shape 46mm depth hand-built carbon road disc wheels - 28mm wide and tubeless compatible

BUYING OPTIONS

Global warehouse ship to most countries while the North American warehouse only ship to the United States and Canada

GLOBAL
NORTH AMERICAN
  • 1

    HUB

  • 2

    SPOKES/NIPPLES

  • 3

    RIM

  • 4

    ACCESSORIES

  • 5

    OVERVIEW

HUB

Spoke This is a required option.

Brand Model Type Thread Diameter (mm) Weight(g) Gauge Riding Style Available(Warehouse Location)
Sapim Race Double Butted 2.0 - 1.8 - 2.0 5.7g (260mm) 14G Heavy Duty North America, China
Sapim D-Light Double Butted 2.0 - 1.65 - 2.0 4.8g (260mm) 14G Versatile North America, China
Sapim CX-Ray Aero 2.0 - 0.9/2.3 - 2.0 4.4g (260mm) N/A Light Aero North America, China
DT SWISS Competition Race Double Butted 2.0 - 1.6 - 2.0 4.8g (260mm) 14G Versatile China
Pillar PSR X-TRA 1420 Aero 2.0 - 0.95/2.2 - 2.0 4.4g (260mm) N/A Inexpensive Aero China

Sapim D-Light – The best all-around and most popular spoke for carbon wheels. Lightweight but incredibly strong.
Sapim Race – Our strongest and stiffest spoke. These spokes are suitable for heavy or extremely aggressive riders who need a stiffer wheel.
Sapim CX-Ray – The lightest spoke in our lineup is still quite strong due to the elasticity and amazing fatigue life.

DT Competition Race - All Mountain and XC spoke used by the Chinese location as a substitue for the D-Light (depending on availability)

Pillar PSR X-TRA 1420 - An inexpensive bladed spoke, great for road and cyclocross riding.

Pillar Aero X-TRA 1420

Sapim CX Ray

Nipple This is a required option.

Nipple Brand Model Material Color Length Available
(Warehouse Location)
Sapim Double Square Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 16mm Norh America
Sapim Polyax/ Polyax Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 14mm China
Sapim Polyax Secure Lock Brass Black 16mm China
DT Swiss DT SQUORX (PRO HEAD PRO LOCK) Alloy Black, Red 15mm China
DT Swiss Standard PRO LOCK Brass Black 14mm China

Aluminium Black

Aluminium Red

Brass Black

Bead type This is a required option.

Rim width (hook): 28mm external/21mm internal
Rim width (hookless): 28mm external/22.5mm internal

Both hook and hookless rims are built using the same dimensions and materials. The max tire pressure for hooked version of the rim is 160psi. The hookless version of the rims features more impact strength and a max tire pressure of 80psi.

The hookless version is designed with low pressure impact resistance in mind. If you are planning to run a tire pressure above 80psi, the hooked version would be a better choice.

hook

hookless

Finish This is a required option.

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

glossy

matte

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer.
3k/12k/UD are the 3 choices for cosmetic appearance.The rim strength & weight is virtually identical.
UD Matte is the most popular and has a subtle look.
3k weave has a more traditional carbon fiber look.
More info about Weave >>

12K

3K

UD

Decal This is a required option.

Road rims use super light waterslide decals (glossy black). The decal is very thin and applied under a clearcoat so they are non-removeable.

Pictures about light-bicycle decal >>

If you want custom graphic, Please email us, we will design for you. There will be extra cost for custom graphic on rims.

Pictures about custom graphics >>

No

Stealth

Blue

Green

Magenta

Orange

Red

White

Yellow

Valve Stem This is a required option.

We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valve with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The vavle core is removeable so you can add sealant withoutn removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

One 10 yard roll of tape will be included. It is typically covers 2 rims with two laps each or 4 rims with one lap each.The high tensile tubeless tape features a natural rubber adhesive that does not leave a residue on the rims. On mountain bike rims, one layer of 18mm width tape is strong enough to seal the access holes which makes for the lightest tubeless setup.
Instructions of tubeless rim tape

None

Add Tubeless Tape USD +6 each

Brake Pads This is a required option.

4 pads will be included. These high performance brake pads are designed for carbon bike rims only and offer excellent stopping power even in the wet.
Instructions of brake pads

None

Add Brake Pads USD +10

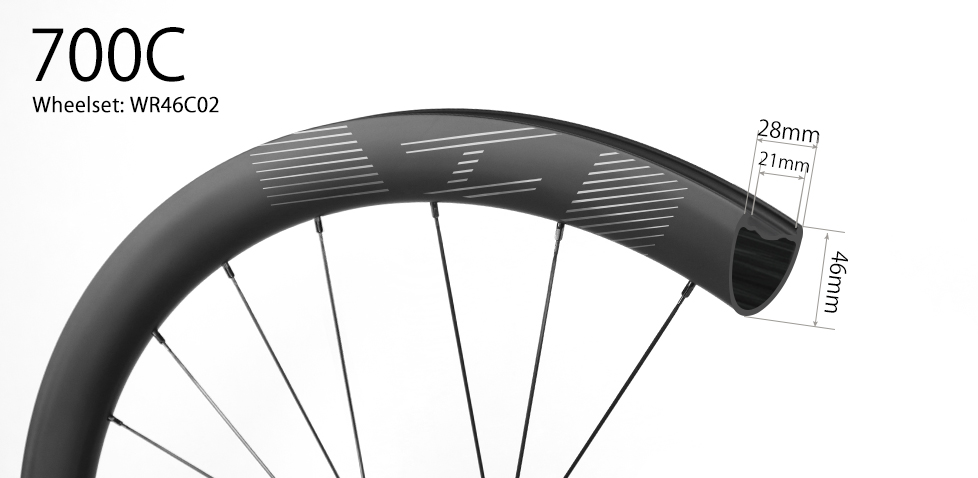

road-disc-wheel

In Stock, typically ships within 2 business days

In Stock, typically ships within 2 business days

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Recon Pro orders start shipping in October.

- + Pair

Spoke This is a required option.

Brand Model Type Thread Diameter (mm) Weight(g) Gauge Riding Style Available(Warehouse Location)
Sapim Race Double Butted 2.0 - 1.8 - 2.0 5.7g (260mm) 14G Heavy Duty North America, China
Sapim D-Light Double Butted 2.0 - 1.65 - 2.0 4.8g (260mm) 14G Versatile North America, China
Sapim CX-Ray Aero 2.0 - 0.9/2.3 - 2.0 4.4g (260mm) N/A Light Aero North America, China
DT SWISS Competition Race Double Butted 2.0 - 1.6 - 2.0 4.8g (260mm) 14G Versatile China
Pillar PSR X-TRA 1420 Aero 2.0 - 0.95/2.2 - 2.0 4.4g (260mm) N/A Inexpensive Aero China

Sapim D-Light – The best all-around and most popular spoke for carbon wheels. Lightweight but incredibly strong.
Sapim Race – Our strongest and stiffest spoke. These spokes are suitable for heavy or extremely aggressive riders who need a stiffer wheel.
Sapim CX-Ray – The lightest spoke in our lineup is still quite strong due to the elasticity and amazing fatigue life.

DT Competition Race - All Mountain and XC spoke used by the Chinese location as a substitue for the D-Light (depending on availability)

Pillar PSR X-TRA 1420 - An inexpensive bladed spoke, great for road and cyclocross riding.

Sapim CX Ray

Sapim D-Light

Sapim Race

Nipple This is a required option.

Nipple Brand Model Material Color Length Available
(Warehouse Location)
Sapim Double Square Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 16mm Norh America
Sapim Polyax/ Polyax Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 14mm China
Sapim Polyax Secure Lock Brass Black 16mm China
DT Swiss DT SQUORX (PRO HEAD PRO LOCK) Alloy Black, Red 15mm China
DT Swiss Standard PRO LOCK Brass Black 14mm China

Aluminium Black

Aluminium Red

Aluminium Blue

Aluminium Gold

Aluminium Green

Aluminium Lime

Aluminium Orange

Aluminium Purple

Bead type This is a required option.

hook

Finish This is a required option.

matte

Weave This is a required option.

UD

Decal This is a required option.

Road rims and flyweight rims use super light waterslide decals (glossy black). The decal is very thin and applied under a clearcoat so they are non-removeable.

Non-removable black waterslide graphics

Valve Stem This is a required option.

We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valve with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The vavle core is removeable so you can add sealant withoutn removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

We use a tubeless tape with high tensile strength and only one lap is required so it is very light. It uses a natural rubber adhesive that does not leave any residue on the rims.

None

Add Tubeless Tape USD +8 each

road-disc-wheel

In Stock, typically ships within 2 business days

In Stock, typically ships within 2 business days

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Recon Pro orders start shipping in October.

- + Pair

Weight: 870.00g+/-25

Final total: USD 348.00+

Weight: 870.00g+/-25

Final total: USD 408.00+

PREVIOUS NEXT You missed some options. You missed some options.

Added to cart! View cart or continue shopping.

RIM SPECS

  • Size 700C
  • Use Road/CX/Gravel
  • Type Clincher
  • Tubeless Ready
  • Inner/Outer Width Hook 21mm/28mm, Hookless 22.5mm/28mm,
  • Depth 46mm
  • ERD 548mm (not including nipple head dimension)
  • Weight Non Disc 460+/-15g, Disc 435+/-15g
  • Offset 0mm (symmetric)
  • Weight Limit 130kg
  • Spoke Hole Angle ±6°
  • Spoke Tension 100 ~110kgf (radial) /115 ~130kgf (disc) front, 120~130kgf rear
  • Tyre Pressure Hook: 130psi, Hookless: 80psi (recommended max)
  • Tire 25C~43C recommended

Teleport to the rim page.

Featuring a wide 28mm external width, this tubeless ready wheelset offers a wide and stable platform for everything from road to gravel tires.


With the 21mm internal width and 46mm depth, the 46mm wheels are well suited as an aerodynamic gravel race wheels or a deep dish cyclocross wheelset. The width is versatile enough for 25-28c road tires and lighten up your road bike to give you an edge at the next Gran Fondo!

High TG: Our new resin system and construction method, combined with the 3k rim track, withstands over 280°C, dissipates heat, and lowers rim temperatures faster in between braking efforts. Gain confidence-inspiring brake performance on the steepest descents and wettest conditions with our matching brake pads.


Graphene Brake Track : Graphene added to the rim brake track allows for greater resistance to overheating with improved heat dissipation and reduced temperature accumulation during heavy braking. The grooved track helps evacuate trapped moisture between pad and rim in the wet, and brings more resistance when conditions are dry so less force at the lever is required.


AeroTek: Our latest aerodynamic profile decreases lateral wind resistance and is both more stable and faster in a crosswind. A wider profile allows for larger and more efficient tires to be used without an aerodynamic penalty. Traditionally a tire can form a lightbulb shape when mounted on a narrow rim, but the airflow is much smoother with our wider rims.


DuoTek: Our clincher rims are manufactured in two pieces and then joined together. When designing the rims, our engineers, in every detail, demanded fewer joints. Fewer joints mean higher strength and stability.


TuffTek: A high-grade customized epoxy resin is used in our prepreg, creating a stable base for all of our road rims. Epoxy is less brittle than polyester resins and offers excellent flexural strength. Our consistent resin system, coupled with a precise layup schedule, allows for an extremely reliable and durable product.


Tubeless : All of our rims are tubeless compatible with bead seat retention. In most cases a floor pump is all that is needed to seal our rims. The bead shape is tailored to each rim width to achieve the best fit. Our hookless and clincher profiles have a smooth radius to reduce the chance of a pinch flat.


T700: Constructed with premium Toray T700 carbon fiber. The best strength to weight ratio with no expense spared.


For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Know more about the warranty policy >>

Gallery

Australia
0
Martin Savard : Thank you.
Canada
2

COMMENTS

B

Byeh 2018/12/04

Hi, I was wondering if you would recommend 24 or 28 spokes for me as I am a 64Kg rider. I would like to use the wheelset for mixed cyclocross and gravel riding as well as road riding. Also I would like run a variety of pressures from 40/45 psi for off road and 60+psi for road. Also can you build the wheelset with internal spoke nipples?


LightBicycle 2018/12/04

Hi Byeh, 1. It's alright for you to build 24H front and 28H on the back for this cyclocross wheelset. 2. Our recommendation tire pressure would be 40psi for hookless design. If you are planning on riding mix, sometimes with high pressure, I would say the hook version of RR460C2 (28mm wide, 46mm deep) would be the better option for you. 3. Yes, It is okay to build wheelset with internal nipples. The price is the same. For internal nipples, the spoke hole is smaller, the nipples are hidden inside the rim. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

T

Terrie 2018/11/09

I read that these would be available as a superlite rim in November are they available?


LightBicycle 2018/11/10

Hi Terrie, There will be light and wider road disc rims at the end of this year. Are you looking for disc rims? Thanks, Lightbicycle


R

Rob 2019/01/01

Was wanting more info on this wider and lighter wheelcoming out this year that you talked about in this response?


LightBicycle 2019/01/02

Hi Rob, Yes, our new road disc rim is under development. Hope you can understand that develop a new rim requires plenty of work before launching. Mind if I ask you some questions in return? What would be the ideal rim profile for you? What good will the width and depth rim provide? What kind of riding you usually do with the disc road rim? Gravel only? Some XC mixed maybe? We would love to hear your opinion regarding this. Would you kindly share with us? We would be more than appreciated for that. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

C

Chris 2018/10/08

Hi, I would like your rims built up with the 28mm wide 46mm deep road rim with breaking surface on disc brake hubs which I can later convert from q/r to through axle if I change my bike. Do hope hubs convert? Happy to have round double butted spokes. Thanks.


LightBicycle 2018/10/08

Hi Chris, Is it your bike disc or non disc? Do you like to order RR46C02 rims with brake surface or without(for disc)? What is your bike front & rear axle size? Then we can check hubs is convertable for your bike. For spokes, we have sapim cx-ray bladed spokes. It is aero spokes. If you like round spokes, we have black DT Swiss competition race or sapim D-light spokes. Which do you prefer? Thanks, Lightbicycle


LightBicycle 2018/10/08

Hi Chris, Is it your bike disc or non disc? Do you like to order RR46C02 rims with brake surface or without(for disc)? What is your bike front & rear axle size? Then we can check hubs is convertable for your bike. For spokes, we have sapim cx-ray bladed spokes. It is aero spokes. If you like round spokes, we have black DT Swiss competition race or sapim D-light spokes. Which do you prefer? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

H

Henry 2018/07/01

Hi guys, Is it possible to get these built from the factory with internal nipples? Best, H


LightBicycle 2018/07/03

Hi Henry, Yes, we do manufacture carbn fiber bike rims with internal nipples. You can place the order online and leave a message on the message box when you checkout. Or I can make an invoice for you with the internal nipples' request. Which way do you like? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

A

Adrian 2018/06/13

Looking at these 700c wheels clincher. Just not sure on a few things: What is the standard set up for a 2011 and a 2014 bikes? I run 25mm tires, Shimano. Not sure how to tell axel width required? Do you have stock? How long would it take to get them to Vancouver Canada, or to Blaine Washington USA? I would want the plainest black decals.


LightBicycle 2018/06/14

Dear Adam, 1. Normally, you can get these specs data from the bike supplier. Are you bike a disc or non-disc? Usually, for non-disc road bikes, the standard axles setup is front 100mm*QR/rear 130mm*QR. For disc bikes, the standard axles setup is front 15*100mm/rear 12*142mm. The figure refers to the diameter of the hubs. But my suggestion is to figure out your axles size for sure. In case it's not the standard case. 2. There are two version for RR46C02, hook, and hookless. If you are running under 40psi, you can go with the hookless version. If running over 40psi, you should go with the hook version. Thanks, Lightbicycle


J

J 2018/10/19

Is 40psi really the limit to use these rims hookless? Could you build a set with the 46 deep front and 56 deep rear hookless?


LightBicycle 2018/10/20

Hi J, 40psi is the tire pressure we recommend to you that keep tire safely on the rim and make sure your rims at their best performance during riding. If you are riding above 40psi, my suggestion is to go with the hook version. In case the tires came off during the riding process. According to our experience, people usually riding under 40psi for gravel riding. Yes, we can build a mixed cyclocross or gravel wheelset for you. But you should know that the RR56C02 only available in hook version. What kind of configuration are you looking for? Is there a performance brand you like to have? Thanks, Lightbicycle
