New Light Weight Road Disc Rim
Starting immediately, all of our new road disc rim feature a layup that drops between 25g and 30g from each rim without compromising stiffness or strength. This means the disc wheels have more responsive handling, a lower rotating weight for faster accelerations, and a lighter overall weight to have you scaling the hills faster than ever before.

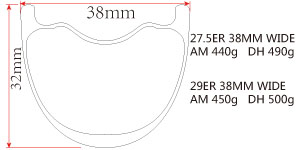

These new 38mm wide 29” rims and 650B rims will be ready around December 15th. Please email us for pre-order. Rim Size: 29er / 29-inch Rim Construction: Tubeless, Carbon fiber Rim Depth: 32mm Width: External: 38 mm; Internal: 31.6mm Rim weight: 450+/-15g for AM; 500+/-15g for DH Rim Size: 27.5er / 650b Rim Construction: Tubeless, Carbon fiber Rim Depth: 32mm Width: External: 38 mm; Internal: 31.6mm Rim weight: 440+/-15g for AM; 490+/-15g for DH Below is the advantage of these new wide rims. *Widest, tallest profile and strongest: 38mm width and 32mm depth strongly improves traction, braking control and flat protection. It also provides super tire stability even with large tire at low pressure. *Beadless & tubeless: hookless rim wall is more smooth and straight, the tire will touch rim walls fully and mounted perfectly, allowing to run lower tire pressure without risk of air loss or pinch flats.hookless carbon rim walls is not only provides better tubeless seal, also it is more durable and far stronger than original hook design. *Bead lock & less tubeless burping: the small ridges on each side of the drop channel.Some riders concern the transition to hookless bead rims will cause tyres blowing off or an increased likelihood of burping air from tubeless tyres. So we add bead lock ridges to make them with any fear and ride confidently. *Manufactured by new manufacturing process with one-piece-layer, to make carbon fiber layer continuous and rims strongest. We have the big layer-cutting machine to cut one-piece layer, for other factories, their cutting machine is not big enough .Read more about: Technology Improve Of Light-Bicycle Carbon Rims *Terrain: downhill / freeride / Enduro / all mountain

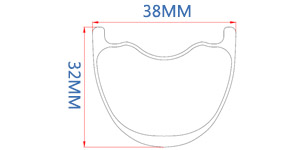

After around one year experience on 26er DH rims manufacturing and customers’ ride testing, we design below new carbon 26” mtb downhill rims. It will be our strongest and the most durable carbon mountain rims for downhill/freeride/Enduro bikes. Rim Size: 26-inch/26er mountain bike Rim Construction: Tubeless, Carbon fiber Rim Depth: 32mm Width: External: 38 mm, Internal: 31 mm Rim weight: 420g+/-15 for All mountain; 480g+/-15 for Downhill Below is the advantage of this carbon 26er mountain Downhill bike rims *Widest, tallest profile and stiffness, strongest: 38mm width and 32mm depth strongly improves 26” dh wheels’ rding performance. Also the carbon fiber construction makes this 26-in-wheel with excellent stiffness, impact resistance, tracking and cornering performance. *bead-less& tubeless:bead hookless rim wall is more smooth and straight, the tire will touch rim walls fully and mounted perfectly, allowing to run lower tire pressure without risk of air loss or pinch flats.bead hookless carbon rim walls is not only provides better tubeless seal, also it is more durable and much stronger than original 26er carbon rim hook design. *Bead lock: the small ridges on either side of the drop channel.Some riders concerns the transition to bead hookless rim profiles will cause tyres blowing off or an increased likelihood of burping air from tubeless tyres. So we add bead lock ridges to make them with any fear and ride confidently. *New process: now all mtb rims are manufactured by using our new manufacturing process.Learn more about the new manufacture process for mtb rims. *Terrain: downhill/freeride/Enduro It is the best 26er carbon rim for Downhill mountain biking wheels. We have started this manufacturing of this DH carbon wheels rim mold. It will be ready for sale around 2014 September 10th . Pre-order is accepted from now on!

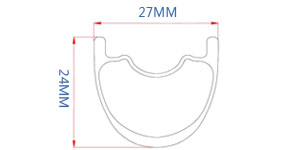

Rim Size: 27.5 inch / 650B mountain bike Rim Construction: Tubeless, Carbon fiber Rim Depth: 24mm Width: External: 27 mm, Internal: 22 mm Rim weight: 320g+/-15 Below is the advantage of this carbon 27.5 mtb wheel rim *Light weight: Incredibly strong and ridiculously light, the 27mm with & slightly U shape design makes these 27.5 rims super stiff & light weight. *Beadless: hookless rim wall is more smooth and straight, the tire will touch rim walls fully and mounted perfectly, allowing to run lower tire pressure without risk of air loss or pinch flats.hookless carbon rim walls is a way to improve impact resistance, so it is more durable and much stronger than original 27.5-inch wheel hook design. *Bead lock: the small ridges on either side of the drop channel. Some riders concerns the transition to hookless rim profiles will cause tyres blowing off or an increased likelihood of burping air from tubeless tyres. So we add bead lock ridges to make them without any fear and ride confidently. *New process: now all mtb rims are manufactured by using our new manufacturing process.Learn more about the new manufacture process for mtb rims. *Terrain: cross country/trail It is the best choice for 27.5 XC wheelset, and make your 27.5 hardtail bike super light for racing. We have started this manufacturing of this 650B XC rims mold. It will be ready for sale around 2014 September 10th. In 2011 year, our first 29er carbon rim 30mm wide is very popular. All these years, we have designed quite a lot of mtb rims accordingly to customers’ suggestion & demand, like mtb 26er carbon rim, 650B, 29er wider rims and more durable carbon rims for DH riding. We are keeping on improving rim structual design, the balance between strength & weight. Our factory has more carbon mtb manufacturing & design experience. We are sure this mtb cross country 650B rim will be popular, and in the coming future, we will also make the same profile for 29er XC & 26er XC rims.

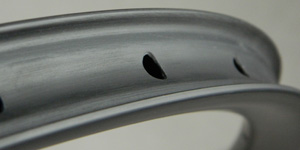

Quite a few customers are waiting for a few months for this new bead hook-less carbon rims. Please find as below rim specs. Size29 inch Outer width27mm Inner width22mm Depth24mm ERD592mm BSD622mm Rim weight365g+/-15 for XC Cross Country410g+/-15 for AM All Mountain It is quite hard to imagine how to secure the tire without any bead hook. Actually hookless rim design is not new, it has been used on automotive wheels for quite a long time. It is also hook less design & using tubeless tire. Now hook less design is started to used in bicycle rims. automotive tubeless wheels MTB 29er tubeless rim automotive hooke-less rim carbon 29er hook-less rim This rim is without bread hook, it is ok to hold tubeless and tubeless-ready tires. No need to use hook less ready tires. Our engineer started to study hookless design quite a long time ago. There is similar rim on the market, there is zero issues of holding tires for hook-less rims. The rim wall is more smooth and straight, the tire will touch rim walls fully and mounted perfectly. We have set up tubeless tire on it. It works well, absolutely zero air leaks. hook less 29er rim and tubeless tire the tire is mounted on rim start to inflate the tire use-soapy-water-to-check-whether-there-is-any-air-leakage prepare to mount the tubeless tire using yellow tape then adding sealant inflate the tire to 45psi using the same method to double check a while later Compare to head hook design, the hook less design is more durable. Because the rim wall structure is simpler. Then carbon fiber will be more continuous. It will be stronger than a hooker carbon rim at the same weight. Here is the testing data that we have done. Spoke tension test:Randomly choose some spoke holes for spoke tension test. 29er hook-less rim spoke tension test hook-less rim tubeless spoke tension test The testing data for spoke hole NO.1: around 374.26kgf, the nipple cracked, there is no crack on rim spoke hole The testing daat for spoke hole NO.2: around 305.68kgf, the spoke cracked, there is no crack on rim spoke hole Since the spoke & nipples are crack while testing, we can not get the max spoke tension of spoke holes. But we get the result the spoke holes can hold more than 300kgf tension. Rim Impact test: carbon 29er hook less rim impact test While the load is around 172.98kgf, the rim cracks at the vale hole area. (Pass: LB stiffness standard is 150kgf) Carbon hook-less 29er rim impact test data sheet Max load Max Elongation Energy absorption Breaking strength Test time Max displacement Max Elongation 172.98kgf 47.07% 4563.50kgf.mm 18114.96kPa 4.89min 49.03mm 47.07% If customers like to build light 29er bikes for XC riding, this rim is the best choice. It is pretty light & strong. It will become popular for light-weight 29er wheels & no tubes 29in wheelsets. Buy it now: bead hook-less rims carbon 29er light bike rim tubeless compatible >>

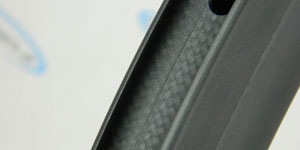

These days, we have got quite a few mails from customers. They are confused at our UD U-shaped 45mm clincher rims. They see 3k weave on rim bed and consider the rims are 3k, not UD actually. Please check as below, then you will understand the rims are with UD construction. For more detail information about 3k/12k/UD carbon fiber: The 3k 12K UD carbon fiber weave for rim and frame No matter 3k/12k/UD rims, all the inside carbon fiber are UD carbon fiber, UD layers are applied at different angle on each other. They are still not identical. For example, the orientation are different( some are placed at 0 degree, some are 45 degree, 90 degree,etc.). It is very important to use right orientation for carbon layers. Our engineers will use experience & testing result to use the best orientation for each carbon layer to make the rims with best strength. For 3k rims, it is only the top layer in 3k weave( only one layer 3K, all the inside are UD). For 12K rims, it is the same. Only the top one layer is 12K weave. For UD rims, it is around 99.9% carbon fiber layers are UD, only one small 3k layer on the top of rim bed, to prevent carbon fiber split after spoke holes machining on rim bed. UD Rims UD Rims bed UD Rims cross profile 3K Rims 3K Rims bed 3K Rims cross profile But there is one mechanical benefit for 3k woven carbon fiber. Putting the 3k woven carbon fiber around hole area& machining, it can prevent carbon fiber from laminating while machining. That is why 3k weave(only 1pcs small layer) on the top of rim bed. And one 3k layer on the top of rim bed will make the rim looks special and nice. So, our UD rims are not 3k construction, it is really UD rims 700C U-shaped. Please contact us if there is any question of rim construction. We will let our engineers reply accordingly and share more detail Technology about U shape 45mm clincher. It will be better if customers help to offer some suggestion.
For U shape rims braking surface issue last month (the beginning of Sept 2013), it is the clear coat painting on the braking track. So, the painting becomes peeling off after a few days. It is not allow to paint the brake track. The U shape 45mm clincher rim is very popular, there are quite a few orders, and the painting is too busy to finish orders in time, that is why we had one new guy added to do painting on U shape 45mm clincher rims. He is not familiar with painting process. He just paint the road rims the same as MTB rims. He did not know that, for road rims, there will be braking track surface left for braking. The painting can not be applied on the braking track surface. So, one batch of U shape road rims are painted at braking track surface last month. And it caused the braking surface issue. We are very sorry about this issue. Now the painting line has strict process guideline, to prevent similar issue happen again. And the QC department has added "braking track surface check" to the QC check list, no painting material on braking track surface. We know the performance for braking track surface is important for road bicycle rims clincher. Our production problems are fixed, and the braking surface is good now. Here are the pictures we made these days: We are arranging replacement rims for the customers that have braking issue. In the past, there is no this kind of issue for U shape 45mm clincher rims, except the batch of last month .We are very appreciated for the great support for some customers’ support. They trust us , and still accept replacement rims after we solve this issue. For the 45mm U-shape clincher rims shipped before September 2013, there are still no any complaint from customers. They are still riding well. We will keep improving the quality of products and professional service. It is always what we need to do.
After around 8 months testing, the new manufacture process performs much better than the old process. During these 8 months, we get almost no rim crack issue for new process(around 4100pcs new process rims are sold during these 8 months, only a few spoke hole pulled out at the beginning. And after we solved the spoke hole process. We haven't got any rim crack issue). But for the old process, there are some crack issue after customers' a few months riding. So, all wide 29er all mountain rim, 27.5er rim and New 26er DH rim(33mm wide&30mm deep rim) are now all used new process. And For new process rims, only can be available for Light-bicycle. We haven't sold to any other local trade companies. Some trade companies will sell the rims with old manufacture process at cheap price(some are the old process stock ones). If customers likes rim strong & with new process, please contact light-bicycle team. We will provide good rims & good after-sell service for all of you. The first two is for mold serial number. "12" standard for MR12( RM29C07 rim mold). The third letter, " M" stands for matte finish, " G" stands for glossy finish. The next two is spoke count, "32" stands for 32H spoke holes. The coming 6 numbers is for other number on our order list, like "917901" means your order is "917901" serial number on our order list. For the old process & stock ones, it starts with " SDXXXXXXXXX", or without serial number. Because the serial number is invisible sometimes for the old process. The MTB carbon rim manufactured with new process : carbon mountain bike 650b rim mtb 27.5 rim; Wider carbon mountain 29er rims clincher(tubeless-compatible); New 26er 33mm wide enduro MTB all mountain downhill carbon rim tubeless compatible; The MTB carbon wheels manufactured with new process are : carbon MTB 650B wheel mountain bike 27.5 wheels; all mountain 29er carbon mtb wheels clincher tubeless wheel ready; New 26er DH wheels(33mm wide&30mm deep rim)：ready for sell, we are preparing the files to list this product on our website for sell. Thank you for all your kind support, Light-bicycle team( engineers & sales) will keep improving rim quality. Learn more about the new manufacture process for mtb rims.
Several comments have been made about advantages of wheels which are more U-shaped than V-shaped and have a wider spacing between the bike rims. It is a relatively new development. There are some advantages of this bicycle rim design. Fisrt, It will have a straighter line and smoother transition from tire sideway to rim edge, for example; also less bulging of tire walls and make for easier passage of an inflated tire through brake calipers. With standard shaped road bicycle rims, the only design variations generally relate to rim width at the brake track and rim depth, with all other changes moving the road bike rims from a roughly 'V' shape to more of a 'U' shape. With the concept, the maximum width of the rim can be tuned independent of brake track width, while the widest point of the rim may also be moved up or down within the rim cross section. The tire attaches to the prongs of the U. The bottom part of the U is often flat on MTB carbon rims, but can be curved, sometimes even almost pointed, like the bottom of a V. Generally, the more curved or pointed the inner part of the rim is, the more strength it will have. Wheels offer unmatched aerodynamics across the widest possible range of wind conditions, while having the lowest possible cross wind sensitivity. These shapes are also not affected by tire width changes nearly to the effect that other ‘V’ and ‘U’ shaped rims are, allowing the athlete to choose the optimum tire for his/her event, and not have to compromise on a tire around which the wheel was originally designed, in some cases up to 15 years ago. Second, these clincher rims are with non-parallel brake track. The non-parallel brake track did not present a problem for braking. In fact, no need to alter the angle of brake pads. And it is nice to have the solid braking performance on an aero road bike wheelset. The non parallel brake track has been around for a while, it's on Zipp's carbon wheels and some Hed wheels too. This angled brake track will improve the airflow over the tire onto the rim, help toe in the brake pads, and also help to dissipate against heat buildup on the edge of the rim. The benefit of our new U shaped rims are: adding stiffness, due to a slight widening of the rim, and better braking, with a slightly angled brake track, not grew much in weight. And they are light, fast. when hit a few windy sections, it could not fell a thing in the cross winds. non parallel brake track Third, it is tubeless compatible. Customers can choose to setup tubeless on this rim if you ride tubeless. It will be light wheels with tubeless setup. tubeless setup perfectly Buy carbon U-shaped rims now >>
Dear customers, Recently, we find some carbon bike companies copy our website illegally, which significantly affects our reputation and widely misleads customers. Here we make an official statement to clarify that our unique website URL is www.lightbicycle.com. Any other sites,same or similar to our website, are all FAKE. In order to protect the interests of the customer against losses, it's our duty to remind customers to distinguish carefully. We feel honored that our customers present us strong support, but we will be not responsible for the products or related information from the fake websites. Thank you so much! www.lightbicycle.com
