Hook less control carbon 29er rims is ready

Quite a few customers are waiting for a few months for this new bead hook-less carbon rims. Please find as below rim specs.

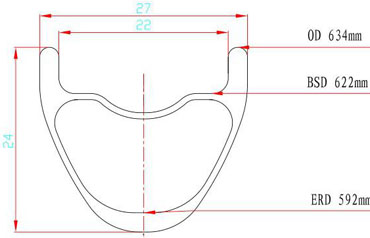

hook-less carbon 29er rims cross-section drawing
Size 29 inch
Outer width 27mm
Inner width 22mm
Depth 24mm
ERD 592mm
BSD 622mm
Rim weight 365g+/-15 for XC Cross Country
410g+/-15 for AM All Mountain

It is quite hard to imagine how to secure the tire without any bead hook.


Actually hookless rim design is not new, it has been used on automotive wheels for quite a long time. It is also hook less design & using tubeless tire. Now hook less design is started to used in bicycle rims.

hookless rim tubeless

automotive tubeless wheels

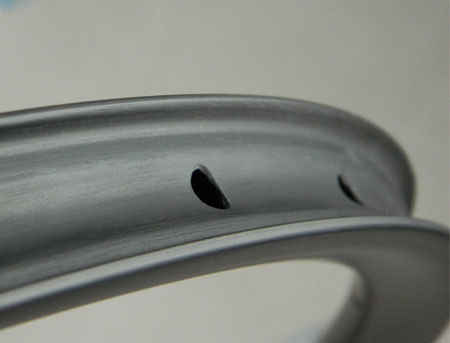

MTB 29er tubeless rim

MTB 29er tubeless rim


hookless automotive wheels

automotive hooke-less rim

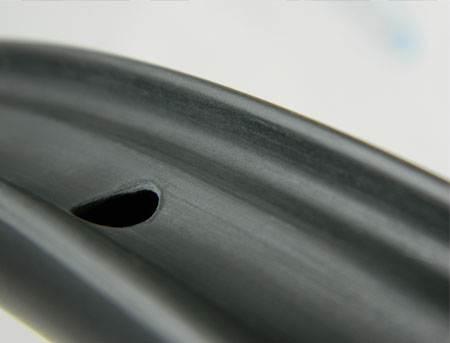

carbon 29er hook-less rim

carbon 29er hook-less rim


This rim is without bread hook, it is ok to hold tubeless and tubeless-ready tires. No need to use hook less ready tires. Our engineer started to study hookless design quite a long time ago. There is similar rim on the market, there is zero issues of holding tires for hook-less rims.


The rim wall is more smooth and straight, the tire will touch rim walls fully and mounted perfectly.


We have set up tubeless tire on it. It works well, absolutely zero air leaks.


hook less 29er rim and tubeless tire

hook less 29er rim and tubeless tire

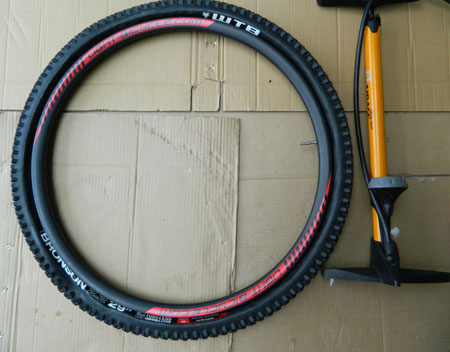

the tire is mounted on rim

the tire is mounted on rim

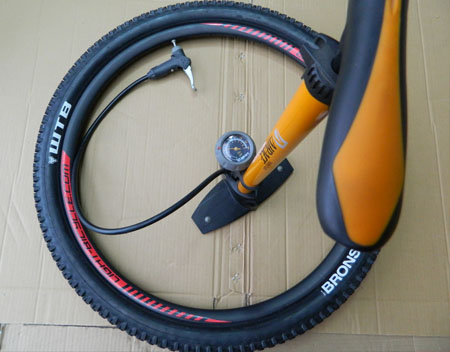

start to inflate the tire

start to inflate the tire

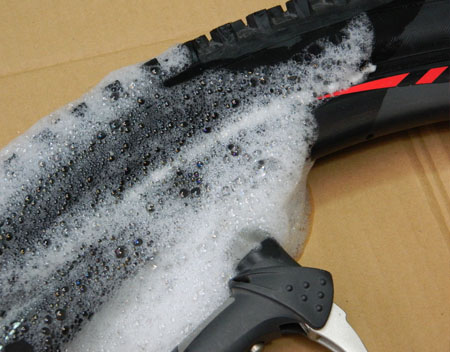

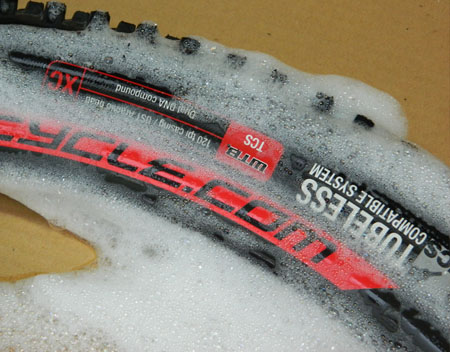

use soapy water to check whether there is any air leakage

use-soapy-water-to-check-whether-there-is-any-air-leakage

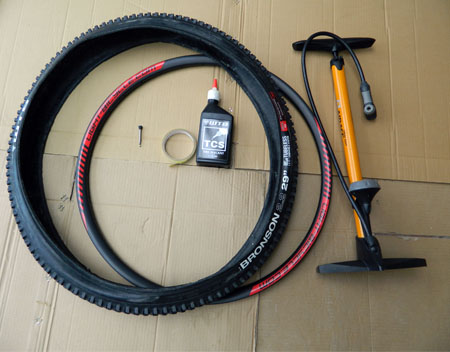

prepare to mount the tubeless tire

prepare to mount the tubeless tire

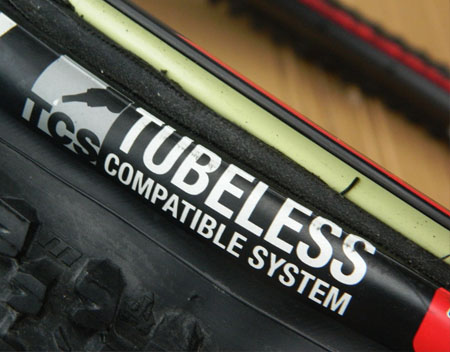

using yellow tape then adding sealant

using yellow tape then adding sealant

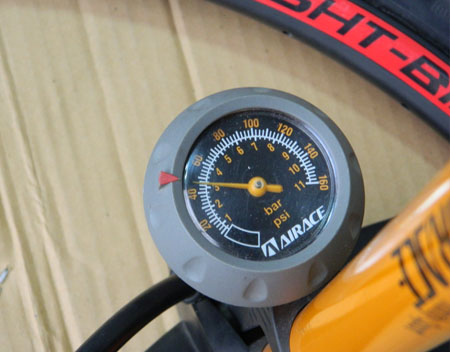

inflate the tire to 45psi

inflate the tire to 45psi


using the same method to double check a while later

using the same method to double check a while later


Compare to head hook design, the hook less design is more durable. Because the rim wall structure is simpler. Then carbon fiber will be more continuous. It will be stronger than a hooker carbon rim at the same weight.


Here is the testing data that we have done.

Spoke tension test:Randomly choose some spoke holes for spoke tension test.

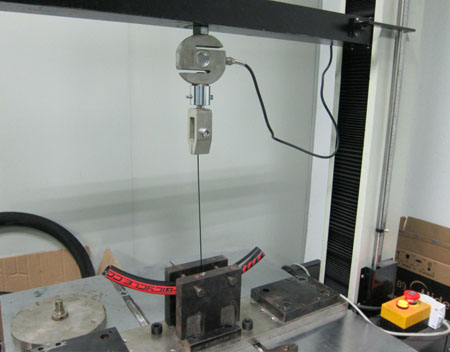

29er hook-less rim spoke tension test

29er hook-less rim spoke tension test

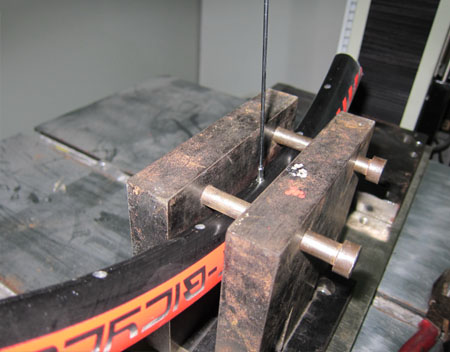

hook-less rim tubeless spoke tension test

hook-less rim tubeless spoke tension test

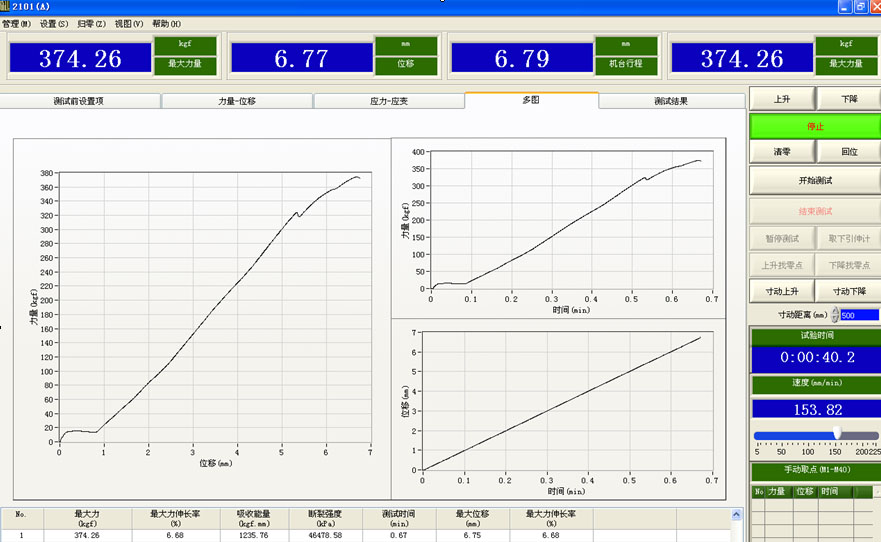

29er rim spoke tension test nipple cracked

The testing data for spoke hole NO.1: around 374.26kgf, the nipple cracked, there is no crack on rim spoke hole


29er rim spoke tension test spoke cracked

The testing daat for spoke hole NO.2: around 305.68kgf, the spoke cracked, there is no crack on rim spoke hole

Since the spoke & nipples are crack while testing, we can not get the max spoke tension of spoke holes. But we get the result the spoke holes can hold more than 300kgf tension.


Rim Impact test:

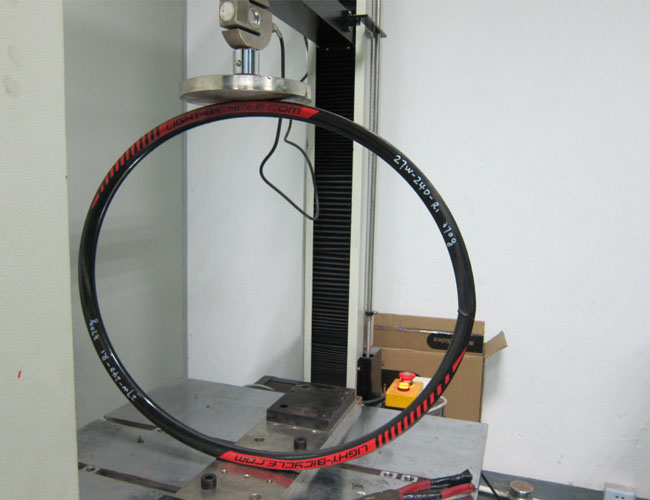

carbon 29er hook less rim impact test

carbon 29er hook less rim impact test

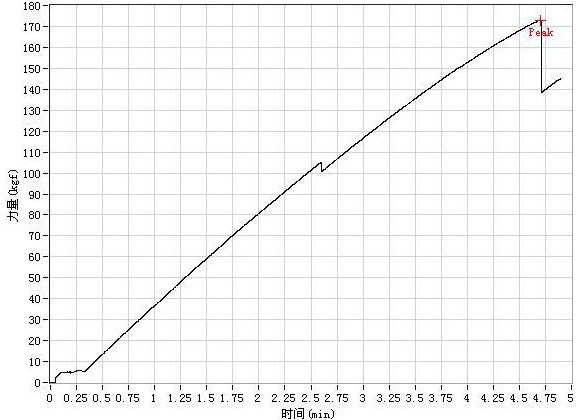

carbon 29er hook less rim impact test data

While the load is around 172.98kgf, the rim cracks at the vale hole area. (Pass: LB stiffness standard is 150kgf)


Carbon hook-less 29er rim impact test data sheet

Max load Max Elongation Energy absorption Breaking strength Test time Max displacement Max Elongation
172.98kgf 47.07% 4563.50kgf.mm 18114.96kPa 4.89min 49.03mm 47.07%

If customers like to build light 29er bikes for XC riding, this rim is the best choice. It is pretty light & strong. It will become popular for light-weight 29er wheels & no tubes 29in wheelsets.
