Hands-On: 650b MTB Carbon Rim to Launch

The looking samples of 650b mountain bike rim have been finished already.

It is with 30mm for the outer width, 23mm for the inner width and 20mm depth. It is designed for tubeless compatible.

( 650b wheel)

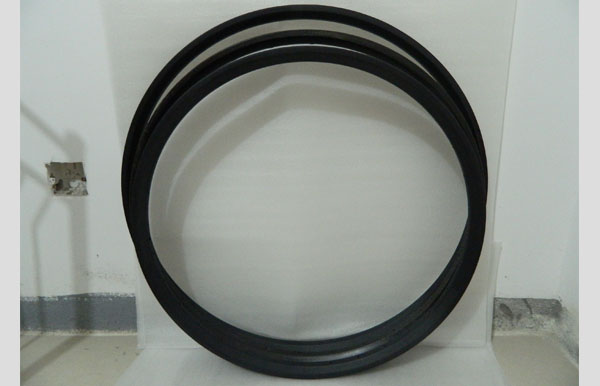

The weight for looking sample rim is around 330g. We put the rim together with 26er wider rim, 650b rim,29er wider rim. And take a picture as below.

( 650b rim)

In next coming weeks, we will make testing samples to do spoke tension test, tyre pressure test, impact test and riding test.

The weight for 650b mtb rim will be around 370g/pcs for XC( cross country) version, and the stronger version will be around 400g for AM (all mountain) version.

This 650b bike rim will be ready to sell at the end of August. And we will also provide 650b wheel then.

We look forward to all customers to help to provide some suggestion on 27.5 bike rim test, and then we can finally manufacture good 650b rims & 650b wheel for all customers.

New Update : After long time testing and improving, 650b rims manufactured today are very good, with strong strength, We are ready to sell rims to customers and we are sure all customers will like the rim and like the strength. Please click here for purchase and we will do strength test for each rim before shipping, to make sure 650b rims are good for customers. Buy it now,click here: carbon MTB 650B rims

SHARE NOW:

June 8th, 2012 | Light Bicycle

COMMENTS

Russell 2014/08/03

Hi, looking to buy a pair of 650b rims for xc only. I weigh 70 kg. are the 330gram rims ready for sale ? Price please. Can you supply a complete wheel set with above rims, dt Swiss 240 hubs and xc ray spokes or the equiverlent spoke. Price please. Many thanks Russelll

Light-Bicycle 2014/08/05

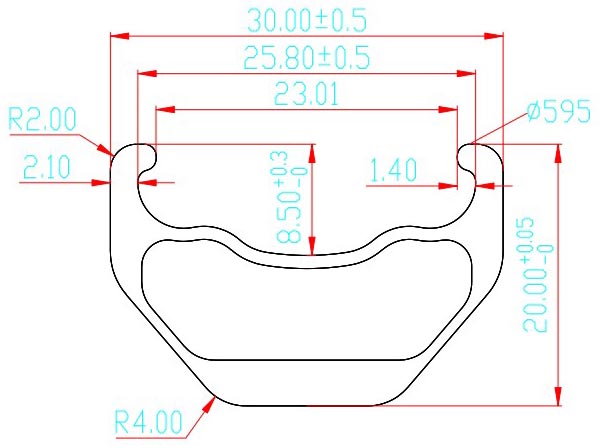

Hi Russell, Thanks for your inquiry. We can manufacture the hookless 30mm wide 650B XC rims for you. Hookless is more durable. Please find attached cross-section drawing. RM650BC02 (30mm wide 650B XC rim) hookless: 370 /-15g, USD163/pcs Please note that the weight we manufacture is 370 /-15g, no 330g. For rim weave, do you prefer 3k, 12k or UD? Matte or glossy? 32H? The shipping cost is USD50 for two rims to UK by EMS. We also can build the wheelset with above rims for you. But we only have Novatec & Hope hubs currently, no DT Swiss hubs. Is that ok for you? What hub axle size do you like for front & rear? Standard qr or thru axle? Spokes: There is only black Pillar Aero X-TRA 1420 aero, no Sapim CX-ray spoke. Do you like it? The spoke weight is quite the same as Sapim CX-ray spokes. Nipples: Pillar PT 734, which color do you like? Wheelset price (with Novatec hubs): USD584/pair Wheelset price (with Hope hubs): USD799/pair Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Paul 2012/11/28

I am very interested in one 650B 370g 28H XC version rim as long as the internal width is 23mm or greater. what is the price and lead time to California? Thanks, Paul

Support 2012/11/28

Hello Paul, Thanks for your inquiry. It is ok to make the 650b rim around 370g to 380g, 28 holes. The inner width of our 650b rim is 23mm. Please find attached cross-section drawing. Do you need one rim or one pair? The price is as below. USD163/pcs, and the shipping cost for one rim to USA is USD43, and it is USD50 for two rims to USA. The lead time for 650b rims is 7 working days. http://www.flickr.com/photos/light-bicycle/sets/72157631784656983/detail/ Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Warren 2012/09/12

I will be ordering a pair of the 650b rims when they will be available. If you are looking to design a heavier duty set with an internal width of 26-28mm I would be VERY interested.

michal 2012/09/12

Also interested in procing and availability for 650B / 27.5" AM rim. thx

Support 2012/09/12

Hello sir, Thanks for your inquiry. It is ok to order 650b rims now, the files for website stil haven't been finished, so we still haven't started to sell on our website. We can make invoice for you if you like to order. Do you like 3k/UD for rims? Glossy or matte finish? 32holes? Thanks, Light-bicycle

Support 2012/09/12

Hello sir, Thanks for your inquiry. For 650b rims, it is ok to order now, the files for website still haven't been finishe yet. So we still haven't started to sell on website. If you like to order, we can make invoice for you. It is with 30mm wide, 23mm for the internal width. Thanks, Nancy

Warren 2012/10/20

I received my rims yesterday. They look great. I hope to build them up tomorrow.

Support 2012/10/21

Hello Warren, Thanks for your mail. And we are happy that you like our rims. Please mail us if there is any problem when you ride on our rims. Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Ric 2012/09/27

I would like to order wider/stronger 650b rims and wider/stronger 26" rims. How long til I can place that order? Thanks

jerman 2012/09/27

hi, i am interested in AM. 650b wheel. 32H, 3K/ matt. deliver to Singapore, can I know the total cost ? I am more on trail and off road, thus, 3K is stronger then UD, am i right ? please email me the cross-section drawing and pictures of 650b rims. Thanks. regards, jerman.

Support 2012/09/27

Hello Jerman, Thanks for your inquiry. The price is USD564/pair for 650b wheelset. And the shipping cost is USD49 by EMS. So, total is USD613. You can check this link for difference of 3k/12k/UD. https://www.lightbicycle.com/the-3k-12k-ud-carbon-fiber-weave-for-rim-and-frame.html Please find attached cross-section drawing of 650b rims. Thanks, Light-bicycle

Support 2012/09/27

Hello sir, Thanks for your inquiry. The lead time for 650b rims is 12 working days. And it is 7 woking days for 26er wide rims. Do you like rims to be with 3k/12k/UD? glossy finish or matte finish? 32holes? Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

andrea 2012/09/24

hi, when can you sell me 650b set?possibile 28 holes? i'm waiting for yor answer, thanks.Andrea

Support 2012/09/25

Hello Andrea, Thanks for your inquiry. Yes, it is ok to order 28 spoke holes. We can manufacture for you. Do you like 3k/12k/UD for rims? glossy finish or matte finish? Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Pabel 2012/09/19

Hello, I am interested in ordering a set of 2 650b rims in the 400 gram weight. Would you please send pricing and details to my e-mail address? Thanks

Support 2012/09/20

Hello Pabel, Sure, the price is USD163/pcs. And we can mail you the cross-section drawing and pictures of 650b rims. Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Grant 2012/09/14

Aloha, Was looking to order a couple of these 650b rims. 3K/Matte finish 32 holes. How would you like to proceed and invoice? Thanks so much, g

Support 2012/09/15

Hello Grant, Thanks for your inquiry. We can make invoice for you, the files for website still haven't been finished. So, we still haven't started to sell on website. Please find attached invoice and let us know if there is any question. Can you help to provide your shipping address and phone number please? It is needed for the delivery document. And you can inform us it is for PI1499 when you make the payment, then we will know it is for your order. Thanks, Light-bicycle

Grant 2012/09/18

Aloha, I unfortunately deleted the email reply you have sent me. Can you please resend the email with the attachment so I can include the shipping and billing addresses. Once again, this is for 2 ea 650b rims, 3K/Matte finish drilled 32 holes. Thanks, g

Support 2012/09/18

Hello Grant, Sure, please check your mail and the invoice. Please let us know if there is any question. Thanks, Nancy

Grant 2012/09/18

Thank you very much. Can you tell me which versions are available? I am interested in the 370g XC version. Just to make sure, the dimensions are the same whether they are XC or more durable version?

Support 2012/09/19

Hello Grant, Yes, the dimensions are the same for all versions 650b rims（XC, light weight version and stronger version). The mold is the same. Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Tim 2012/09/14

Are the 650b all mountain versions(400g) ready for sale yet?

Support 2012/09/15

Hello Tim, Hello sir, Thank you for your inquiry. For 650b stronger version, it will be ok to order about 7days later. Is that ok? Currently, it is ok to order 370g+/-15. Thanks, Nancy

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Michal 2012/09/14

Is this first order batch the AM version for 650b?

Support 2012/09/15

Hello sir, It is ok to order 650b rims now, the files for website stil haven't been finished, so we still haven't started to sell on our website. We can make invoice for you if you like to order. Do you like 3k/UD for rims? Glossy or matte finish? 32holes? Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

William 2012/09/15

Hi, am interested in your new 650b rims. How do I order? Do you take paypal?

Support 2012/09/15

Hello sir, Thanks for your inquiry. It is ok to order 650b rims now, the files for website still haven't finished yet. So, we still haven't started to sell on website. If you like to order now, we can make invoice for you. We accept paypal, bank transfer and western union payment. Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Chad 2012/09/04

I would like to buy two of the 650b all mountain rims when they are available. Please let me know when these have been tested and are ready for sale. Thank you, Chad

Support 2012/09/06

Hello Chad, The rims can be ready to sell on next week, we are taking pictures and our website administrator will upload it to our website soon. Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

marty 2012/09/02

i'm interested in your 650b carbon rim and or wheelset if you have those coming soon. what are the prices? thanks Marty

Support 2012/09/03

Hello Marty, The 650b rims still haven't been finished ride testing, currently we don't know the price yet. It will be ok to order soon, and we will upload to our website when all testing are ok and mail you. Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

ren 2012/08/31

I would recommend the same dimensions you are doing for you 26inch wheels. The market is trending to 5.5-6 inch suspension bikes for 27.5. These bicycle types typically run large volume 2.35-2.5 inch tires. A 21mm internal width is great for a trial bike but not for an aggressive rider. I also would recommend a deeper dish on the mountain rim so we can run shorter spokes.

Support 2012/09/01

hello Ren, Thanks for your suggestion. The 650b rim has already been designed. It is the same outwidth and inner width as 26er wide rim. Is that ok for you? Thanks, Light-bicyle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

See all 13 customer reviews>>
