650B Hand-built Endro Downhill MTB wheelset 38mm wide 27.5 inch wheels tubeless ready

BUYING OPTIONS

Global warehouse ship to most countries while the North American warehouse only ship to the United States and Canada

GLOBAL
NORTH AMERICAN
  • 1

    HUB

  • 2

    SPOKES/NIPPLES

  • 3

    RIM

  • 4

    ACCESSORIES

  • 5

    OVERVIEW

HUB

Spoke This is a required option.

Brand Model Type Thread Diameter (mm) Weight(g) Gauge Riding Style Available(Warehouse Location)
Sapim Race Double Butted 2.0 - 1.8 - 2.0 5.7g (260mm) 14G Heavy Duty North America, China
Sapim D-Light Double Butted 2.0 - 1.65 - 2.0 4.8g (260mm) 14G Versatile North America, China
Sapim CX-Ray Aero 2.0 - 0.9/2.3 - 2.0 4.4g (260mm) N/A Light Aero North America, China
DT SWISS Competition Race Double Butted 2.0 - 1.6 - 2.0 4.8g (260mm) 14G Versatile China
Pillar PSR X-TRA 1420 Aero 2.0 - 0.95/2.2 - 2.0 4.4g (260mm) N/A Inexpensive Aero China

Sapim D-Light – The best all-around and most popular spoke for carbon wheels. Lightweight but incredibly strong.
Sapim Race – Our strongest and stiffest spoke. These spokes are suitable for heavy or extremely aggressive riders who need a stiffer wheel.
Sapim CX-Ray – The lightest spoke in our lineup is still quite strong due to the elasticity and amazing fatigue life.

DT Competition Race - All Mountain and XC spoke used by the Chinese location as a substitue for the D-Light (depending on availability)

Pillar PSR X-TRA 1420 - An inexpensive bladed spoke, great for road and cyclocross riding.

DT Swiss Competition Race

Sapim CX Ray

Nipple This is a required option.

Nipple Brand Model Material Color Length Available
(Warehouse Location)
Sapim Double Square Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 16mm Norh America
Sapim Polyax/ Polyax Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 14mm China
Sapim Polyax Secure Lock Brass Black 16mm China
DT Swiss DT SQUORX (PRO HEAD PRO LOCK) Alloy Black, Red 15mm China
DT Swiss Standard PRO LOCK Brass Black 14mm China

Aluminium Black

Aluminium Red

Brass Black

Version This is a required option.

All Mountain

Heavy Duty USD +5

Finish This is a required option.

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

glossy

matte

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer.
3k/12k/UD are the 3 choices for cosmetic appearance.The rim strength & weight is virtually identical.
UD Matte is the most popular and has a subtle look.
3k weave has a more traditional carbon fiber look.
More info about Weave >>

12K

3K

UD

Decal This is a required option.


The new graphics are included and available in 7 colors. The decals are now easily replaceable so you can keep your rims looking fresh.

Stealth

Blue

Green

Magenta

Orange

Red

Yellow

Valve Stem This is a required option.

We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valve with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The vavle core is removeable so you can add sealant withoutn removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

One 10 yard roll of tape will be included. It is typically covers 2 rims with two laps each or 4 rims with one lap each.The high tensile tubeless tape features a natural rubber adhesive that does not leave a residue on the rims. On mountain bike rims, one layer of 18mm width tape is strong enough to seal the access holes which makes for the lightest tubeless setup.
Instructions of tubeless rim tape

None

Add Tubeless Tape USD +6 each

mtb wheels for sale

In Stock, typically ships within 2 business days

In Stock, typically ships within 2 business days

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Recon Pro orders start shipping in October.

- + Pair

Spoke This is a required option.

Brand Model Type Thread Diameter (mm) Weight(g) Gauge Riding Style Available(Warehouse Location)
Sapim Race Double Butted 2.0 - 1.8 - 2.0 5.7g (260mm) 14G Heavy Duty North America, China
Sapim D-Light Double Butted 2.0 - 1.65 - 2.0 4.8g (260mm) 14G Versatile North America, China
Sapim CX-Ray Aero 2.0 - 0.9/2.3 - 2.0 4.4g (260mm) N/A Light Aero North America, China
DT SWISS Competition Race Double Butted 2.0 - 1.6 - 2.0 4.8g (260mm) 14G Versatile China
Pillar PSR X-TRA 1420 Aero 2.0 - 0.95/2.2 - 2.0 4.4g (260mm) N/A Inexpensive Aero China

Sapim D-Light – The best all-around and most popular spoke for carbon wheels. Lightweight but incredibly strong.
Sapim Race – Our strongest and stiffest spoke. These spokes are suitable for heavy or extremely aggressive riders who need a stiffer wheel.
Sapim CX-Ray – The lightest spoke in our lineup is still quite strong due to the elasticity and amazing fatigue life.

DT Competition Race - All Mountain and XC spoke used by the Chinese location as a substitue for the D-Light (depending on availability)

Pillar PSR X-TRA 1420 - An inexpensive bladed spoke, great for road and cyclocross riding.

Sapim CX Ray

Sapim D-Light

Sapim Race

Nipple This is a required option.

Nipple Brand Model Material Color Length Available
(Warehouse Location)
Sapim Double Square Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 16mm Norh America
Sapim Polyax/ Polyax Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 14mm China
Sapim Polyax Secure Lock Brass Black 16mm China
DT Swiss DT SQUORX (PRO HEAD PRO LOCK) Alloy Black, Red 15mm China
DT Swiss Standard PRO LOCK Brass Black 14mm China

Aluminium Black

Aluminium Red

Aluminium Blue

Aluminium Gold

Aluminium Green

Aluminium Lime

Aluminium Orange

Aluminium Purple

Version This is a required option.

The HD version has extra layers for increased stiffness and sidewall reinforcement. Ideal for large and aggressive riders.

+ $10.00 per rim
+ 40 - 50g per rim

All Mountain

Finish This is a required option.

matte

Weave This is a required option.

UD

Decal This is a required option.


The new graphics are included and available in 7 colors. The decals are now easily replaceable so you can keep your rims looking fresh.

Stealth

Blue

Green

Magenta

Orange

Red

Yellow

Valve Stem This is a required option.

We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valve with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The vavle core is removeable so you can add sealant withoutn removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

We use a tubeless tape with high tensile strength and only one lap is required so it is very light. It uses a natural rubber adhesive that does not leave any residue on the rims.

None

Add Tubeless Tape USD +8 each

mtb wheels for sale

In Stock, typically ships within 2 business days

In Stock, typically ships within 2 business days

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Recon Pro orders start shipping in October.

- + Pair

Weight: 910.00g+/-25

Final total: USD 390.00+

Weight: 910.00g+/-25

Final total: USD 450.00+

PREVIOUS NEXT You missed some options. You missed some options.

Added to cart! View cart or continue shopping.

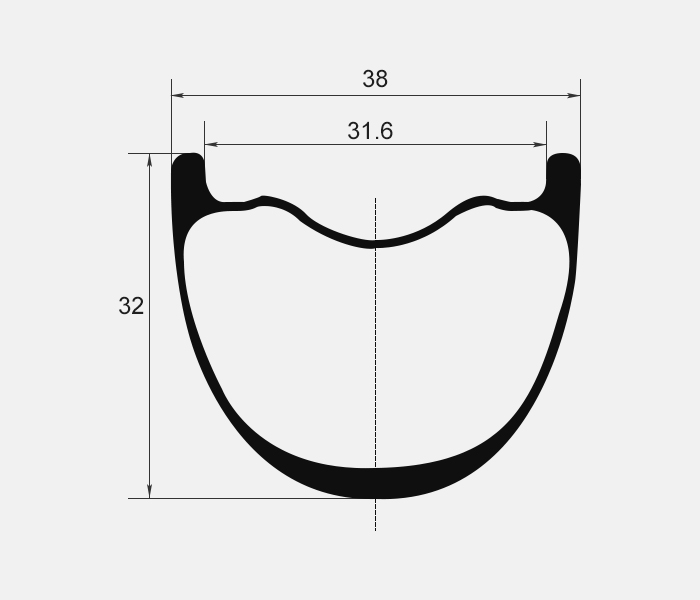

RIM SPECS

  • Size 650B
  • Use All Mountain/Enduro
  • Type Hookless
  • Tubeless Ready
  • Inner/Outer Width 31.6mm/38mm
  • Depth 32mm
  • ERD 536mm (not including nipple head dimension)
  • Weight AM 455+/-15g, HD 505+/-15g
  • Offset 0mm (symmetric)
  • Weight Limit 140kg
  • Spoke Hole Angle ±5°
  • Spoke Tension ≤145kgf recommended
  • Tyre Pressure ≤35psi recommended
  • Tire 2.3" ~ 3.1" recommended

Teleport to the rim page.

The 38mm wheels are very popular amongst riders looking for a strong and wide carbon wheelset. The 31.6mm internal width works well with high volume tires and the wide bead seat helps to prevent tire burping on tubeless setups. These imposing rims have a 32mm depth so you will get a very responsive wheel that can hold it’s line through rough terrain.


For really aggressive riders or those using the bike park from time to time, we have an HD version. The HD version receives an extra wrap of 3k carbon fiber for additional wall thickness and reinforcement so they can handle G-outs better than the normal version.

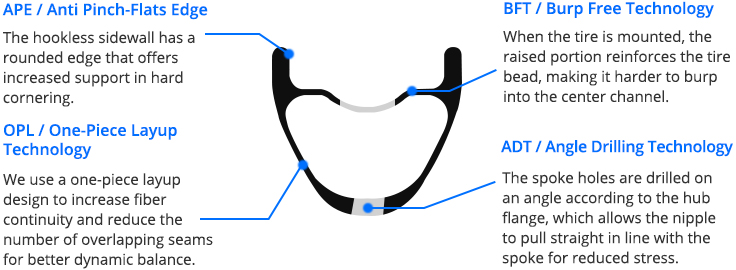

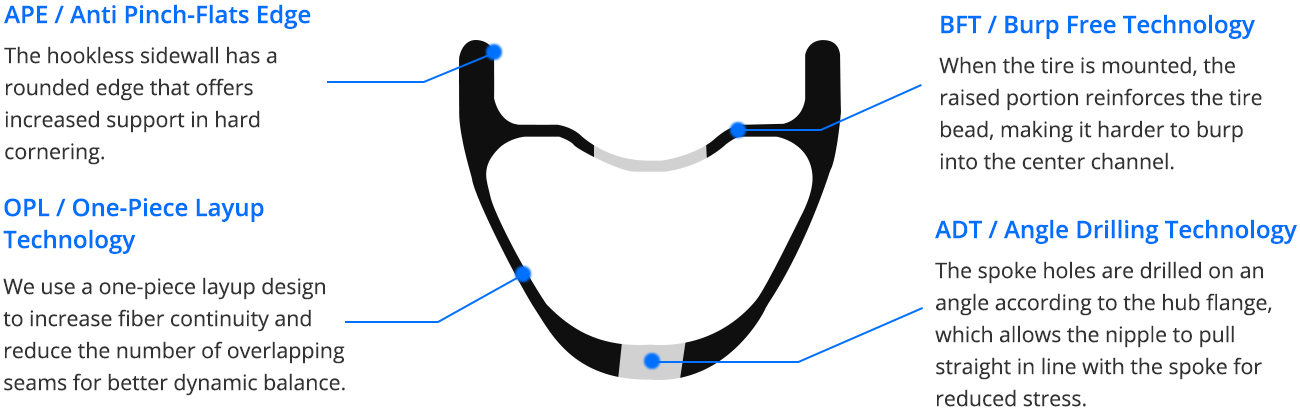

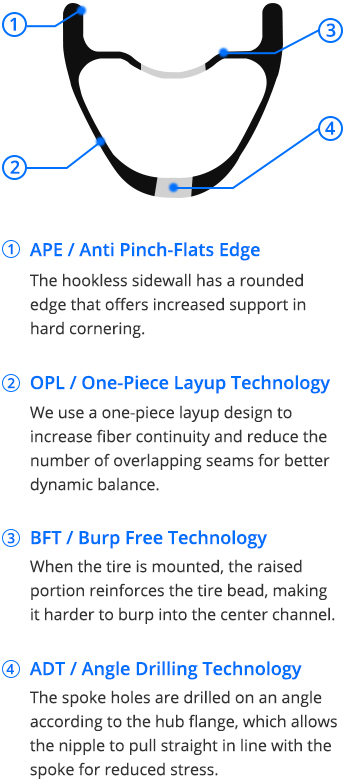

Hookless: Carbon fiber flows continuously over the bead area to provide the best impact resistance and a significant strength increase compared to a clincher rim.


Manufacturing process: Our air bladders are made from a special material which produces smoother walls, result in a lighter rim, and are completely removed without harsh chemicals. They are removed through the valve hole with a unique process so that the rim does not have to be patched like traditional manufacturers use. This significantly improves the strength of the rims. Read More about our process


Hand-Built: Each wheelset is painstakingly built by hand to tension within 5% variance. Each spoke's tension rating is recorded in our system, as is the roundness and lateral tolerance.


T700: Constructed with premium Toray T700 carbon fiber. The best strength to weight ratio with no expense spared.


Precise layup: Each rim carries its own layup schedule documents which are followed meticulously by the layup workers. Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim.


Angled Holes: Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress. This results in fewer broken spokes and nipples.


U-Shape: U-shape profile spreads the force of impacts and creates a more robust product.


Bead lock: The small ridges on either side of the drop channel help secure tubeless tires in place. The bead lock makes it easier to seal up tubeless tires with a floor pump, and they are incredibly hard to burp.


Tubeless: While the rims are optimized for a tubeless setup with the addition of tubeless tape, they also work with tubes.


For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Know more about the warranty policy >>

Gallery

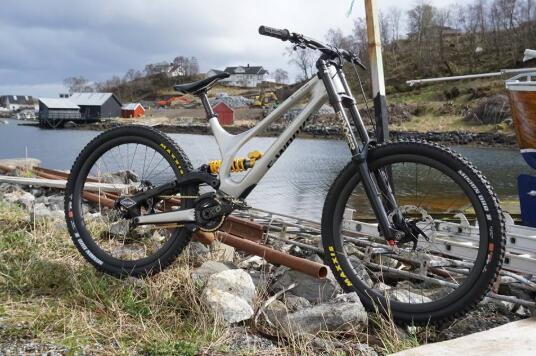

Jimmie Nygård : S-Works With my awesome LB wheels
Norway
1
Kurt Kurtz : Thank you Kartrin, they are exactly what I want, I am very excited. I was going to use the other pair for my bike but my daughter liked them so much they went on her bike.
USA
1
Sam Lee : Bike images with Lightbicycle wheels, awesome!
China
1
Emmanuel Capacio : Just want to let you know i had it installed on my bike yesterday! And i'm loving it! Best regards.
Philippines
1
William Short : I am very impressed with the build quality and finish.I have attached some pics of the bike all built up! Looks great.
Australia
1
Jeremy Alderman : Santa Cruz Nomad 3Rock Shox suspensionSram xx1 drive trainRace Face next sl cranksShimano xt brakesAnd super awesome light bicycle carbon rims.
USA
1

COMMENTS

J

jonathan 2018/06/13

HI! Can you ship to Dubai? I want a 650BC13 Rim Only, Matte UD, Heavy Duty, Orange Decal. How much is the shipping cost to Dubai? Thanks!


LightBicycle 2018/06/14

Hi Jonathan, Yes, we can ship to Dubai (UAE). The shipping cost is USD74 for one rim by EMS. Takes about 5~10 days to arrive. 650B bike rim, 650BC13, UD, matte, 32H, heavy duty, with orange decal is USD188. It's in stock. The rim can be shipped out within two days. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

D

dave 2018/05/23

I need dt swiss 12x157 supper boost rear hub, do you have them?


LightBicycle 2018/05/24

Hi Dave, DT super boost hubs will arrive in July. Is that okay for you? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

R

Robert 2018/04/24

I have a 2018 Santa Cruz Nomad. I want to put a set of wide carbon rims ( Downhill/ Enduro ) with i9 hub. How much will it cost me for this complete set including shipping here in LA California. Thank you very much!


LightBicycle 2018/04/25

Hi Robert, RM650BC13 has two version, standard, and heavy duty. If you are riding aggressively or you are a heavy rider, then pls go with the heavy duty version. May i know your weight and tire width please? Then we can check which 650B rim is better for your riding and make a quotation accordingly for your check. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

J

John 2017/11/20

what is delivery cost of wheels to Australia? What is the recommended tyre size for these wheels? does this wheel get 5% AM50 discount?


LightBicycle 2017/11/21

Hi John, Normally, the delivery cost is USD58 for one wheelset to Australia by EMS, For tire size, you can use 2.3" to 3". For AW50 code, it is for asymmetrical wheelset only. You can go for AM733/EN733 wheelset, it is okay to use AW50 code. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

M

Mike 2017/04/21

Hi What are the estimated shipping cost for a 650b wheel set to Monterrey / Mexico?


LightBicycle 2017/04/22

Hello Mike, Thanks for your inquiry. The delivery cost is $134 USD for one wheelset to Mexico by EMS. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

A

Andrew 2016/09/27

Hi, Can you build the 650BC13 wheelset with the Heavy Duty option at the rear and the All Mountain option at the font? How would I order this? I weigh 89kg and ride aggressively.


Light-Bicycle 2016/09/28

Hello Andrew, Thanks for your inquiry. Yes, we are able to build the 38mm wide 650B wheelset with from AM version/ rear HD version. We can create the invoice for you. What hubs and spokes do you prefer? Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

T

Tony 2016/09/20

When will these be available? It says "will be manufactured and shipped soon" How long do you mean?


Light-Bicycle 2016/09/21

Hello Tony, Thanks for your inquiry. UD matte RM650BC13 AM rims are in stock and wheels will ship within 3 business days. Since they are very popular, they will be out of stock mostly. Please place your order as soon as possible if you are ready to order. Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

S

STEFANO 2016/07/03

hi, first of all sorry for my English , I would like to know if these circles I can mount them on a specialized turbo levo expert with chewing 2.80 or 3.00. Thank you


Light-Bicycle 2016/07/04

Hi STEFANO, Thanks for your inquiry. May I know your weight? Do you use your rims for XC, AM or DH? Then I can recommend the rim accordingly. Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

M

Matt 2016/06/03

Hi- I am interested in a rear wheel only. I am looking at the 650BC13, 12/142, Shimano FreeHub, 32 holes, DT 240s, black matte, aluminum black nipples, no decal, stem with rim tape. What would the pricing be for this?


Light-Bicycle 2016/06/03

Hello Matt, Thanks for your inquiry. The 38mm wide 650B rear wheel with following specs is $547 USD. -Rim: RM650BC13, 32H, no decals. UD matte? -Hub: Black, DT 240S J-bend 6-bolt rear 12*142mm for Shimano 10/11s -Spokes: Black, DT competition race -Nipples: Black alloy -Rim tape: 18mm x 10 Yard Roll -Valve stem: 44mm Long Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

T

Tom 2016/05/22

Hello Light bicycle, I am a highly agressive Enduro and All mountain rider, I weigh 85KG and I have a Transition Patrol, 650B wheel, large frame. I have a few questions: 1. Do you think the 38mm is overkill? 2. I wanted to know if there was any difference between this wheelset and the RM650BC13 RIM you have for sale on it's own? I see there are more options on the RIM only page, the decals look different and you have a "Heavy Duty" option not available on the wheelset page. 3. Can you do this build with purple or blue anodised spokes? 4. How much extra is the customised decal? Do I just send you the text I want or how does this customisation work? 5. What does hookless mean and does this wheel set have it? 6. If I purchase this wheel today with Blue Hope Hubs, decal customisations and purple or blue spokes, when will it arrive in Scotland? 7. Some of your wheels say "tubeless compatible", some "tubeless ready", and others nothing at all. Can you confirm what the differences are in your 650B, AM category? Thanks, Tom


Light-Bicycle 2016/05/23

Hello Rick, Thanks for your inquiry. According to your details, we’d like to recommend the 34mm width or 35mm width 29er wheels for your riding. WM29C21 (with 34mm width asymmetrical rims, Hope pro4): USD941/pair WM29C07 (with 35mm width rims, Hope pro4): USD813/pair Hope pro4 is our most popular hubs. The DT Swiss 350 and 240S are available also. If you have some change requests, we would be pleased to review your quote. Thanks, Light-bicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.
