85mm wide carbon 26er fat bike single wall flyweight wheels hookless tubeless compatible

Buy & Configure

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

Global WAREHOUSE Ship Anywhere

North AMERICAN USA/Canada Only

EUROPEAN Europe Only

Warehouse Compare >>

Options Features	Global Warehouse	North American Warehouse	European Warehouse
Options Features	Availability	All models	Most popular models	Limited road models
Rim Customization	100% customizable	Default options (special order possible)	Default options
Wheelset Customization	Yes	Yes	No
To Ship In	Full Custom: 4 weeks Quick Buy: 3 days	1 week typical	2 days typical
Shipping Region	Worldwide	North America	E.U countries only
Wheel building fee	$30 USD/set	$50 USD/set	$30 USD/set
Warehouse Transfer Fee	No	USD20/rim USD40/set	$40 USD/set
European Shipments Taxes, Duty or Brokerage	Not charged by us, may be charged by the carrier upon importation. (*Prepaid option available at checkout!)	Best to ship from Global warehouse due to excessive shipping costs	No customs duties
Canadian Shipments Taxes, Duty or Brokerage	Not charged by us, may be charged by the carrier upon importation	Charged by Light Bicycle upfront	N/A
Other Areas Taxes, Duty or Brokerage	Not charged by us, may be charged by the carrier upon importation	Not charged by us, may be charged by the carrier upon importation	N/A
Shipping Methods	EMS, DHL, TPD, TNT, FedEx, MTS (Sea/Air), SF	UPS	DPD ($30 USD/set)

Center Channel Hole This is a required option.

With Holes

Without Holes

DEFAULT SETTINGS

RIMS

Matte UD, Hook, Blank (No decal), 24H

HUBS

DT SWISS 240 EXP Straight Pull C-Lock Shimano Road 11s EXP 36

12*100mm (F) & 12*142mm (R)

SPOKES & NIPPLES

Sapim CX Ray & Sapim Polyax Aluminum Black

ACCESSORIES

Valve Stems (×2)

Note: the wheelset price includes the warehouse transfer cost (USD40).

Piece Weight:g+/-25

Subtotal: +

Lead time: typically ships in 2 days

ADD TO CART You missed some options.

Our apologies

We do not stock this item at the European warehouse. See what we stock currently.

You can order this product from our Global or North American warehouse.

Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.

Our apologies, we do not stock this item at the North American warehouse. Check this link to see what items we stock, or send us an email to discuss.

Our Global warehouse can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelset. We will get back to you via email to discuss in 24hrs.

The data will take some time to load, please wait.

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

QUICK BUY

FULL CUSTOM

Bead type This is a required option.

hook

Finish This is a required option.

matte

Weave This is a required option.

Center Channel Hole This is a required option.

With Holes

Without Holes

Brake System This is a required option.

Non Disc - Grooved Graphene Surface

Disc

Decal This is a required option.

Blank (No decal)

Front Holes Count This is a required option.

20h

Rear Holes Count This is a required option.

24h

Ｈole Count This is a required option.

24h

DEFAULT SETTINGS

HUBS

DT Swiss 350 Black StraightPull Shimano Road 11s 18t

F-QR/100mm R-QR/130mm Non-disc(Rim-brake)

Carbon-Ti X-Hub Black Straight Pull Shimano Road 11s 56t

F-12/100mm R-12/142mm CenterLock

SPOKES & NIPPLES

Sapim CX-Ray and aluminum black nipples

ACCESSORIES

Valve stems (x2) are included

Piece Weight:g+/-25

Subtotal: USD +

Lead time: typically ships in 3 days

ADD TO CART

Hub Brand This is a required option.

Model	Weight	POE	Cost	Reliability	Quality	Unique Feature	Color Options	Warehouse Location	Website
Tune	389g	24	High	Better	Best	Light, Reliability	Nine	China	TUNE
Hope	622g	44	Low	Good	Good	Easy service	Six	China/N.A.	HOPE
DT 350 Big Ride	541g	18/36/54	Low	Better	Good	Reliability, value	One	China/N.A.	DT SWISS
Industry Nine Hydra	510g	690	Medium	Better	Best	High engagement	Eleven	North America	INDUSTRY NINE
Onyx Classic	794g	Infinite	High	Better	Best	Silent, sprag clutch	Twenty Three+ (Custom Available)	North America	ONYX

See more about Light Bicycle's INFOGRAPHIC HUB OPTIONS

* POE = Points of Engagement

* DT hubs come standard with an 18t star ratchet but are upgradeable to 36 or 54t.

* Average weight will vary slightly depending on axle and freehub combination.

Hope Pro 4 Fatsno

Front Axle This is a required option.

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, skewers are only offered with QR hubs.

15 / 135mm

15 / 142mm

15 / 150mm

QR / 135mm

Rear Axle This is a required option.

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, skewers are only offered with QR hubs.

12 / 170mm

12 / 177mm

12 / 190mm

12 / 197mm

QR / 170mm

QR / 190mm

Freehub Body This is a required option.

Sram 9/10 speed and Shimano MTB 9/10/11 speed cassettes use the same Shimano Freehub.

Only the Sram 11/12 speed cassettes use the Sram XD freehub driver. SRAM has XX1, XX1 Eagle, X01, X01 Eagle, X1, GX, GX Eagle which all use the Sram XD freehub body. If you are unsure, please contact us and we'll reach out to confirm your order.

Shimano MTB 10/11S

Sram XD

Spoke Head This is a required option.

J-bend version: use J-bend hubs and spokes

J-bend

Brake System This is a required option.

6-bolt

Hub Color This is a required option.

Black

Blue

Red

Front Holes Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default. If you have a custom drilling requirements please e-mail us and we'll send you a purchasing link.

32H

Rear Holes Count This is a required option.

32H

Ratchet This is a required option.

DT Swiss hubs use star ratchets and are available in 3 different models with varying points of engagement.

18T - Deepest teeth, slowest engagement, least amount of maintenance, suitable for powerful riders.

36T - Happy medium, doubles the engagement points.

54T - Super fast engagement, but shallow teeth require more careful re-greasing and the thru-axle should be checked every ride.

EXP 36 - With only a singlel spring, making the hubs faster and lighter, more complete engagement of the 36 ratchet teeth for more precise contact, and therefore a longer lifespan.

EXP 54 - Upgraded from EXP 36 to gain incredibly faster engagement.

44T

Spoke This is a required option.

Brand	Model	Type	Thread Diameter (mm)	Weight(g)	Gauge	Riding Style	Available(Warehouse Location)
Sapim	Race	Double Butted	2.0 - 1.8 - 2.0	5.7g (260mm)	14G	Heavy Duty	North America, China
Sapim	D-Light	Double Butted	2.0 - 1.65 - 2.0	4.8g (260mm)	14G	Versatile	North America, China
Sapim	CX-Ray	Aero	2.0 - 0.9/2.2 - 2.0	4.4g (260mm)	N/A	Light Aero	North America, China
Sapim	CX-Sprint	Aero	2.0 - 1.25/2.25 - 2.0	5.2g (260mm)	N/A	Light Aero	China
DT SWISS	Competition Race	Double Butted	2.0 - 1.6 - 2.0	4.8g (260mm)	14G	Versatile	China
Pillar	PSR X-TRA 1420	Aero	2.0 - 0.95/2.2 - 2.0	4.4g (260mm)	N/A	Inexpensive Aero	China
Light Bicycle Design	Oil slick J-bend	Single butted	2.0 - 2.0 - 1.95	6.7g (260mm)	14G	Cool color	China

Sapim D-Light – The best all-around and most popular spoke for carbon wheels. Lightweight but incredibly strong.
Sapim Race – Our strongest and stiffest spoke. These spokes are suitable for heavy or extremely aggressive riders who need a stiffer wheel.
Sapim CX-Ray – The lightest spoke in our lineup is still quite strong due to the elasticity and amazing fatigue life.

DT Competition Race - All Mountain and XC spoke used by the Chinese location as a substitue for the D-Light (depending on availability)

Pillar PSR X-TRA 1420 - An inexpensive bladed spoke, great for road and cyclocross riding.

Sapim CX Sprint-Rear drive side/ CX Ray-Other sides - This customized combo increases the rear drive side power transmition efficiency significantly while grabs superior light-weight and aero performance.

Oil slick J-bend - They are made by a qualified manufacturer in Taiwan with custom design by Light Bicycle. They are J-bend only so do not order these spokes for SP hubs you configured in the previous step.

Sapim CX Ray

Sapim Race

Nipple This is a required option.

Nipple Brand	Model	Material	Color	Length	Available (Warehouse Location)
Sapim	Double Square Secure Lock	Alloy	Black, Red, Green, Blue, Gold, Lime, Purple, Orange	16mm	Norh America
Sapim	Polyax/ Polyax Secure Lock	Alloy	Black, Red, Green, Blue, Gold, Lime, Purple, Orange	14mm	China
Sapim	Polyax Secure Lock	Brass	Black	16mm	China
DT Swiss	DT SQUORX (PRO HEAD PRO LOCK)	Alloy	Black, Red	15mm	China
DT Swiss	Standard PRO LOCK	Brass	Black	14mm	China
Light Bicycle Design	N/A	Brass	Oil slick	13mm	China

Aluminium Black

Aluminium Red

Brass Black

Spoke hole drilling This is a required option.

centered

Finish This is a required option.

matte

Weave This is a required option.

UD: uni-direction carbon fiber

Rim Warranty This is a required option.

For Recon Pro Series ( MTB rim), Falcon Pro (road rim) and Drift Pro (fatbike rim), 5-year warranty is set as standard, and optional Lifetime Premium Warranty are kindly offered to purchase with minimum charge respectively.

5 Years

Lifetime USD +50/rim

Decal This is a required option.

The new graphics are included and available in 7 colors. The decals are now easily replaceable so you can keep your rims looking fresh.

Blank (No decal)

Stealth (Grey)

Blue

Green

Magenta

Orange

Red

Yellow

Valve Stem This is a required option.

We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Recon Pro orders start shipping in October.

- + Pair

Piece Weight: 1647.00g+/-30

Subtotal: USD 1111+

PREVIOUS NEXT

WHEELSET SPECS

RIMS

Teleport to the rim page.

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Size 26er
Series DRIFT PRO
Use Sand, Snow, Singletrack
Type Hookless
Tubeless Ready

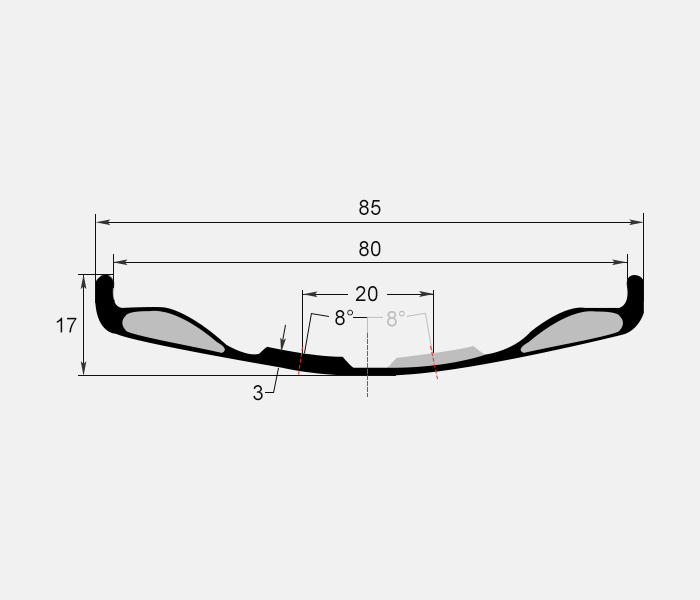

Inner/Outer Width 80mm/85mm
Depth 17mm
ERD 541mm (not including nipple head dimension)
Weight 500+/-20g
Offset 0mm (symmetric)
Drilling Offset 10mm
Weight Limit 120kg
Spoke Hole Angle ±8°
Spoke Tension ≤135kgf recommended
Tire Pressure 25psi max
Tire 4.3" ~ 5.0" recommended

Read more for TL tire pressure charts

HUBS

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

Model Hope Pro 4 Fatsno
Front Axle Size 15 / 135mm, 15 / 142mm, 15 / 150mm, QR / 135mm
Rear Axle Size 12 / 170mm, 12 / 177mm, 12 / 190mm, 12 / 197mm, QR / 170mm, QR / 190mm
Driver Body Shimano MTB 10/11S, Sram XD
Hole 32H

OTHER PARTS

Leave a note at checkout or contact us if you want spare spokes or nipples.

Spokes Sapim CX Ray, Sapim Race
Nipples Aluminium Black, Aluminium Red, Brass Black

TECH

Is it possible to get fatter and lose weight at the same time? Thanks to a lightweight single wall design, the FS680 rims save a pound of rotational weight compared to most alloy wheelsets, all while adding lateral stiffness. Weighing in at just 500g per rim, you’ll drop a significant amount of rotational weight from your fatbike without compromising strength or stiffness.

Example Wheelset Build: ONLY 1700G! Rims: FS680 Hubs: Tune Fat King/Fat Kong Spokes: Sapim CX-RAY Nipples: Sapim Polyax Secure Lock

Each wheel from Light Bicycle is built using the best industry practices by professional builders, ensuring your investment stands the test of time.

Tech Notes: 1. Bladed spokes or Sapim D-Light's are recommended for the FS680 wheelset. DT Swiss Comp Race or Revolution spokes stretch out too easily and would cause a poor wheel build with a single wall rim. 2. Use nipples with a standard head or Sapim Hex nipples only. Nipples with a tall head will cause an issue with the tubeless tape. 3. DO NOT use tire levers to install a tire or to unseat a tire on FS680 rims. The wall thickness is quite thin just past where your tire sits, and you may damage this area by prying on it!

Learn More >>

WARRANTY

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>

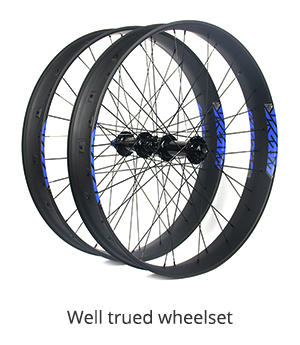

WHAT IS IN THE BOX

Gallery

Kim: I Received a pair of FS680 with Hope Fatsno hubs a few weeks ago to go on my Diamant fat bike , they are very true and nicely finished, have only done 2 rides so far, one a nice flowing single track and the other a rough as fire trail, so far so good, very happy

Australia

onyx-racing-fatbike-hub-rear-12-197mm-j-bend-6-bolt-sram-xd-anodized-orange

Light Bicycle: FS680 matte UD 32H centered 3 Years FS680 matte UD 32H centered 3 Years HUB-F Onyx 15 / 150mm J-bend 6-bolt Anodized-Orange 32H Ceramic HUB-R Onyx 12 / 197mm Sram XD Steel J-bend 6-bolt Anodized-Orange 32H Sprag Clutch Ceramic SPOKE Sapim CX Ray Black J-bend uncertain NIPPLE Sapim Aluminium Orange Polyax External

SEE MORE ADVENTURES

COMMENTS

Nathan 2019/05/04

I would like to have a wheel built using the FS680 rim, but i would like to have it built with Onyx hubs. Is this a possibility? Thanks

LightBicycle 2019/05/05

Hi Nathan, Yes, Onyx fat hubs are available. Which size are you looking for? Do you like fat bike wheelset with front 15*150mm/rear 12*197mm? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Marc 2018/11/15

When will this size be available in 27.5? Several bike companies are moving to that wheel size.

LightBicycle 2018/11/16

Hi Marc, In fact, we do have future plans for making a 650b fat bike rim version of this rim (single wall profile). But I am afraid that have to wait till we got the result from our market analyzing. We need to see if there's a market demand on this. Thank you for bringing this to us. I will let you know when this is settled. You can also follow our on social media to get the fresh news. Thanks, Lightbicycle
