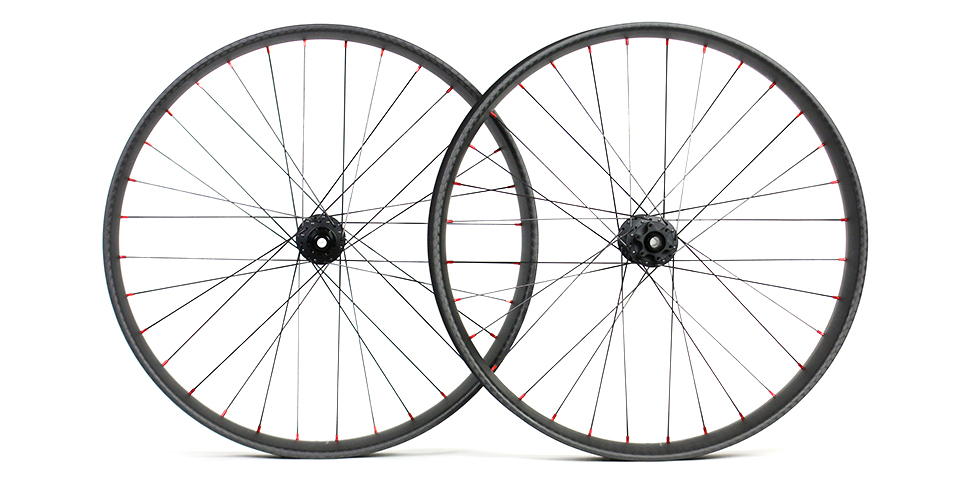

85mm wide carbon 26er fat bike wheels hookless double wall tubeless compatible

Buy & Configure

Global warehouse ship to most countries while the North America warehouse only ship to the United States and Canada

GLOBAL OPTIONS
NORTH AMERICA OPTIONS
  • 1

    HUB

  • 2

    SPOKES/NIPPLES

  • 3

    RIM

  • 4

    ACCESSORIES

  • 5

    OVERVIEW

HUB

Hub Brand This is a required option.

Model Weight POE Cost Reliability Quality Unique Feature Color Options Warehouse Location Website
Tune 389g 24 2 9 9 Light, Reliability Nine China TUNE
Hope 622g 44 6 6 7 Easy service Six China/N.A. HOPE
DT 350 Big Ride 541g 18/36/54 7 8 7 Reliability, value One China/N.A. DT SWISS
Industry Nine Hydra 510g 690 3 9 9 High engagement Eleven North America INDUSTRY NINE
Onyx Classic 794g Infinite 2 9 9 Silent, sprag clutch Twenty Three+
(Custom Available)
North America ONYX

* For the rank: 1 Worst, 10 Best.

* POE = Points of Engagement

* DT hubs come standard with an 18t star ratchet but are upgradeable to 36 or 54t.

* Average weight will vary slightly depending on axle and freehub combination.

Tune Fat King / Fat Kong

Hope Pro 4 Fatsno

DT SWISS 350 Big Ride

Front Axle This is a required option.

Front-hub-axle

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, no Quick Release skewers are offered with hubs.

15 / 135mm

15 / 142mm

15 / 150mm

QR / 135mm

Rear Axle This is a required option.

Rear-hub-axle

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, no Quick Release skewers are offered with hubs.

12 / 170mm

12 / 177mm

12 / 190mm

12 / 197mm

QR / 170mm

QR / 190mm

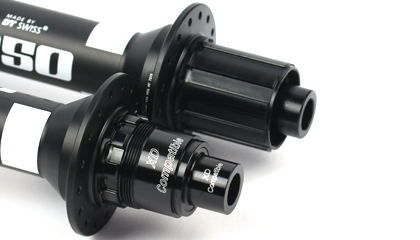

Freehub Body This is a required option.

Sram 9/10 speed and Shimano MTB 9/10/11 speed cassettes use the same Shimano Freehub.


Only the Sram 11/12 speed cassettes use the Sram XD freehub driver. SRAM has XX1, XX1 Eagle, X01, X01 Eagle, X1, GX, GX Eagle which all use the Sram XD freehub body. If you are unsure, please contact us and we'll reach out to confirm your order.

Shimano MTB 10/11S

Sram XD

Spoke Head This is a required option.

J-bend

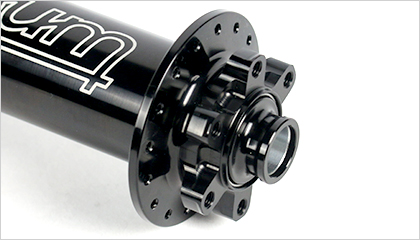

Brake System This is a required option.

6-bolt

Hub Color This is a required option.

Black

Blue

Froggy-Green

Gold

Green

Orange

Red

Silver

White

Front Holes Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples only. If you have a custom drilling requirements please e-mail us and we'll send you a purchasing link.

32H

Rear Holes Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples only. If you have a custom drilling requirements please e-mail us and we'll send you a purchasing link.

32H

Ratchet This is a required option.

DT Swiss hubs use star ratchets and are available in 3 different models with varying points of engagement.

18T - Deepest teeth, slowest engagement, least amount of maintenance, suitable for powerful riders.

36T - Happy medium, doubles the engagement points.

54T - Super fast engagement, but shallow teeth require more careful re-greasing and the thru-axle should be checked every ride.

18T

24T

36T

44T

54T

Spoke This is a required option.

Brand Model Type Thread Diameter (mm) Weight(g) Gauge Riding Style Available(Warehouse Location)
Sapim Race Double Butted 2.0 - 1.8 - 2.0 5.7g (260mm) 14G Heavy Duty North America, China
Sapim D-Light Double Butted 2.0 - 1.65 - 2.0 4.8g (260mm) 14G Versatile North America, China
Sapim CX-Ray Aero 2.0 - 0.9/2.3 - 2.0 4.4g (260mm) N/A Light Aero North America, China
DT SWISS Competition Race Double Butted 2.0 - 1.6 - 2.0 4.8g (260mm) 14G Versatile China
Pillar PSR X-TRA 1420 Aero 2.0 - 0.95/2.2 - 2.0 4.4g (260mm) N/A Inexpensive Aero China

Sapim D-Light – The best all-around and most popular spoke for carbon wheels. Lightweight but incredibly strong.
Sapim Race – Our strongest and stiffest spoke. These spokes are suitable for heavy or extremely aggressive riders who need a stiffer wheel.
Sapim CX-Ray – The lightest spoke in our lineup is still quite strong due to the elasticity and amazing fatigue life.

DT Competition Race - All Mountain and XC spoke used by the Chinese location as a substitue for the D-Light (depending on availability)

Pillar PSR X-TRA 1420 - An inexpensive bladed spoke, great for road and cyclocross riding.

DT Swiss Competition Race

Sapim CX Ray

Nipple This is a required option.

Nipple Brand Model Material Color Length Available
(Warehouse Location)
Sapim Double Square Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 16mm Norh America
Sapim Polyax/ Polyax Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 14mm China
Sapim Polyax Secure Lock Brass Black 16mm China
DT Swiss DT SQUORX (PRO HEAD PRO LOCK) Alloy Black, Red 15mm China
DT Swiss Standard PRO LOCK Brass Black 14mm China

Aluminium Black

Aluminium Red

Brass Black

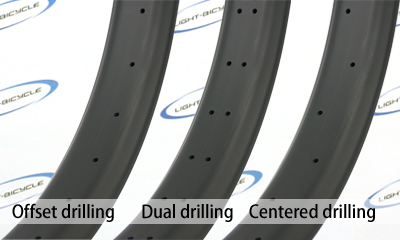

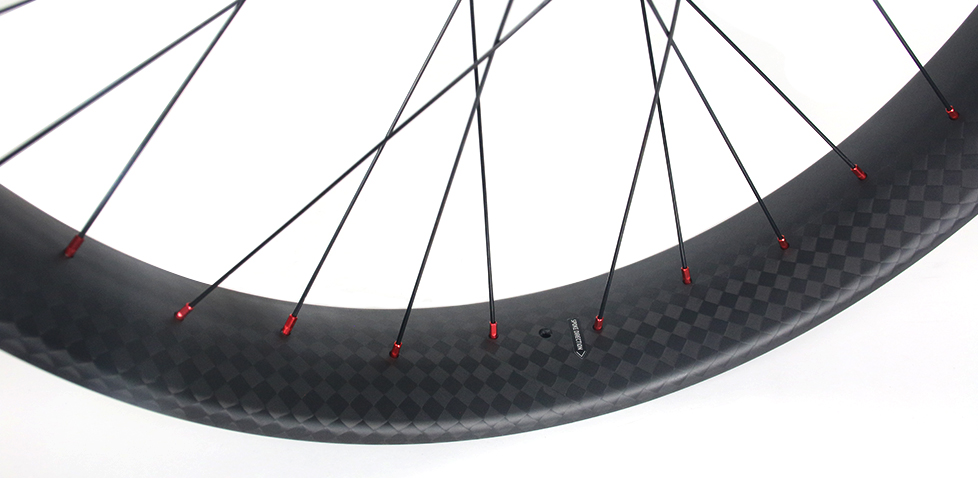

Spoke hole drilling This is a required option.

Centered drilling is the most popular.

centered

Finish This is a required option.

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

glossy

matte

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer.
3k/12k/UD are the 3 choices for cosmetic appearance.The rim strength & weight is virtually identical.
UD Matte is the most popular and has a subtle look.
3k weave has a more traditional carbon fiber look.
More info about Weave >>

12K

3K

UD

Decal This is a required option.

These rims use waterslide decals. The decal is very thin and applied under a clearcoat so they are non-removeable.

Pictures about light-bicycle decal >>

If you want custom graphic, Please email us, we will design for you. There will be extra cost for custom graphic on rims.

Pictures about custom graphics >>

No

Grey

Blue

Green

Magenta

Orange

Red

White

Yellow

Valve Stem This is a required option.

We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valve with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The vavle core is removeable so you can add sealant withoutn removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

fat-bike-26-wheels

In Stock, typically ships within 2 business days

In Stock, typically ships within 2 business days

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Recon Pro orders start shipping in October.

- + Pair

Hub Brand This is a required option.

Model Weight POE Cost Reliability Quality Unique Feature Color Options Warehouse Location Website
Tune 389g 24 2 9 9 Light, Reliability Nine China TUNE
Hope 622g 44 6 6 7 Easy service Six China/N.A. HOPE
DT 350 Big Ride 541g 18/36/54 7 8 7 Reliability, value One China/N.A. DT SWISS
Industry Nine Hydra 510g 690 3 9 9 High engagement Eleven North America INDUSTRY NINE
Onyx Classic 794g Infinite 2 9 9 Silent, sprag clutch Twenty Three+
(Custom Available)
North America ONYX

* For the rank: 1 Worst, 10 Best.

* POE = Points of Engagement

* DT hubs come standard with an 18t star ratchet but are upgradeable to 36 or 54t.

* Average weight will vary slightly depending on axle and freehub combination.

Hope Pro 4 Fatsno

DT SWISS 350 Big Ride

Industry Nine Hydra

Onyx Classic

Front Axle This is a required option.

Front-hub-axle

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, no Quick Release skewers are offered with hubs.

15 / 135mm

15 / 142mm

15 / 150mm

Lefty PRO

Lefty Supermax

QR / 135mm

Rear Axle This is a required option.

Rear-hub-axle

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, no Quick Release skewers are offered with hubs.

12 / 170mm

12 / 177mm

12 / 190mm

12 / 197mm

QR / 170mm

QR / 190mm

Freehub Body This is a required option.

Sram 9/10 speed and Shimano MTB 9/10/11 speed cassettes use the same Shimano Freehub.


Only the Sram 11/12 speed cassettes use the Sram XD freehub driver. SRAM has XX1, XX1 Eagle, X01, X01 Eagle, X1, GX, GX Eagle which all use the Sram XD freehub body. If you are unsure, please contact us and we'll reach out to confirm your order.

Shimano MTB 10/11S Alloy

Shimano MTB 10/11S Steel

Sram XD Alloy

Sram XD Steel

Spoke Head This is a required option.

J-bend

Brake System This is a required option.

6-bolt

Center lock

Hub Color This is a required option.

Anodized-Black

Anodized-Black Matte

Anodized-Orange

Black

Blue

Gold

Green

Lime

Orange

Pink

Purple

Red

Silver

Turquoise

Front Holes Count This is a required option.

ROAD Product
Road rim brake: Stocked in 20h and 24h
Road disc: Stocked in 24h and 28h

MTB Product
MTB rims: Stocked in 32h. Only XC Flyweight rims are stocked in 28h as well as 32h
Please note that our valves are drilled for presta and spoke holes are made for external nipples only. If you have a custom drilling requirements please contact us.

32H

Rear Holes Count This is a required option.

ROAD Product
Road rim brake: Stocked in 20h and 24h
Road disc: Stocked in 24h and 28h

MTB Product
MTB rims: Stocked in 32h. Only XC Flyweight rims are stocked in 28h as well as 32h
Please note that our valves are drilled for presta and spoke holes are made for external nipples only. If you have a custom drilling requirements please contact us.

32H

Ratchet This is a required option.

DT Swiss hubs use star ratchets and are available in 3 different models with varying points of engagement.

18T - Deepest teeth, slowest engagement, least amount of maintenance, suitable for powerful riders.

36T - Happy medium, doubles the engagement points.

54T - Super fast engagement, but shallow teeth require more careful re-greasing and the thru-axle should be checked every ride.

18T

36T

44T

54T

690T

Sprag Clutch

Spoke This is a required option.

Brand Model Type Thread Diameter (mm) Weight(g) Gauge Riding Style Available(Warehouse Location)
Sapim Race Double Butted 2.0 - 1.8 - 2.0 5.7g (260mm) 14G Heavy Duty North America, China
Sapim D-Light Double Butted 2.0 - 1.65 - 2.0 4.8g (260mm) 14G Versatile North America, China
Sapim CX-Ray Aero 2.0 - 0.9/2.3 - 2.0 4.4g (260mm) N/A Light Aero North America, China
DT SWISS Competition Race Double Butted 2.0 - 1.6 - 2.0 4.8g (260mm) 14G Versatile China
Pillar PSR X-TRA 1420 Aero 2.0 - 0.95/2.2 - 2.0 4.4g (260mm) N/A Inexpensive Aero China

Sapim D-Light – The best all-around and most popular spoke for carbon wheels. Lightweight but incredibly strong.
Sapim Race – Our strongest and stiffest spoke. These spokes are suitable for heavy or extremely aggressive riders who need a stiffer wheel.
Sapim CX-Ray – The lightest spoke in our lineup is still quite strong due to the elasticity and amazing fatigue life.

DT Competition Race - All Mountain and XC spoke used by the Chinese location as a substitue for the D-Light (depending on availability)

Pillar PSR X-TRA 1420 - An inexpensive bladed spoke, great for road and cyclocross riding.

Sapim CX Ray

Sapim D-Light

Sapim Race

Nipple This is a required option.

Nipple Brand Model Material Color Length Available
(Warehouse Location)
Sapim Double Square Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 16mm Norh America
Sapim Polyax/ Polyax Secure Lock Alloy Black, Red, Green, Blue, Gold, Lime, Purple, Orange 14mm China
Sapim Polyax Secure Lock Brass Black 16mm China
DT Swiss DT SQUORX (PRO HEAD PRO LOCK) Alloy Black, Red 15mm China
DT Swiss Standard PRO LOCK Brass Black 14mm China

Why no brass option? The North America warehouse uses Sapim double square secure lock alloy nipples. The oversized head offers 100% thread engagement and a significant increase in strength. The corrosion-resistant anodized treatment makes the need for heavy brass nipples irrelevant. If you want black brass nipples regardless, you can let us know in the notes section at checkout

Aluminium Black

Aluminium Red

Aluminium Blue

Aluminium Gold

Aluminium Green

Aluminium Lime

Aluminium Orange

Aluminium Purple

Brass Black

Spoke hole drilling This is a required option.

Centered drilling is the most popular.

centered

Finish This is a required option.

matte

Weave This is a required option.

UD

Decal This is a required option.


The new graphics are included and available in 7 colors. The decals are now easily replaceable so you can keep your rims looking fresh.

No

Grey

Blue

Green

Magenta

Orange

Red

White

Yellow

Valve Stem This is a required option.

We include enough valves to cover your individual rim purchase. We use a lightweight black alloy anodized valve with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The vavle core is removeable so you can add sealant withoutn removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

fat-bike-26-wheels

In Stock, typically ships within 2 business days

In Stock, typically ships within 2 business days

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Non-Stocked, typically ships within 1-2 weeks Go to rim inventory page

Recon Pro orders start shipping in October.

- + Pair

Weight: 1807.00g+/-40

Final total: USD 823+

Weight: 1160.00g+/-40

Final total: USD 482+

PREVIOUS NEXT You missed some options. You missed some options.

Added to cart! View cart or continue shopping.

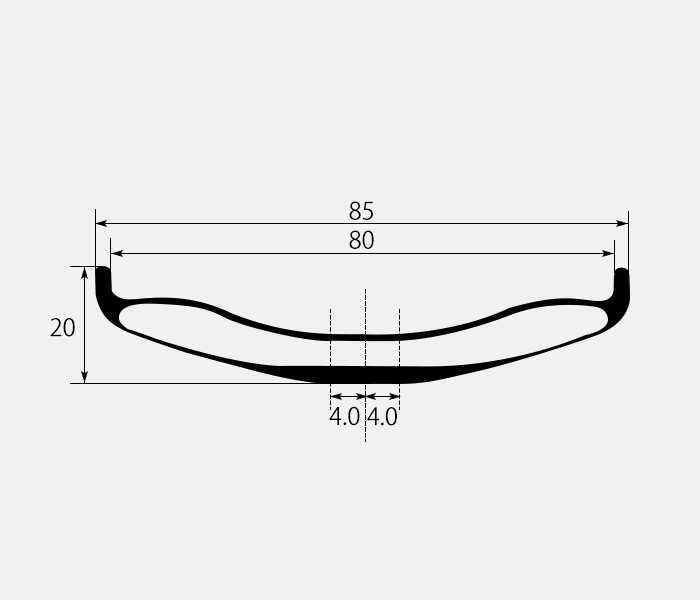

RIM SPECS

  • Size 26er
  • Use Sand, Snow, Single Track
  • Type Hookless
  • Tubeless Ready
  • Inner/Outer Width 80mm/85mm
  • Depth 20mm
  • ERD 536mm (not including nipple head dimension)
  • Weight 580+/-20g
  • Offset 0mm (symmetric)
  • Drilling Offset ±4mm
  • Weight Limit 120kg
  • Spoke Hole Angle 10°
  • Spoke Tension ≤135kgf recommended
  • Tyre Pressure ≤25psi recommended
  • Tire 4.3" ~ 5.0" recommended

Teleport to the rim page.

Is it possible to get fatter and lose weight at the same time? Maybe not for you, but for your Fatbike it sure is! At only 580g, the 85mm fat bike wheelset will save you the better part of a pound of your bike when compared to alloy wheelsets all while adding far more lateral stiffness than that heavier aluminum rim.


The FAT680 80mm inner width is perfect for all-conditions fat bike riding. It's wide enough to tackle deep snow and sand, but still nimble enough to be fun to ride on tight single track. An 80mm diameter also means that you can run anything from a standard 4.3″ fatbike tire to the massive 5.0″ tires that are starting to become more and more popular.

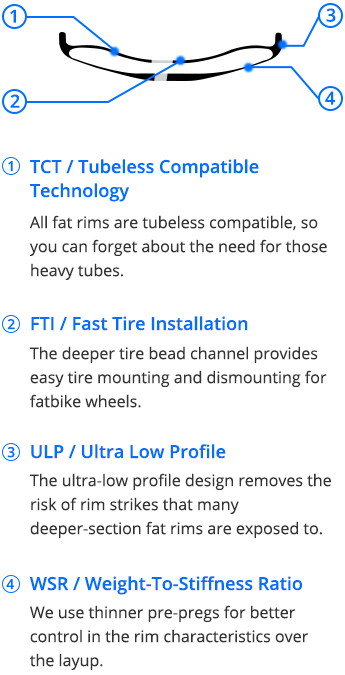

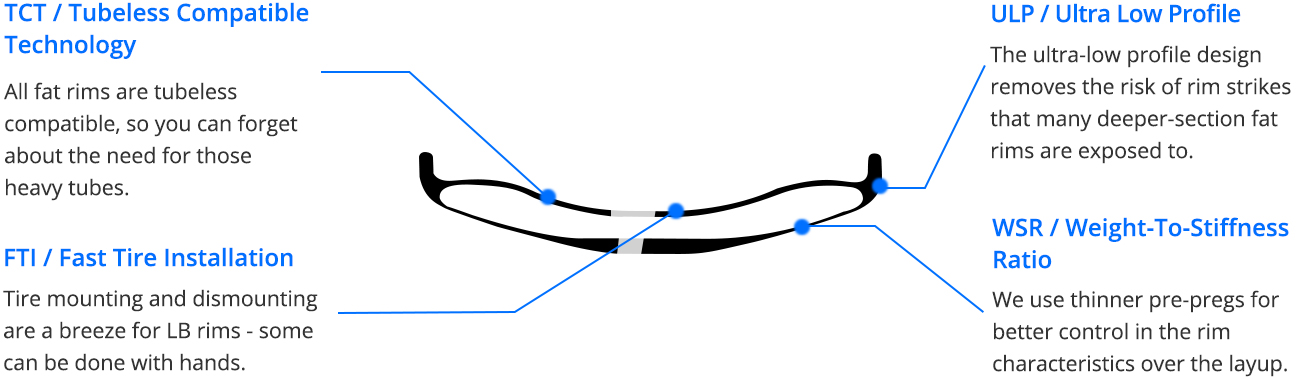

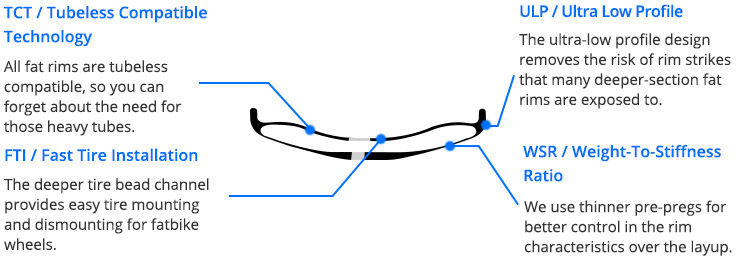

Hookless Design: Our hookless design has consistent carbon compaction and there are no voids in the layup, providing the rim with a greater capability to withstand sharp impacts.


Manufacturing process: Our air bladders are made from a special material which produces smoother walls, result in a lighter rim, and are completely removed without harsh chemicals. They are removed through the valve hole with a unique process so that the rim does not have to be patched like traditional manufacturers use. This significantly improves the strength of the rims. Read More about our process


T700: Constructed with premium Toray T700 carbon fiber. The best strength to weight ratio with no expense spared.


Double-wall: Double-wall construction makes fat bike rim with better stiffness and ride handling.


Fast tire installtion: deeper tire bead channel provides easy tire mounting & dismounting for fat bike wheels.


Precise layup: Each rim carries its own layup schedule documents which are followed meticulously by the layup workers. Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim.


Bead lock: The small ridges on either side of the drop channel help secure tubeless tires in place. The bead lock makes it easier to seal up tubeless tires with a floor pump, and they are incredibly hard to burp.


For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Know more about the warranty policy >>

GALLERY

Adventure collection from all over the world.

LEARN MORE

COMMENTS

G

George 2019/01/19

What is the spacing on these I am looking for 150/15 ta and 197/12 ta


LightBicycle 2019/01/21

Hi George, Yes, we have Hope fatsno hubs/ DT Swiss 350 big ride/Tune fat hubs at front 15*150mm/rear 12*197mm size. Please check below picture. The size is available on the online purchase also. When you click "Global", the hubs/spokes option will show accordingly. Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

LEAVE COMMENTS

We are here for you if you need any assistance.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.
