Build Your Falcon RIM WR65 disc

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

Buy wheelset

Global Shop

US Shop

EU Shop

Ships worldwide. See what's on sale>>

Drain Hole This is a required option.

With Drain Holes

Center Channel Hole This is a required option.

No Access Holes

Version This is a required option.

Front Flyweight / Rear Standard

Weave This is a required option.

Braided UD

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h

Paintless, UD, blank (no decal), 28h, with access holes

Standard, paintless, hook, blank (no decal), 24h, with drain holes, without access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12/100mm (F) & 12/142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

DT Swiss 350 straightpull centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18t ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

2 valves & 1 spare 18t ratchet

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD +

Lead time: typically ships in 2 days

ADD TO CART You missed some options.

We do not stock this item at the European warehouse. See what we stock currently.

You can order this product from our Global or North American warehouse.

Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.

Center Channel Hole This is a required option.

No Access Holes

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h, with drain holes

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD + (discount price)

Lead time: typically ships in 3 business days

ADD TO CART You missed some options.

We do not stock this item at the Australian shop. See what's available.

You can order this product from our Global / NA shops.

Please fill out this form if you are looking for a custom wheelset.

We'll get back to you soon to study the customization requests via email.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the US Shop. Check this link to see what items we stock, or send us an email to discuss.

Our Global Shop can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelsets. We will get back to you via email to discuss in 24hrs.

Our apologies, we do not stock this item at the CA Shop. Check this link to see what items we stock, or send us an email to discuss.

DEFAULT SETTINGS

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

Quick Buy (In Stock)

Full Custom (Made to Order)

DEFAULT SETTINGS

Rims

Hook, matte, UD, with drain holes

Hook, matte, UD, with access holes, with drain holes

Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes

Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes

Paintless, UD, 5-year warranty, no drain holes

Grooved graphene surface, hook, matte, UD, with access holes, with drain holes

Grooved graphene surface, hook, matte, UD, no access holes, with drain holes

Matte UD, 32H, Centered (Staggered)

Hubs

Hope Pro 4 Fatsno J-bend 6-bolt

15/150mm (F) & 12/197mm (R) Sram XD

Straightpull centerlock black 24H

12/100mm & 12/142mm

Shimano Road 11S

DT Swiss straightpull / Bitex j-bend, centerlock, 28H

J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H

15/110mm boost & 12/148mm boost Sram XD

DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear

100mm QR & 130mm QR Shimano Road 11S

Spokes

Sapim CX Ray black

Sapim D-Light

Accessories

No decals/valves/tape

No decals/valves/tape/pads

No decals/valves

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Brake System This is a required option.

Disc

Version This is a required option.

Version	Weight	Material	Layup	Max Load
Standard	Standard	Toray T700	Standard Layup	135 kgs
Flyweight	40g - 70g lighter	Toray T800 and T700	New layup for weight saving	90 kgs

Front Flyweight / Rear Standard with specific layup is also a good option that proves the harmony of weight and strength.

Standard

Flyweight USD +12

Bead type This is a required option.

Hook

Hole Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc), most of which are at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

24H

28H

32H

Full Custom

Finish This is a required option.

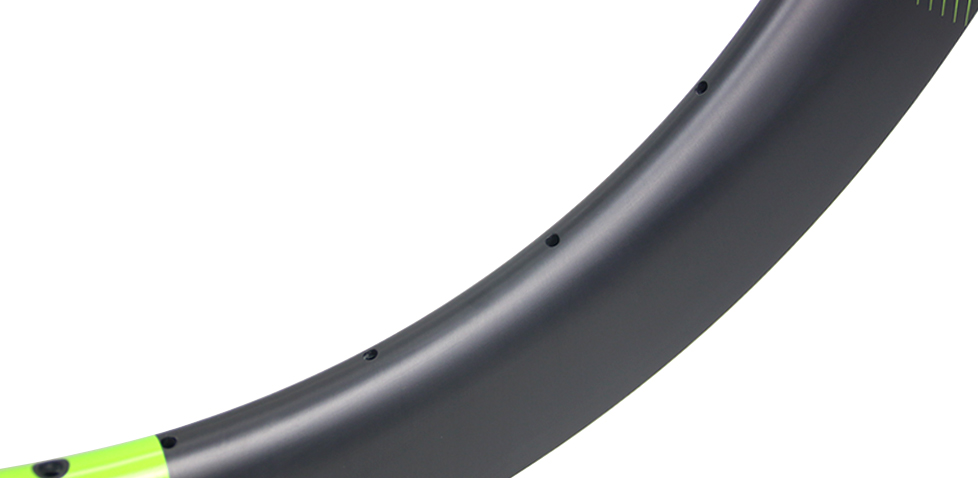

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

Full Custom: This option (if provided here to choose) offers custom finish such as Satin/Raw etc at no extra charge but subject to rim models with 3-5 days LONGER on manufacture. And custom color painting is also available with added 15g/rim and extra $20USD/rim as a start. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

Glossy

Matte

Full Custom

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer for cosmetic appearence.

The rim strength & weight is virtually identical.

Matte UD is the most popular and has a subtle look.

The futuristic Hexa-Comb and Braided UD are smooth and looks great on deep rims.
More info about Weave >>

Full Custom: This option (if provided here to choose) offers custom weaves such as 3k twill vertical/ horizontal/ Braided UD etc with extra charge of $15USD/rim as a start but subject to rim models with 3~5 days LONGER on manufacture. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

12K

Hexa-Comb USD +15

Full Custom USD +15

Center Channel Hole This is a required option.

With Access Holes: This is the traditional method. Spoke access holes are drilled in the center channel to allow the nipples to easily be fed through the rim. Tubeless tape is required to seal the rim.

No Access Holes: No spoke access holes are drilled in the center channel. Feeding the nipples through the rim is more challenging, but it allows for a tubeless setup without the need for tape. This kind of system is known as "road tubeless" and was made popular by Mavic. Some companies still refer to it as "UST style", however, UST is actually a specific interface between the tire and rim which was developed by a partnership between Mavic, Michelin, and Hutchinson.

Currently, rims with 'No Access Holes' do not work with our carbon spokes.

With Access Holes

No Access Holes

Drain Hole This is a required option.

The two small drain holes located 90° to the valve hole effectively help evacuate both the water trapped inside the rim and the air leaking into the rim chamber caused by nonperfect tubeless tape sealing handwork that may risk rim explosure in an aggressive tire inflating.

It is the small reinforced layer prelaminated on the area where the drain hole is drilled later that makes the rim strength fairly ensured without any compromise of weight added.

Riders who ride in wet areas are suggested to order rims with drain holes.
More info about holes >>

With Drain Holes

No Drain Holes

Decal This is a required option.

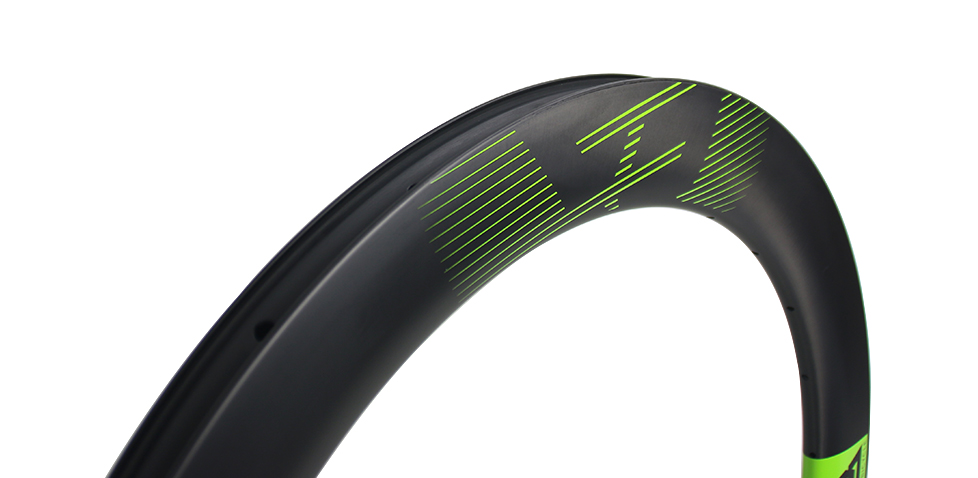

Road rims use super light waterslide decals (matte colors). The decal is very thin and applied under a clearcoat so they are non-removeable.

Pictures about light-bicycle decal >>

If you want custom graphic, Please email us, we will design for you. There will be extra cost for custom graphic on rims.

Pictures about custom graphics >>

Blank (No decal)

Stealth (Grey)

Blue

Green

Magenta

Orange

Red

White

Yellow

Valve Stem This is a required option.

We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.
Information of tubeless rim tape

Apply Tubeless Tape: In Light Bicycle, a proprietary taping aid works with our wheel builders to guarantee that a solid taping craft at industrial-level is well implemented in order for you to ride carefree tubeless at any conditions.

You do NOT have to use any tubeless tape to run tubeless if you have chosen "No Access Holes" on the rim center channel.

None

Add Tubeless Tape USD +6 each

Recon Pro orders start shipping in October.

- + PCS

Piece Weight: 540.00g+/-15

Subtotal: USD 179+

PREVIOUS NEXT

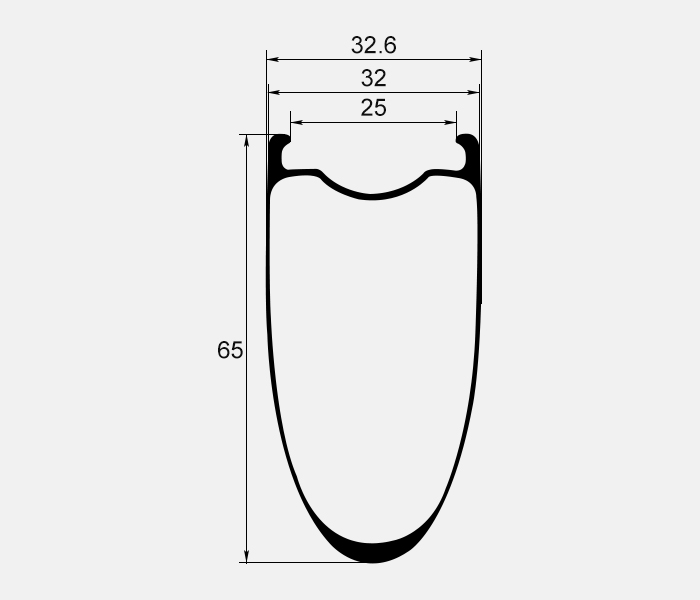

RIM SPECS

Rim Model WR65 disc
Material Toray T700 & T800 Premium Carbon Fiber
Size 29”/700C (ETRTO 622mm)
Series FALCON
Intended Use CX/Gravel
Bead Type Clincher
Tubeless Capable Yes

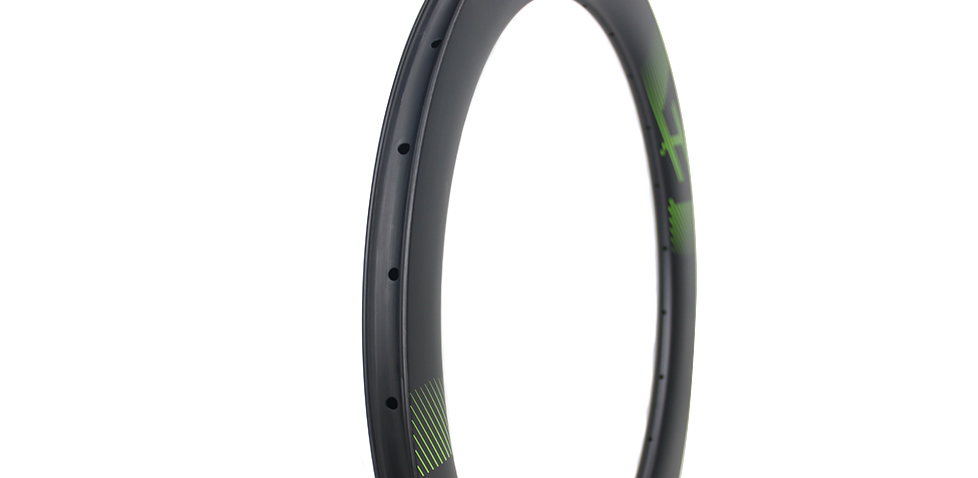

Inner/Outer Width 25mm/32mm
Depth 65mm
ERD 510mm (not including nipple head dimension)
Rim Weight Standard 540+/-15g, Flyweight 500+/-15g
Profile Symmetric (0mm)
Max Cyclist Weight (on flat ground) Standard 135kg/ 298lbs, Flyweight 90kg/ 198lbs
Spoke Hole Angle ±8°
Spoke Tension 120~135kgf front disc side and rear drive side
Max Tire Pressure (with 28C) 95psi/ 6.55bar
Recommended Tire Width 28C~50C

Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Rim Model: WR65 disc
Material: Toray T700 & T800 Premium Carbon Fiber
Size: 29”/700C (ETRTO 622mm)
Series: FALCON
Intended Use: CX/Gravel
Bead Type: Clincher
Tubeless Capable: Yes
Inner/Outer Width: 25mm/32mm
Depth: 65mm
ERD: 510mm (not including nipple head dimension)
Rim Weight: Standard 540+/-15g, Flyweight 500+/-15g
Profile: Symmetric (0mm)
Max Cyclist Weight (on flat ground): Standard 135kg/ 298lbs, Flyweight 90kg/ 198lbs
Spoke Hole Angle: ±8°
Spoke Tension : 120~135kgf front disc side and rear drive side
Max Tire Pressure (with 28C): 95psi/ 6.55bar
Recommended Tire Width: 28C~50C

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter
Finish: Matte, Glossy, Satin, Colored Paint
Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services

Please carefully inspect your package when unboxing it and contact us immediately if it is damaged or if anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste using digital docs.

Download user guides >>

Overview

As one of our widest road rims designs, the WR65 is the answer for the gravel rider trying to squeeze out every aerodynamic advantage from their setup.

Designed with racing in mind, the WR65 features a deep New Gen Aero Shape that decreases lateral resistance. With a 65mm deep and stiff profile, the WR65 is designed for experienced bike handlers looking for an aero edge or larger riders.
Specs
Rims

Rim Model: WR65 disc

Material: Toray T700 & T800 Premium Carbon Fiber

Size: 29”/700C (ETRTO 622mm)

Series: FALCON

Intended Use: CX/Gravel

Bead Type: Clincher

Tubeless Capable: Yes

Inner/Outer Width: 25mm/32mm

Depth: 65mm

ERD: 510mm (not including nipple head dimension)

Rim Weight: Standard 540+/-15g, Flyweight 500+/-15g

Profile: Symmetric (0mm)

Max Cyclist Weight (on flat ground): Standard 135kg/ 298lbs, Flyweight 90kg/ 198lbs

Spoke Hole Angle: ±8°

Spoke Tension : 120~135kgf front disc side and rear drive side

Max Tire Pressure (with 28C): 95psi/ 6.55bar

Recommended Tire Width: 28C~50C

Read more for actual road tire width

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter

Finish: Matte, Glossy, Satin, Colored Paint

Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services

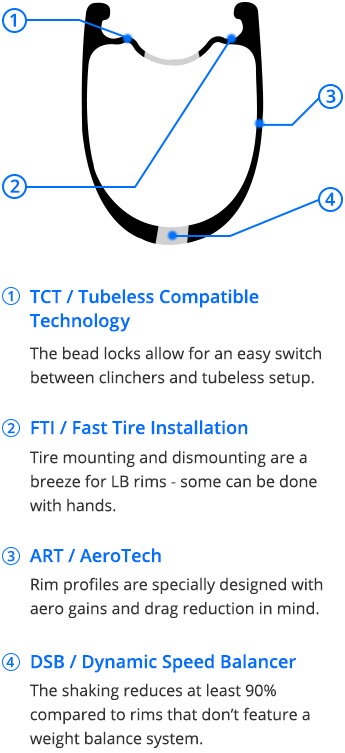

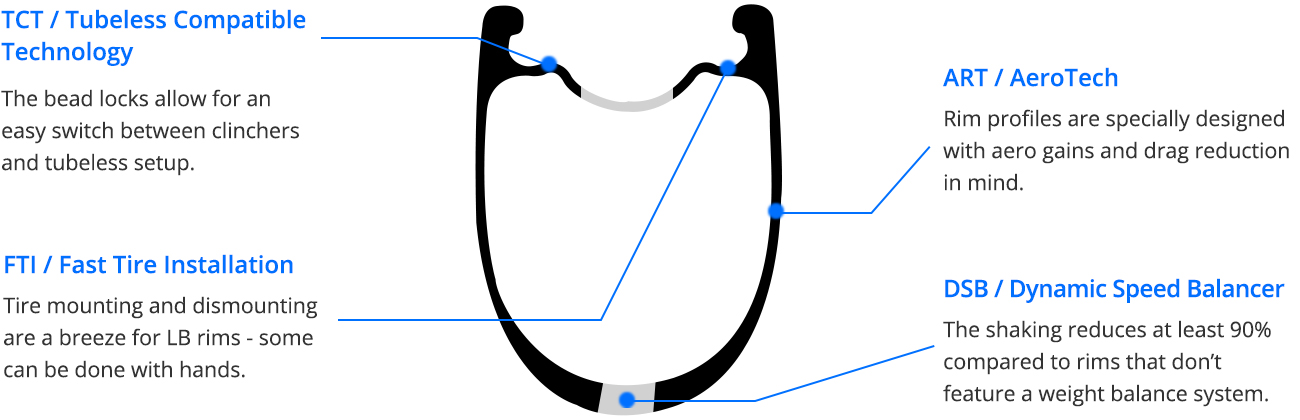

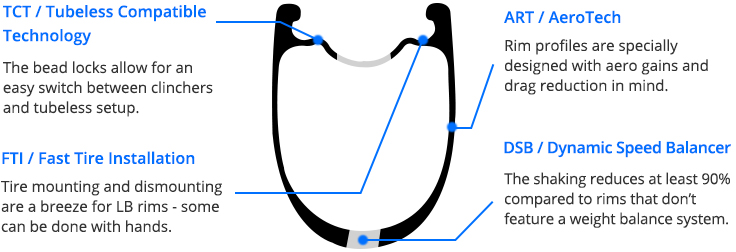

Tech

Learn More >>
Warranty

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>
In The Box

Please carefully inspect your package when unboxing and get in touch with us immediately if the package is damaged or anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste with the use of digital manuals.

Download user guides >>

Gallery

light-bicycle-wr65-disc-wide-road-carbon-wheelset-vittoria-zaffiro-graphene

Light Bicycle : 2022 BMC RM01 + WR65 vittoria zaffiro graphene, 30c front. 32c rear. inflated to 60psi measure 32.2mm and 33.5mm no fitment issues and nice rigid response with 28 spokes front and rear.

UK(Britain)

light-bicycle-wr65-disc-carbon-fiber-wheelset

Light Bicycle : WR65 Standard Hook 12K Twill Vertical Glossy Disc 28H External Hole With Drain Holes With Access Holes WR65 Standard Hook 12K Twill Vertical Glossy Disc 28H External Hole With Drain Holes With Access Holes HUB-F DT SWISS 240 EXP Black Lefty 1.0 J-bend 6-bolt 28H HUB-R DT SWISS 240 EXP Black 12 / 148mm BOOST straight pull 6-bolt 28H NBK EXP 36 Shimano MTB 10/11S SPOKE Sapim CX Ray Black Customized Standard Head NIPPLE DT Swiss/ Sapim Brass Black Universal External

light-bicycle-wr45-disc-wr65-disc-carbon-wheelsets-builds-on-specialized-flagship-medellin

Camilo : Both bikes feature a WR rim, one with 45mm depth and the other 65mm. Awesome handling in crosswinds due to the ultra wide rim profile and the 25mm internal makes the wheels very comfortable.

United States

light-bicycle-wr65-disc-carbon-wheelset-laced-to-dt-swiss-240-exp-hubs

Mario : Crème de la crème of all wheels out there - wr65

UK(Britain)

light-bicycle-wr65-disc-wheels-installed-on-a-time-bicycle

Mario : Awesome wheels, they’ve been absolutely bombproof so far, still run true after 20k km. Hope LB will start to make even wider profile rims of this depth.

UK(Britain)

Lauf-seigla-on-light-bicycle-wr65-65mm-wide-road-carbon-wheels

Bram : Here is my Lauf Seigla with the beautiful Light Bicycle WR65 rims and Continental Race King tyres in 2.2 inch.

Netherlands

trek-madone-on-light-bicycle-wr65-disc-wheels-review

Greg : WR65‘S on my Trek Madone. 32 external rims paired with Vittoria Corsa 32’s measure 32mm on the rim. I could have run 34c tires with clearance. Beautiful rim. A+

United States

wr65-disc-brake-carbon-spoke-wheel-road-gravel-race-build

Light Bicycle : Rims: WR65 Disc Flyweight Hook Braided UD Glossy 24H With Drain Holes With Access Holes Hubs: Bitex BX312 Black 12/100mm 12/142mm Straightpull Centerlock 24H 27T Shimano Road 11S Spokes: LB Flyweight Carbon Spoke (Regular Edition-Bladed) Nipples: Sapim Aluminium Black Polyax Double Square Secure Lock

View More Reviews >>

COMMENTS

Brad 2023/09/09

I have ridden a pair of LB WR65 rims on my gravel bike for over 5000km in rugged and remote Australia. A combination of rocky gravel and road. They are of impeccable quality, second to none. Very straight, dimensionally correct, easy to build. The best rims I have used for tubeless.; super easy, secure and quick bead seating. Love the no rim bed spoke holes option! I weigh 90kg, I'm not easy on rims and have destroyed many aluminium rims from DT and others. Finally, I've had a lifetime biggest crash on the WR65s, hitting a car at 40kph that turned across my path. A large 4wd car then drove over my frame, fork and front wheel. The carbon frame, fork and even headset spacers are splintered. The front WR65 took the brunt of the force. It has abrasions from being driven over, but remains true and intact, ridable. It will need to be replaced as a precaution due to possible internal damage. I keep replaying the crash footage and really can't believe the level of abuse it endured yet remained intact. These rims should be at the top of everyones list. A dream to ride. After my injuries heal, the replacement will be LB.

LightBicycle 2023/09/11

Hi Brad, Thank you for your message. We appreciate you a lot for your trust and continuous support! Hope you can recover soon! Light Bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Duddiee 2023/09/05

Are you planning to build this rim (Falcon RIM WR65) in hookless version?

LightBicycle 2023/09/05

Hi Duddiee, Thanks for your inquiry! Currently, for WR65 road disc 700C, we only have hook version. What tire width are you going to use? And what tire pressure you are going to use? If the tire pressure is low, there will be risk that the tire will blow off during riding. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Ryan 2020/11/03

Good day. How long will it take if I order and to be ship here in Singapore?

LightBicycle 2020/11/03

Hi Ryan, Currently, some pro rims have longer time in manufacturing. If it is mtb rims/falcon(non pro), it is faster. Which rims/wheels do you like? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Johan 2020/10/07

Which nipple and spoke length do you recommend for these rims using shimano slx flange hubs?

LightBicycle 2020/10/07

Hi Johan, Can you be more specific about the hub and provide the dimension measurements to me so I can do the calculation for you accordingly? Then we can get the spoke length for these wide road disc rims. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Eddie 2020/10/05

Hi I´m looking for 29" MTB rims about 280g, do you have them? Thanks Eddie

LightBicycle 2020/10/06

Hi Eddie, We have RM29C06 rims XC 29er flyweight around 280g. Please check below link. https://www.lightbicycle.com/bead-hook-less-rims-carbon-29er-light-bike-rim-tubeless-compatible.html Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

James 2020/10/02

Hi! I’m new to cycling and i need help picking out carbon road bike rims. Im tall and heavy at 6ft 6in. and i weigh 240 pounds. I need strong rims but aerodynamic

LightBicycle 2020/10/02

Hi James, Do you ride disc or non disc? What is your tire width? Then we can check which bike rims are good for 240 pounds rider. We can manufacture the bike rims with spoke count 28H for large riders. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Ruben 2020/09/17

I'm interested in a FALCON rim WR65 CX/Gravel build. As far as I've seen there's just the rim offered at the moment, right? But I've also seen an exemplary build with DT swiss 240s hubs and sapim spokes. That looks like the one I'd like to have myself for my gravel bike. Would that be possible? I'm also wondering if the rims are going to be released in the pro series in the next time? I would love to have the lifetime warranty option if available. Best regards Ruben

LightBicycle 2020/09/17

Hi Ruben, Yes, only the rim is available online at this point. But you can order a built road disc wheelset by email if you like. Could you be more specific about what you want? Hubs specs, spokes, nipples? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

See all 7 customer reviews>>

Get in touch

Feel free to leave a comment if you have any questions or suggestions on our products or other issues.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Build Your Falcon RIM WR65 disc

Overview

Specs

Tech

Warranty

In The Box

Rims

Full Custom

Overview

Specs

Rims

Full Custom

Tech

Warranty

In The Box

Gallery
