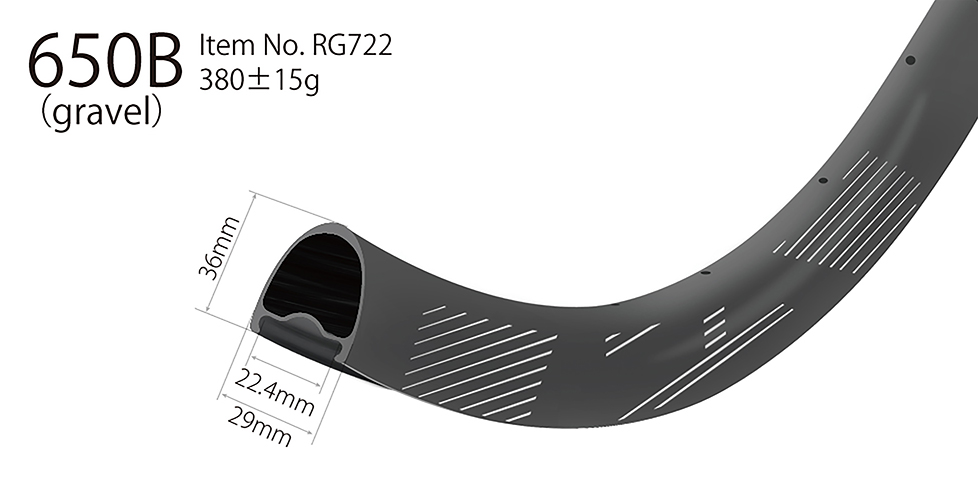

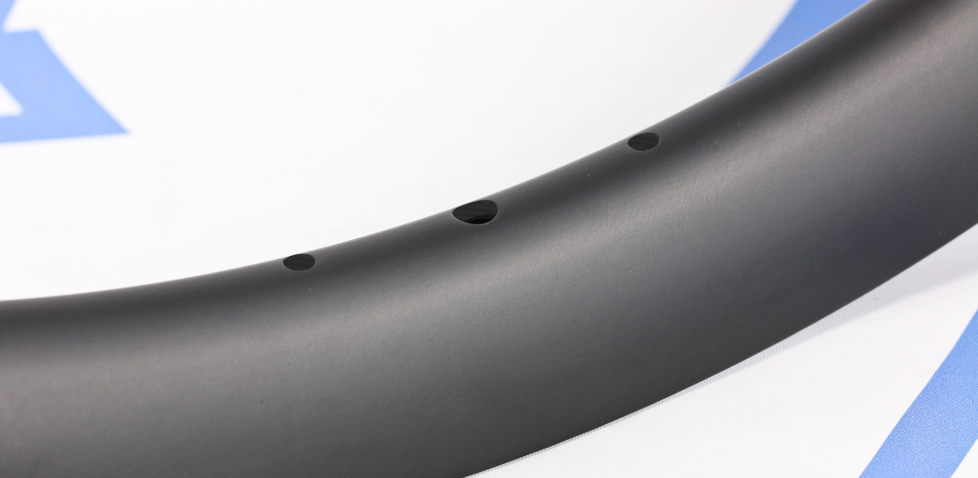

Build Your Falcon RIM AR36 650b disc

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.


Buy wheelset

RIM SPECS

  • Rim Model AR36 650b disc
  • Material Toray T700 & T800 Premium Carbon Fiber
  • Size 27.5"/650B (ETRTO 584mm)
  • Series FALCON
  • Intended Use Gravel
  • Bead Type Clincher
  • Tubeless Capable Yes
  • Inner/Outer Width 22.4mm/29mm
  • Depth 36mm
  • ERD 529mm (not including nipple head dimension)
  • Rim Weight 380+/-15g
  • Profile Symmetric (0mm)
  • Max Cyclist Weight (on flat ground) 135kg/ 298lbs
  • Spoke Hole Angle ±6°
  • Spoke Tension 120~135kgf front disc side and rear drive side
  • Max Tire Pressure (with 25C) 110psi/ 7.58bar
  • Recommended Tire Width 23C~50C

Read more for actual road tire width

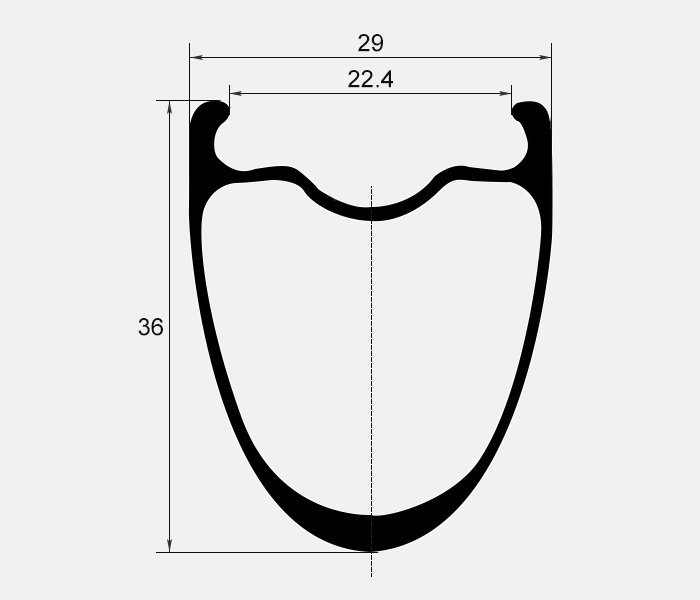

MTB carbon rim profile

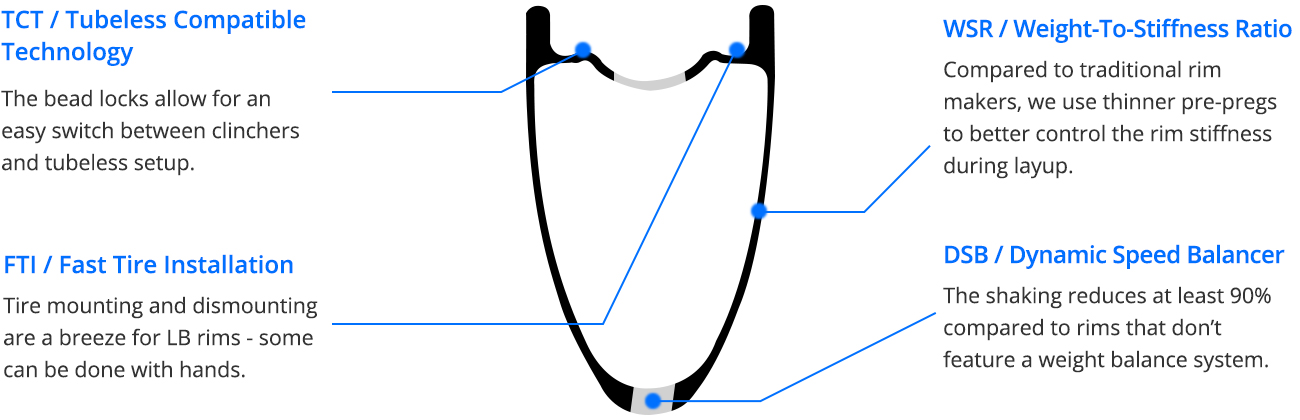

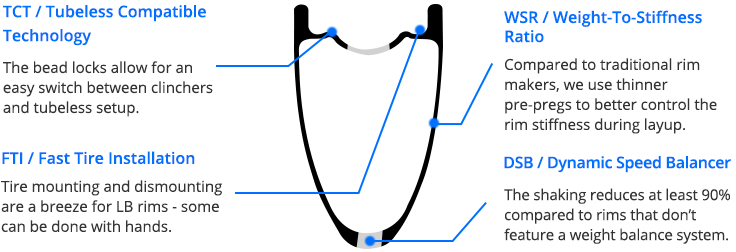

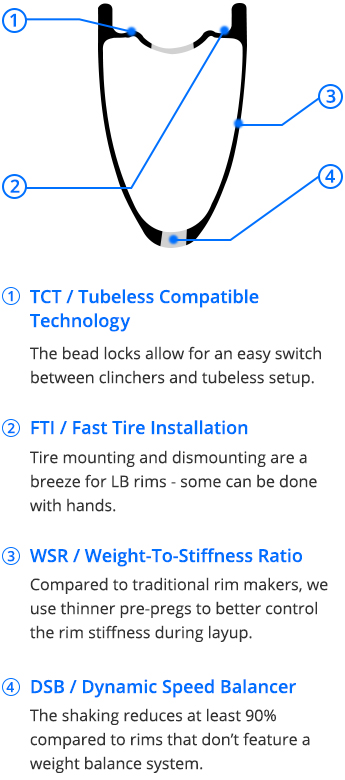

TECH

The 36mm deep rim is one of the newest members of our Road/Gravel lineup and the perfect partner for your next adventure. As more drop bar bikes become compatible with multiple wheels sizes, utilize these 650b rims with burly tires when the road gets rough.

Running larger tires brings better bump compliance, greater flat protection, and more grip. With a hooked bead and an internal width of 22mm, the 36mm can run anything from the super low pressures for gravel, right up to high pressure when the ride turns to pavement.


Learn More >>

WARRANTY

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>


WHAT IS IN THE BOX


Overview

Specs

Tech

Warranty

In The Box

The 36mm deep rim is one of the newest members of our Road/Gravel lineup and the perfect partner for your next adventure. As more drop bar bikes become compatible with multiple wheels sizes, utilize these 650b rims with burly tires when the road gets rough.

Running larger tires brings better bump compliance, greater flat protection, and more grip. With a hooked bead and an internal width of 22mm, the 36mm can run anything from the super low pressures for gravel, right up to high pressure when the ride turns to pavement.

Gallery

dt-swiss-180-gravel-wheelset-650b
Light Bicycle : Rims: AR36 650B Hook Matte 3K 24/24H No Drain Holes No Access Holes Hubs: DT Swiss 180 EXP 12/100mm 12/142mm Straightpull Centerlock Ceramic 54T Sram XDR Spokes: Sapim CX Ray straightpull Nipples: Sapim aluminum black Weight: 1260g Price: $1622.4 (the up-to-date price may vary a bit)
1
Light-Bicycle-gravel-wheel-AR36-650b
Luigi : AR36 650b wheels with carbon ti x hub, 12k and glossy. These beauties are only 1263 grams. I paired the wheels with Garbaruk components to make it more zoom zoom!
United States
2
Specialized-gravel-bike-on-Light-Bicycle-AR36-650B-carbon-wheels
Luigi : The ultimate gravel bike with Light Bicycle AR36 650b wheels in 12k gloss. The wheels weigh at only 1263g. Garbaruk components and Ultegra crank arms to make it go zoom zoom!
United States
2
13-speed-gravel-bike
René : Hey guys...this ist my own build and configured gravel machine. Wheels are the 650b AR36 from lightbicycle. I love them! 1x13 drivetrain costum build with sram components. RENNER ist my Nick Name
Germany
1
industry-nine-torch-centerlock-disc-road-hubs-lime-front-black-rear
Light Bicycle : Hubs: Industry Nine Torch 12 / 100mm J-bend Center lock Lime 24H Enduro Industry Nine Torch 12 / 142mm Shimano Road 11S J-bend CL Black 24H 60T Enduro Spokes: Pillar Aero X-TRA 1420 Nipples: DT SWISS Aluminium Black Rims: AR36 650B disc 24H matte UD Without Holes
1
light-bicycle-gravel-carbon-wheelset-AR28-front-AR36-650B-rear
Philippe : A combination of 650b with 48mm tires at the rear and 700c with 38mm tire at the front is just right for gravel: good traction and comfort, slacker geometry. AR36 (RG722) rear and AR28 (RG922) front with 28 J-bent spokes, light (1440g/pair) should be plenty strong and durable. Good mid clearance at the back mud.
Hong Kong
6
sapim-alloy-nipples-blue-orange
Light Bicycle : Rims: AR36 650B (RG722) matte ud Hubs: HUB-F Project 321 Lefty 1.0 J-bend 6-bolt Orange 28H High Precision Japanese Cartridge HUB-R Project 321 12 / 142mm Shimano Road 11S J-bend 6-bolt Orange 28H 216T(quiet) High Precision Japanese Cartridge Spokes: Sapim CX Ray Black J-bend uncertain Niples: Sapim Aluminium Blue Polyax External
1
12k glossy 650b gravel road rims with WTB tires
James : New gravel 650b wheelset. DT Swiss hubs and Sapim CXRAY spokes
United States
1

View More Reviews >>

COMMENTS

M

Miguel 2020/01/29

Hi, do you have any 650b rims with a profile suitable to add a brake track for rim brakes? Any plans to produce one?

LightBicycle 2020/01/30

Hi Miguel, For this 650B gravel rim, it is okay to manufacture with high TG resin brake surface if you like. Is it your bike and brake caliper wide enough for 29mm wide wheelset? If yes, we can manufacture for you. You can list your order specs here, we can work on invoice accordingly for you. Thanks, Lightbicycle

S

Serge 2021/09/03

I am also interested in a rim brake 650b gravel rim, similar to your 700c offerings, suitable for a 48 mm tire (like the WTB Byway). If this is a custom request, can you give me an idea of how much it will cost per rim?

LightBicycle 2021/09/04

Hi Serge, Yes, we can make a rim brake version with AR36-650b for you if you want. Do you want the standard Hight TG brake surface (no extra fee) or the grooved graphene surface? Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

M

Mathieu 2020/10/07

Hello, Is it possible to use the RM650BC09 instead of AR36 (RG722) for gravel biking as it is way lighter and cheaper and have the same inner and almost the same outer width ? Cheers.

LightBicycle 2020/10/08

Hi Mathieu, Yes, you can use the RM650BC09 as a gravel use rim. But the design intention of the rim usually makes the layup engineering, resin ratio of the carbon fiber, reinforced point, etc are different for different disciplines. What tire pressure you usually run with? One thing you need to keep in mind is that RM650bC09 is hookless (no hook at the tire bead interface). Our recommended tire pressure is to keep it under 40psi. On the other hand, AR36-650B is with hook bead, which will hold the tires better under high pressure. If you prefer a lighter rim, we can customize the AR36-650b as a flyweight version for you. Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

C

Chris 2018/12/16

Hello, Is this price per set? Any reason they wouldn't work with stock Cannondale Slate 28H hubs?

LightBicycle 2018/12/17

Hi Chris, Yes, we can purchase DT SWISS 240S lefty 1.0/50 28H for you. It's not available online currently. The purchase would take 2 months long time, will this be ok with you? If yes, pls let me know what specs you want for the whole gravel wheelset and I can create an invoice for you so you can finish the payment. Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

C

Chris 2018/06/02

Hello, is it possible to buy a wheelset with this rim with a Cannondale Lefty 1.0 hub at the front? I am riding a Cannondale Slate. I am weighing 71 kg. Are 24 spokes at the front and back possible for me? Had no problems on my other gravel bike with 700c wheels with DT Swiss 511db rims and 24 spokes at the front and back. Thanks Chris

LightBicycle 2018/06/04

Hi Chris, Do you like lefty hub with 24H? Currently, we only have lefty hub with 32H in stock. I have to check with hub suppliers and will get back to you soon. Thanks, Lightbicycle

D

David 2018/11/20

Hi, I have a Cannondale Slate and looking for a set of Carbon 650b gravel wheels built on DT Swiss hubs. How do I process this type of order?

LightBicycle 2018/11/22

Hi David, Do you like lefty 1.0 or lefty 2.0 hub? is it 32H hub okay for you? Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

A

Arnold 2018/04/29

Hi, whats the price and weight for complete wheelset with specification listed below?Rim: RG722 Front Axle: 12/100mm Rear Axle: 12/142mm Freehub Body: Shimano Road 11S Brake System: Center lock Front Holes: 24H Rear Holes: 28H Spoke Head: straight pull Hub Brand: DT SWISS Hub Model: 240S Nipple: Aluminium Black Finish: matte 3K Decal: None Valve Stem: Add Valve Stem Brake Pads: Add Brake Pads

LightBicycle 2018/05/04

Hi Arnold, We send you an quotation and wheelset weight to your email address. Have you got it? Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

J

Justin 2018/03/30

Hi, Can you tell me whether you can build these rims with a 36 hole straightpull DT Swiss j bend rear hub and a SP Dynamo 32 hole front hub? If you cannot supply the dynamo front hub do you have other dynamo hubs you can offer? Otherwise, please can you provide a price for the rear wheel and the front rim. Thanks Justin

LightBicycle 2018/03/30

Dear Justin Thank you for your inquiry! I am Charlie from LIGHT BICYCLE. Sorry to tell you that we don't have 36H hubs. For road wheels, 32H is strong enough. It's very rare that people ask about 36H. So, we do not order 36H hubs in stock. Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

S

Serge 2018/03/05

Hello, I am trying to decide which rim to use for a 650b bike that will see use on the road as well as on light trails. I weight 175lbs and I prefer to err on the side of durability. I plan to run 650b x 2.1" MTB tires (like the WTB Nano) at about 20-25 PSI, or 650b x 48cm road tires at about 35-40 PSI. I would like to run tubeless rims/tires. Also, I would like the rear rim to be drilled asymmetrically (offset 3mm ideally) while the front is symmetrical. With that list of requests, which rim would you recommend?

LightBicycle 2018/03/06

Hi Serge, The best we can do is drilled RG722 with 1.0mm offset. But it would require adding 35g to reinforce the rim strength. Does it work for you? Thanks, Lightbicycle

S

Serge 2018/03/06

How about the AM724 as an alternate?

LightBicycle 2018/03/07

Hi Serge, The best we can do is drilled RG722 with 1.0mm offset. Is it okay for you? Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

N

Nick 2018/02/13

Hi I've just purchased a pair of your RG722 rims. Before building them, I have a couple of questions: 1. Do you recommend the use of nipple washers between the spoke nipple and rim - with aluminium rims I normally use these washers on rims that do not have eyelets on the spoke holes. 2. With aluminium rims, I apply a little oil to the nipple where it bears against the rim. Do you recommend lubrication between the nipple and rim on your rims, and if so, what sort of lubrication. Regards Nick

LightBicycle 2018/02/13

Dear Nick, 1. We do not use nipple washers here for building wheels. The spoke holes’ wall strength is strong enough. But if you insist to use nipples, it is okay if you do not mind weight adding. 2. We do use lubrication oil while wheel-building. But it's a local brand, you probably can't find it in your country. I suggest you can buy it from your local bike shop. Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

P

Philipp 2018/01/22

Hi, I would like to know if this rim profil is avialable in 700c? Thank you Philipp

LightBicycle 2018/01/23

Hello Philipp, Thanks for your inquiry. There is a new 36mm depth 700C rim which is similar to RG722. Please find attached rim profile for reference. Does that work for you? Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

M

morten 2018/01/16

hello, how light can you build me a set Disc 650B gravel rims 29mm wide 36mm deep with 15 and 12mm and XD drive, weight and price please shipping cost ti Germany

LightBicycle 2018/01/17

Hi Morten, The lightest wheelset we can build is with DT Swiss 240S hubs and sapim cx-ray bladed spokes. It is around 1340g+/-25, USD1036/pair. Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

T

terry 2017/12/26

Hello- looking for a price at the following for 650B RG722 carbon wheelset -28 hole -matt -UD -no decal -no valve stem / no tape -hub = dt swiss 240 28 hole front (straight pull) / 28 hole back (12mm through axle with adapters for quick release and 6 bolt disc brake for both wheels) -spokes = pillar bladed 14 gauge or 15 gauge (which do you recommend?) -nipples = black alloy what is the widest width tire I can fit onto this rim? what will my total weight be for each wheel? confirming this wheelset will work with tubed clinchers and tubeless clincher thank you

LightBicycle 2017/12/27

Hi sir, Sorry for the delay reply! We are just on work. We have RG722 for you. Pls find the rim profile for your reference. May I know your tire width and your weight please? What is your usually riding style? Then we can check which wheelset is better for you and quote accordingly. Pls let us know if you have any further questions! Thanks, Lightbiccyle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

A

Andreas 2017/11/21

Hi! Thank you for your help with the spoke tension! Now i am looking for a gravel rim. Is it possible to built the rim: Gravel 650B RG722 hookless and asymmetric drilling by 2mm? This will be great! Thank you for your answer! Andreas

LightBicycle 2017/11/22

Hi Andrea, It is okay to drill 2mm offset. We just sent the information through eamail to you. Have you got it? Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.
