R35 Carbon Road/CX Rim - Light Bicycle

Buy & Configure

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

Global Shop

NA Shop

EU Shop

AU Shop

Ships worldwide. See what's on sale>>

Center Channel Hole This is a required option.

No Access Holes

Version This is a required option.

Front Flyweight / Rear Standard

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight:g+/-25

Subtotal: USD +

Lead time: typically ships in 2 days

ADD TO CART You missed some options.

We do not stock this item at the European warehouse. See what we stock currently.

You can order this product from our Global or North American warehouse.

Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.

Center Channel Hole This is a required option.

No Access Holes

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h, with drain holes

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight:g+/-25

Subtotal: USD +

Lead time: typically ships in 3 business days

ADD TO CART You missed some options.

We do not stock this item at the Australian shop. See what's available.

You can order this product from our Global / NA shops.

Please fill out this form if you are looking for a custom wheelset.

We'll get back to you soon to study the customization requests via email.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the North American warehouse. Check this link to see what items we stock, or send us an email to discuss.

Our Global warehouse can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelset. We will get back to you via email to discuss in 24hrs.

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

Quick Buy (In Stock)

Full Custom (Made to Order)

DEFAULT SETTINGS

Rims

Hook, matte, UD, with drain holes

Hook, matte, UD, with access holes, with drain holes

Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes

Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes

Paintless, UD, 5-year warranty, no drain holes

Grooved graphene surface, hook, matte, UD, with access holes, with drain holes

Grooved graphene surface, hook, matte, UD, no access holes, with drain holes

Matte UD, 32H, Centered (Staggered)

Hubs

Hope Pro 4 Fatsno J-bend 6-bolt

15/150mm (F) & 12/197mm (R) Sram XD

Straightpull centerlock black 24H

12/100mm & 12/142mm

Shimano Road 11S

DT Swiss straightpull / Bitex j-bend, centerlock, 28H

J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H

15/110mm boost & 12/148mm boost Sram XD

DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear

100mm QR & 130mm QR Shimano Road 11S

Spokes

Sapim CX Ray black

Sapim D-Light

Accessories

No decals/valves/tape

No decals/valves/tape/pads

No decals/valves

Piece Weight: g+/-20 g+/-25

Subtotal: USD +

Lead time:

ADD TO CART

Bead type This is a required option.

Hook

Brake System This is a required option.

Road-Rim-High-TG-Surface-Grooved-Graphene-Surface

Non Disc - High TG Surface: Rim Brake 700C road rims use an advanced High TG resin system with a layer of graphene to help dissipate heat. The braking power and reliability is significantly improved over a basalt braking surface.

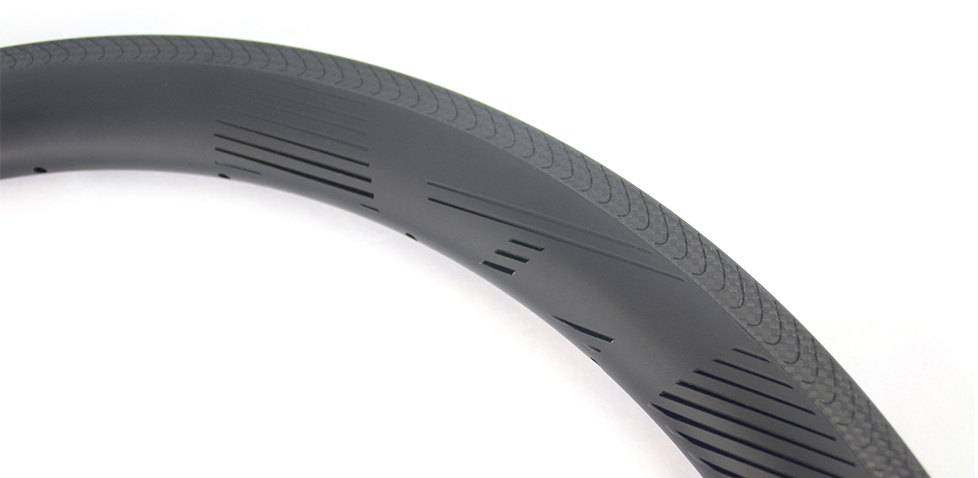

Non Disc - Grooved Graphene Surface: Our new resin system and construction method, combined with the 3k rim track, withstands over 280°C, dissipates heat, and lowers rim temperatures faster in between braking efforts. Gain confidence-inspiring brake performance on the steepest descents and wettest conditions with our matching brake pads. Also, graphene added to the rim brake track allows for greater resistance to overheating with improved heat dissipation and reduced temperature accumulation during heavy braking. The grooved track helps evacuate trapped moisture between pad and rim in wet conditions, and brings more resistance and force at the lever when conditions are dry.

Full Custom: This option (if provided here to choose) offers custom braking track in other various weaves (UD/12K/3K twill etc) with 1-2 weeks LONGER on manufacture and extra $10USD/rim only as a start (with High TG Surface by default). If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

Disc: The disc version does not have a rim brake track and features a unique disc specific layup process. Our new layup is about 10g ~30g lighter by reducing the unnecessary material and utilizing elements of our Flyweight construction method.

Non Disc - High TG Surface

Non Disc - Grooved Graphene Surface USD +30

Full Custom USD +10

Hole Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc) at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

20H

24H

28H

32H

Full Custom

Finish This is a required option.

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

Full Custom: This option (if provided here to choose) offers custom finish such as Satin/Raw etc at no extra charge but subject to rim models with 1-2 weeks LONGER on manufacture. And custom color painting is also available with added 15g/rim and extra $20USD/rim as a start. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

Glossy

Matte

Full Custom

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer for cosmetic appearence.

The rim strength & weight is virtually identical.

Matte UD is the most popular and has a subtle look.

The futuristic Hexa-Comb and Braided UD are smooth and looks great on deep rims.
More info about Weave >>

Full Custom: This option (if provided here to choose) offers custom weaves such as 3k twill vertical/ horizontal/ Braided UD etc with extra charge of $15USD/rim as a start but subject to rim models with 1-2 weeks LONGER on manufacture. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

12K

Hexa-Comb USD +15

Full Custom USD +15

Center Channel Hole This is a required option.

With Access Holes: This is the traditional method. Spoke access holes are drilled in the center channel to allow the nipples to easily be fed through the rim. Tubeless tape is required to seal the rim.

No Access Holes: No spoke access holes are drilled in the center channel. Feeding the nipples through the rim is more challenging, but it allows for a tubeless setup without the need for tape. This kind of system is known as "road tubeless" and was made popular by Mavic. Some companies still refer to it as "UST style", however, UST is actually a specific interface between the tire and rim which was developed by a partnership between Mavic, Michelin, and Hutchinson.

With Access Holes

No Access Holes

Drain Hole This is a required option.

The two small drain holes located 90° to the valve hole help evacuate the water trapped inside the rim, using the centrifugal force of rolling wheels.

It is the small reinforced layer prelaminated on the area where the drain hole is drilled later that makes the rim strength fairly ensured without any compromise of weight added.

Riders who ride in wet areas are suggested to order rims with drain holes.
More info about holes >>

With Drain Holes

No Drain Holes

Decal This is a required option.

Road rims use super light waterslide decals (matte colors). The decal is very thin and applied under a clearcoat so they are non-removeable.

Pictures about light-bicycle decal >>

If you want custom graphic, Please email us, we will design for you. There will be extra cost for custom graphic on rims.

Pictures about custom graphics >>

Blank (No decal)

Stealth (Grey)

Blue

Green

Magenta

Orange

Red

White

Yellow

Valve Stem This is a required option.

We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.
Information of tubeless rim tape

Apply Tubeless Tape: In Light Bicycle, a proprietary taping aid works with our wheel builders to guarantee that a solid taping craft at industrial-level is well implemented in order for you to ride carefree tubeless at any conditions.

None

Add Tubeless Tape USD +6 each

Brake Pads This is a required option.

By default, Shimano type is offered only (Contact us if you want Campagnolo type). 4 pads will be included. These high performance brake pads are designed for carbon bike rims only and offer excellent stopping power even in the wet.
Instructions of brake pads

None

Add Shimano-type Brake Pads USD +10

Recon Pro orders start shipping in October.

- + PCS

Piece Weight: 405.00g+/-15

Subtotal: USD 154+

PREVIOUS NEXT

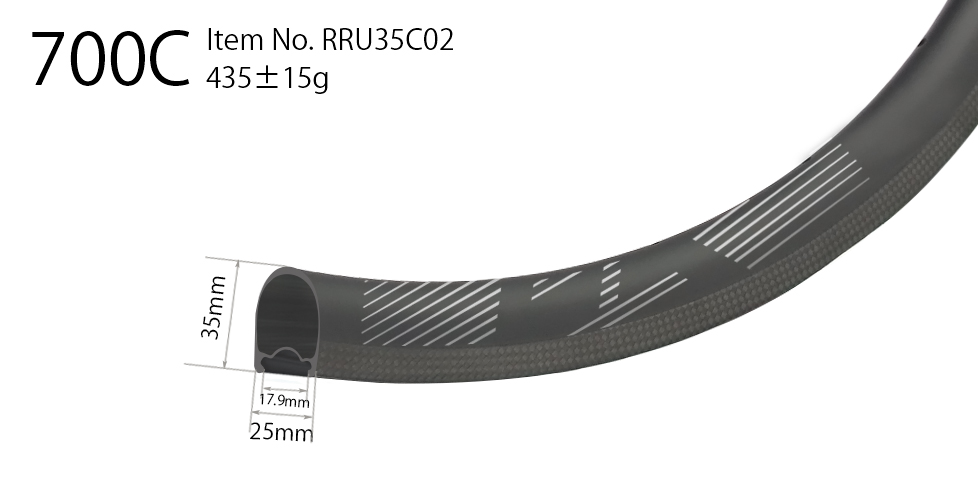

RIM SPECS

Rim Model R35
Material Toray T700 & T800 Premium Carbon Fiber
Size 29”/700C (ETRTO 622mm)
Series FALCON
Intended Use Road/CX
Bead Type Clincher
Tubeless Capable Yes

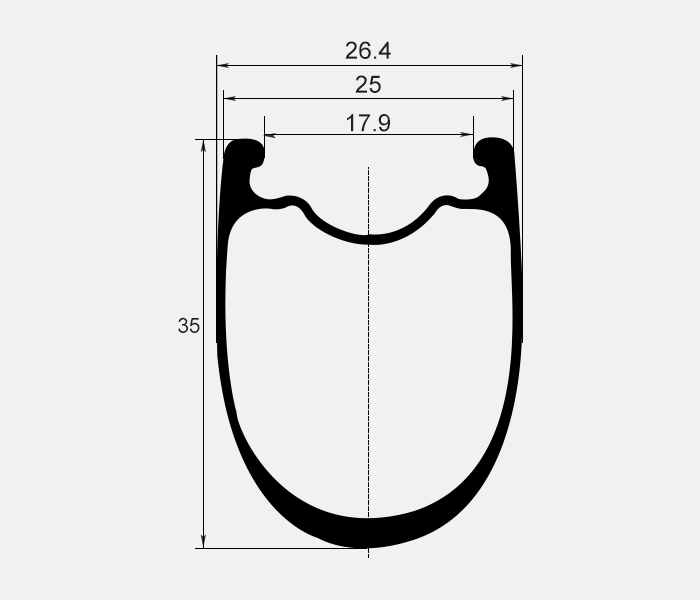

Inner/Outer Width 17.9mm/25mm
Depth 35mm
ERD 570mm (not including nipple head dimension)
Rim Weight 435+/-15g
Profile Symmetric (0mm)
Max Cyclist Weight (on flat ground) 125kg/ 276lbs
Spoke Hole Angle ±5°
Spoke Tension 100 ~110kgf front, 125~135kgf rear drive side
Max Tire Pressure (with 25C) 120psi/ 8.27bar
Recommended Tire Width 21C-38C

Read more for actual road tire width

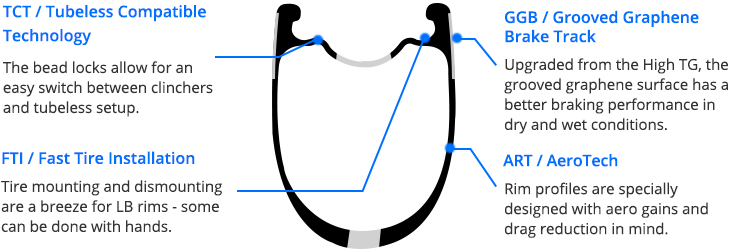

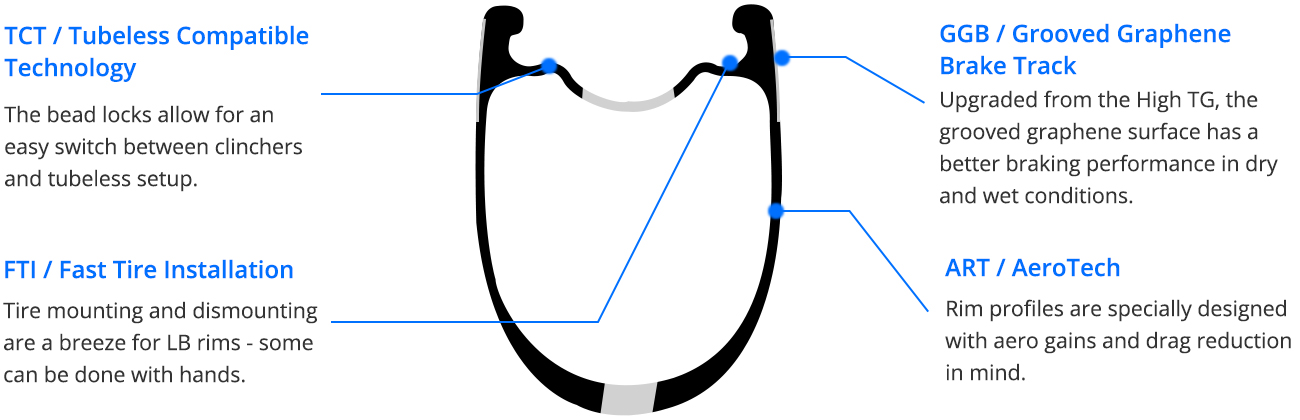

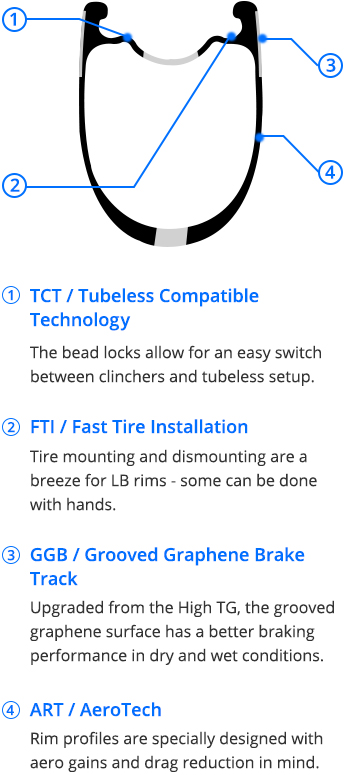

TECH

Whether you’re chasing KOMs, racing criteriums, or preparing for your first Gran Fondo, the R35’s are ready to take you to the next level. The deep profile is easy to handle in crosswinds, and comfortable to ride on rougher roads or rolling terrain.

Coming in at only 435g per rim, the R35 is designed to help you soar up the climbs while still given you that aerodynamic edge when the road becomes flat. The 17.9mm internal width works with anything from a 23mm to 33mm road or Cyclocross tire.

Learn More >>

WARRANTY

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>

WHAT IS IN THE BOX

Gallery

Mohsin: R35 rim brake wheels with Novatec hubs. I've been on these wheels since May and they are still in great shape after nearly 8,000km. Added to this, they weigh very little, which makes them a perfect fit for a light build. I just ordered the R45 wheels with DT350 hubs and I'll upload some pictures once they arrive. Ride safe and happy new year to you all.

China

light-bicycle-r35-road-non-disc-carbon-wheel-review

Light: Rims: R35 Hook Non-Disc Grooved Graphene Surface 20/24H external hole Glossy UD Tubeless Hubs: Novatec A291SB-SL F482SB-SL 100QR 130QR J-bend Non-Disc Shimano Road 11s 27T Spokes: Sapim CX Ray J-bend Nipples: Sapim aluminum black Weight: 1379.64g

1980-colnago-super-vintage-road-bike-on-light-bicycle-r35-wheels

David: As a long time fan of Light Bicycle wheels, I've purchased a few sets, however the ones on this 1980's Colnago Super (masquerading as a Master) are the lightest. With R35 rims, in gloss UD, laced to Carbon Ti hubs, via Sapim CX Ray spokes and alloy nipples, this wheelset came in just under 1,320g, without resorting to flyweight rims. I chose the R35s due to tight frame tyre clearances and because the shallow rim depth, visually suits the narrow steel frame tubes; whilst keeping the overall weight down to 7.9kg (without pedals or cages).

Australia

ritchey-logic-road-bike-on-light-bicycle-mixed-depth-carbon-wheels

Emacdo: Bought a set of 35MM and 45MM rim brake rims and built them up over the winter with a pair of Campy Electron hubs (completely rebuilt). The 35/45 configuration is a great all-rounder setup - climber in the front, aero in the back. They were fantastically easy to lace up due to their very tight construction tolerances. Finally have been able to take them on a couple of shorter rides in the last couple weeks (now that Spring is here where I live) and they were fabulous. Rode 90+ miles today on chip seal and washboard roads and the rims handled really well. These are now my favorite wheels. I can't say as much about the Conti 5k tires, but that has nothing to do with the rims (switching to a set of Vittoria Corsas after today's ride). The roads around here are passable at best, so I have done my best to beat these rims around and they have responded perfectly. I can't wait to put many more miles on them.

United States

pinarello-gan-2017-on-light-bicycle-r35-carbon-wheels

Sam: I rode it today and it runs and sounds great! I am thrilled with the wheelset. Thank you for your assistance. Attached are pics of my bike with the 35mm carbon wheelset, DT Swiss hubs, new ultegra crankset, ultegra cassette, ultegra chain, continental GP 5000 tires!

United States

Murph: I’m loving my new wheels, I just finished refreshing my Moots with a new Enve seat post, stem, fork, Easton EC90 Aero bars and wanted to share an updated picture of my bike. This bike has 30,000 miles on it.

United States

SEE MORE ADVENTURES

COMMENTS

Kevin 2019/11/13

I have Campagnolo Bora Ultra 50 wheelset but my real wheel needs new rims since heat deformation. I am looking 45mm rim which one do you recommend? I want to use the same campgnolo hub.

LightBicycle 2019/11/14

Hi Kevin, It is okay to order RRU45C02(25mm wide/45mm deep rim) for your rear road bike wheel. Is it your rear wheel Campagnolo Bora Ultra 50 G3 drilling? If yes, we have to manufacture the rim to match your G3 rear hub. Is it 24H spoke count for rear wheel?And For our rim on your rear hub, you will have to change the spokes. I think your current spoke length can not be used on our 700C 25mm wide road rim. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Zach 2019/08/27

Hi Do you do these with internal nipple compability? If so how much would a 24/20 hole set be to the UK? Thanks

LightBicycle 2019/08/28

Hi Zach, Yes, we can make these 700C road bike rims compatible with internal nipples, and it's free of extra charges. Attaching with some internal nipple wheels for your ref. The nipples will be hidden inside the wheels. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Tom 2018/11/01

Hello Can you recommend this rim (no Disc) for riding in the Alps with 10 Percent roads and more?My wheight is 70kg, does your Graphene work?

LightBicycle 2018/11/02

Hi Tom, Yes, we do recommend our new graphene grooved brake track. 1) Compared to old brake tracks, the new brake surface's braking friction has improved 15%. 2) The temperature of old brake tracks can reach around 240 Celsius. But our engineers told me that we will use new high TG resin on your current road rims also, so it can reach around 280 Celsius for your current and future orders also. For new brake tracks, graphene added to the rim brake track allows for greater resistance to overheating with improved heat dissipation and reduced temperature accumulation during heavy braking. 3) Heat dissipated with the new surface has been improved by 8%. Thanks, Lightbicycle

Tom 2018/11/04

Thanks,and the grooved brake track (Texture) is standard on this Rim or only for more money?

LightBicycle 2018/11/05

Hi Tom, For graphene grooved brake track on RRU35C02 road bike rim, the price is USD199 each. It is USD30 higher than disc verion. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Mihai 2018/09/17

Hi there, is it any time soon that you will build a u shaped rim with a depth of 35 to 50 mm, but much wider, around 24, 25 mm inner width? I recently rode a pair of Enve SES 4.5 AR DISC, owned by a crazy enough friend of mine, and they basically convinced me to have a pair of wider wheels. Cornering it's simply amazing, rolling just as. I'm interested in these two; RRU35C02 and RRU45C02, willing to build two pairs of this at your work shop, with dt swiss and pilar maybe, but they have to be that wide. So any chance for that to happen?

LightBicycle 2018/09/17

Hi Mihai. Since you are after a wider and deeper rim profile. Our new RR56C02 (23mm inner/30mm outer width, 56mm depth) might be the closest rim for you. We can build it with DT SWISS hubs, yes. Or you can check out the wheelset configurations at https://www.lightbicycle.com/700C-V-shape-46mm-depth-hand-built-carbon-road-disc-wheels---28mm-wide-and-tubeless-compatible.html We will discuss more details with you by mail. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Peter 2018/07/24

Hi Guys My local wheel builder recommended to you, have question, can you have spoke arrangement like campag rear 55mm 21spokes tubeless and 45 mm front 16 spokes straight Pull ,Dt hubs will it be strong enough Regards Peter

LightBicycle 2018/07/25

Hi Peter, For rear 21 spoke count RRU55C02 rim, is it 2:1 drilling? Do you like road rims only or complete wheelset? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Milan 2018/07/07

Hello, please, is 24 spoke enough for 90kg rider on rear wheel? Endurance and light gravel riding. Thanks

LightBicycle 2018/07/09

Hi Milan, If you are no riding aggressively, you can go with 24H. The max rider weight for RRU35C02 road clincher 700C rim is 135KG. We use over 300kg weight to do the test in our lab. You can choose Sapim CX-Ray to reinforce the wheels when you building the wheel. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Phil 2018/01/02

Hi, I'm looking to buy a set of 35mm rims and have a question about the decals. What comes as standard? I like the subtle square 'LB' logo over the valve stem but I'm not a fan of the huge graphic around the rim. Do you have a representative photo of what would be supplied if i ticked the option box for the logo? Thanks

LightBicycle 2018/01/02

Hello Phil, Thanks for your inquiry. RRU35C02 (clincher): 435+/-15g, $163/pcs We have newest road decal also. If you like the small logo on the value hole, that is fine. Pictures attached for your reference. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Larry 2017/11/22

I am looking at purchasing some rims to build up some road wheels and was curious if you rims need nipple washers and what is the max spoke tension? thank you Larry

LightBicycle 2017/11/23

Hi Larry, Our spoke hole is strong enough, so you don't need to add nipple washers. Normally, we do not make the spoke tension higher than 135kgf while building wheels. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Brian 2017/08/08

Is it possible to have spoke hole drilling for triplet spoke lacing? I plan to build 24/24 hole triplet wheelset. Every third hole would need to be drilled angled toward the non-driveside rear, and non-disc side front. The key spoke holes on either side of the valve would need to be angle drilled toward the drive side rear and disc side front. This would be the same lacing pattern of all Industry Nine road/cx wheelsets, for example. Thanks!

LightBicycle 2017/08/09

Hi Brian, For the triplet spoke lacing, is it 2:1 drilling? Are all spoke holes evenly spaced on the rim? If yes, we have two drilling as attached. Which do you prefer? Is it the method B? Are both front and rear rims with the same drilling pattern? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

dams 2017/07/06

Hi, What is the maximum pressure for a 25 mm tubeless ready tire ?

LightBicycle 2017/07/07

Hi Dams, Thanks for your inquiry! For road RRU35C02 rims, it can fit 25mm tubeless tires and the maximum pressure is 160psi. However, while riding, normally, riders will make the tire pressure around 100~130psi. Please check our quotation as below. RRU35C02 rims: clincher, 25mm wide/35mm deep, UD matte? Front 20H/rear 24H? With brake surface(or not for disc)? With decals or not? USD163 each Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Tom 2017/04/08

Is the price for one rim, or a pair of rims?

LightBicycle 2017/04/10

Hello Tom, Thanks for your inquiry. Our website price is for single rim. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

park 2016/11/30

Thanks, Kartrin Yes, I have a 28-hole hub. You can work.

LightBicycle 2016/12/01

Hello Park, Thanks for your support. Okay, we will go ahead to manufacture the U35mm rim in 28H. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Mike 2016/10/21

I previous purchased the 45U wheelset with dt swiss 240. If I purchase the 35U rims can I use the existing spokes and nipple from my 45u?

Light-Bicycle 2016/10/24

Hello Mike, Thanks for your continued support. Both U35mm and U45mm rims ERD are different, so they cannot be shared the same spokes length. You have to get some new spokes for U35mm. Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

morita 2016/08/10

Is there the stock of 16h? I want it immediately

Light-Bicycle 2016/08/11

Hello Morita, Thanks for your inquiry. Currently, we don’t have any U35mm rims in stock. The lead time is around 12 business days for rims, and around 4-7 days to delivery. Does that work for you? Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

adrian 2016/07/07

Hi I was wondering if you could produce this rim with a hookless bead (like your mtb rims) for use as a cyclocross tubeless rim? Cheers Adrian

Light-Bicycle 2016/07/08

Hello Adrian, Thanks for your inquiry. The road rims 700C here are all with hook bead. This design is better for road riding and cyclocross at the same time. Most of customers choose our road rims(no brake track) for cyclocross and they work well. For tubeless, you could use a kind of yellow tape, sealant and tubeless tire. Then it works perfectly. Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

See all 61 customer reviews>>

Get in touch

Feel free to leave a comment if you have any questions or suggestions on our products or other issues.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

^
